Projector People LIBDLHD50CWPKTW HDMI Wall Plate Extension Set Instruction Manual

Introduction

This product consists of an HDMI wall plate transmitter and a CAT receiver. The CAT output can extend 1080P signal up to 164ft / 50 meters via a single CAT6/6a cable. It supports Power Over Cable (POC) function that allows for greater flexibility in installations.

Features

☆ HDMI 1.3 and HDCP 1.4 compliant
☆ Video resolution up to 1080P
☆ HDMI signal can be extended up to 164ft / 50 meters via a single CAT5e/6/6a cable
☆ Support POC function (Only from receiver to transmitter)

Package Contents

1. 1 × HDMI Wall Plate Transmitter
2. 1 × Digitalinx DL-HD50C-WPKT-W Receiver
3. 1 × Cover Plate
4. 1 × 12V/1A Power Supply with multi-country standard adapters
5. 1 × User Manual

Specifications

Operation Controls and Functions

Transmitter Panel

Receiver Panel

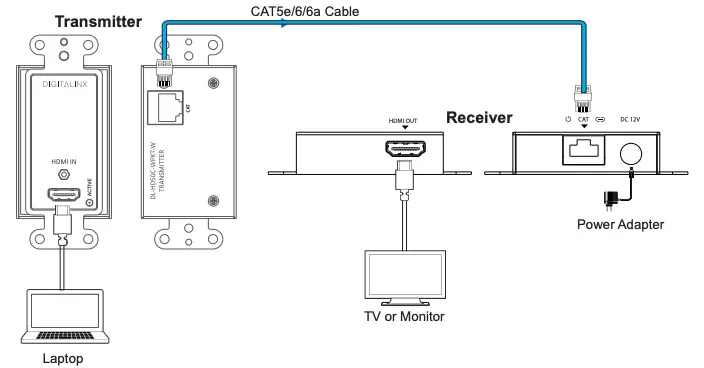

Application Example

The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
