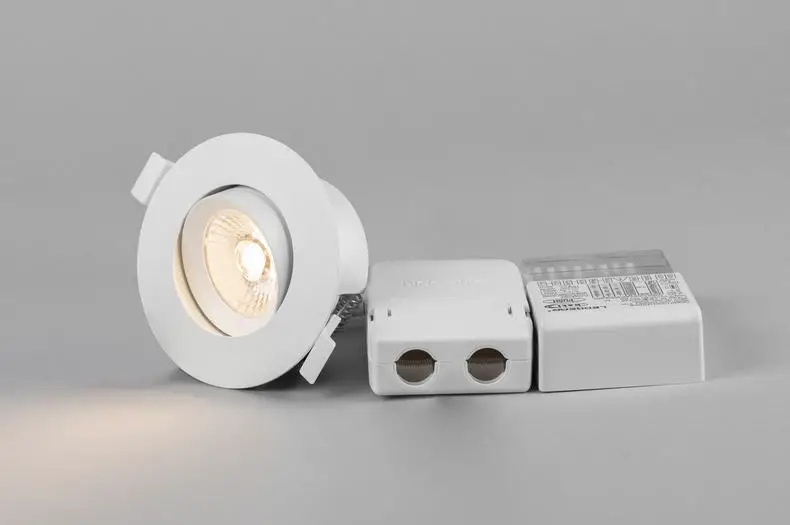

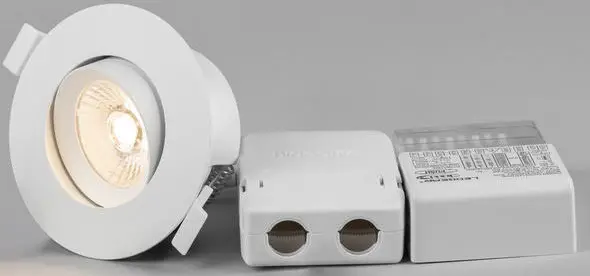

hidealite Comfort G4 Quick ISO Tilt DALI Ceiling Light Instructions

SAFETY INSTRUCTIONS

Read these instructions carefully before commencing installation and retain for future reference. The luminaire should be installed by a licensed electrician and in accordance with local regulations. Make sure that the power is off before installation or maintenance.

E: 2700K & 3000K
This product contains a light source of energy efficiency class E to Regulation (EU) No 2019/2015.

F: Tune
This product contains a light source of energy efficiency class F to Regulation (EU) No 2019/2015.

ISO

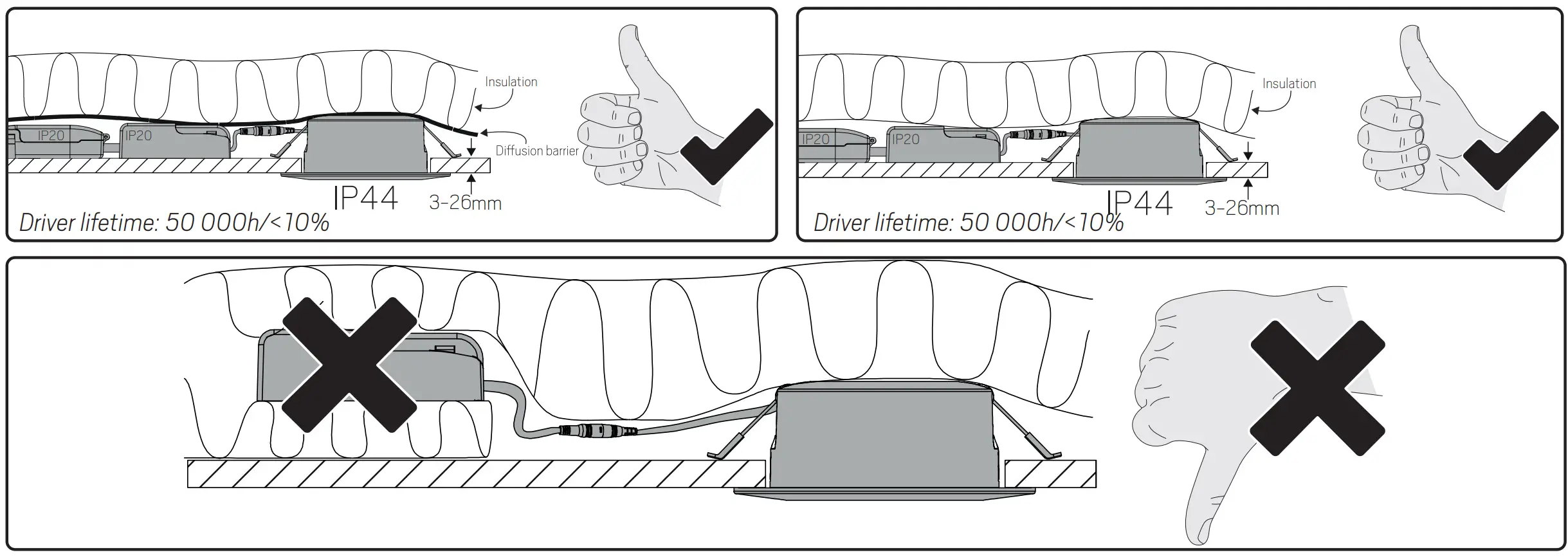

Approved for installation directly against insulation

For explanation of symbols see www.hidealite.se

hidealite choice

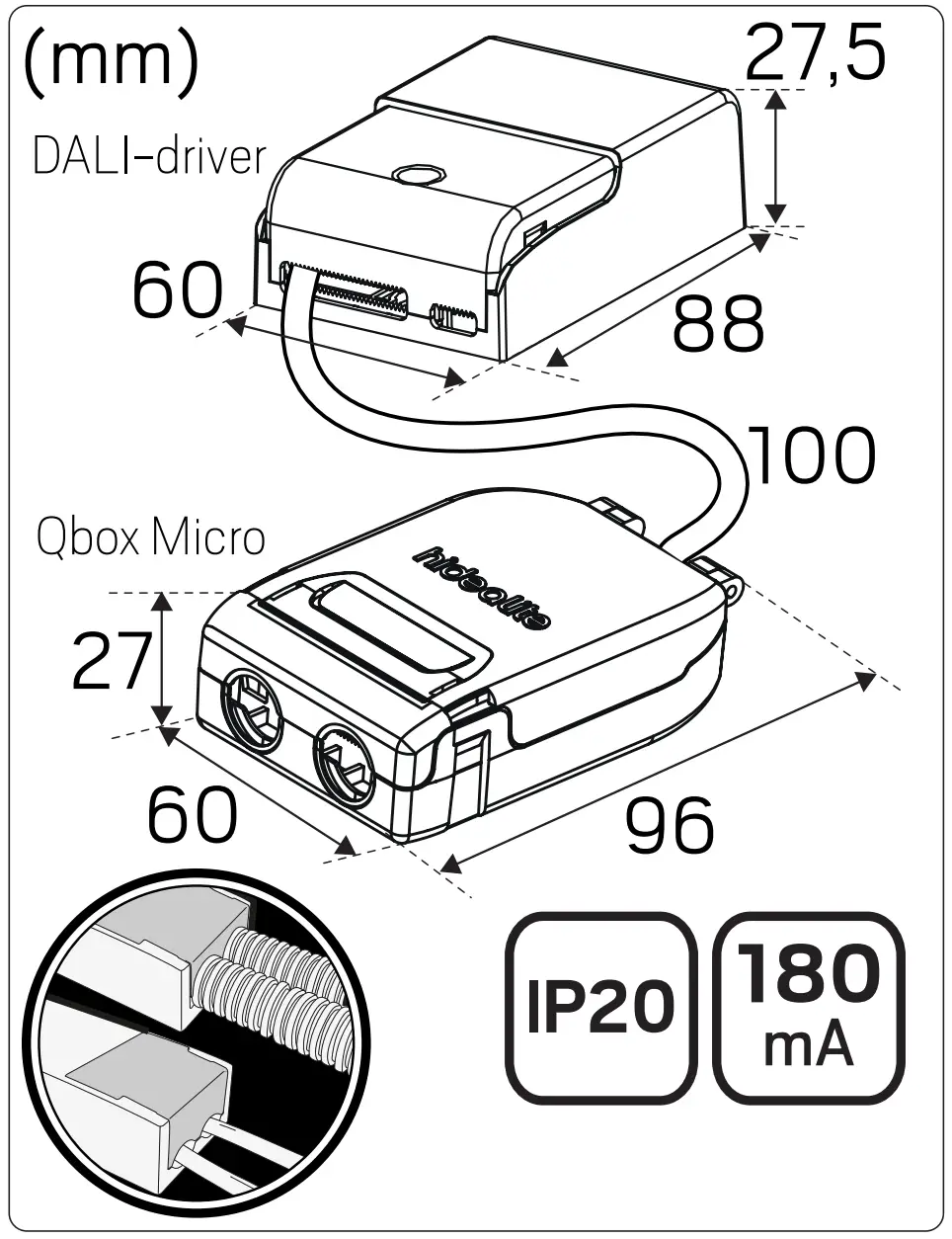

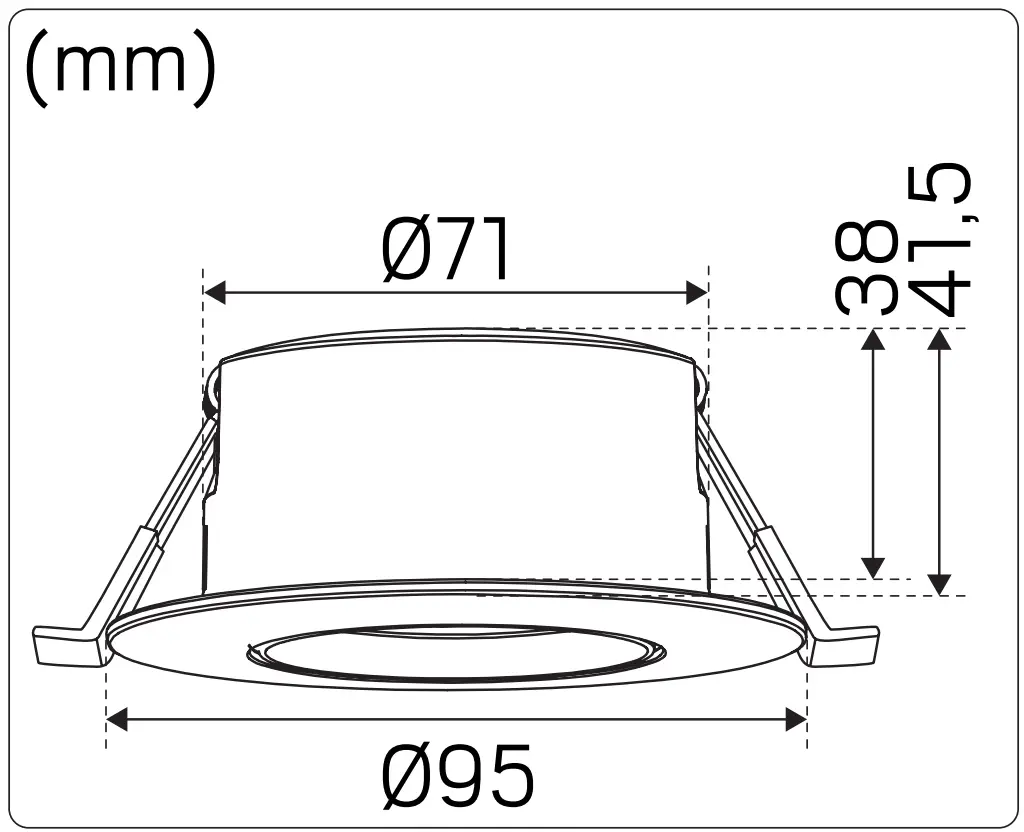

DIMENSION

Replaceable (LED only) light source by a professional

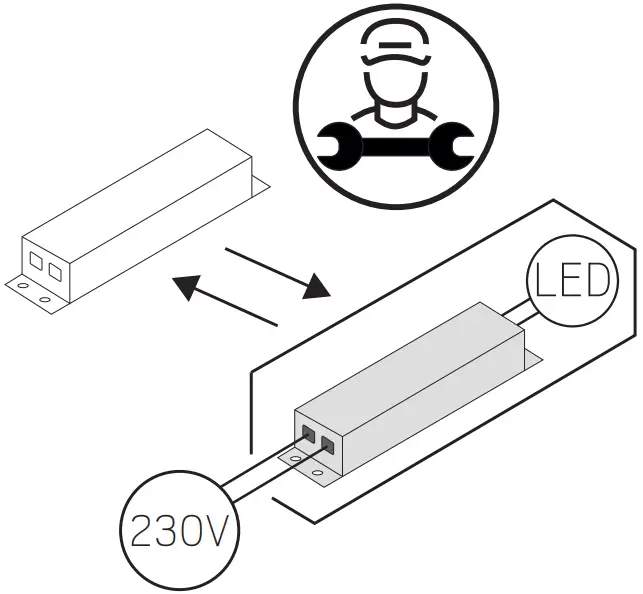

Replaceable control gear by a professional

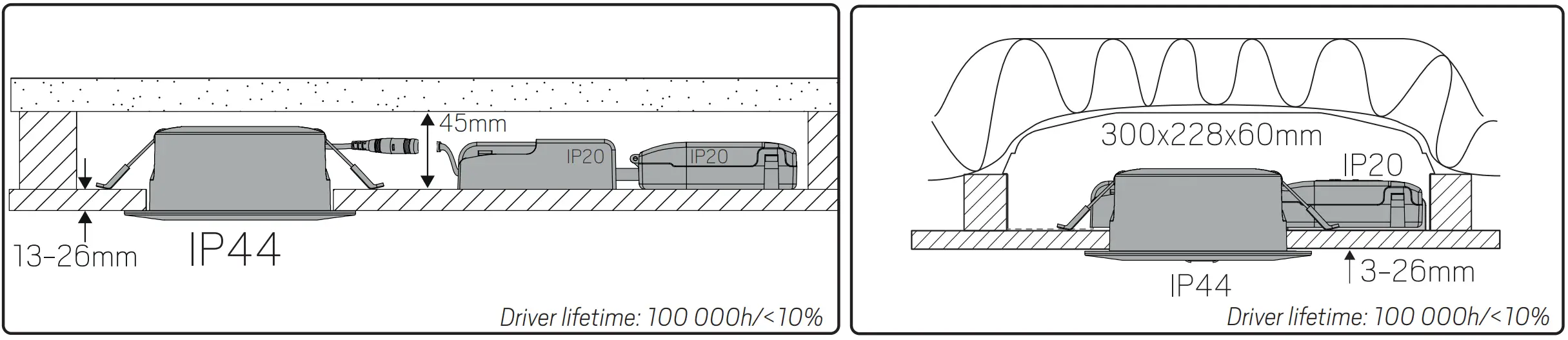

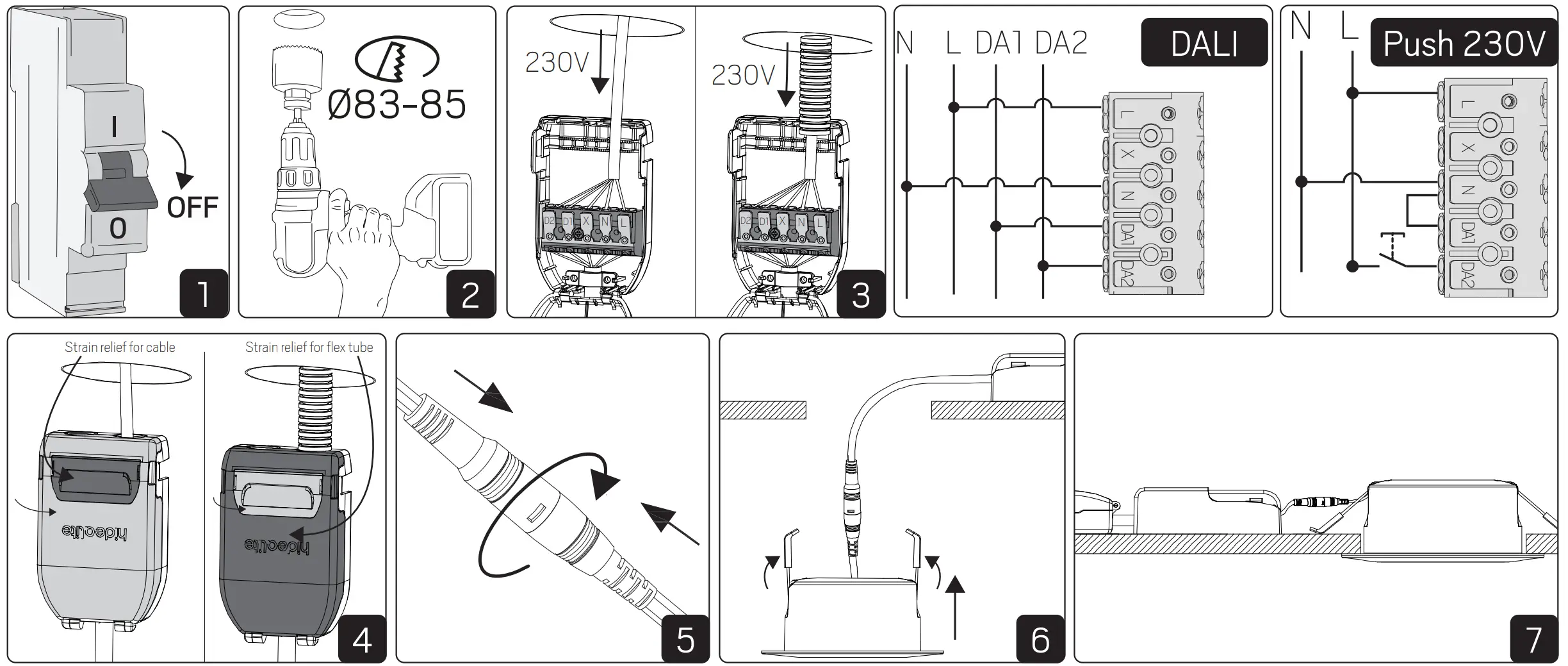

Installation

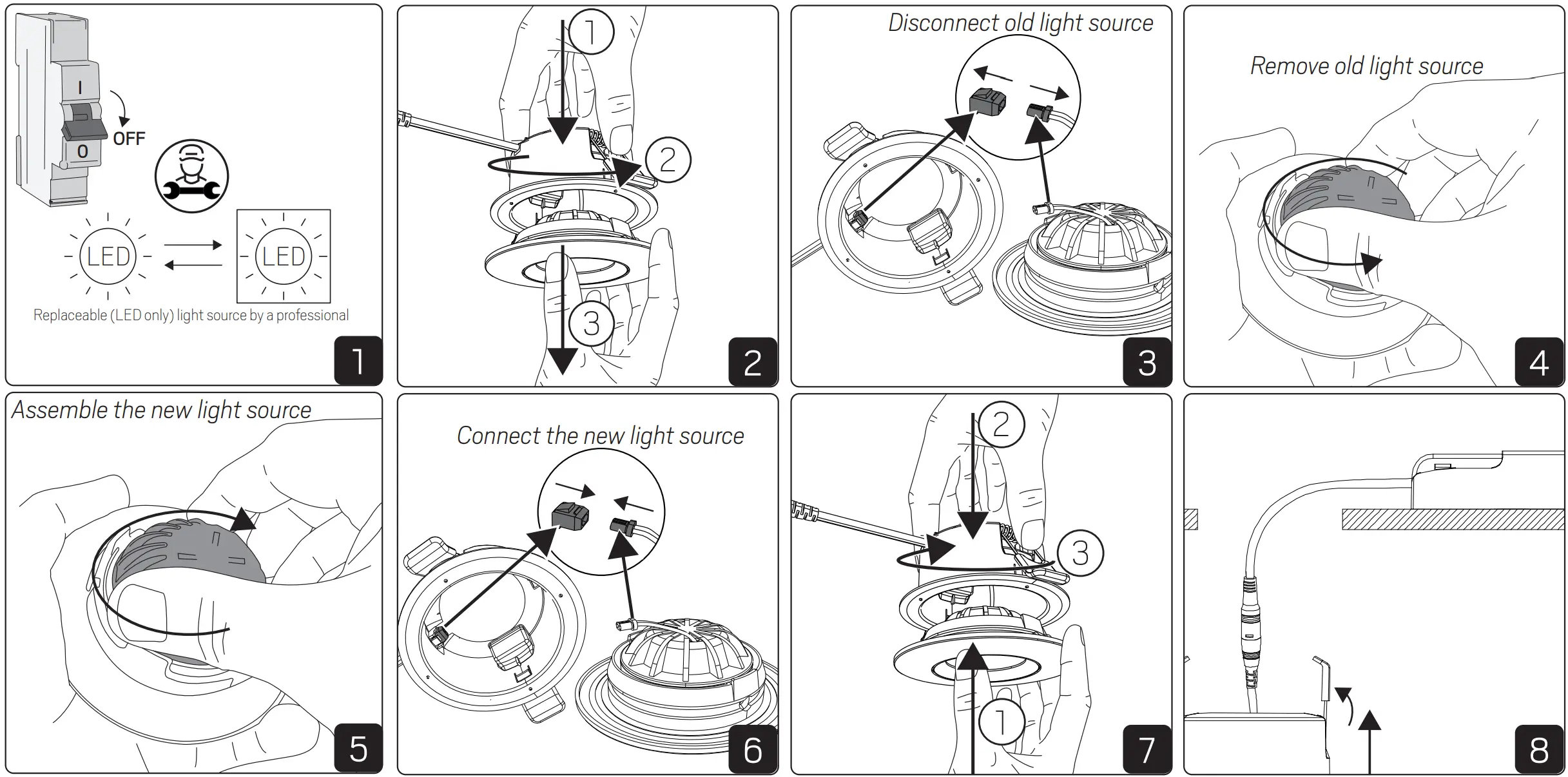

Replacement of light source

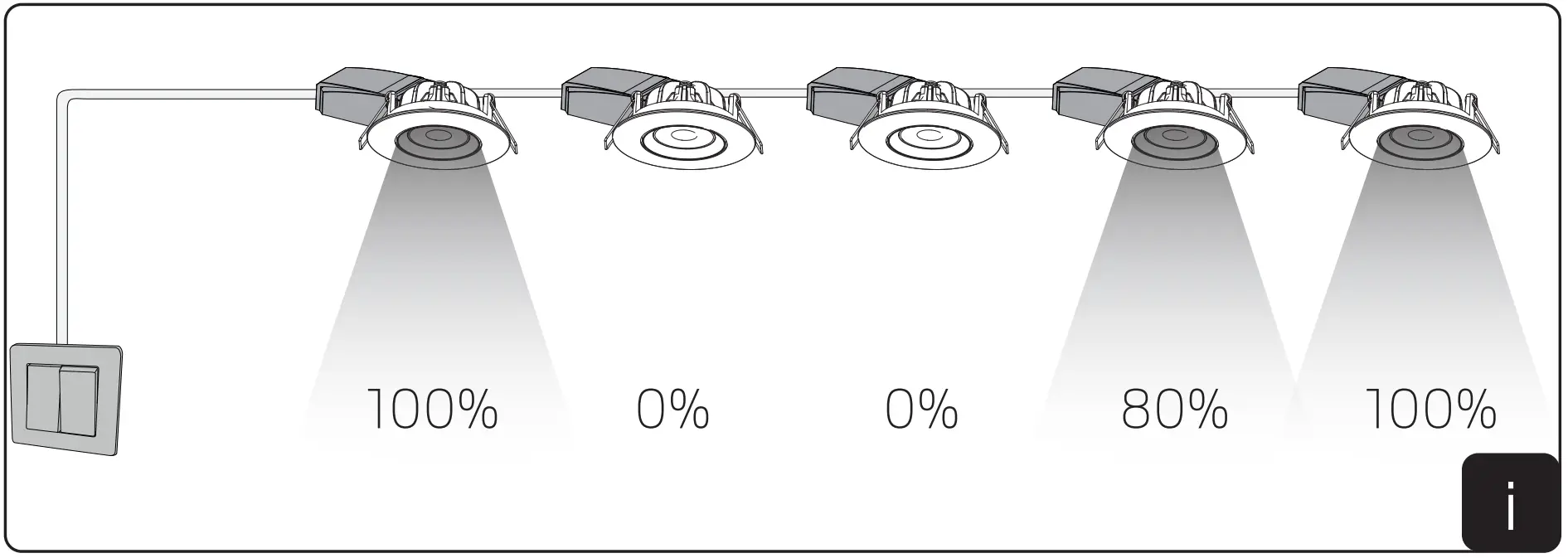

Push 230V – Luminaires not in sync – Armaturer inte i synk

One or more luminaires do not sync with the rest

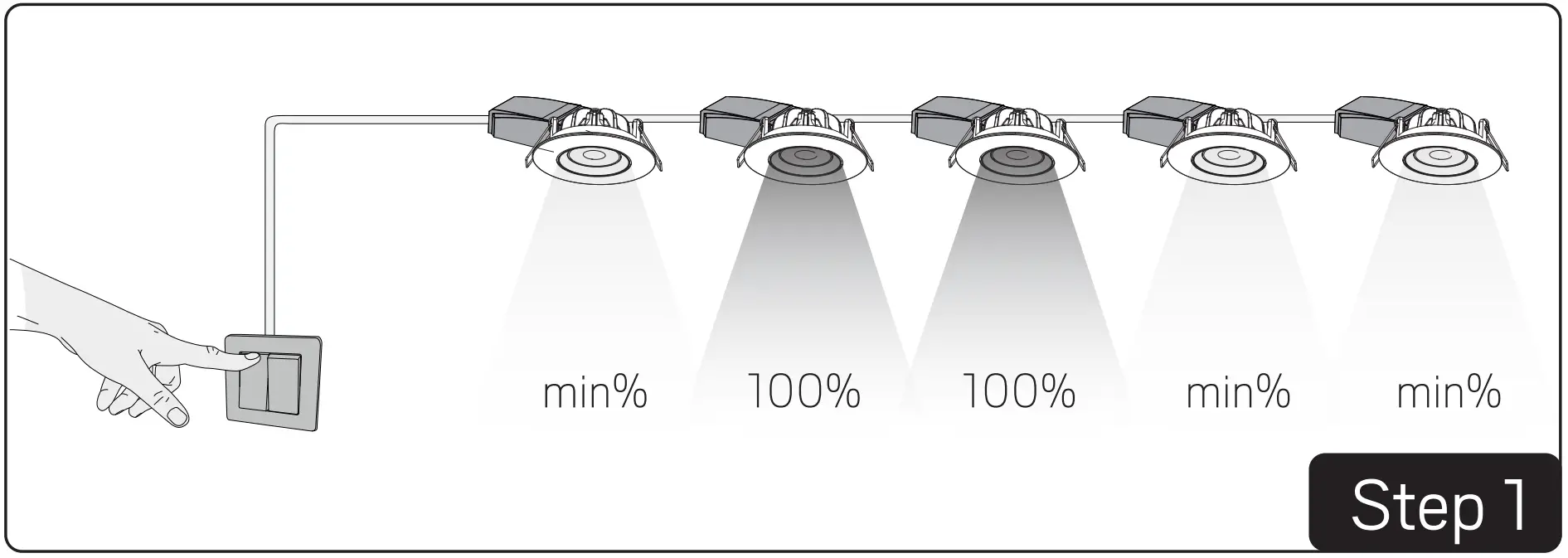

Press and hold the button. The luminaires are either dimmed up or down. (the turned off will dim, the turned on will dim down)

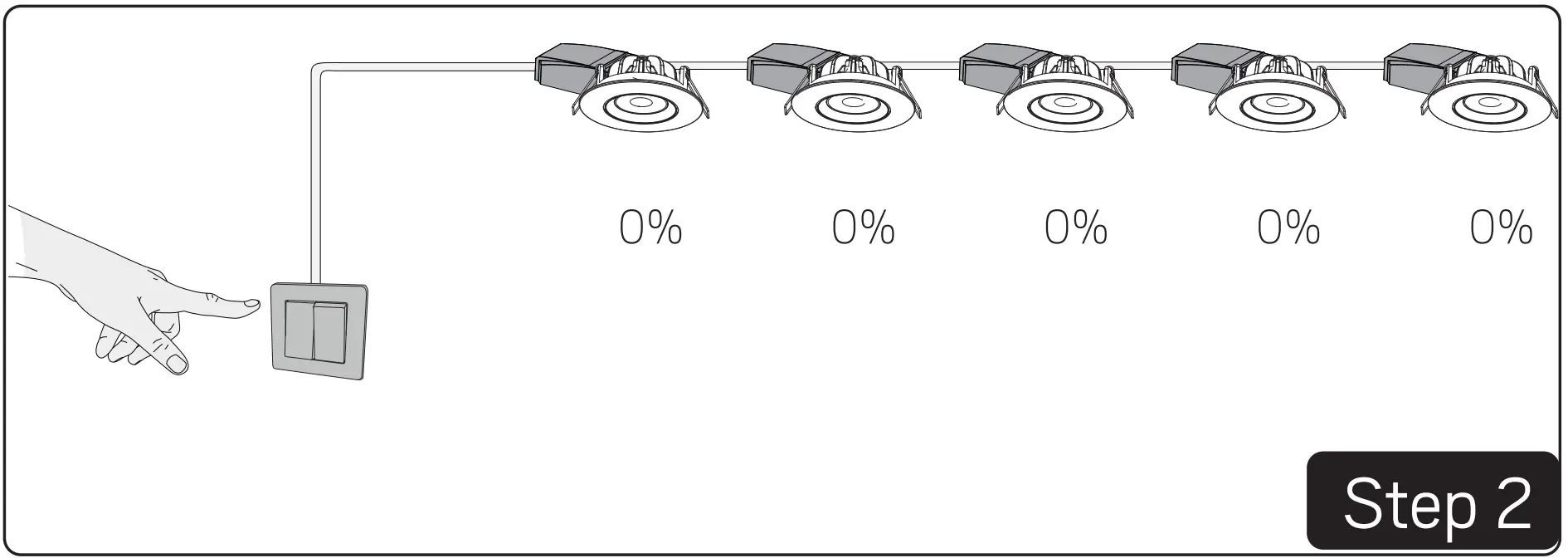

Briefly press the button to turn off all luminaires

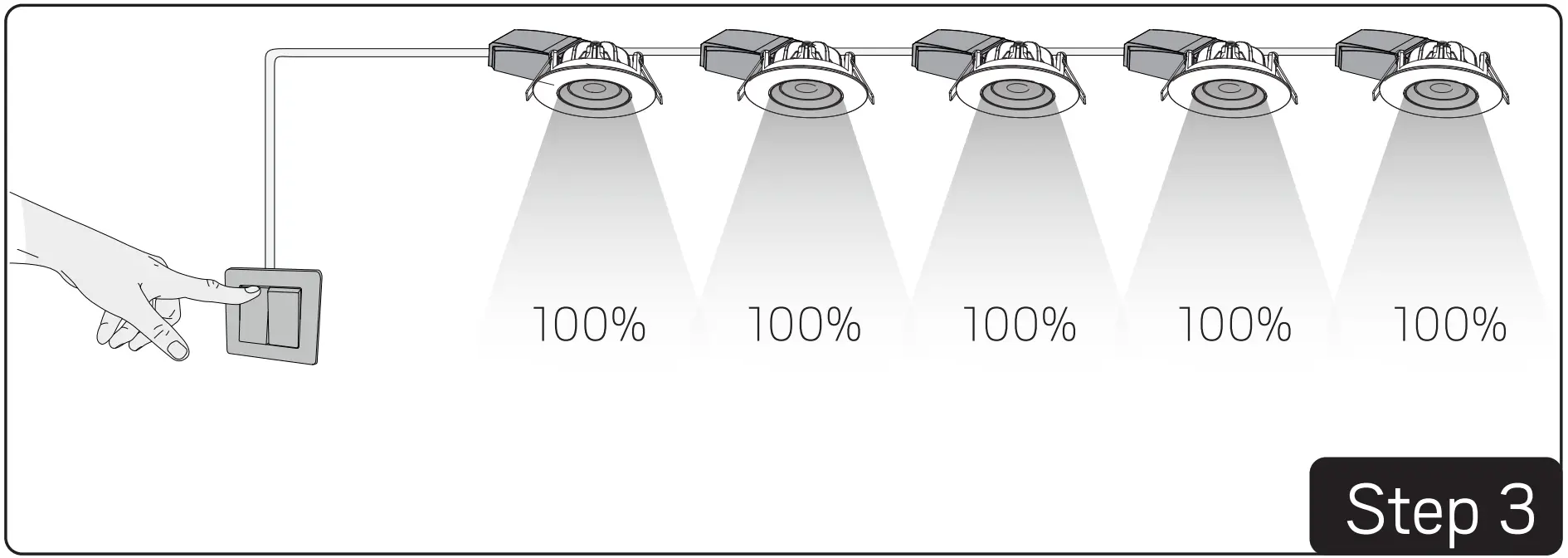

Press and hold the button. All luminaires now dim from min. level and up. The reset is now complete.

Elektro Elco AB, Tallvägen 5, SE-56435 Bankeryd, Sweden | [email protected] | www.hidealite.se | www.hidealite.fi | www.hidealite.no | www.hidealite.dk
