CLOUDWHEEL PJ00601 Pulley Conversion Kit Instruction

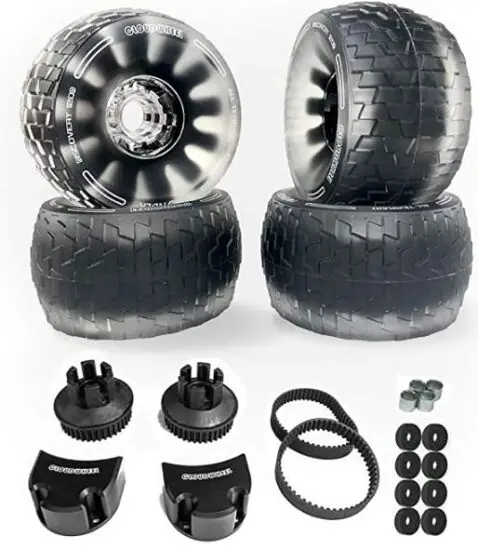

CONVERSION KIT LIST

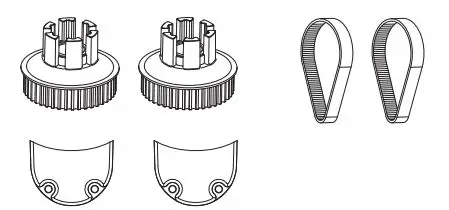

PJ00601

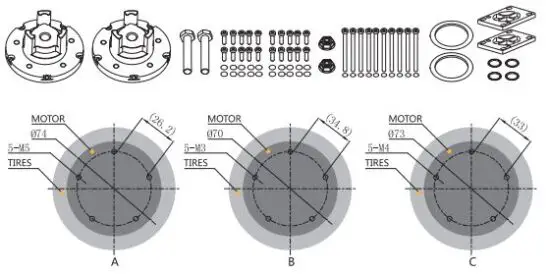

PJ00602
Please confirm that the end cover of hub motor is removed, the measured dimension is consistent with the figure, then the set is matched with your motor.
PJ00603
Please confirm that the end cover of hub motor is removed, the measured dimension is consistent with the figure, then the set is matched with your motor.

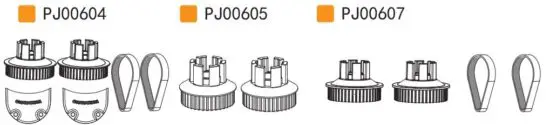

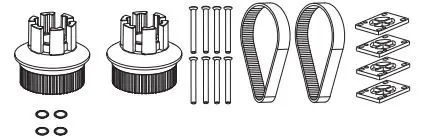

PJ00606
PJ00607
This kit only available for Exway boards

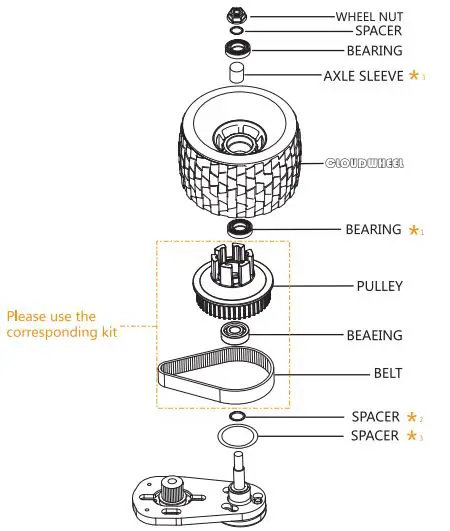

INSTALLATION STEPS FOR BELT MOTOR
FOR REFERENCE

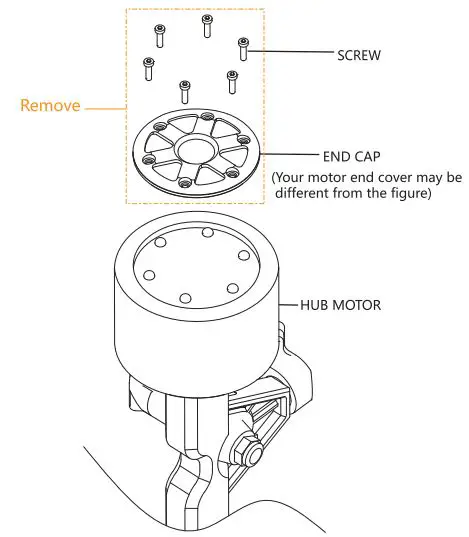

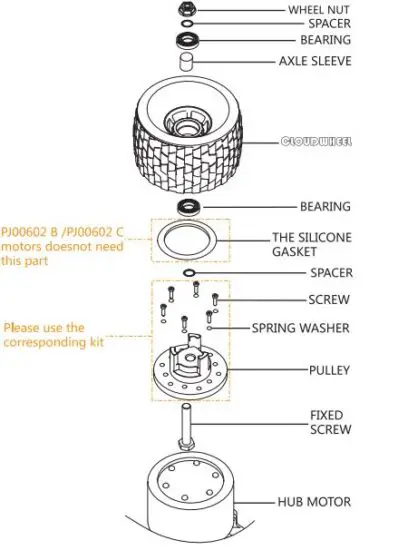

INSTALLATION STEPS FOR HUB MOTOR

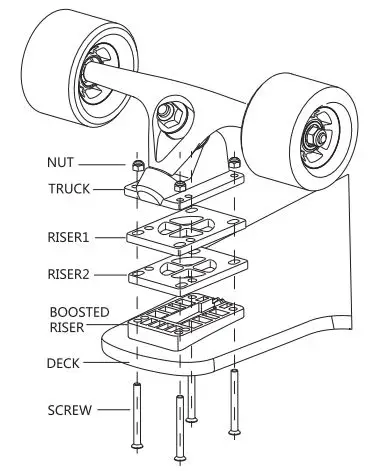

When the cloud wheel is installed, if the wheels come, into contact with the deck while turning under extreme conditions, please install the spare riser from the kit on your skateboard to solve this problem. Please install Cloudwheel on your hub motor, tires do not need to be removed. Depending on each kit, the parts inside of the kit will be slightly different.
INSTRUCTIONS
- Depending on the kit you purchase,the parts included may be slightly different from those shown in the diagram.
- Please tighten the relevant screws and nuts during installation
- Please check the tightness of screws and nuts to this kit and Cloudwheel regularly, for
- The details of the parts shall be subject to the actual goods when received.
- We reserve the right to change the specifications of the parts in the package according to the requirements of the products without prior notice
