la marzocco Wally Milk
Strada AV

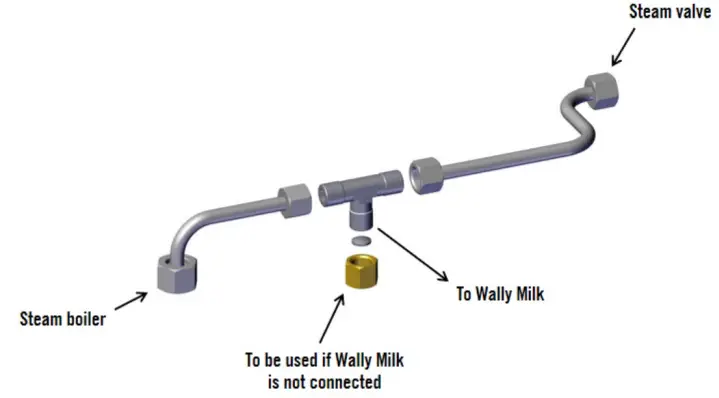

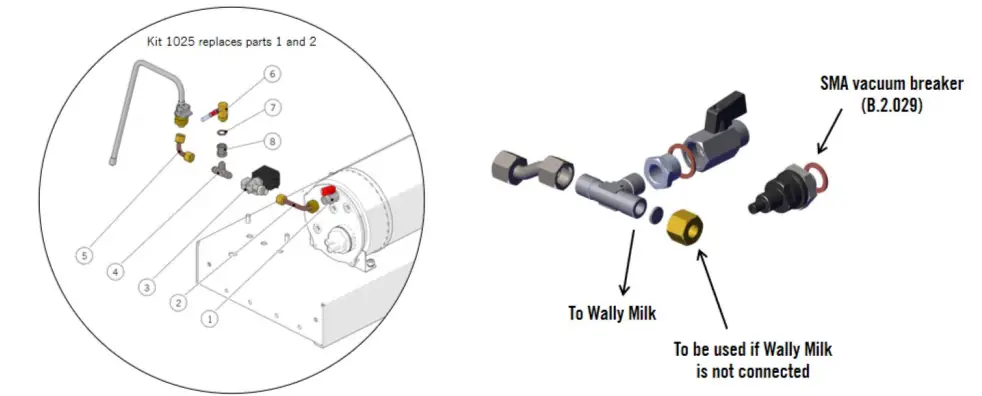

Strada AVThe kit 1025 can be installed either on the right or on the left side of the machine, and it replaces all parts from the steam boi•ler to the proportional solenoid valve.
Note: in order to fit the kit on the right side of the boiler, the machine must have the B.2.029 SMA vacuum breaker (which is supplied with the kit), as the older vacuum breaker valve does not allow enough clearance.
The kit 1025 can be installed either on the right or on the left side of the machine.

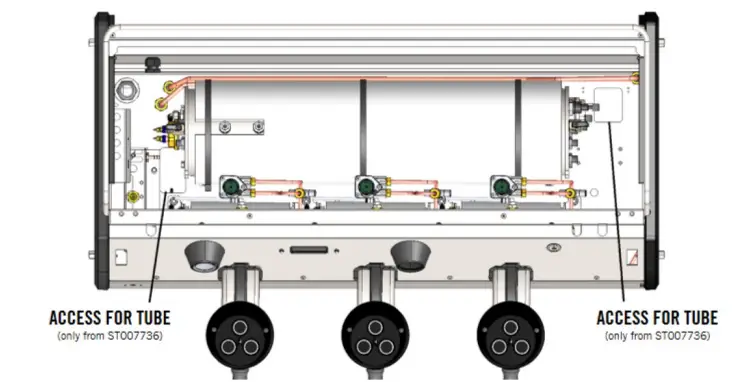

New frames, which are in production from serial number S1007736, have squared holes in both sides of the base to allow the wally milk tube to be easi.ly inserted.

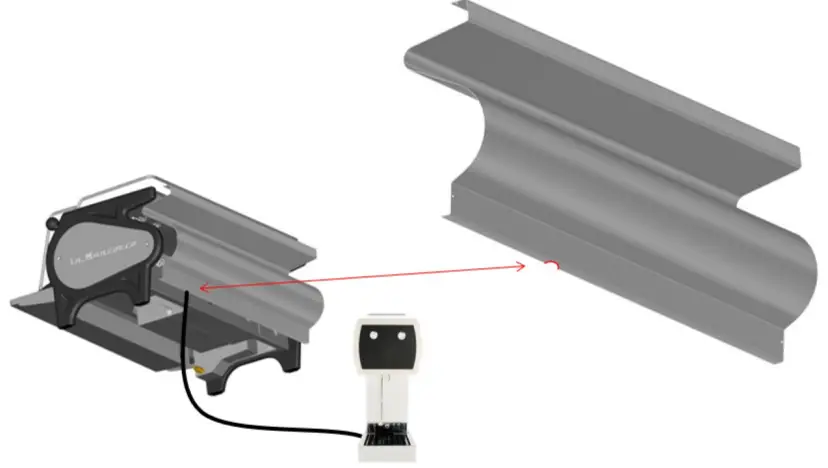

Strada AVs prior to ST007736 do not have any access for the steam tube in the base frame. For these machines, we suggest to create a slot in the lower side of the back panel.
Linea PB / KB90
kit 1 Dl 4 – 1015
kit 1015

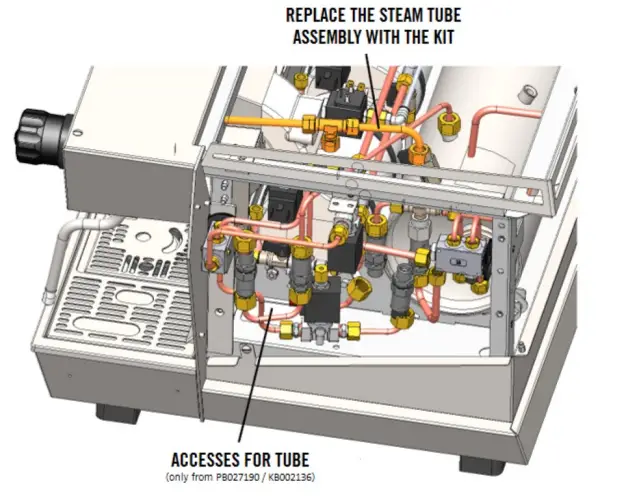

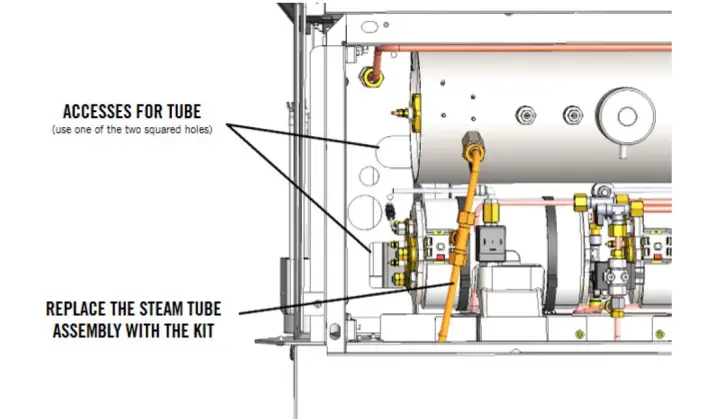

Left side kit (1015) can be fitted in all Linea PBs and KB90s, using one of the two indicated holes
kit 1014
Right side kit (1014) can be fitted in recent frames on.ly, since holes are not present in frames prior to serial number PB027190 and KB002136.
6B5 X-S

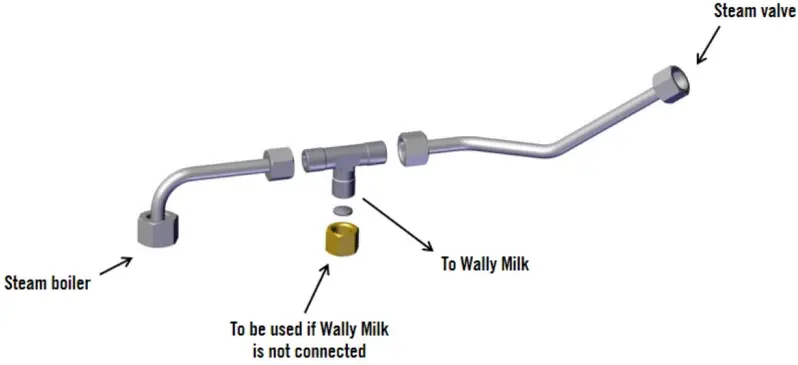

kit 1012 – 1013

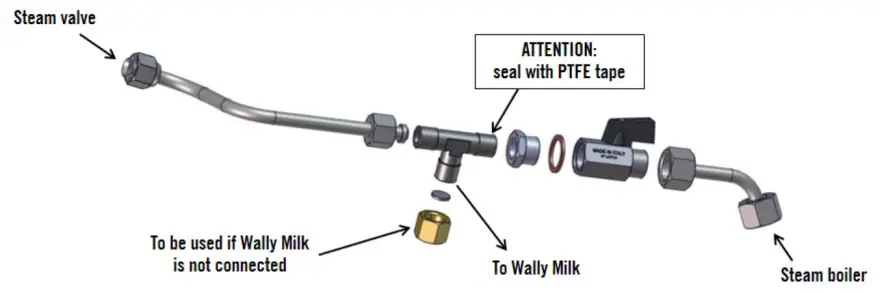

Kit 1012 can be fitted on the right side, while kit 1013 can be fitted on the left side of the machine.
Kit 1012 can be fitted on the right side, while kit 1013 can be fitted on the left side of the machine.

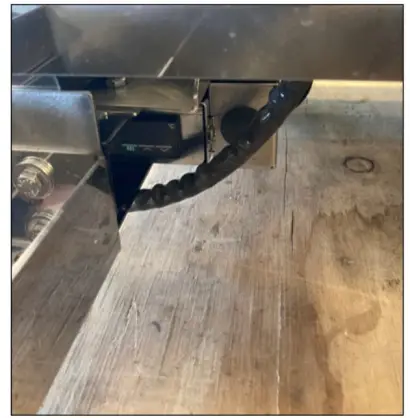

The holes in both sides of the base frame allow for inserting the steam tube from underneath the machine.
6B5 / FB80

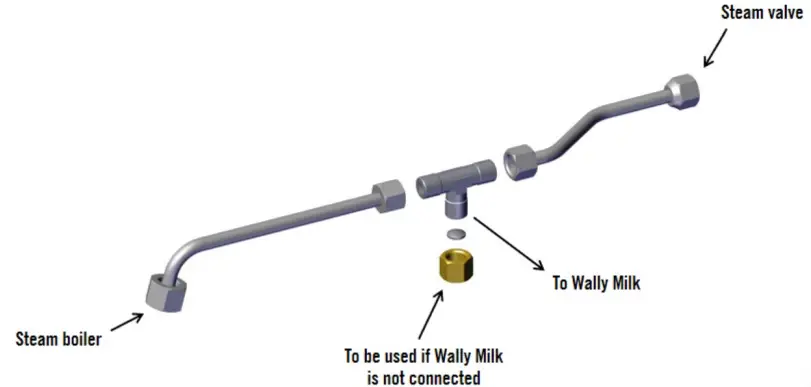

kit 10l8 – 1019

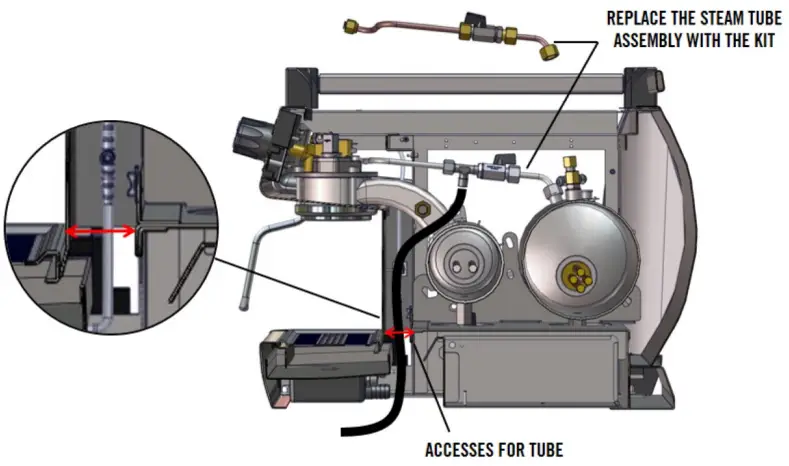

Linea Classic
kit 10l6 – 1017

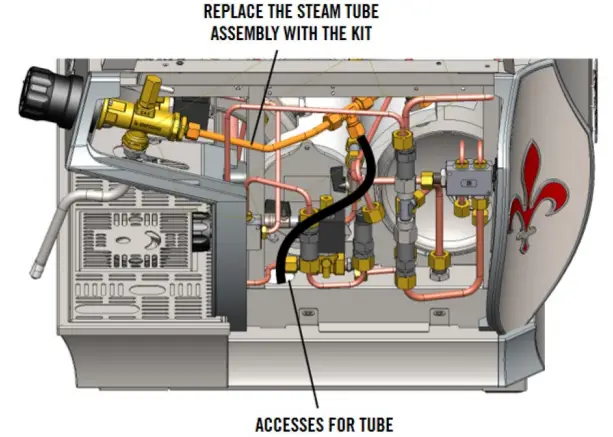

Kit 1016 can be fitted on the right side, while kit 1017 can be fitted on the left side of the machine. The base frame has holes to allow inserting the steam tube from underneath the machine.
Attention: if the CL03/*PR sealing panel is present underneath the framel this must be removed or drilled.
Kit 1016 can be fitted on the right side, while kit 1017 can be fitted on the left side of the machine. The base frame has holes to allow inserting the steam tube from underneath the machine.
Attention: if the CL03/*PR sealing panel is present underneath the framel this must be removed or drilled.
Modbar Steam
Attention: not suitable for pre-2019 version.
kit 1023

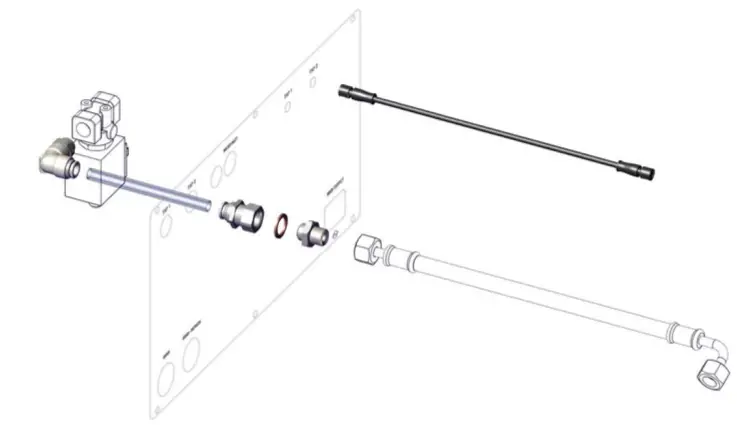

Kit 1023 can be fitted either 011 Tap 1 or Tap 2 outlet. A new connection cable is also supplied to connect Wally Milk to the module’s electronics.
The included fittings and PTFE tube have increased diameter in order to supply proper steam pressure to Wally Milk to maximize its frothing performance.
