Medify Air Ma-car Air Purifier Instruction Manual

Car Air Purifier
Instruction Manual

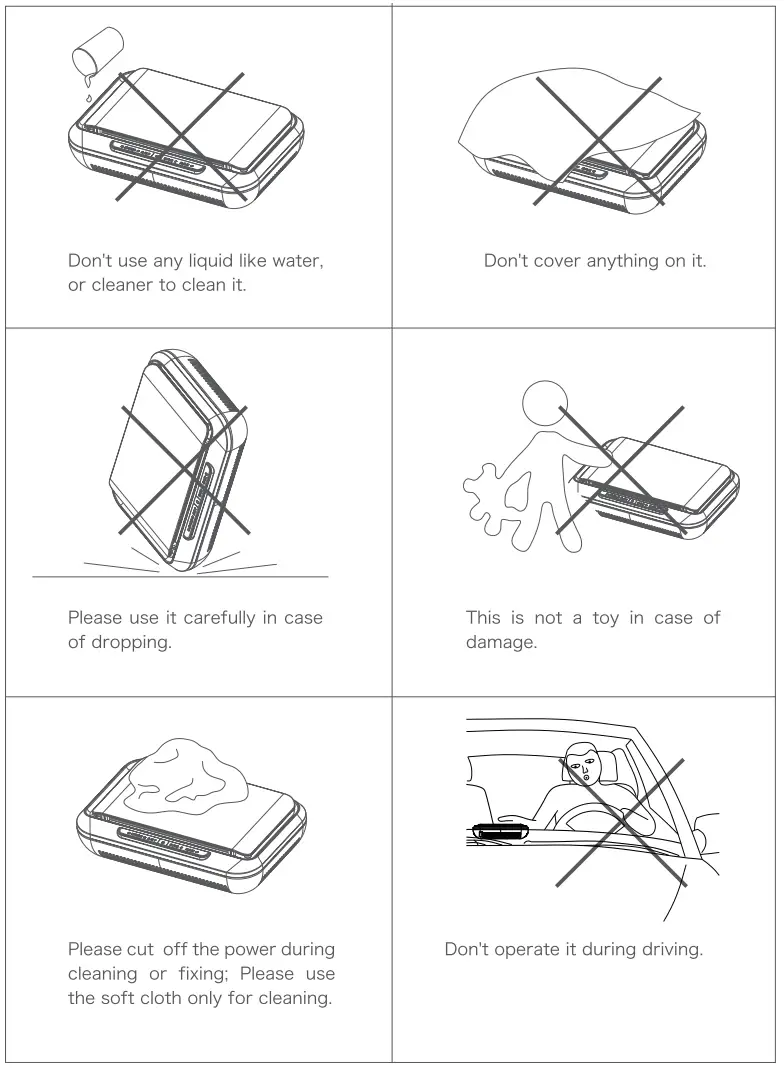

Important Notice

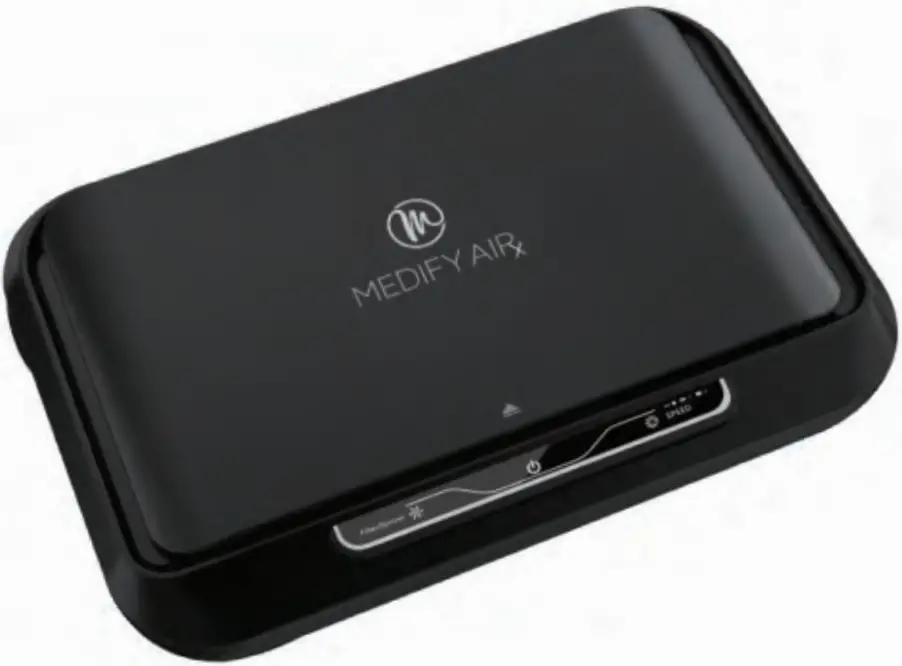

Product Introduction

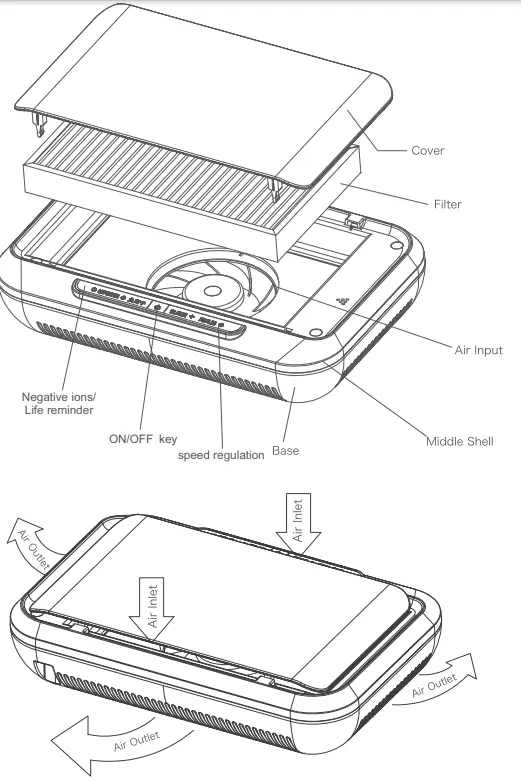

Part List

1. Please install it according to the instruction.
2. Please use the parts in this box only for installing.

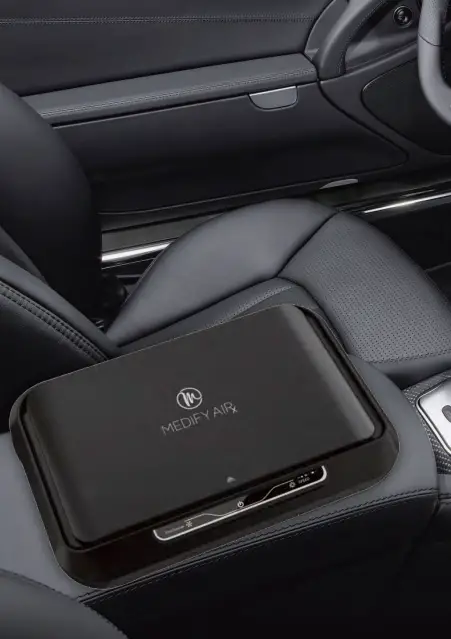

Application

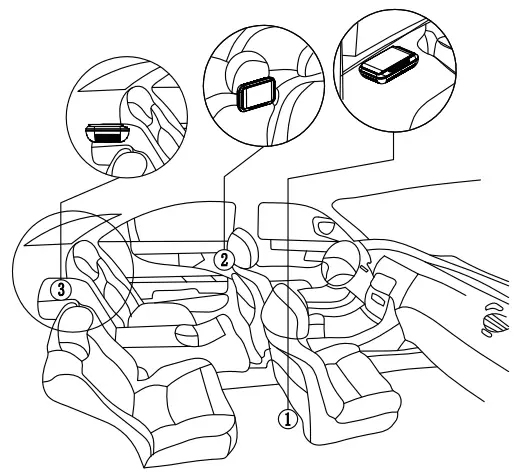

It can be installed in different locations per different cars: eg

1. Under the front seat.
2. Behind the backing of front seat.
3. On the back seat.

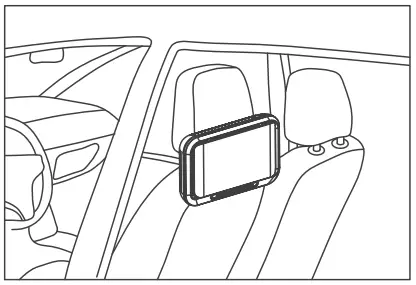

Install it behind the backing of seats

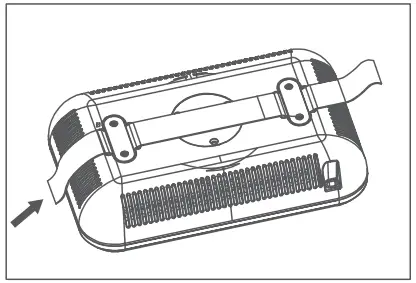

Install it behind the backing of seats per different cars.	Please insert the strap through the 2 holders like in the above picture.

Using Instruction

To install the Filter

1. Please cut off the power before installing.
2. Take off the polybag from the filter.
3. Make sure the Filter is in the right direction.

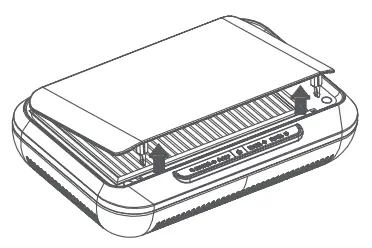

Take off the cover as arrow shows.	Take off the filter as arrow shows.

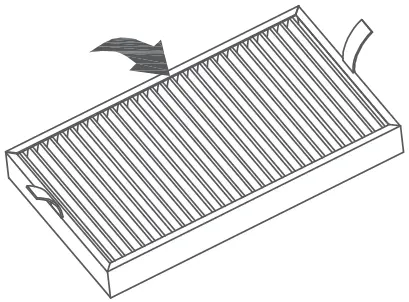

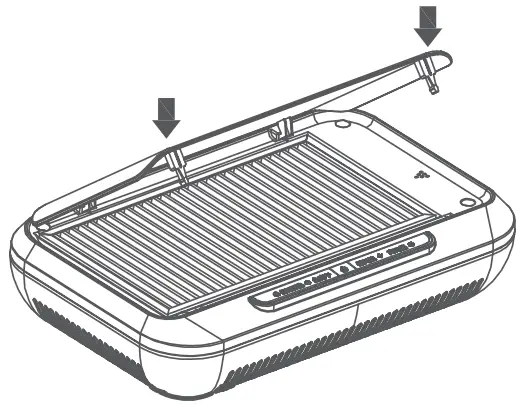

Insert in the cover and press it well.	The Direction of the fitter

Attention: The Purifier will not work if the cover has been taken off or Not been covered well.

Control Panel Operation

Touch key operation:

1. After power on, the button will flash and the machine is in the standby state.
2. Touch the switch button and the machine will enter the working state at fan speed 1. Touch the fan icon lightly to adjust to the desired speed.
3. The negative ion function will be turned off by default when the machine is turned on. Touch the negative ion button, and the white light at the bottom will show the negative ion is on. The anion button shows filter life. When the filter expires, the red light at the bottom of the button flashes. After replacing the filter, long press the button for 3 seconds, which will turn off the red light, and reset the filter indicator.

Product Parameter

MADE IN CHINA

EPA Est. No.: 100140-CHN-1
