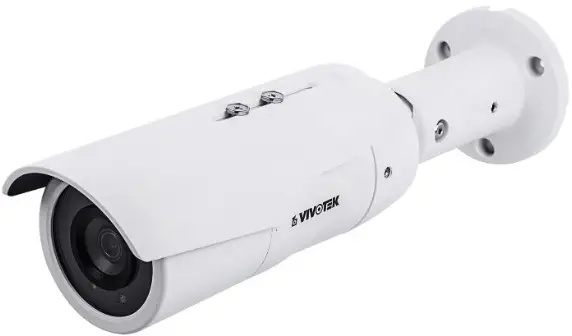

VIVOTEK IB9389-EH-v2 5MP Bullet Network Cameras Instruction Manual
Warning Before Installation
- The product must be installed and protected in a location that is not easily accessible, and is away from impacts or heavy vibration. For example, at the location where the surveillance cameras are looking down or installed at high positions such as on a wall, or at least 3 meters above the ground.
- The product should be used in compliance with local laws and regulations.
- Before installation, the product should be stored in a dry and ventilated environment.
- Do not install the product on an unstable mount or surface.
- Use only accessories that comply with the technical specifications of the product.
- Do not disassemble the camera or perform maintenance task when power is connected.
- Please contact VIVOTEK’s certified dealers for power adapters.

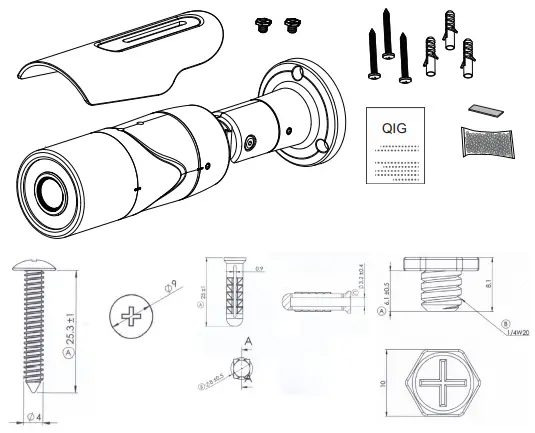

Package Contents

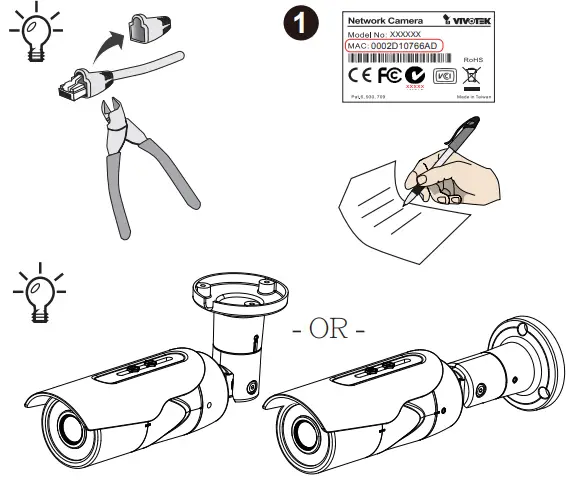

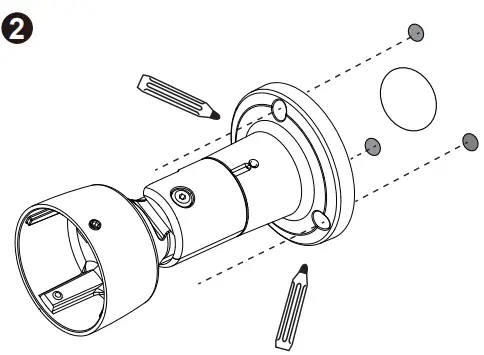

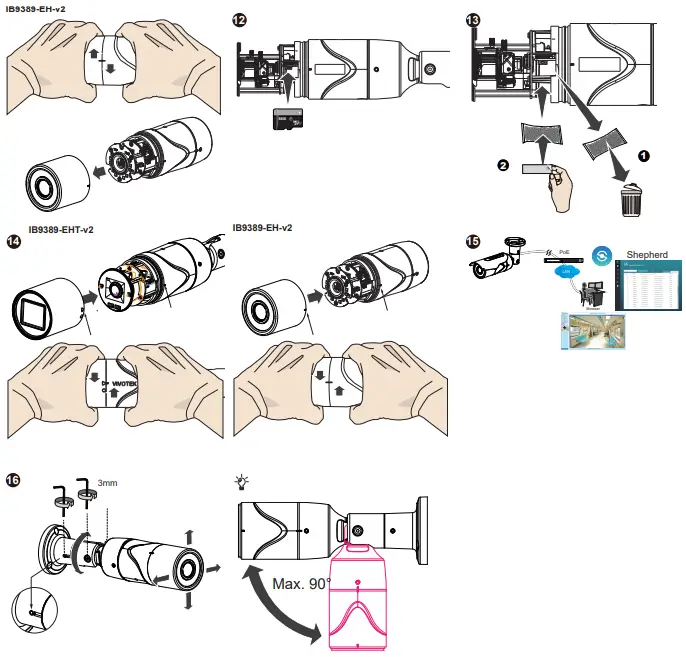

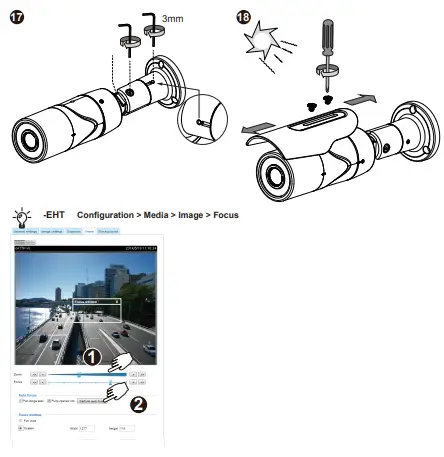

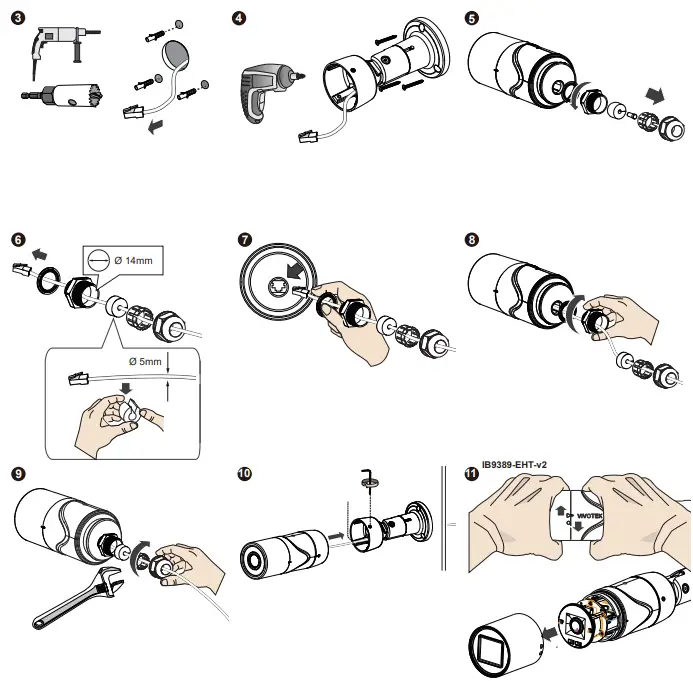

Hardware Installation
| Model | IB9389-EH-v2 | IB9389-EHT-v2 |
| Rating | POE 42.5~57V , 0.3~0.23A (12.95W) | POE 42.5~57V , 0.3~0.23A (12.95W) |
Please contact authorized distributors for warranty and RMA service.
Visit https://www.vivotek.com/support/warranty-rma”
All specifications are subject to change without noice.
Copyright © 2021 VIVOTEK INC. All rights reserved.
VIVOTEK INC.
6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.
|T: +886-2-82455282| F: +886-2-82455532| E: [email protected]
