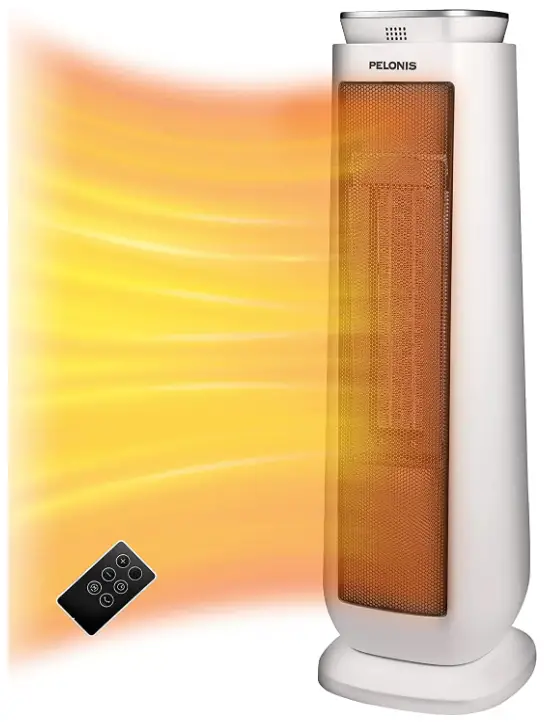

PELONIS PHTPU1501 Ceramic Tower 1500W Indoor Space Heater
INTRODUCTION
More robust and dependable PTC ceramic heaters by Pelonis provide instantaneous, directional heat. It heats quickly and provides a wide range of heating air supply, making it perfect for small to medium-sized rooms. The ultra-wide PTC energy-saving heating element from Pelonis is revolutionary and has a vast heat distribution area. Due to its excellent heat efficiency, it can quickly raise the indoor temperature. Additional characteristics of the Pelonis PTC Tower Heater: Fast heating for three seconds with overheating safeguard 2 stages of heating (1500W), High, Low (900W) Switch tip-over protection 8-hour timer with presets Warmth-delivering wide-angle oscillation, covering a huge area (160sq. ft) 40°F to 95°F is the temperature setting range. accessible multi-functional remote control With carry handle, moving and carrying is simple.
IMPORTANT INSTRUCTIONS
PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:
- Read all instructions before using heater.
- This heater is hot when in use. To avoid burns, do not let bare skin touch hot surface. If provided, always use handles when moving this heater. Keep combustible materials such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet (0.9m) from the front of the heater and keep them away from the sides and rear.
- Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
- Always unplug the heater when not in use.
- Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Discard heater or return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
- Do not use the heater outdoors.
- This heater is not intended for use in bathroom, laundry areas and similar moist indoor locations. Never locate heater where it may fall into a bathtub or other water container.
- Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
- CAUTION: This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature. To do so could result in an electric shock hazard.
- This heater draws 12.5 amps during operation. To prevent overloading a circuit, do not plug the heater into a circuit that already has other appliances working.
- CAUTION: It is normal for the plug to feel warm to the touch; however, a loose fit between the AC outlet (receptacle) and plug may cause overheating and distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
- To disconnect the heater, first turn controls to off, then remove plug from outlet. Never pull by the cord.
- Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
- To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surface, like a bed, where openings may become blocked.
- A heater has hot and arcing or sparking parts inside. Do not use it in the areas where gasoline, paint, or flammable liquids are used or stored.
- Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
- CAUTION: Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or reloadable power tap (outlet/power strip).
- The output of this heater may vary and its temperature may become intense enough to burn exposed skin. Use of this heater is not recommended for persons with reduced sensitivity to heat or an inability to react to avoid burns.
- Disposal of oil contained within should be in accordance with applicable regional, national, and local laws and regulations.
- CAUTION: To prevent electric shock, match wide blade of plug to wide slot and fully insert.

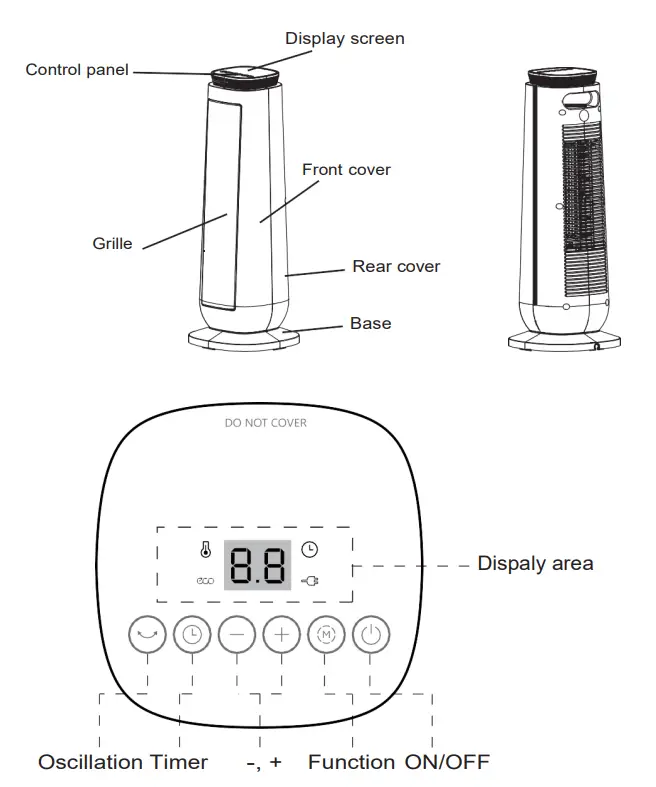

PART FIGURE
OPERATING INSTRUCTION
Check before turning on the machine
- Check if the power wire is under good condition.
- The product adopts 120V AC power supply, before use, please confirm if the rated current of the power socket meets the local requirements with safe grounding device, otherwise, please replace it with the qualified socket.
START THE MACHINE
Plug the unit into a grounded 120V outlet, the power light ” ” on, press the ON/OFF key (or press the ON/OFF key of the remote controller) for start, the machine supplies air at high power after start, the digital screen displays “HI”.
FUNCTION SETTING
Repeatedly press the “Function” key so that the heater switches in the order of “high gear – low gear – ECO mode – high gear”.
TEMPERATURE SETTING
In the ECO mode of the machine, press “+” or “-” can set the temperature value, set the range of 40-95°F.When the room temperature exceeds the set temperature at 4°F, the machine stops working, and stay in the standby state. When the temperature is lower than the set temperature, the machine starts to heat up again.
TIMING FUNCTION
TIMING STOP
When the heater is turned on, press the TIMER key to enter the timing stop state (within 0-8 hours), then press the “+” key to increase the timing stop time, and press the “-” key to decrease the timing stop time.
TIMING START
When the electric heater is in the standby mode, press the TIMER key to enter the reservation start mode (within 0-8 hours), then press the “+” key to increase the reservation start time, and press the “-” key to decrease the reservation start time.
OSCILLATION FUNCTION
The electric heater in operation mode, press the “Oscillation” key to open the oscillation function, pressing this button to turn off the oscillation function; when the electric heater stops heating function, the wind oscillating function also stop.
Temperature sensor short circuit, open circuit protection function
No matter in what mode, the temperature sensor appears short circuit or open circuit, digital screen displays “E1” or “E2” and constantly flicker, while any key operation is invalid and the buzzer rings 10 times.
SAFETY PROTECTION
In the start state, when the room temperature TH is above 122°F, close all outputs system, The digital screen displays “FF” and flashes 1 time per second at a frequency of 75 times, press any key will not work, only the power down to exit the protection.
TIP-OVER SWITCH
As a safety measure, the unit will shut off automatically if it is knocked over. Should this occur, simply turn the heater off and stand it back up to a regular upright posit ion, then switch it back on.
ECO ENERGY SAVING FUNCTION
Select the ECO energy saving gear, electric heater according to the ambient temperature and the temperature setting of the machine to do comparison, select the appropriate gear operation to achieve the purpose of saving energy.

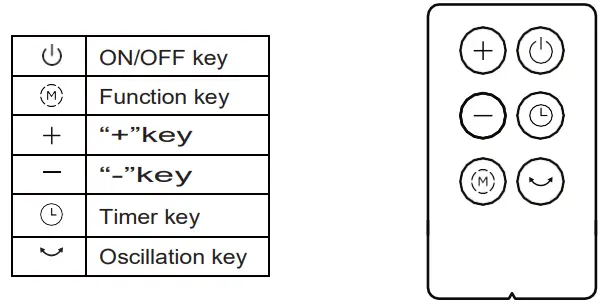

REMOTE CONTROLLER
Use of the remote controller: the key functions are basically the same as the body operation panel.
REMOTE CONTROL
MAIN TECHNOLOGY SPECIFICATIONS
POWER SUPPLY: AC 120V ~ 60Hz
| MODEL | POWER REGULATION RANGE (W) | |||
| LOW | HIGH | LOW OSC | HIGH OSC | |
| PHTPU1501 | 900 | 1500 | 900 | 1500 |
TROUBLESHOOTING
If the product does not operate or does not operate properly, first check according to the following list. If the reason the product does not operate or does not operate properly is not included in the following list, the product may have failed. At this time, it is recommended to send the product to the dealer for treatment.
| Problem | Possible Cause | Solution |
| After the power is engaged, the machine do not work. | The plug may not be plugged well. | Check whether the plug is properly inserted into the receptacle. |
| The machine suddenly stops during heating. | The temperature exceeds the threshold of the thermal cut- out. | Unplug the heater and cool the machine before use. |
CLEANING AND STORAGE
It is recommended that the heater be cleaned at least one time during the operating season in order to provide the optimum level of performance. Always turn the power switch off and unplug the heater before cleaning. Be sure to save the box for off- season storage.
- Turn the heater “OFF”, unplug it and wait for the heater to cool down. Use a dry cloth to clean only external surfaces of the heater.
- Do not use any cleaning agents or detergents. Never immerse the heater in water.
- Pack the heater in the original carton and store it in a cool and dry place.
FAQs
Is there a way to turn off the loud beeping of the on/off button?
We are sorry for the inconvenience but there isn’t a silent mode/option to stop the unit from beeping when turning on/off.
Does this have 2 or 3 prong plug?
This unit uses a 2 prong plug.
Does this make any type of loud noise each time it goes on, which might wake me up?
There should not be a loud noise when it starts. This tower is very quiet even when turning on. Hope this helps. (BBB A+ Accredited Business).
Can I use this heater in a garage in the wintertime as long as it’s not exposed to the elements?
As long as it isn’t too large of an area. It would certainly help if the garage was well insulated. We have two of them in our four seasons room (12’x18′). We have electric radiant floor heating which we keep set at 69 degrees per the electrician. It can get chilly in there on very cold nights (low 20’s to the teens) so we use a separate radiant heater (no fan) to keep the plants in there happy. We turn the Pelonis heaters off at night because I am a little nervous about a unit with a fan running overnight.
I received this heater as a gift, but it didn’t come with butterfly nuts. I am wondering if anyone knows the size? They look smaller than 1/4 inch.
Please give us a call at 866-646-4332 and reference case number 111048351; we will gladly assist you.
My friend I have cabin with a size 12×24 and insulated my question is, this Heater is enough to get my temperature up 60 degree thank you
I would say so. Of course, it depends a bit on how cold it is outside and how well insulated your windows are. Our living and dining room area is about 14x30ish with TERRIBLE insulation (80 year old house w/a couple concrete walls) and we keep two of these at opposite ends running 24/7 in the winter, usually set to 70. In the spring we’ve only kept one on and often turn it off for being too warm. I would recommend setting the heater to 70-75 and just leave it on eco setting. They take a little time to heat upa room but once they’re going they keep it toasty.
Will the eco mode stay on indefinitely or does its time out and turn off automatically after a certain amount of time?
The unit will stay on ECO mode and will not turn off until it is manually changed. Have a nice day. [email protected] (BBB A+ Accredited Business)
Will this turned back on after a power outage? I need to plug this into a temperature controller.
You would need to manually turn the unit on after a power outage.
Are these actually energy efficient?
This unit is equipped with ECO mode to achieve customized warmth without worrying about huge energy bills. Have a good day. [email protected] (BBB A+ Accredited Business)
Can you set it to Celsius?
Unfortunately, you cannot adjust it to Celsius. Have a nice day. [email protected] (BBB A+ Accredited Business)
Can you set the temperature to a specific number like 72 degrees? My current space heater can only set in 5 degree increments (70, 75, 80, etc.)
Temperature setting range: 40℉ to 95℉. Have a fantastic day! [email protected] (BBB A+ Accredited Business)
How many batteries does it use for the remote and what size batteries?
The remote needs one 1CR2032 battery to operate. Have a good day. [email protected] (BBB A+ Accredited Business)
Can an extension cord be used?
Always plug heaters directly into a wall outlet/receptacle. Never use an extension cord or reloadable power tap (outlet/power strip). Have a great day. [email protected] (BBB A+ Accredited Business)
I have had it on for a week, about 60 hours, how long does it take for the toxic melted plastic smell to go away?
It should take about a week for the smell to go away. If you are still experiencing this issue please reach out to us at [email protected]. Have a good day. (BBB A+ Accredited Business)
would this heat a small camper in 35 degree weather?
It heats a 14 by 24 bedroom in 32 degrees just fine.
