CG244DLPX1-N Gas on Steel Cooktop
User Guide

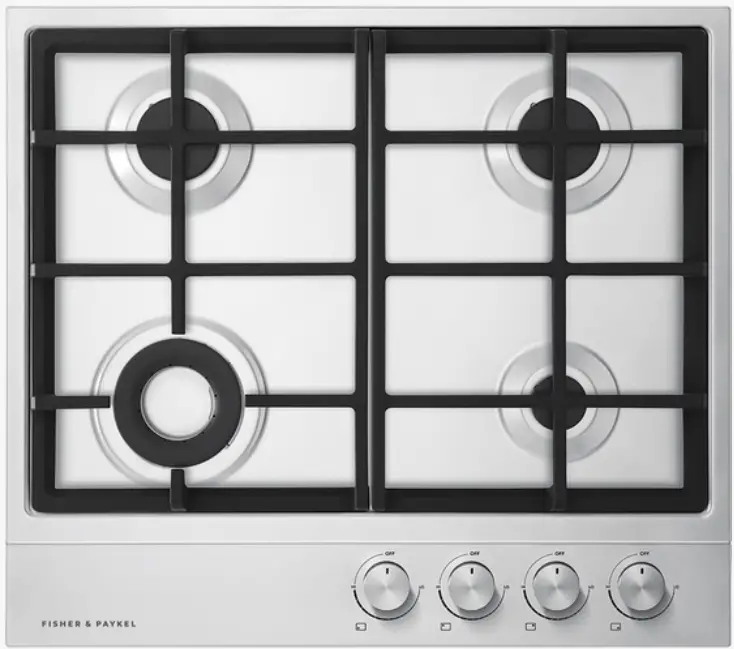

CG244DLPX1-N Gas on Steel Cooktop
QUICK REFERENCE GUIDE > CG244DLPX1_N
Gas on Steel Cooktop, 24″, LPG
Series 7 | Contemporary
Stainless Steel | LPGAll the essentials in a compact cooktop, including a wok burner for high heat cooking.
- Four burners including a wok burner
- Auto re-ignition means if the flame goes out it will automatically re-light for safety

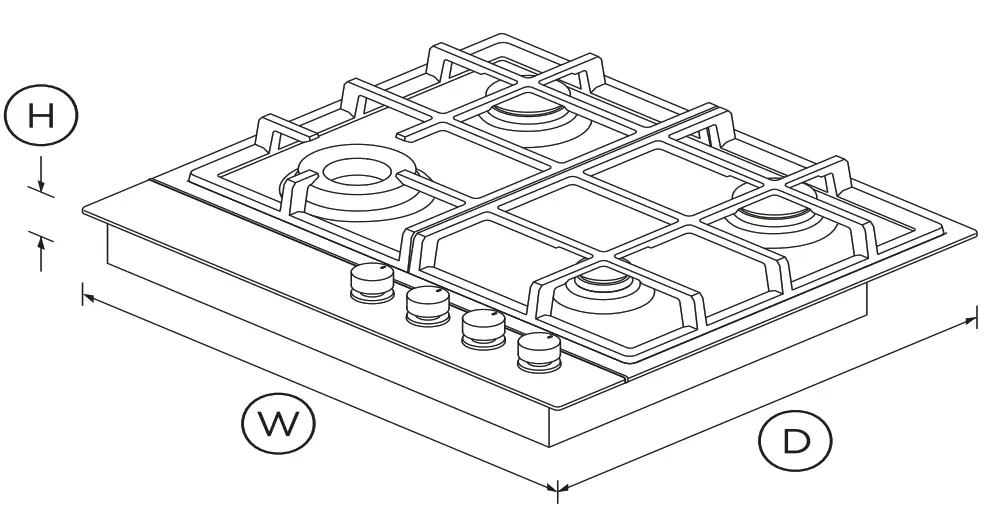

DIMENSIONS
| Height | 2 21/64″ |
| Width | 23 5/8″ |
| Depth | 20 7/8″ |
FEATURES & BENEFITS
Easy handling
With flat cast iron grates, pots and pans can easily be slid across elements, coming in handy in busy cooking environments.
Safe and sound
The Auto-reignite system means you don’t have to hold down a dial while burners ignite if a burner goes out it is automatically relit at the original flame setting.
Complementary design
The brushed stainless steel and polished metal trim has been designed for durability but also provides a modern, stylish finish, matching the Fisher & Paykel family of kitchen appliances.
Easy cleaning
The stainless steel component is easily accessible and quick to clean. Cast iron trivets provide a durable and stable cooking platform. Their rubber feet prevent them from scratching the cooktop.
Handy accessories
This cooktop comes with small pan support and wok stand to complement different cooking styles.
Precise control
Simply turn the dials to ignite the flame quickly and safely. InnovalveTM technology allows you to adjust the flame with 180° gas valve rotation for super accurate temperature control.
SPECIFICATIONS
Accessories …………………………………
Wok stand……………………………….. •
Burner ratings
| Auxiliary burner (LPG) | 700 – 3500BTU |
| Semi-rapid burner | 600 – 6700BTU |
Burners
The number of burners……………………….. 4
Cleaning
| Easy clean cooktop design | • |
| Quick component removal | • |
Controls
| Ergonomic control dials | • |
| Laser etched graphics | • |
| Turned stainless dials | • |
Performance
| Both LPG & NG models | • |
| Cast iron grates | • |
| Electronic ignition | • |
| Quick connect gas valves | • |
Product dimensions
| Depth | 20 7/8″ |
| Height | 2 21/64″ |
| Width | 23 5/8″ |
Safety
| Flame failure system | • |
| SKU | 81460 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads are available at fisherpaykel.com
User Guide Service & Warranty Installation Guide Data Sheet Gas on Steel Cooktop
