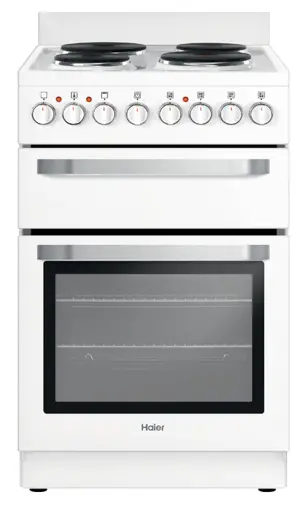

Haier Hor54s5cw1 54cm Freestanding Electric Cooker User Guide (+ PDF)

QUICK REFERENCE GUIDE > HOR54S5CW1
Freestanding Cooker, Electric,
54cm, 4 Elements, Solid Hotplate

White

Cook and bake with an electric cooktop and oven in one versatile appliance.With a triple-glazed door that remains cool and safe to touch even with the oven in operation.

Splashback
Triple Glazed Oven Door
Integrated Grill
Conventional Oven

Contents hide

1 DIMENSIONS

2 FEATURES & BENEFITS

3 SPECIFICATIONS

4 Documents / Resources

4.1 References

5 Related Posts

DIMENSIONS

Height	900 mm
Width	540 mm
Depth	600 mm

FEATURES & BENEFITS

Looks as good as it performs Sleek design for a stylish finish in your kitchen

SPECIFICATIONS

Accessories

Roasting dish and grill rack set	1
Step down wire shelf	1

Capacity

Roasting dish and grill rack set	60L
Step down wire shelf	5 – Embossed

Cleaning

Splashback

•

Controls

Front controls	•
Interior light	•

Cooktop Features

Cooktop indicator light

•

Cooktop Performance

Left front zone rating	1000W – 145mm
Left rear zone rating	1500W – 180mm
Number of cooking zones	4
Right front zone rating	2000W – 180mm
Right rear zone rating	1000W – 145mm

Oven features

Internal light	1 x Halogen
Oven control	Electric
Oven type	Conventional
Top & bottom element	•

Oven functions

Bake	•
Classic bake	•
Grill	•
Max grill	•
Number of functions	5

Oven performance

Glazed door

Triple

Power requirements

AMP draw

40A

Product dimensions

Depth	600 mm
Height	900 mm
Width	540 mm

Safety

Glazed door	•
SKU	61703

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
