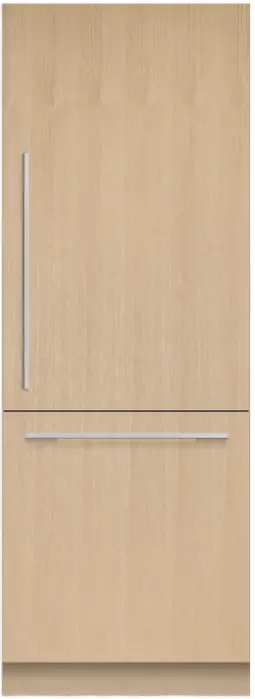

QUICK REFERENCE GUIDE > RS3084WRUK1
Integrated Refrigerator
Freezer, 30″, Ice & Water
Series 9 | Integrated
Panel Ready | Right Hinge
A slim profile is perfect for compact kitchens, or pair it with other Integrated models for generous chilled and frozen storage.
- Keep food fresher for longer by constantly maintaining the ideal temperature with ActiveSmart™ technology
- Create the perfect climate for each type of food with a Variable Temperature Zone: choice of four food modes, Pantry, Fridge, Soft Freeze or Freezer
- Convenient access to fresh, chilled water and ice with internal water dispenser and ice maker
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel and handle accessories
DIMENSIONS
| Height | 84 “ |
| Width | 29/ “4 |
| Depth | 24 “ |
FEATURES & BENEFITS
Variable Temperature Zone
Create the perfect climate and store each type of food at optimal temperature and humidity with a Variable Temperature Zone, reducing food waste due to spoiling. You have the choice of four food modes: Pantry, Fridge, Soft Freeze, or Freezer. Use the Max cold feature for periods of high refrigerator or freezer use, or full grocery loads.
ActiveSmart™ Foodcare
ActiveSmart™ Foodcare learns how you live. It’s a technology that understands how you use your refrigerator and adjusts the temperature, airflow, and humidity inside to help keep food fresher for longer.
Internal water dispenser and ice maker
Both the water dispenser and ice maker are located inside this Integrated model, leaving an uninterrupted exterior. Internal storage space is maximized thanks to a flush-fit slimline water dispenser that gives a continuous flow of temperature-controlled chilled water to fill almost any size or shape of the vessel. The dual valve system instantly stops water flow to prevent drips and spills.
Flexible storage
Designed to make it simple for you to store, access, and remove food, this refrigerator includes LED-lit adjustable cantilevered shelving and full extension bins in the freezer. The door and veggie bins are family safe, allowing for hands-free operation thanks to its soft close mechanism
Complementary design
Both the 24″ and 30″ Integrated Refrigerator Freezers can be installed separately or paired with a Column Refrigerator, Freezer or Wine Column. Customize with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.
Perfect fit
These models fit flush and have only ⅛” gaps around them with no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry for an understated and clean look with any kitchen layout.
Design quality
The premium design and finish include a steel interior lining as well as full extension metal shelf runners for easy access, robust glass shelving, and quality hinges designed for daily use.
Clever energy
With an Energy Star Most Efficient rating, your refrigerator adapts to daily use by cooling and defrosting only when needed.
This means it uses the energy it needs without compromising on food care.
SPECIFICATIONS
Accessories (sold separately)
| 18″ Stainless steel toe kick | 25388 |
| 24″ Stainless steel toe kick | 25390 |
| 30″ Stainless steel toe kick | 25392 |
| 42″ Stainless steel toe kick | 25394 |
| 48″ Stainless steel toe kick | 25396 |
| 54″ Stainless steel toe kick | 25398 |
| 60″ Stainless steel toe kick | 25400 |
| Hinge change (from the left hinge | 848184P |
| Hinge change (from right hinge | 848183P |
| Joiner kit | 24985 |
| Matching Replacement Water | 847200 |
| Professional round handle kit | 25722 |
| Professional square handle kit | 25724 |
Capacity
| Freezer | 5.4 cu ft |
| Refrigerator | 10.5 cu ft |
Consumption
| Energy star rating | Yes (Most efficient) |
Freezer features
| Automatic ice maker | • |
| Door alarm | • |
| Freezer bins | 2 |
| Ice Boost | • |
| LED bin lighting | • |
| LED ceiling lighting | • |
| LED side lighting | • |
| SmartTouch interface at | • |
Performance
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Dual evaporator | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |
| Variable food modes | Pantry; Fridge; Soft freeze; |
Power Requirements
| Rated current | 10A |
| Supply frequency | 60Hz |
| Supply voltage | 115V |
Product dimensions
| Depth | 24 “ |
| Height | 84 “ |
| Width | 29/ “4 |
Refrigerator features
| Adjustable door shelves | 4 |
| Adjustable glass cantilevered | • |
| Covered door shelves | 1 |
| Door alarm | • |
| Gallon door shelves | 1 |
| LED bin lighting | • |
| LED ceiling lighting | • |
| LED side lighting | • |
| SmartTouch interface at | • |
| Soft-close fruit and vegetable | 2 |
| Stackable bottle holders | 4 x clip-in; 4 x flexible |
| Ultra slim water dispenser | • |
Warranty
| Parts and labor | 2 years |
| Sealed system parts only | 5 years |
| SKU | 25687 |
TEST The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
 | User Guide |
| Service & Warranty Booklet |
| Installation Guide |
