PLATSA Series Wardrobe with 8 Doors 3 Drawers
User Guide

PLATSA Series Wardrobe with 8 Doors 3 Drawers

Care and Cleaning
Wipe clean with a cloth dampened in a mild cleaner. Then dry with a clean, dry cloth.
Assembly
IMPORTANT: 2 persons are required to assemble this furniture safely.

With the PLATSA series you can create media, sleep and storage solutions for both small and large spaces across your home. The modular system consists of open, lightweight frames that you can combine as you like. You can build high or low. Under a sloping ceiling or along an entire wall. Then you easily add doors, shelves, wire baskets and hooks as needed. If your needs change, you can easily rebuild or complete with new features.

All the products (shown here) may not be available at the store. Please contact the staff or look at www.IKEA.com for more information. For more detailed product information, see the pricetag and the Internet. All units require assembly.

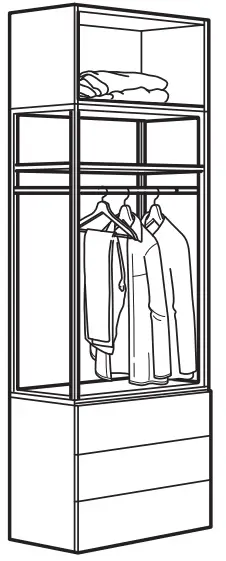

Storage and media solutions

The different sizes of frames makes PLATSA a modular system that creates flexibility in your home. Build a solution under your staircase, around a window or above a door, the possibilities are many. By combining frames from the PLATSA series with items from the HJÄLPA and LÄTTHET series of interiors and exteriors, you can create exactly the solution you need. You can also choose one of our suggested combinations and add or remove interiors and exteriors as you wish. Whatever you choose, the result is a solution to suit both your home and your storage needs.
Easy assembly and disassembly
Thanks to the wedge dowel fitting the PLATSA frames are quick and easy to assemble and disassemble, making it easy to bring your storage solution with you when you move. Just click the pieces together, no tools needed.
PLATSA open
PLATSA open are solitary frames which include adjustable interiors. These frames do not have the wedge dowel fittings like other PLATSA frames, but by developing a simple construction we have minimised the assembly time.
Safety
For safety reasons, always attach PLATSA frames to a wall. Since different wall materials require different fixing devices, these are sold separately. If you stack several PLATSA frames on top of each other, you need to attach the frames placed at 3 metres or above to the wall using LÄTTHET suspension rail. Also, use LÄTTHET suspension rail for PLATSA frames that are being mounted hanging on the wall.
Warning! Do not hang PLATSA frame with depth 55 cm on a wall. It must be placed standing on the floor or stacked on another floor standing frame.

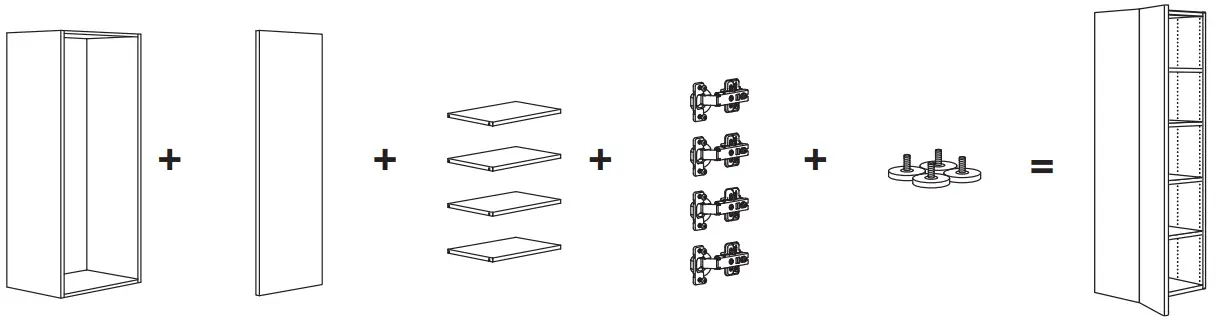

How to build
Choose your solution
We have a wide range of PLATSA combinations to choose from which you can find in the store or on our website at www.IKEA.com. If you don’t find a pre-designed solution that you like, you can create the perfect combination that suits your needs and taste on your own. Begin by looking through the ready-made combinations on the web and choose one that inspires you. You will then have a pre-designed combination to start from that you can customize to your needs. You can use the planning tool to change the size of the storage solution or the interiors. You can also design your own unique PLATSA combination from scratch. There are 3 simple steps to follow:

1. Choose frames. Consider how much space you have available in your room. Remember, you can also make the most of unused space with the different sizes of the frames available.
2. Pick your style on doors. What style do you want your wardrobe to be? Do you wish for a plain white door, or a door in the more traditional style? Maybe dark grey? The choice is yours.
3. Choose interiors and exteriors. Think through your day to-day needs and what you need to store. Once you have decided on the interiors and exteriors, it’s time to add the finishing touches. Complete your new wardrobe with your choice of boxes and inserts from our extensive range of interior accessories. And for a great result, don’t forget the integrated lighting. Simple to install and makes it easier for you to find the right outfit.

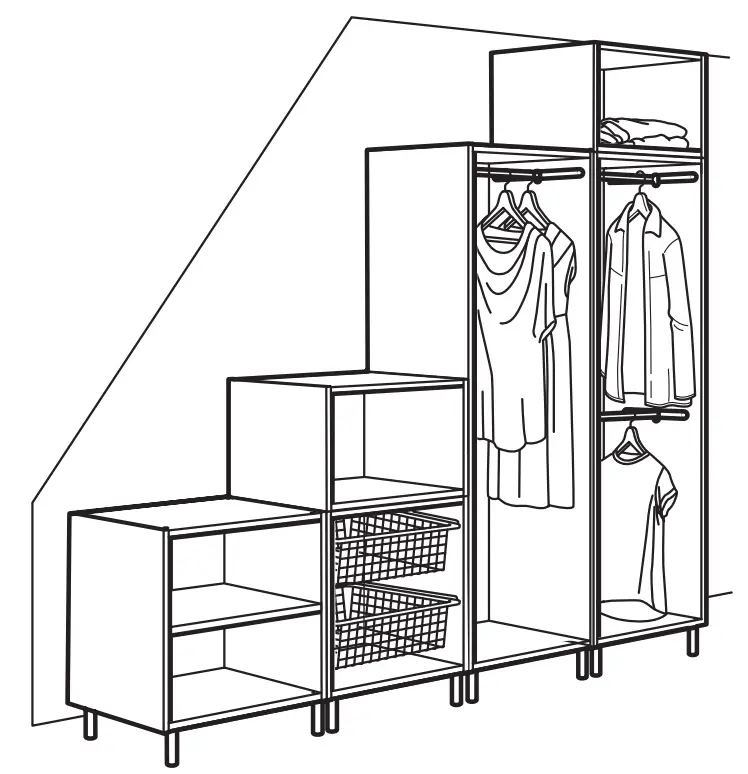

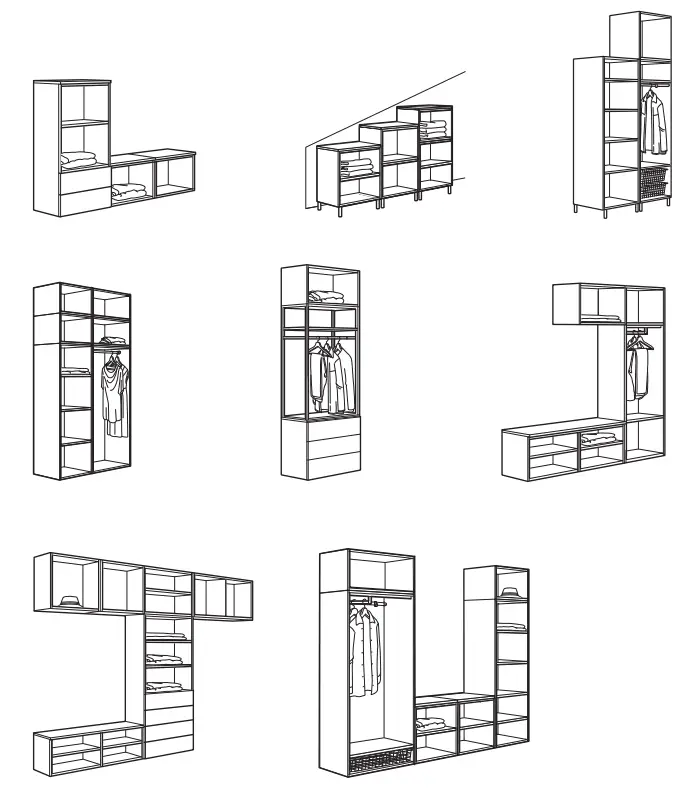

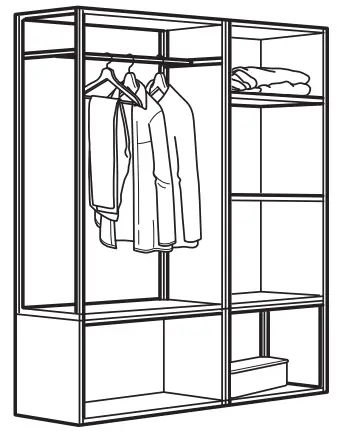

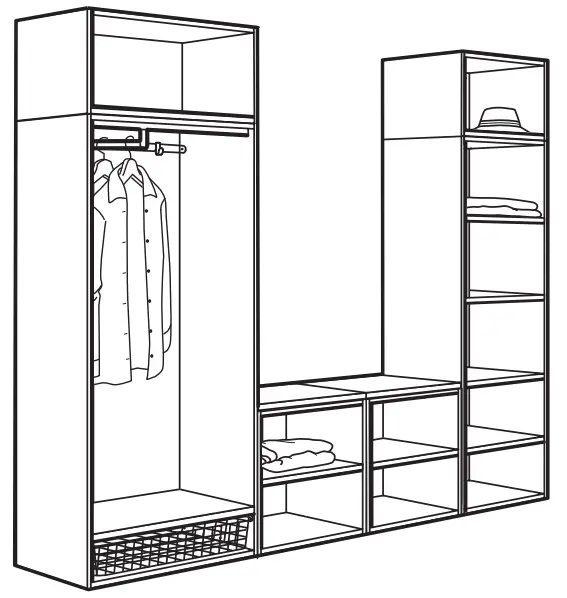

How to combine frames
Frames in the PLATSA series can be combined in different ways to suit your storage needs. Check out these popular combinations and browse more on IKEA.co.uk.

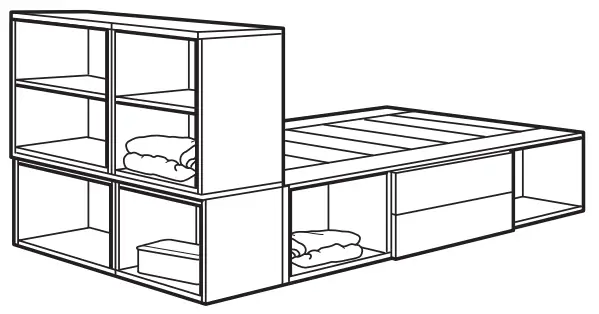

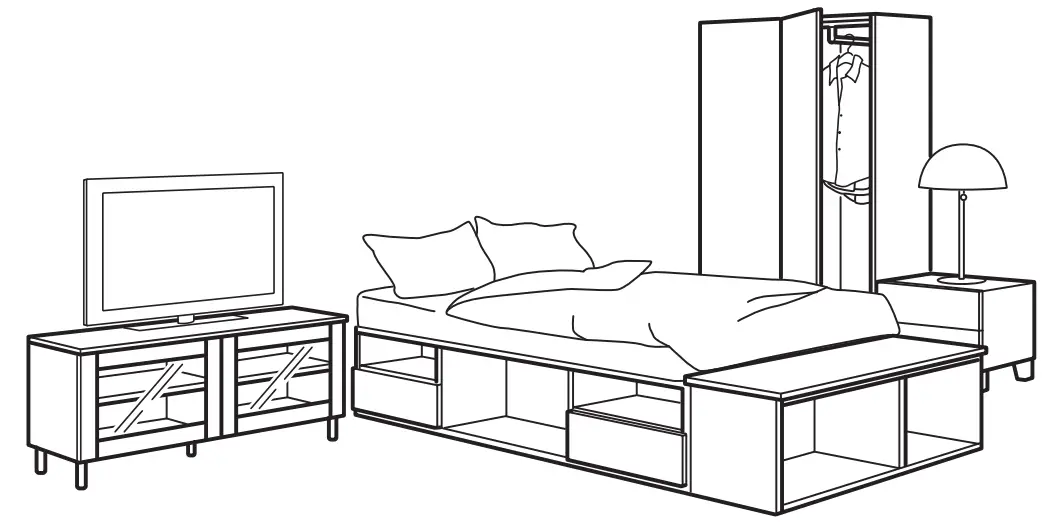

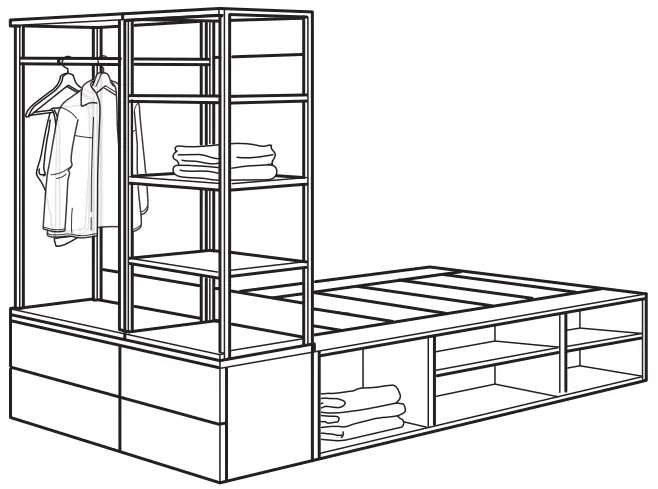

Sleep and storage solutions

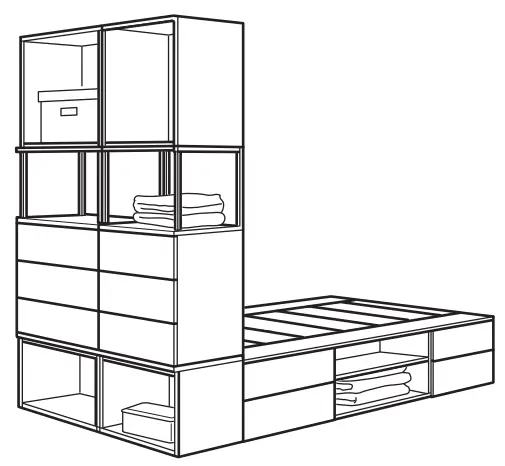

PLATSA bed covers your sleep and storage needs helping you create your own oasis in the smallest of places. Together with PLATSA system you can have both a space for privacy and a home for all your things. With the PLATSA bed you save floor space by gathering sleep and storage in one place. Use this versatile bed as a room divider, part of a walk-in closet solution or placed freestanding in the middle of the room to create an interesting room dynamic.
Build your own solution to solve your storage needs by adding 60/120/180 cm high and 40 cm deep PLATSA frames on top of the footboard. Complete with LÄTTHET footboard panel, HJÄLPA interiors and doors. Three sides underneath the bed can be personalized with the help of HJÄLPA interiors and storage boxes. Slats, legs and top panel is included in the bed.
LÄTTHET footboard panel puts the final touch on the storage solution that you build onto your PLATSA bed. It creates stability and a smooth, even surface on the back of the PLATSA frames – giving a finished look.
Easy assembly and disassembly
Thanks to the wedge dowel fitting the PLATSA bed are quick and easy to assemble and disassemble, making it easy to bring your solution with you when you move.
Safety
Maximum building height from the floor to the top of the footboard (excluding top panel), is 220 cm. Warning! Do not drill holes into the footboard panel. To make the white surface of the footboard panel more decorative you can use no drill hooks, such as LILLÅNGEN hanger for doors, to hang two RIBBA frames (61×91 cm). Maximum load is 6 kg. PLATSA TV bench cannot be used together with PLATSA bed.

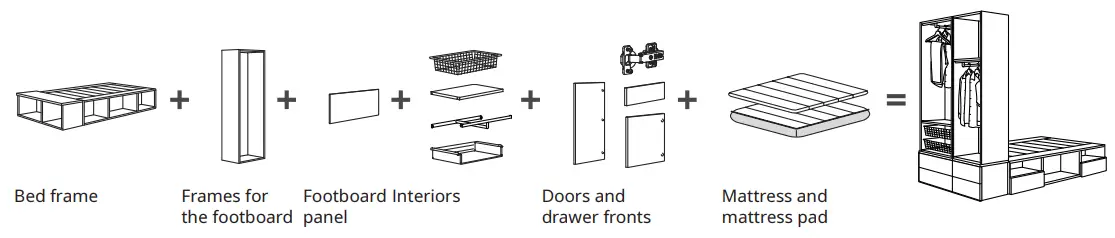

How to build
Choose your solution
We have several PLATSA bed combinations to choose from, both in the store or on our website at www.IKEA.com. If you don’t find a pre-designed solution that you like, you can create the perfect combination that suits your needs and taste on your own. Begin by looking through the ready-made combinations on the web and choose one that inspires you. You will then have a pre-designed combination to start from that you can customize to your needs. You can, for example, change the height of the storage solution, or the interiors. You can also design your own unique PLATSA bed combination from scratch. There are 6 simple steps to follow:

1. Bed frame. Consider your storage needs and how the bed will be placed in your room. Will you be able to use the storage space on all three sides underneath the bed?
2. Choose frames for the footboard. Consider the role of the bed and how high you need to build it. Will it be a room divider, do you need storage for hanging and/or folded clothes, or will it be a place for your books and trophies?
3. Footboard panel. Choose the amount of footboard panels needed. The panel is 60 cm high which means you can build with 60/120/180 cm high frames.
4. Choose interiors. Think through your day-to-day needs and what you need to store. Once you have decided on the interiors, it’s time to add the finishing touches. Complete your new bed solution with your choice of boxes and inserts from our extensive range of interior accessories. And for a great result, don’t forget the integrated lighting. Simple to install and makes it easier for you to find the right outfit.
5. Pick your style on doors and drawer fronts. What style do you want your wardrobe to be? Do you wish for a plain white door, or a door in the more traditional style? Maybe dark grey? The choice is yours.
6. Choose your mattress and mattress pad. The mattress need to be between 120-140 cm wide and 200 cm long.

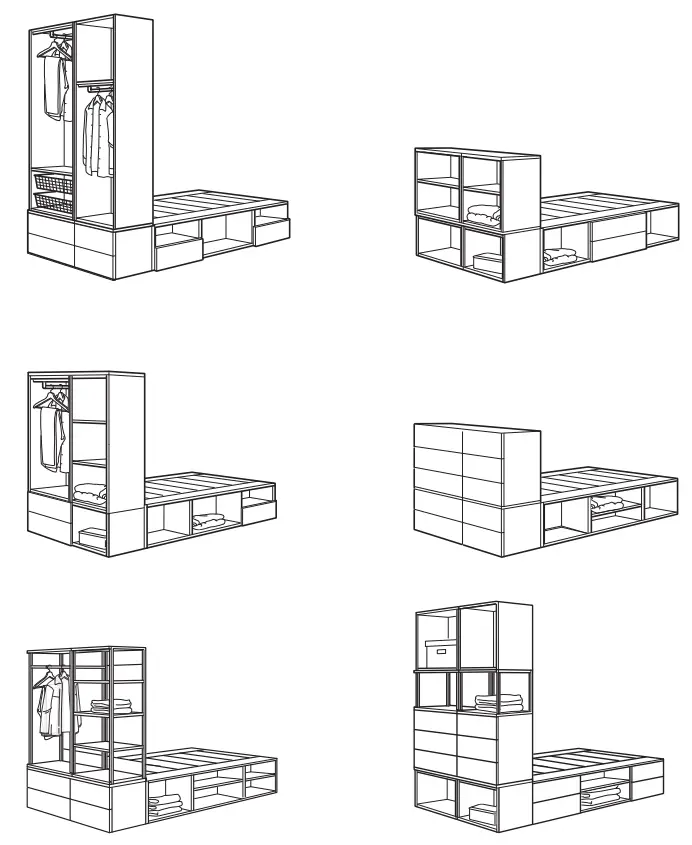

How to combine frames
Frames in the PLATSA series can be combined in different ways to suit your storage needs. Check out these popular combinations and browse more on IKEA.co.uk.

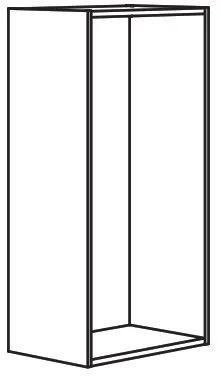

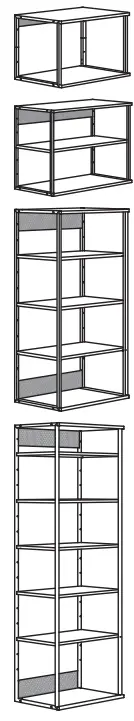

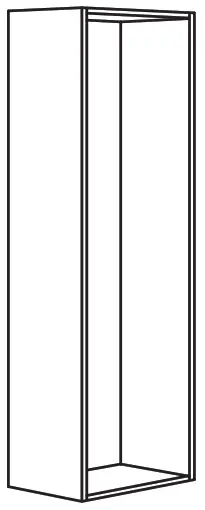

All frames
Overall size: Width × Depth × Height.
40 cm deep frames
PLATSA frame, white.

	60×40×40 cm	703.309.50
	80×40×40 cm	103.309.53
	60×40×60 cm	503.309.70
	80×40×60 cm	303.309.71
	60×40×120 cm	303.309.47
	80×40×120 cm	003.309.44
	60×40×180 cm	903.309.54
	80×40×180 cm	303.309.52

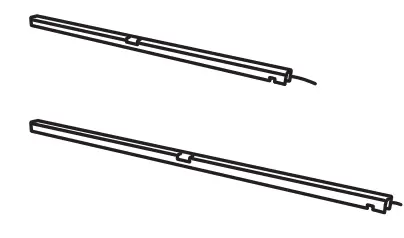

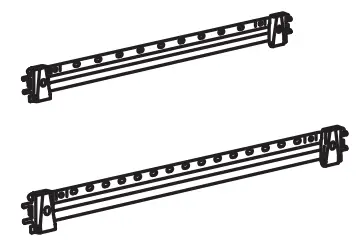

LÄTTHET suspension rail for wall attachment.

	LÄTTHET suspension rail 60 cm	003.863.75
	LÄTTHET suspension rail 80 cm	003.311.99

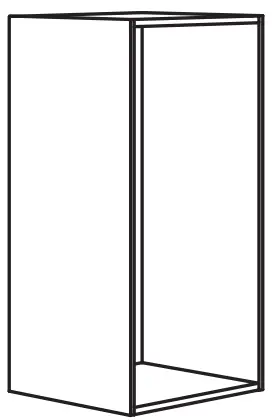

55 cm deep frames
PLATSA frame, white.

	60×55×40 cm	903.309.49
	80×55×40 cm	103.309.48
	60×55×60 cm	103.309.72
	80×55×60 cm	703.309.69
	60×55×120 cm	503.309.46
	80×55×120 cm	603.309.55
	60×55×180 cm	503.309.51
	80×55×180 cm	703.309.45

LÄTTHET suspension rail for wall attachment.

	LÄTTHET suspension rail 60 cm	003.863.75
	LÄTTHET suspension rail 80 cm	003.311.99

Open units
Overall size: Width × Depth × Height.
60 cm wide units
PLATSA open shelving unit, white.

	60×40×40 cm	804.525.83
	60×40×60 cm	404.525.75
	60×40×120 cm	104.525.72
	60×40×180 cm	904.525.68

80 cm wide units
PLATSA open clothes hanger unit, white.

	80×40×120 cm	404.526.03
	80×40×180 cm	604.526.02

PLATSA open shelving unit, white.

	80×40×40 cm	104.525.48
	80×40×60 cm	704.525.50

PLATSA open shoe storage unit, white.

	80×40×60 cm	004.525.44
	80×40×120 cm	204.524.06

Bed
Overall size: Width × Depth × Height.

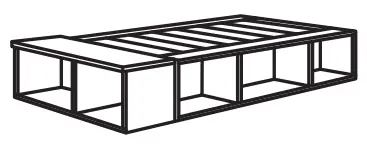

PLATSA bed frame.

140×200 cm

104.530.86

LÄTTHET footboard panel.

140×60 cm

504.530.89

All doors
Knobs and handles are sold separately. See our complete range of knobs and handles in the store or at IKEA.com

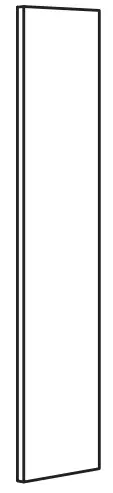

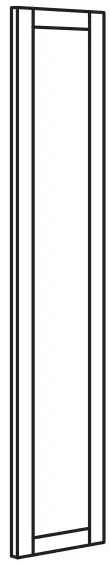

Hinged doors
SANNIDAL door, white.

	40×40 cm	203.955.43
	40×60 cm	503.955.51
	40×120 cm	903.955.54
	40×180 cm	103.955.34
	60×40 cm	203.955.38
	60×60 cm	103.955.48
	60×120 cm	003.955.39
	60×180 cm	003.955.58

FONNES door, white.

	40×40 cm	803.310.63
	40×60 cm	203.310.61
	40×120 cm	603.310.59
	40×180 cm	003.310.57
	60×40 cm	003.310.62
	60×60 cm	403.310.60
	60×120 cm	803.310.58
	60×180 cm	403.310.55

SKATVAL door, dark grey.

	40×40 cm	303.310.89
	40×60 cm	703.310.87
	40×120 cm	103.310.85
	40×180 cm	603.310.83
	60×40 cm	503.310.88
	60×60 cm	903.310.86
	60×120 cm	403.310.84
	60×180 cm	803.310.82

SKATVAL door, light beige.

	40×40 cm	605.131.20
	40×60 cm	205.131.22
	40×120 cm	405.131.16
	40×180 cm	005.131.18
	60×40 cm	905.131.28
	60×60 cm	505.131.30
	60×120 cm	805.131.24
	60×180 cm	305.131.26

KLUBBUKT door, grey-green.

	40×40 cm	104.658.38
	40×60 cm	504.658.41
	40×120 cm	004.658.34
	40×180 cm	504.658.36
	60×40 cm	204.658.47
	60×60 cm	804.658.49
	60×120 cm	104.658.43
	60×180 cm	604.658.45

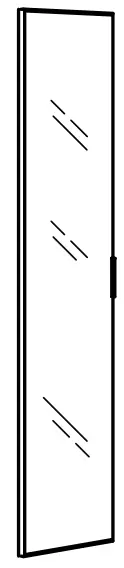

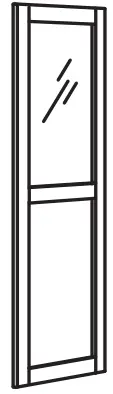

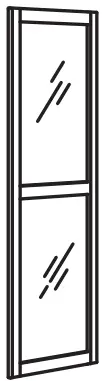

STRAUMEN mirror door.

	40×120 cm	905.063.16
	40×180 cm	504.978.18
	60×120 cm	505.063.18
	60×180 cm	704.978.22

VÄRD door, glass.

60×180 cm

003.813.87

VÄRD panel/glass doors.

60×180 cm

603.813.89

All doors
Knobs and handles are sold separately. See our complete range of knobs and handles in the store or at IKEA.com

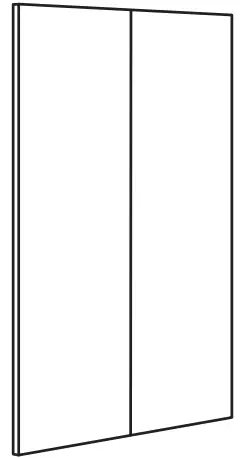

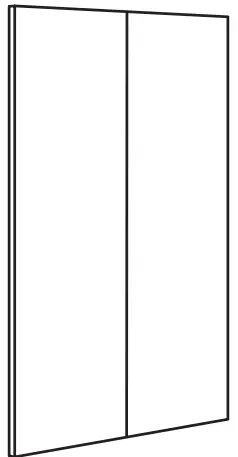

Sliding doors
FONNES sliding door, white.

120×180 cm

603.310.64

SKATVAL sliding door, dark grey.

120×180 cm

103.310.90

HJÄLPA rail for sliding doors, white.

120 cm

803.955.83

All drawer fronts
Knobs and handles are sold separately. See our complete range of knobs and handles in the store or at IKEA.com
FONNES drawer front, white.

	60×20 cm	803.859.23
	80×20 cm	103.859.26

SKATVAL drawer front, dark grey.

	60×20 cm	103.859.31
	80×20 cm	703.859.33

SKATVAL drawer front, light beige.

	60×20 cm	105.131.32
	80×20 cm	705.131.34

KLUBBUKT drawer front, grey-green.

	60×20 cm	204.658.52
	80×20 cm	804.658.54

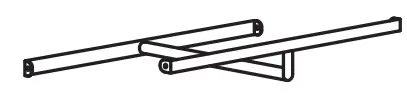

How to build and place HJÄLPA adjustable clothes rail

Hanging storage for big and small things
All items in the HJÄLPA series are designed to go with PLATSA storage system. Maximise space and keep things organized inside and outside your system with adjustable clothes rails, suspension rails, fittings and hooks. The adjustable clothes rail is perfect for everything from shirts and blouses to suit jackets and coats – remember to use the fittings when mounting the clothes rail to a frame. And put the hooks on the suspension rails to hang ties, handbags and jewellery.
Storage inside and outside your wardrobes
You can use HJÄLPA adjustable clothes rail with a length of 60–100 cm on the inside of your frame, between two frames, between a frame and a wall or between two walls. The width or depth of your PLATSA frame doesn’t matter since the clothes rail can be adjusted and the suspension rails are positioned at the same depth as the frames.
Storage outside your wardrobe
HJÄLPA adjustable clothes rail with a length of 30–47 cm can only be used on the outside of one frame – between frames, between a frame and wall or between walls. The width or depth of your PLATSA frame doesn’t matter since the suspension rails are positioned at the same depth as the frames.
The correct number of fittings
When you mount HJÄLPA adjustable clothes rail between frames, you need 2 packages of HJÄLPA fittings. If you mount the clothes rail between a frame and a wall, 1 package is enough. If you plan to have the clothes rail between two walls, no fittings are needed.

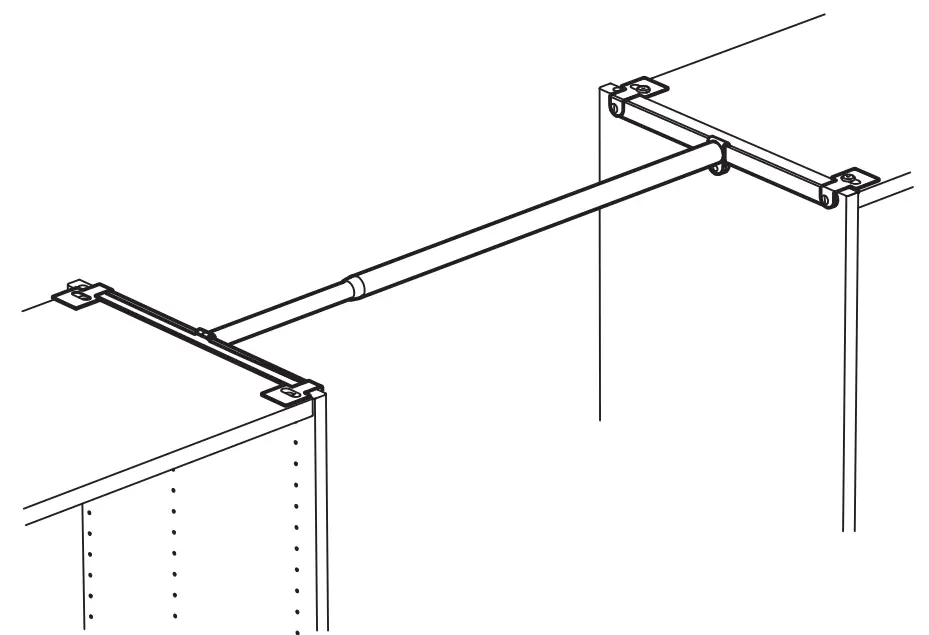

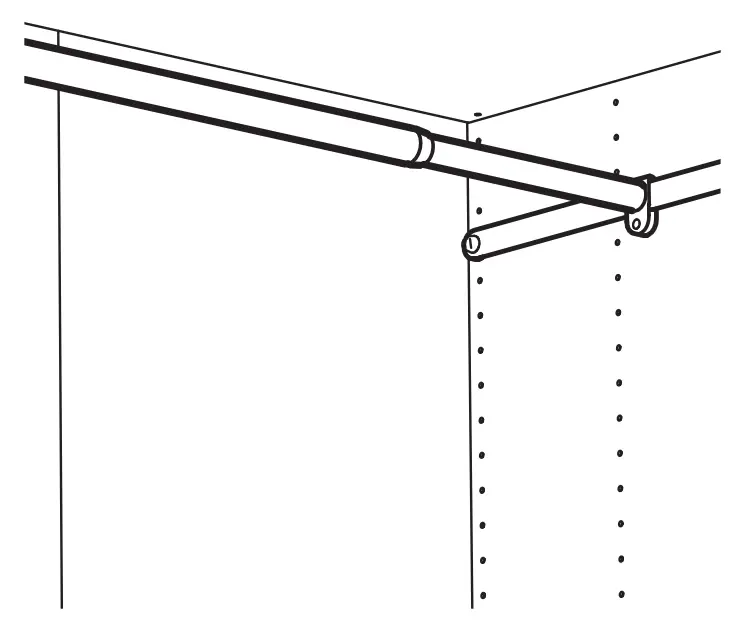

Placed inside frame

To build and place HJÄLPA adjustable clothes rail placed inside frame, use:

Placed outside frame

To build and place HJÄLPA adjustable clothes rail placed inside frame, use:

Placed between frame and wall

To build and place HJÄLPA adjustable clothes rail placed between frame and wall, use:

Interiors

Create custom organisation on the inside of PLATSA frames and PLATSA bed with HJÄLPA hangers, rails, shelves, drawers and wire baskets. All HJÄLPA pieces are designed to work with PLATSA, so the width and depth match the corresponding frame. Actual dimensions vary.
Fits 40 cm deep frames
HJÄLPA clothes rail, white.

	60×40 cm	604.501.27
	80×40 cm	204.502.14

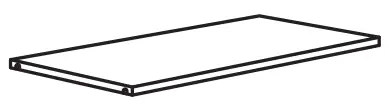

HJÄLPA shelf, white.

	60×40 cm	003.311.61
	80×40 cm	103.311.65

HJÄLPA shoe shelf, white.

	60×40 cm	504.500.24
	80×40 cm	704.500.23

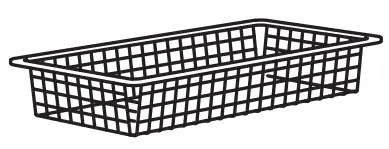

HJÄLPA wire basket, white.

	60×40 cm	903.311.85
	80×40 cm	203.311.84

HJÄLPA pull-out rails for basket, white. 2-pack.

40 cm

303.311.93

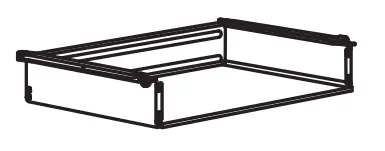

HJÄLPA drawer without front, white.

	60×40 cm	603.309.84
	80×40 cm	703.309.74

HJÄLPA suspension rail, 40 cm, white, 2-p.

305.055.22

HJÄLPA hook, white, 3-p.

505.055.16

Fits 55 cm deep frames

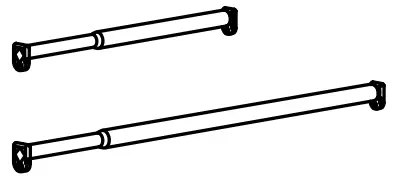

HJÄLPA adjustable clothes rail, , white.

	30-47 cm	004.978.25
	60-100 cm	404.978.28

HJÄLPA shelf, white.

	60×55 cm	903.311.66
	80×55 cm	403.311.64

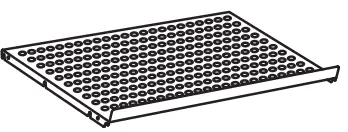

HJÄLPA shoe shelf, white.

	60×40 cm	504.500.24
	80×40 cm	704.500.23

HJÄLPA wire basket, white.

	60×55 cm	403.311.83
	80×55 cm	703.311.86

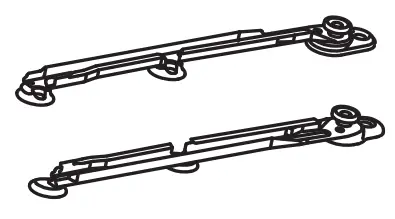

HJÄLPA pull-out rail for basket, white. 2-pack.

55 cm

103.311.94

HJÄLPA drawer without front, white.

	60×55 cm	603.309.79
	80×55 cm	003.309.82

HJÄLPA suspension rail, 55 cm, white, 2-p.

605.055.11

HJÄLPA hook, white, 3-p.

505.055.16

Exteriors

Hinges, legs, tops and other functions
Adjustable LÄTTHET legs keep your wardrobe standing straight on uneven floors. SPILDRA tops add extra display and storage surfaces on all frames.
HJÄLPA hinge, 1-pack.

603.312.00

HJÄLPA soft closing hinge, 1-pack.

903.828.82

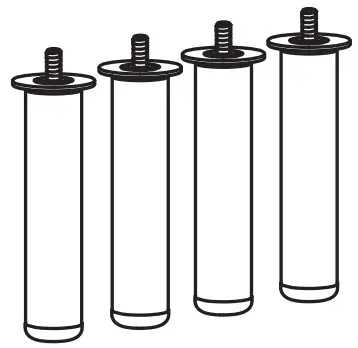

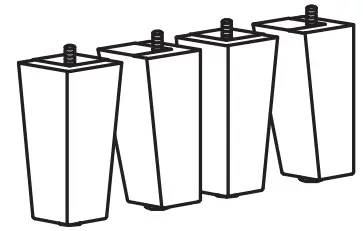

LÄTTHET leg, white/metal. 4-pack.

11 cm

503.955.94

LÄTTHET leg, white/wood. 4-pack.

11 cm

103.955.91

LÄTTHET leg adjustable, white. 4-pack.

203.311.98

HJÄLPA fitting for mounting exterior functions, white.

905.055.19

SPILDRA top, white.

	60×40 cm	603.317.14
	80×40 cm	503.316.96

SPILDRA top, white.

	60×55 cm	203.316.93
	80×55 cm	303.316.97

LÄTTHET handle, white. 1-pack.

13 cm

203.317.11

LÄTTHET hook and clip, 2-p.

104.369.78

HJÄLPA hook for clothes rail, 2-p.

904.461.48

HÄNGIG label holder, 5-p.

004.513.23

HJÄLPA hook, white, 3-p.

505.055.16

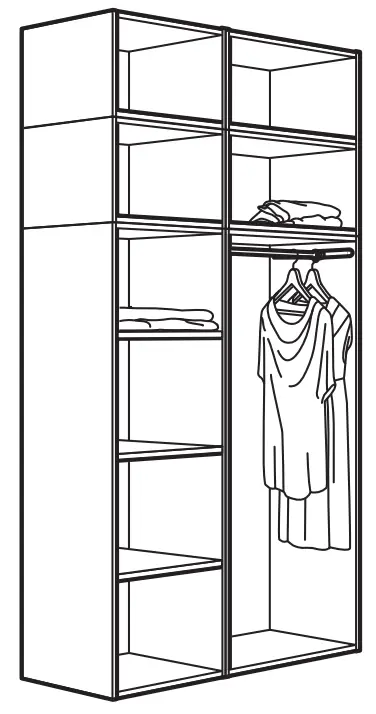

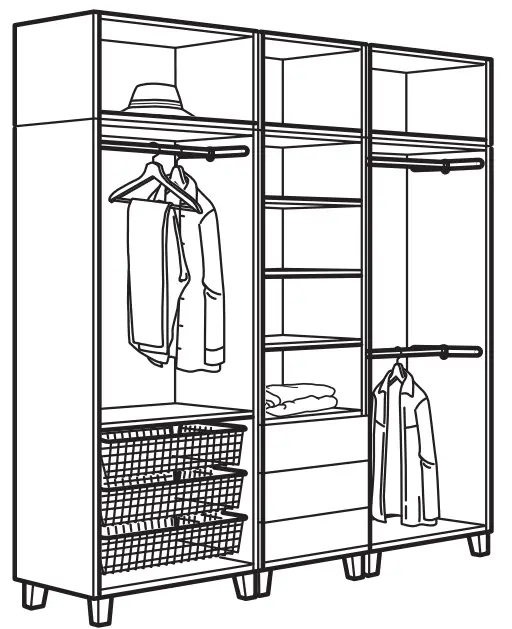

Ready-made combinations

Doors are included in the price but not shown in the illustration. You can choose to change the type of door in your combination. For help with this, please contact your local salesperson.
PLATSA combination, cm, white.
Overall size: 240×57×123 cm
This combination (194.251.50)
Shopping list

	PLATSA frame 80×55×120 cm, cm, white	603.309.55	3 pcs
	SANNIDAL door, 40×120 cm, white	903.955.54	4 pcs
	FONNES drawer front, 80×20 cm, white	103.859.26	3 pcs
	HJÄLPA standard hinges, 1-p	603.312.00	12 pcs
	HJÄLPA drawer without front, 80×55 cm, white	003.309.82	3 pcs
	SPILDRA top for storage module, 80×55 cm, white	303.316.97	3 pcs
	HJÄLPA adjustable clothes rail, 60-100 cm, white	404.978.28	2 pcs
	HJÄLPA suspension rail, 55 cm, white, 2-p	605.055.11	2 pcs
	HJÄLPA shelf, 80×55 cm, white	403.311.64	1 pc
	LÄTTHET leg adjustable, white, 4-p	203.311.98	1 pc

PLATSA combination, cm, white.
Overall size: 140×57×261 cm
This combination (694.243.32)
Shopping list

	PLATSA frame, 60×55×180 cm, white	503.309.51	1 pc
	PLATSA frame, 60×55×40 cm, white	903.309.49	2 pcs
	PLATSA frame, 80×55×180 cm, white	703.309.45	1 pc
	PLATSA frame, 80×55×40 cm, white	103.309.48	2 pcs
	FONNES door, 40×180 cm, white	003.310.57	2 pcs
	FONNES door, 40×40 cm, white	803.310.63	4 pcs
	FONNES door, 60×180 cm, white	403.310.55	1 pc
	FONNES door, 60×40 cm, white	003.310.62	2 pcs
	HJÄLPA adjustable clothes rail, 60-100 cm, white	404.978.28	1 pc
	HJÄLPA suspension rail, 55 cm, white, 2-p	605.055.11	1 pc
	HJÄLPA shelf, 60×55 cm, white	903.311.66	3 pcs
	HJÄLPA standard hinges, 1-p	603.312.00	22 pcs
	LÄTTHET leg adjustable, cm, white, 4-p	203.311.98	2 pcs

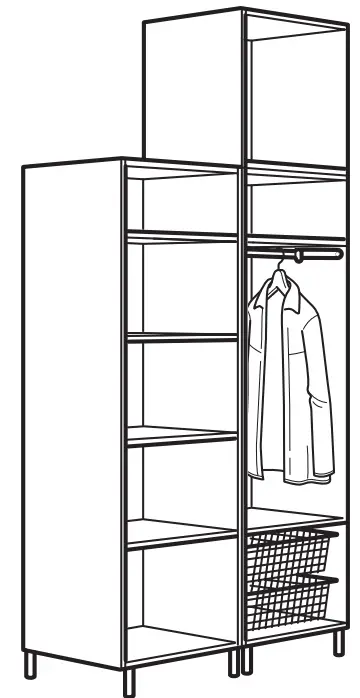

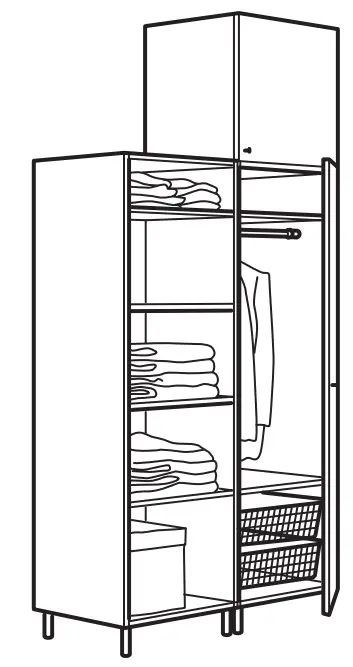

PLATSA wardrobe with 2 doors, white/Fonnes white.
Overall size: 120×57×251 cm
This combination (294.243.48)
Shopping list

	PLATSA frame, 60×55×180 cm, cm, white	503.309.51	2 pcs
	PLATSA frame 60×55×60 cm, white	103.309.72	1 pc
	FONNES door 60×180 cm, white	403.310.55	1 pc
	FONNES door 60×60 cm, white	403.310.60	1 pc
	HJÄLPA standard hinges,1-p	603.312.00	6 pcs
	HJÄLPA shelf 60×55 cm, white	903.311.66	7 pcs
	HJÄLPA adj clths rail 60-100 cm, white	404.978.28	1 pc
	HJÄLPA susp rail 55 cm, white, 2-p	605.055.11	1 pc
	HJÄLPA p-out rail f bskt 55 cm, white, 2-p	103.311.94	2 pc
	HJÄLPA wre bskt 60×55 cm, white	403.311.83	2 pcs
	LÄTTHET leg 11 cm, white/metal, 4-p	503.955.94	2 pcs

PLATSA combination, white.
Overall size: 240×57×231 cm
This combination (394.253.52)
Shopping list

	PLATSA frame, 60×55×180 cm, white	503.309.51	2 pcs
	PLATSA frame 60×55×40 cm, white	903.309.49	2 pcs
	PLATSA frame 60×55×60 cm, white	103.309.72	2 pcs
	FONNES door 60×180 cm, white	403.310.55	2 pcs
	FONNES door 60×40 cm, white	003.310.62	2 pcs
	FONNES door 60×60 cm, white	403.310.60	2 pcs
	HJÄLPA standard hinges, 1-p	603.312.00	16 pcs
	SPILDRA top for storage module, 60×55 cm, white	203.316.93	2 pcs
	HJÄLPA wire basket, 60×55 cm, white	403.311.83	2 pcs
	HJÄLPA pull-out rail for basket, 55 cm, white, 2-p	103.311.94	2 pcs
	HJÄLPA adjustable clothes rail, 60-100 cm, white	404.978.28	3 pcs
	HJÄLPA suspension rail, 55 cm, white, 2-p	605.055.11	3 pcs
	HJÄLPA shelf, 60×55 cm, white	903.311.66	1 pcs
	LÄTTHET leg, 11 cm, white/metal, 4-p	503.955.94	4 pcs

PLATSA combination, cm, white.
Overall size: 220×57×231 cm
This combination (794.249.54)
Shopping list

	PLATSA frame, 80×55×180 cm, white	703.309.45	2 pcs
	PLATSA frame, 60×55×180 cm, white	503.309.51	1 pc
	PLATSA frame, 80×55×40 cm, white	103.309.48	2 pcs
	PLATSA frame, 60×55×40 cm, white	903.309.49	1 pc
	SANNIDAL door, 40×180 cm, white	103.955.34	4 pcs
	SANNIDAL door, 60×40 cm, white	203.955.38	1 pc
	SANNIDAL door, 40×40 cm, white	203.955.43	4 pcs
	STRAUMEN mirror door, 60×120 cm, mirror glass	505.063.18	1 pc
	HJÄLPA standard hinges, 1-p	603.312.00	25 pcs
	FONNES drawer front, 60×20 cm, white	803.859.23	3 pcs
	HJÄLPA drawer without front, 60×55 cm, white	603.309.79	3 pcs
	HJÄLPA adjustable clothes rail, 60-100 cm, white	404.978.28	3 pcs
	HJÄLPA suspension rail, 55 cm, white, 2-p	605.055.11	3 pcs
	HJÄLPA wire basket, 80×55 cm, white	703.311.86	3 pcs
	HJÄLPA pull-out rail for basket, 55 cm, white, 2-p	103.311.94	3 pcs
	HJÄLPA shelf, 60×55 cm, white	903.311.66	4 pcs
	HJÄLPA shelf, 80×55 cm, white	403.311.64	1 pc
	LÄTTHET leg, 11 cm, white/wood, 4-p	103.955.91	3 pcs

PLATSA combination, cm, white.
Overall size: 90-107×42×181 cm
This combination (394.253.66 )
Shopping list

	PLATSA frame, 60×40×180 cm, cm, white	903.309.54	1 pc
	FONNES door, 60×180 cm, white	403.310.55	1 pc
	HJÄLPA standard hinges, 1-p	603.312.00	4 pcs
	HJÄLPA shelf, 60×40 cm, white	003.311.61	3 pcs
	LÄTTHET leg adjustable, white, 4-p	203.311.98	1 pc
	HJÄLPA adjustable clothes rail, 30-47 cm, white	004.978.25	1 pc
	HJÄLPA suspension rail, 40 cm, white 2-p	305.055.22	1 pc
	HJÄLPA fitting for mounting exterior functions, white	905.055.19	1 pc

PLATSA combination, white.
Overall size: 340×42×241 cm
This combination (493.365.48)
Shopping list

	PLATSA frame 60×40×180 cm, white	903.309.54	2 pcs
	PLATSA frame 60×40×60 cm, white	503.309.70	3 pcs
	PLATSA frame 80×40×60 cm, white	303.309.71	2 pcs
	HJÄLPA drawer without front 60×40, white	603.309.84	3 pcs
	FONNES drawer front 60×20 cm, white	803.859.23	3 pcs
	SANNIDAL door 40×60 cm, white	503.955.51	4 pcs
	SANNIDAL door 60×180 cm, white	003.955.58	1 pc
	SANNIDAL door 60×60 cm, white	103.955.48	3 pcs
	HJÄLPA shelf 60×40 cm, white	003.311.61	8 pcs
	HJÄLPA shelf 80×40 cm, white	103.311.65	2 pcs
	HJÄLPA clothes rail 60×40 cm, white	604.501.27	1 pc
	LÄTTHET suspension rail 60 cm	003.863.75	1 pc
	LÄTTHET suspension rail 80 cm	003.311.99	2 pcs
	LÄTTHET leg adjustable, white	203.311.98	2 pcs
	HJÄLPA hinge, 1-pack	603.312.00	18 pcs

PLATSA combination, white.
Overall size: 260×42×221 cm
This combination (993.365.60)
Shopping list

	PLATSA frame 80×40×40 cm, white	103.309.53	1 pc
	PLATSA frame 60×40×40 cm, white	703.309.50	1 pc
	PLATSA frame 80×40×180 cm, white	303.309.52	1 pc
	PLATSA frame 60×40×60 cm, white	503.309.70	2 pcs
	PLATSA frame 60×40×180 cm, white	903.309.54	1 pc
	FONNES door 40×180 cm, white	003.310.57	2 pcs
	FONNES door 40×40 cm, white	803.310.63	2 pcs
	RIDABU mirror door 60×120 cm, white	703.310.92	1 pc
	FONNES door 60×40 cm, white	003.310.62	1 pc
	FONNES door 60×60 cm, white	403.310.60	3 pcs
	HJÄLPA standard hinges, 1-p	603.312.00	21 pcs
	HJÄLPA wire basket, 80×40 cm, white	203.311.84	1 pc
	HJÄLPA pull-out rail for baskets, 40 cm, white, 2 pack	303.311.93	1 pc
	HJÄLPA clothes rail, 80×40 cm, white	204.502.14	1 pc
	HJÄLPA shelf, 60×40 cm, white	003.311.61	6 pcs
	HJÄLPA shelf 80×40 cm, white	103.311.65	1 pc
	SPILDRA top for storage module, 60×40 cm , white	603.317.14	2 pcs
	LÄTTHET leg, adjustable, white, 4 pack	203.311.98	4 pcs

PLATSA wardrobe.
Overall size: 80×42×181 cm
This combination (593.264.69)
Shopping list

	PLATSA open clothes hanger unit 80×40×120 cm, white	404.526.03	1 pc
	PLATSA frame 80×40×60 cm, white	303.309.71	1 pc
	PLATSA frame 80×40×40 cm, white	103.309.53	1 pc
	FONNES drawer 40×40 cm, white	803.310.63	2 pcs
	FONNES drawer front 80×20 cm, white	103.859.26	3 pcs
	HJÄLPA drawer without front 80×40 cm, white	703.309.74	3 pcs
	LÄTTHET leg, adjustable, white, 4-p	203.311.98	1 pc
	HJÄLPA standard hinges, 1-p	603.312.00	4 pcs

PLATSA wardrobe, white.
Overall size: 120×42×181 cm
This combination (193.239.29)
Shopping list

	PLATSA frame 60×40×40 cm, white	703.309.50	1 pc
	PLATSA frame 60×40×120 cm, white	303.309.47	1 pc
	PLATSA open clothes hanger unit 80×40×120 cm, white	404.526.03	1 pc
	PLATSA open shelving unit 80×40×40 cm, white	104.525.48	1 pc
	FONNES door 60×40 cm, white	003.310.62	1 pc
	HJÄLPA shelf 60×40 cm, white	003.311.61	2 pc2
	HJÄLPA standard hinges, 1-p	503.312.00	5 pcs
	FONNES door 60×120 cm, white	803.310.58	1 pc
	LÄTTHET leg, adjustable, white, 4-p	203.311.98	2 pcs

PLATSA bed frame with 2 drawers.
Overall size: 140×200×103 cm
This combination (994.259.19)
Shopping list

	PLATSA bed frame with storage, 140×200 cm	905.126.47	1 pc
	PLATSA frame, 60×40×60 cm, white	503.309.70	1 pc
	PLATSA frame, 80×40×60 cm, white	303.309.71	1 pc
	FONNES drawer front, 80×20 cm, white	103.859.26	2 pcs
	HJÄLPA shelf, 60×40 cm, white	003.311.61	1 pc
	HJÄLPA shelf, 80×40 cm, white	103.311.65	1 pc
	LÄTTHET footboard panel, 140×60 cm	504.530.89	1 pc
	HJÄLPA drawer without front, 80×40 cm, white	703.309.74	2 pcs

PLATSA bed frame with 4 drawers, white.
Overall size: 140×200×163 cm
This combination (394.257.19)
Shopping list

	PLATSA bed frame with storage, 140×200 cm, white	905.126.47	1 pc
	PLATSA open shelving unit, 60×40×120 cm, white	104.525.72	1 pc
	PLATSA open clothes hanger unit, 80×40×120 cm, white	404.526.03	1 pc
	FONNES drawer front, 60×20 cm, white	803.859.23	2 pcs
	FONNES drawer front, 80×20 cm, white	103.859.23	2 pcs
	HJÄLPA drawer without front, 60×40  cm, white	603.309.84	2 pcs
	HJÄLPA drawer without front, 80×40 cm, white	703.309.74	2 pcs
	HJÄLPA shelf 60×40 cm, white	003.311.61	2 pcs
	HJÄLPA shelf 80×40 cm, white	103.311.65	1 pc

PLATSA bed frame with 6 doors and 12 drawers, white.
Overall size: 140×244×203 cm
This combination (594.256.81)
Shopping list

	PLATSA bed frame with storage 140×200 cm, white	905.126.47	1 pc
	PLATSA frame 60×40×60 cm, white	503.309.70	2 pcs
	PLATSA frame 80×40×60 cm, white	303.309.71	2 pcs
	PLATSA open shelving unit 80×40×40 cm, white	104.525.48	1 pc
	PLATSA open shelving unit 60×40×40 cm, white	804.525.83	1 pc
	FONNES door 40×40 cm, white	803.310.63	2 pcs
	FONNES door 40×60 cm, white	203.310.61	2 pcs
	FONNES door 60×40 cm, white	003.310.62	1 pc
	FONNES door 60×60 cm, white	403.310.60	1 pc
	FONNES drawer front 60×20 cm, white	803.859.23	9 pcs
	FONNES drawer front 80×20 cm, white	103,859.26	3 pcs
	HJÄLPA drawer without front 60×40 cm, white	603.309.84	9 pcs
	HJÄLPA drawer without front 80×40 cm, white	703.309.74	3 pcs
	HJÄLPA shelf 60×40 cm, white	003.311.61	1 pc
	HJÄLPA shelf 80×40 cm, white	103.311.65	2 pcs
	HJÄLPA standard hinges, 1-p	603.312.00	12 pcs
	LÄTTHET footboard panel 140×60 cm, white	504.430.89	2 pcs

Interior accessories

Complete your new storage solution with your choice of boxes and inserts from our extensive range of interior accessories. They give you even more options for a smarter way to store all your clothes..

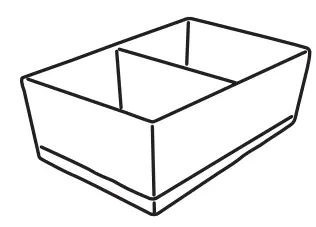

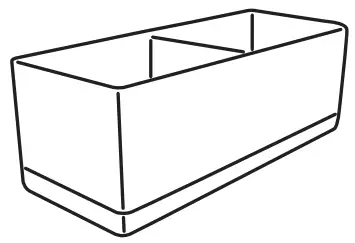

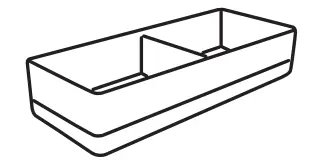

STUK box with compartments, white.

	20×34×10 cm	604.744.25
	20×51×10 cm	604.744.30
	20×51×18 cm	804.744.34
	34×51×10 cm	904.744.38
	34×51×18 cm	904.744.43

STUK box with compartments, blue grey.

	20×34×10 cm	204.939.11
	34×51×10 cm	904.939.17

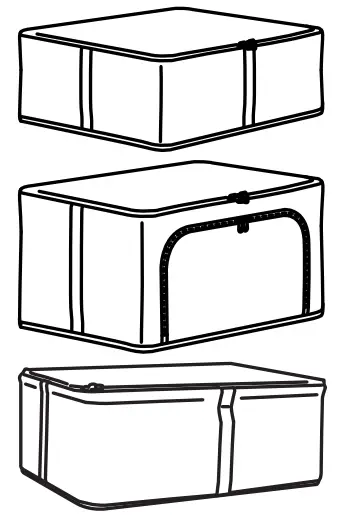

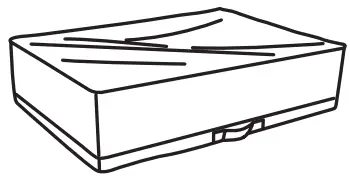

STUK storage case, white/grey.

	34×51×28 cm	403.096.86
	55×51×18 cm	403.095.73
	71×51×18 cm	503.095.77

STUK storage case, blue grey.

	34×51×28 cm	104.939.21
	55×51×18 cm	404.939.48
	71×51×18 cm	104.939.40

STUK organizer, white.

26×20×6 cm

805.074.01

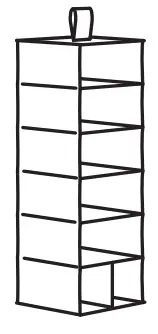

STUK storage with 7 compartments, 30×30×90 cm.

	White/grey	703.708.56
	Blue grey	304.939.44

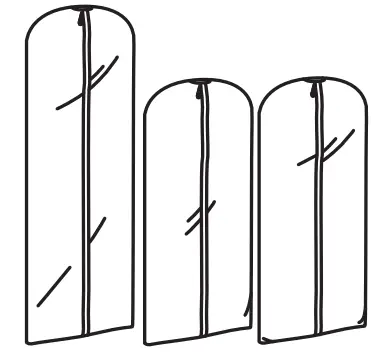

STUK clothes cover, set of 3.

White/grey

503.708.76

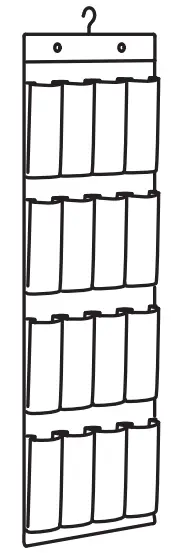

STUK hanging shoe organizer with 16 pockets, white/grey.

51×140 cm.

203.756.77

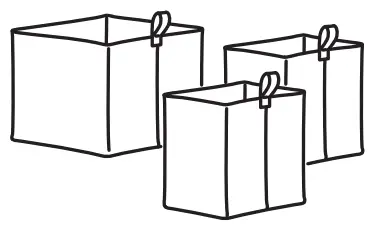

RAGGISAR basket, set of 3.

903.480.15

HEMMAFIXARE storage case, fabric striped/white/grey.

	44×51×19 cm	205.039.10
	34×51×28 cm	905.039.16
	34×51×19 cm	905.039.21

HEMMAFIXARE shoe box, 2 pack.

25×34×19 cm

405.039.14

KOMPLEMENT box, light grey

	15×27×12 cm	104.040.53
	25×27×12 cm	404.057.77

KOMPLEMENT drawer mat, 90×53 cm. Easy to cut out to the desired size.

Light grey

304.055.65

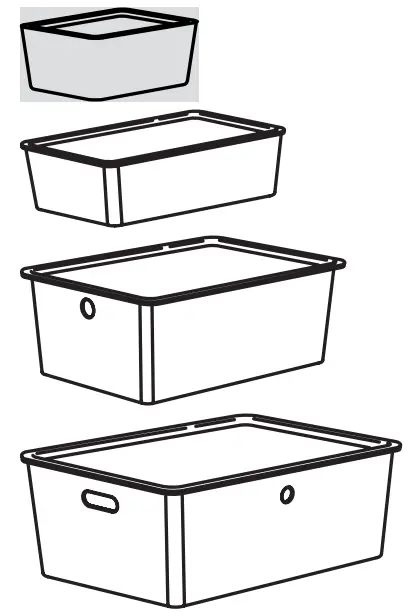

KUGGIS box with lid, white.

	13×18×8 cm	404.858.54
	18×26×8 cm	202.802.07
	26×35×15 cm	602.802.05
	37×54×21 cm	102.802.03

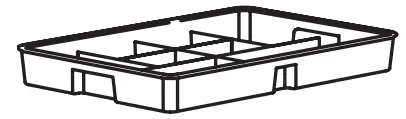

KUGGIS insert with 8 compartments, white.

53×36×6 cm

002.802.08

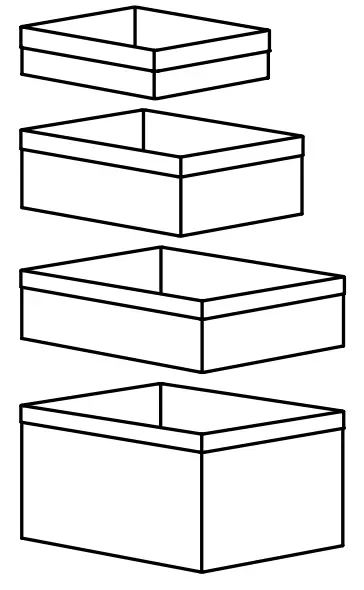

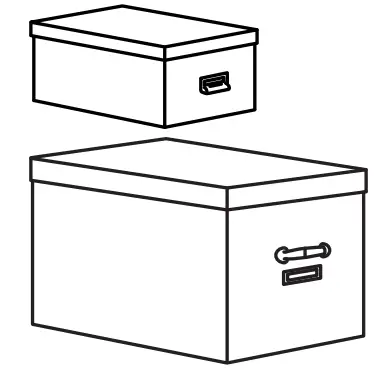

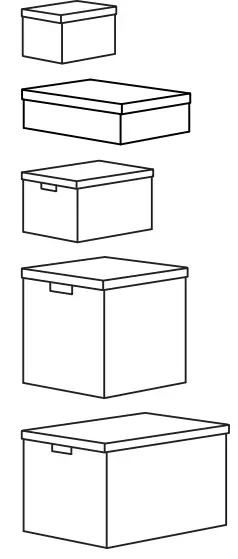

TJENA storage box with lid.

	White 18×25×15 cm	103.954.21
	35×25×10 cm	903.954.22
	25×35×20 cm	603.954.28
	32×35×32 cm	404.693.02
	35×50×30 cm	903.743.49
	Black 18×25×15 cm	603.954.85
	35×25×10 m	403.954.86
	25×35×20 cm	303.954.77
	32×35×32 cm	204.692.99

BLÄDDRARE box with lid, grey/patterned.

	25×35×15 cm	804.743.92
	35×50×30 cm	904.744.00
	35×50×15 cm	904.743.96

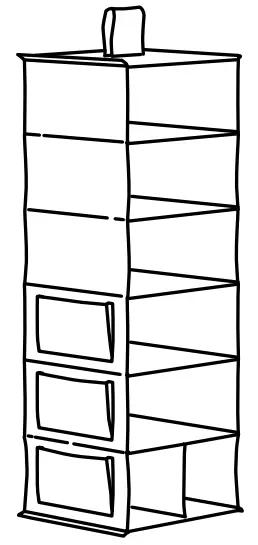

BLÄDDRARE hanging storage with 7 compartments, grey/patterned.

30×30×90 cm

104.744.04

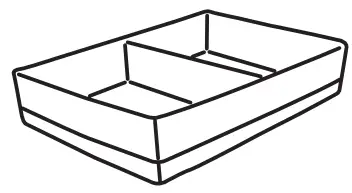

BAXNA organizer, grey/white

	17×20×6 cm	304.591.72
	20×26×10 cm	004.743.72
	26×34×10 cm	204.743.66
	26×34×18 cm	004.862.90

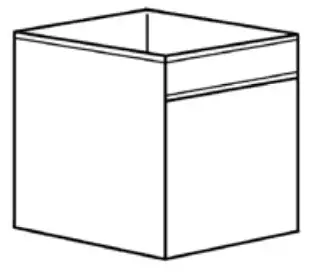

DRÖNA box, 33×38×33 cm.

	Black	302.192.81
	White	402.179.55
	Dark grey	104.439.74

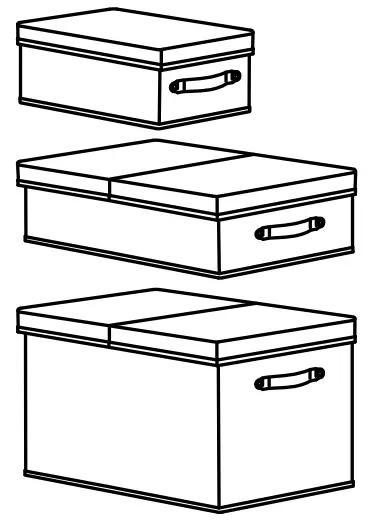

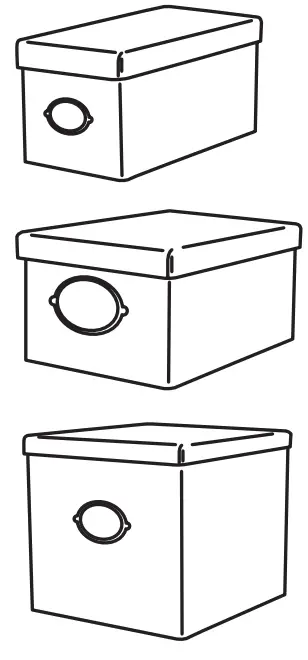

KVARNVIK storage box with lid.

	Beige 18×26×15 cm	504.668.69
	25×35×20 cm	204.594.79
	32×35×32 cm	004.594.80
	Grey 18×25×15 cm	704.128.75
	25×35×20 cm	104.128.78
	32×35×32 cm	104.669.51

KVARNVIK box, set of 3.

Beige

604.594.77

TJOG storage box with lid.

	Dark grey 25×36×15 cm	404.776.65
	35×56×30 cm	804.776.68
	Dark beige 25×36×15 cm	704.746.08
	35×56×30 cm	804.746.17

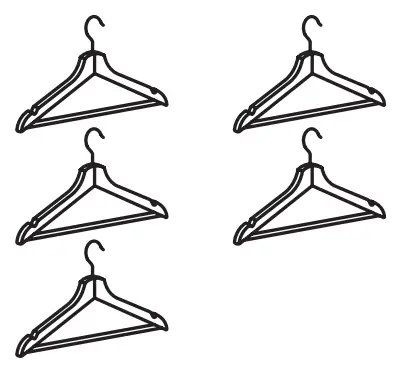

BUMERANG hanger, 5-pack.

	Natural	302.385.43
	White	702.385.41

BUMERANG shoulder shaper for hanger, white.

702.932.74

BUMERANG skirt hanger, natural.

404.324.79

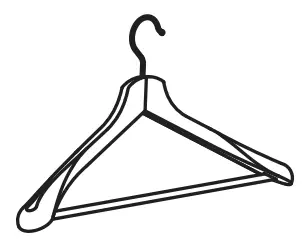

BUMERANG coat hanger, natural.

904.442.67

STAJLIG hanger in/outdoor, white.

5.pack

002.914.19

Integrated lighting

Make it easier to see what you need and find your favourite outfit faster with integrated lighting for your wardrobe. No more bright lamps or waking your partner to find things in the morning. Instead, you can start your day in a pleasant way as you open your wardrobe and the soft light switches on.

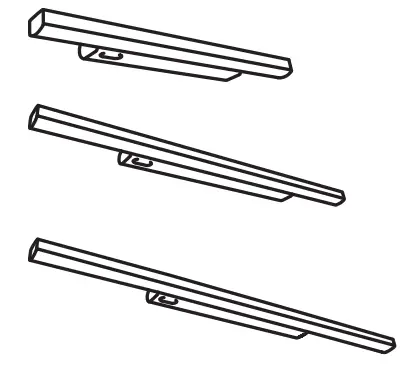

STÖTTA LED lighting strip, battery-operated, white. Developed with PLATSA in mind. The light switches on and off automatically when you open or close the door, so no energy is wasted. Ideal for behind hinged doors and in drawers to light up what you need to see without disturbing others. Batteries are sold separately; 4 pcs AA required (2 for 32 cm version). IKEA recommends LADDA rechargeable batteries. With new, fully charged LADDA AA 2450 mAh rechargeable batteries, one charging will last approx. 1.5 months if the lighting strip is used 5 minutes per day.

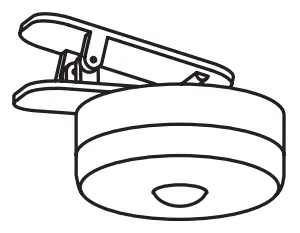

STÖTTA LED spotlight & clamp, battery-operated, white. The simplest way to light up small or multi-purpose spaces with a functional, directed light. It’s battery-operated, so you don’t have to deal with cords. Batteries are sold separately; 4 pcs AA required. IKEA recommends LADDA 2450 mAh rechargeable batteries.

LADDA rechargeable batteries. If you’re a frequent user of alkaline batteries, over time you can save money, reduce waste and lower your impact on the environment by switching to LADDA rechargeable batteries. By using rechargeable batteries, you’ll always have ready-to-use batteries at home and rarely have to buy new ones. LADDA rechargeable batteries 2450 mAh give you approximately 30 percent more operating time than LADDA 1900 mAh.

SKYDRAG is the LED lighting strip designed for the PLATSA series. You can use the lighting strip under PLATSA wall cabinets and open wall frames or use it to create a cozy light inside the open frames. If you connect the lighting strip to TRÅDFRI driver, you can easily turn on, turn off and dim your lighting as needed.

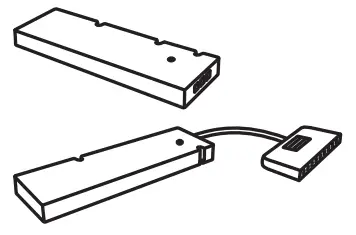

TRÅDFRI LED driver for wireless control. To be completed with FÖRNIMMA power supply cord, sold separately. Can be used with TRÅDFRI wireless dimmer and TRÅDFRI gateway. You can connect up to 10 TRÅDFRI LED drivers in one installation using the the intermediate connection cord in between.

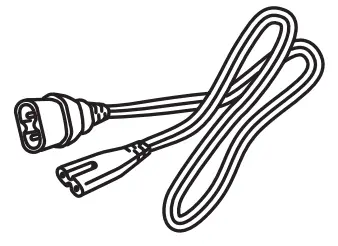

FÖRNIMMA intermediate connection cord 0.7 m. Can be used as a direct connection between TRÅDFRI LED drivers, e.g. between two sections of wall cabinets, with one single connection to the mains supply.

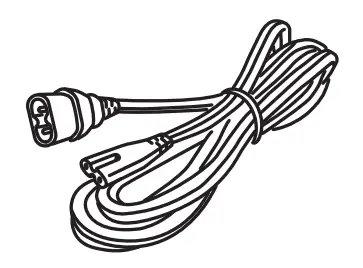

FÖRNIMMA intermediate connection cord 2 m. Can be used as a direct connection between TRÅDFRI LED drivers, e.g. between two sections of wall cabinets, with one single connection to the mains supply.

Services

We offer a range of services to help you with everything from putting it together to getting it home. Of course, the more you do yourself, the lower the price will be. And the more we do for you, the more you can sit back and relax!
Delivery service
Add our delivery service to your total cost regardless of whether you’re shopping online or in your local store. We can deliver the same day/next day within the store delivery area. And, we don’t just stop at your front door, we deliver all the way to your room of choice.
Assembly service
We assemble your IKEA furniture in your home following the assembly instructions. The assembly service includes a free 1-year guarantee on workmanship, and disposal of all packaging in an environmentally friendly way.
It’s ok to change your mind
You have 365 days to return your purchase. Keep your receipt safe to make returns easier. You’re free to change your mind. Return unused items in their original packaging within 365 days together with proof of purchase for a full refund.

© Inter IKEA Systems B.V. 2016-2021

References

• Fresh home furnishing ideas and affordable furniture - IKEA
• Hej! Welcome to IKEA Global
• Hej! Welcome to IKEA Global
