Philips Ppx4350w Picopix Pocket Projector Instructions

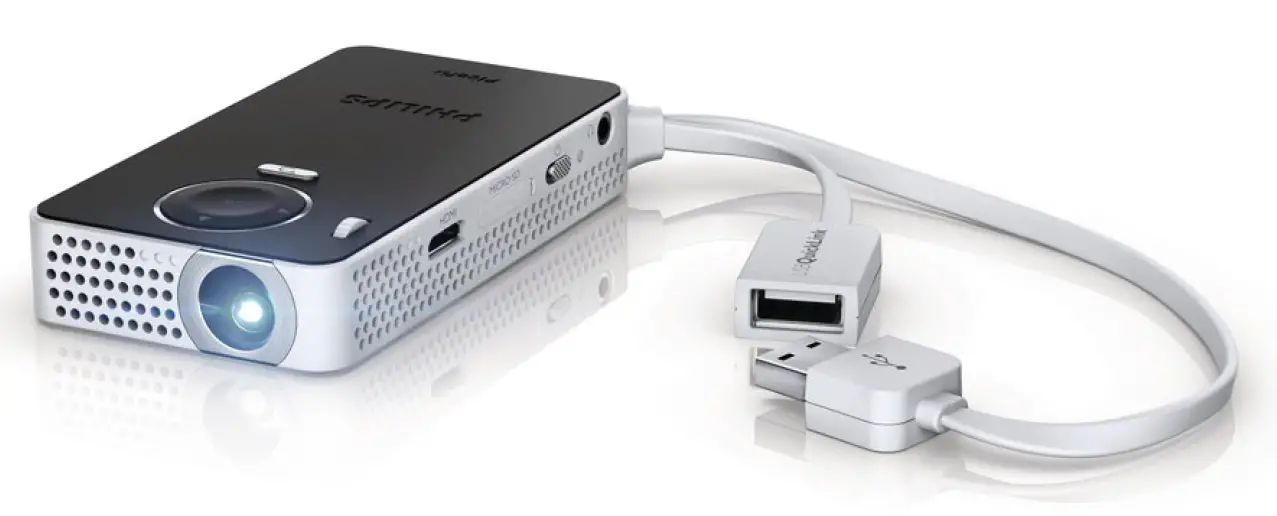

PHILIPS PPX4350W PicoPix Pocket Projector

With HDMI, USB and a micro SD slot, it’s easy to project videos and pictures. The PicoPix supports wireless screen mirroring with iOS, Android & Windows devices. With the Bluetooth audio function it can be connected to Bluetooth speakers.

Excellent image quality

• Project HD videos and images up to 60″ (152 cm) in size
• WavEngine with LED technology

USB QuickLink

• USB plug & socket for power and for playing videos High usability
• HDMI interface, micro SD slot, integrated media player
• MHL support for mobile devices

Wireless connectivity
Bluetooth function and Wi-Fi dongle for screen mirroring

Specifications

Technology

• Display technology: DLP WavEngine
• Light source: RGB LED
• LED light sources: Last over 30,000 hours
• Brightness: up to 50 lumens
• Contrast ratio: 1300:1
• Resolution: 640 x 360 pixels
• Throw ratio: 2.2:1
• Screen size (diagonal): 25 cm–152 cm / 10″–60″
• Screen distance: 48 cm–285 cm / 19″–112″
• Aspect ratio: 16:9
• Projection modes: front, front ceiling, rear, rear ceiling
• Wall colour correction: Blue, green, pink, white, yellow
• Focus adjustment: Manual
• Integrated media player
• Internal memory: 4 GB
• Noise level: < 28 dba

Connection

• Wi-Fi: Via dongle
• Bluetooth: Connects PPX 4350 to external Bluetooth speakers
• HDMI: mini HDMI with HDCP
• USB: Slave – mass storage device (x-change data with PC); Master – connect mass storage devices; Charging
• Output audio: 3.5 mm audio out jack for headphones
• External Memory: micro SD/SDHC

Sound

• Internal speaker: 1 Watt (max)
• Supported audio formats: mp3, wav

Dimensions

• Packed (W x D x H): 130 x 86 x 65 mm / 5.12 x 3.39 x 2.56 inch
• Unpacked (W x D x H): 97 x 54 x 17 mm / 3.81 x 2.12 x 1.00 inch

Weight

• Packed: 192 g / 6.17 oz
• Unpacked: 129 g / 4.14 oz

Standard package includes

• User guide: on internal memory
• Warranty card
• Quick start guide
• PPX 4350 Wireless
• Mini-HDMI to HDMI cable
• Wi-Fi dongle

Power source
Internal battery: Internal battery: 1800 mA,
Optimal mode: 1.5 hours, Eco mode: 2 hours

Temperature range

• Operation: 5 ~ 35° C
• Storage packed: -25–60° C
• Storage unpacked: 0–45° C

Relative humidity

• Operation: 15–85% RH
• Storage packed: 5–93% RH
• Storage unpacked: 15–85% RH

Internal media player

• Supported video formats: container: avi, mov, mp4, mkv; codecs: MJPEG, MPEG4, H.264″
• Supported audio formats: mp3, wav

Highlights

• HDMI interface, micro SD slot
  HDMI interface, micro SD slot, integrated media player
• Project HD videos up to 60″
  Project HD videos and images up to 60″ (152 cm) in size
• MHL support
  MHL support for mobile devices
• USB plug & socket
  USB plug & socket for power and for playing videos directly from your USB-Stick
• WavEngine with LED technology
  WavEngine with LED technology provides surprisingly clear pictures in brilliant colours
• Bluetooth and Wi-Fi dongle
  Bluetooth function and Wi-Fi dongle for screen mirroring (Miracast compatible)
