FISHER PAYKEL HPB3611-4_N Insert Range Hood, 36″

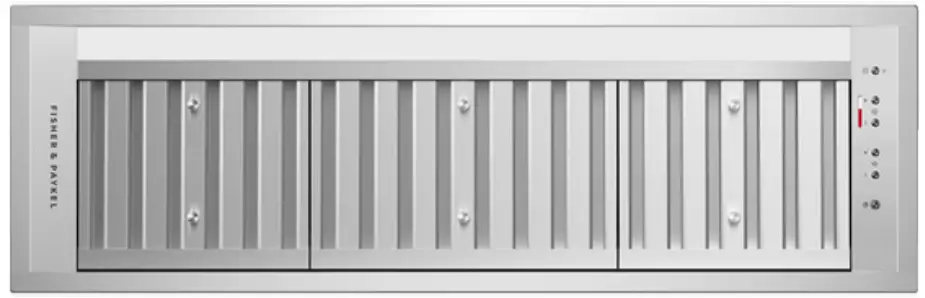

HPB3611-4_N Insert Range Hood, 36"

With edge-to-edge extraction, this efficient, stylish range hood is perfectly hidden away in your cabinetry.

With five fan speeds, select the perfect extraction rate for your cooking
With dimmable LED strip lighting
400CFM maximum airflow
Dishwasher safe filters that are easy to remove and clean

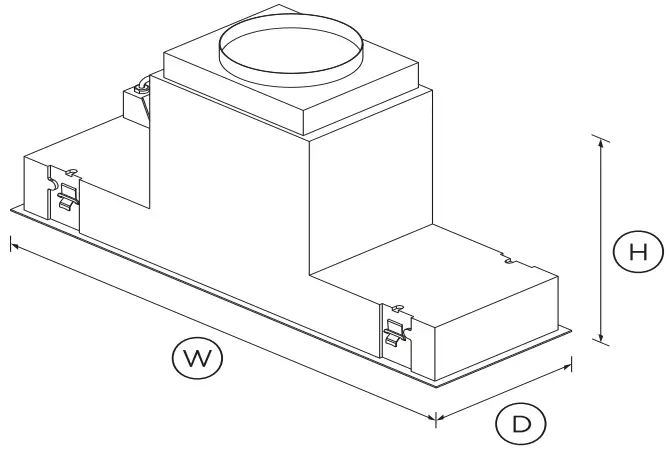

DIMENSIONS

Height	16 1/4″
Width	34 5/8″
Depth	11″

Dimensions

FEATURES & BENEFITS

Achieve the invisible

This high quality integrated range hood seamlessly blends behind cabinetry in a variety of kitchen layouts. Beautiful in its simplicity this product has brushed finished surfaces with no visible screws.

Edge to edge extraction

Filters effectively reach edge to edge, which maximizes the amount of extraction area.

Full surface lighting

The even lighting provides full coverage of the cooktop, illuminating food in its true color, with no hot or dark spots and no glare or shadows. The dimmable lights have fade in and fade out features.

Easy to use

This easy to use range hood operates with fingertip control of LED-illuminated soft touch buttons. Selected models also come with a remote control.

Energy efficiency

Powered by a brushless DC motor, the Insert Range Hood operates more efficiently, more reliably and with less noise than units with AC motors. Plus, fewer moving parts mean less erosion and longer lifetime.

Effortless cleaning

The stainless steel filters are easy to remove and are dishwasher safe. A self-contained grease tray within the filters makes them very easy to clean.

Simple installation

The simple installation process is compatible with most precut cabinetry. The adjustable mounting system can be installed with ⅝” to 9/16” cabinetry board.

SPECIFICATIONS

Accessories
Remote control	HPBRF1 Part number 50137
Fan ratings
Maximum air movement	400CFM
Installation and cleaning
Air outlet size	8″
Dishwasher safe filters	3
Ducted	Vertical only
Performance
Extraction type	Surface
Fan speeds	5
Filter type	Stainless Steel Baffle
Power requirements
Supply voltage	120V
Product dimensions
Depth	11″
Height	16 1/4″
Width	34 5/8″
Product information
Control type	Electronic
Ventilation features
Auto-off/Run-on timer	•
Dimmable lights	•
Filter cleaning alert	•
Light type	LED
Number of light settings	5
Over heat sensing	•
Warranty
Parts and labor	2 years
SKU	50149

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
