STEINBACH Jump on pool shower
User Manual
STEINBACH Jump on pool shower
 |  |
 |  |
Installation:
- Place the shower on a stable, horizontal surface.

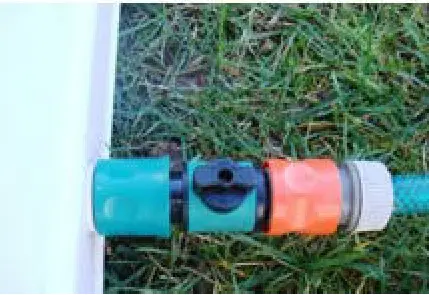

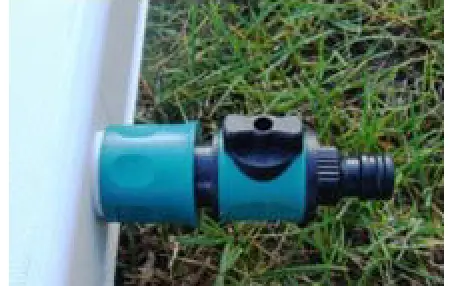

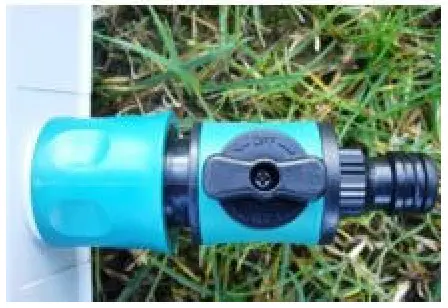

- Attach the green adapter to the platform (Fig. 1, 2). Then check the valve on the adapter which controls the flow of water. (Fig. 3)
- Connect the garden hose as shown in Fig. 4.
- Open the water tap to a maximum flow of 75%. If you need a higher water level, increase the water flow as required. If pressure is too high, however, the adapter may come off the platform.
- To test the water height, step onto the middle of the platform. Your body weight will then open the spray valves. If the height of the water is too low, go back to the water source and open the tap a little more. Adjust the valve on the green adapter to reduce the water height.
To avoid any risk of scalding, drain some water from the garden hose on hot days, before connecting to the platform.
In winter, it is very important that the shower is completely drained, and if you are in any doubt, we recommend you store the shower in your garage.
Water pressure should be at least 2 bar for normal operation. If pressure is over 4 bar, please use a pressure reducer.
This equipment may be used by persons with restricted physical, sensory or mental ability, or limited experience and/or knowledge if they are supervised, or they have been given instructions relating to safe use of the equipment and the risks which may result.
Never leave children or anyone with a disability unattended. Please help and supervise children when in use! Do not jump off this shower. The shower can only be used by one person at a time.
Steinbach VertriebsgmbH,
Aistingerstrasse 2, 4311 Schwertberg,
e-mail: [email protected]
www.steinbach.at
Bodendusche Jump On
Steinbach Pools und Poolzubehör - “we are pool”
