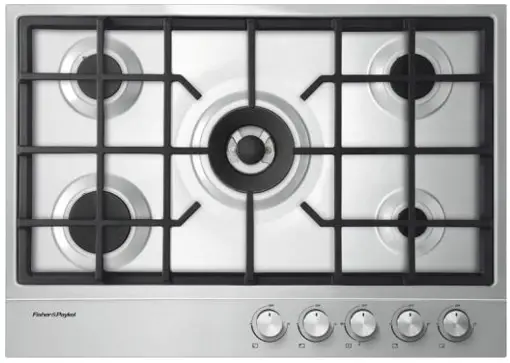

CG305DNGX1N 30-Inch Gas on Steel Cooktop
User Guide
Series 7 | Contemporary
Stainless Steel | Natural gas
Put on a wok, set a small pan to a simmer, or sear a steak. There’s plenty of room for your cooking creativity.
Five burners including a wok burner
Auto re-ignition means if the flame goes out it will automatically re-light for safety
DIMENSIONS
| Height | 2 5/16″ |
| Width | 29 17/32″ |
| Depth | 20 7/8″ |
FEATURES & BENEFITS
Easy handling
With flat cast iron grates, pots and pans can easily be slid across elements, coming in handy in busy cooking environments.
Safe and sound
The Auto-reignite system means you don’t have to hold down a dial while burners ignite – if a burner goes out it is automatically relit at the original flame setting.
Complementary design
The brushed stainless steel and polished metal trim has been designed for durability but also provides a modern, stylish finish, matching the Fisher & Paykel family of kitchen appliances.
Easy cleaning
The stainless steel component is easily accessible and quick to clean. Cast iron trivets provide a durable and stable cooking platform. Their rubber feet prevent them from scratching the cooktop.
Handy accessories
This cooktop comes with small pan support and a wok stand to complement different cooking styles.
Precise control
Simply turn the dials to ignite the flame quickly and safely.
Innovalve™ technology allows you to adjust the flame with 180-degree gas valve rotation for super accurate temperature control.
SPECIFICATIONS
| Accessories | |
| Small pan support | • |
| Wok stand | • |
| Burner ratings | |
| Auxiliary burner (natural gas) | 700 – 3500BTU |
| Rapid burner (natural gas) | 1900 – 11500BTU |
| Semi-rapid burner (natural | 1000 – 8500BTU |
| Wok burner (natural gas) | 19000BTU |
| Burners | |
| Number of burners | 5 |
| Wok burner | • |
| Cleaning | |
| Easy clean cooktop design | • |
| Quick component removal | • |
| Controls | |
| Ergonomic control dials | • |
| Laser etched graphics | • |
| Turned stainless dials | • |
| Performance | |
| Both LPG & NG models | • |
| Cast iron trivets | • |
| Electronic ignition | • |
| Quick connect gas valves | • |
| Power requirements | |
| Amperage | 1A |
| Supply frequency | 60Hz |
| Supply voltage | 110-120V |
| Product dimensions | |
| Depth | 20 7/8″ |
| Height | 2 5/16″ |
| Width | 29 17/32″ |
| SKU | 81459 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
