Resistex Noclip Led Instruction Manual

Resistex Noclip Led Instruction Manual

resistex-logo

resistex Noclip LED

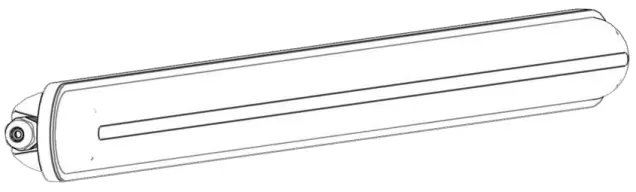

resistex-Noclip-LED-product

Safety notes

  • Never work when voltage is present on the luminaire.
  • The installation must be performed by a professional installer in compliance with the standards and regulations relating to electrical installations
  • Risk of electrostatic discharges. (ESD Norm). Handle with precautions.
  • Please observe the notes and steps described in the mounting instructions.

Maintenance instructions

  • Do not use chemicals or abrasives products to clean the fixture.
  • Keep these instructions for dismantling or future maintenance. You can consult additional information about RESISTEX luminaires on the website www.resistex-sa.com.
    RESISTEX cannot be responsible for any misuse of the product.

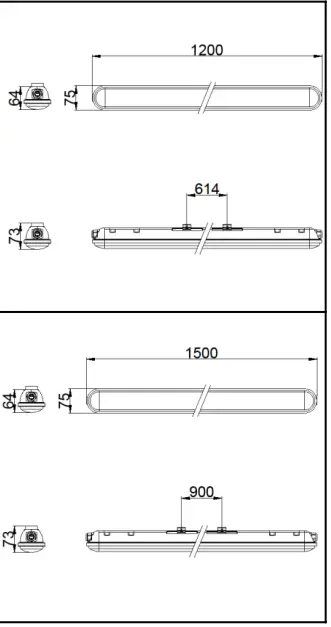

Dimensions

resistex-Noclip-LED-fig-2

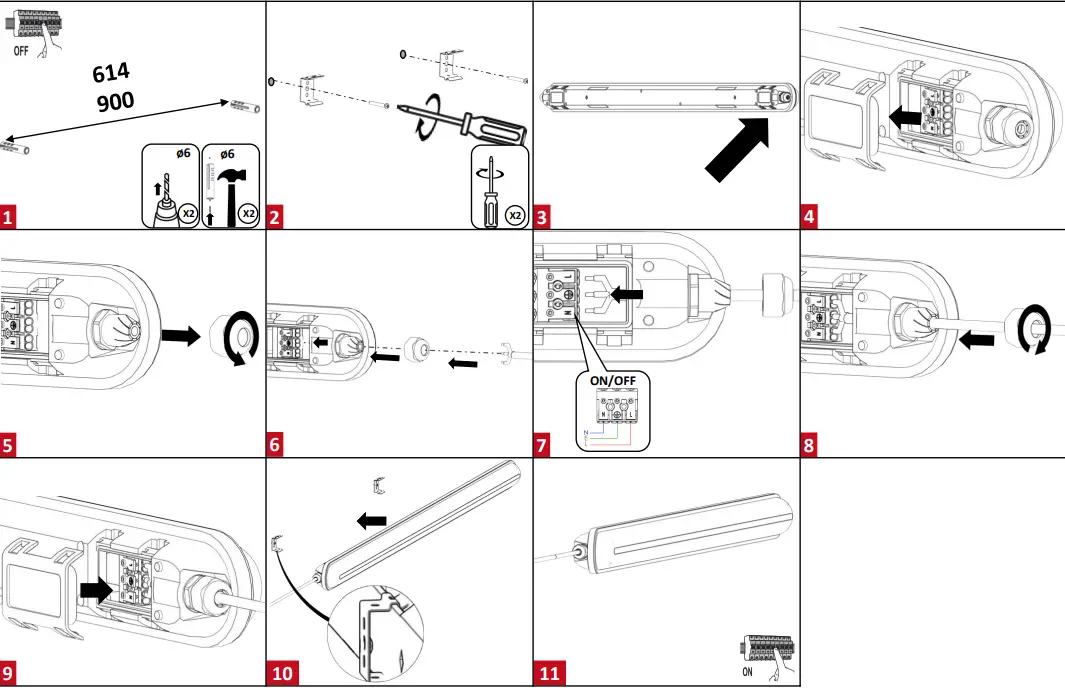

INSTALLATION

resistex-Noclip-LED-fig-1

www.resistex-sa.com
RESISTEX EXPLOITATION, 11 Quai de la Banquière CS 80010, 06730 Saint-André-de-la-Roche – France
Tél. 04 93 276 276 – Fax 04 93 276 280 – [email protected]
APE 2740Z – Siret 487 593 477 00010 – SAS CAPITAL 649979 € – T.V.A. F.R. 73 487 593 477
