Jula 157-003 Monteringsanvisning For Arbeidsbenk User Manual

157-003 Monteringsanvisning for arbeidsbenk
User Manual

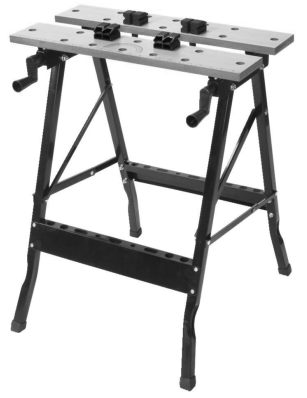

 Assembly instructions for Work Bench
Translation of the original instructions

SAFETY INSTRUCTIONS

Read the Assembly Instructions carefully before use!

• Make sure that the rubber feet are fitted correctly on the legs and that all nuts and screws are properly tightened.
• Do not step on the crossbar, use the equipment as a ladder, or stand on top of the work surface.
• Never exceed the maximum load for the work surface (100 kg). Always place heavy items carefully on the work surface to ensure that the load is distributed slowly.

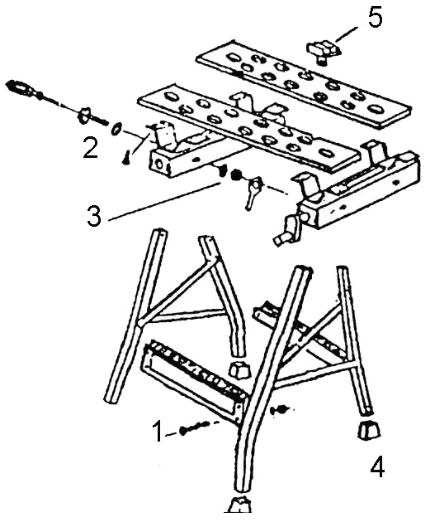

ASSEMBLY

1. Fit the crossbars (4) and leg frames (5) with the screws (9), washers (13), and nuts (10).
2. Fit the sliders (2) and work surfaces (1) with the wood screws (8).
3. Fit the leg frames (5) in the sliders (2). Match the holes in the sliders with the holes in the leg frames. Insert the screws (3) and washers (7) from the outside of the base and insert the washers (7) and nuts (11) from the inside. Tighten the screw joints with a screwdriver and spanner.
4. Fit the plastic feet (6) on the legs (5). The feet must be fitted with the long side towards the outer corner, see the arrow on the inside.
5. Fasten the blocks (12) in suitable holes on the work surface.

Number	Illustration	Name	Quantity
1		WORK SURFACE	2
2		SLIDER	2
3		BOLT (HEXAGONAL)	4
4		CROSSBAR	2
5		LEG	2
6		PLASTIC FOOT	4
7		WASHER 16.0 x 0.8 x 1.2	8
8		WOOD SCREW 4INCH 8 x 16 mm	16
9		STAR SCREW M6 x P1.0 x 37 mm	8
10		NUT M6 x P1.0	8
11		NUT M8 x P1.2	4
12		BLOCK	4
13		WASHER 13 x 0.6 x 1.2	8

Care for the environment!
Recycle discarded products in accordance with local regulations.
Jula reserves the right to make changes.
For the latest version of operating instructions, see
www.jula.com
