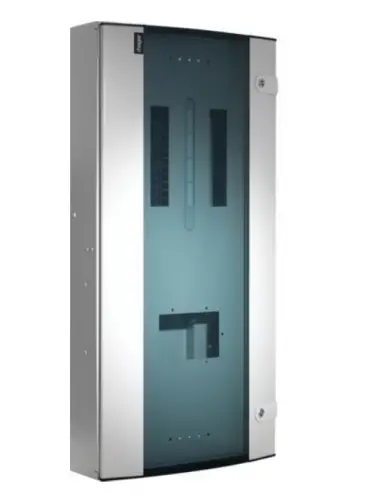

hager JKD166TM Invicta 3 TPN Board Glazed
All product(s) must be installed by a suitably competent electrician giving consideration to their intended use and in accordance with the current edition of BS 7671 (IET Wiring Regulations).
The Electricity at Work regulations and the Health and Safety at Work Act shall be complied with.
Only equipment and arrangements specified in Hager’s technical documentation / catalogue shall be used
Install in the vertical plane only.
Notice:
To prevent potential overheating from loose connections the installer shall check connections are tightened to the torque levels stated in these instructions prior to energising this board. This check should include factory made connections which may have loosened in transit.

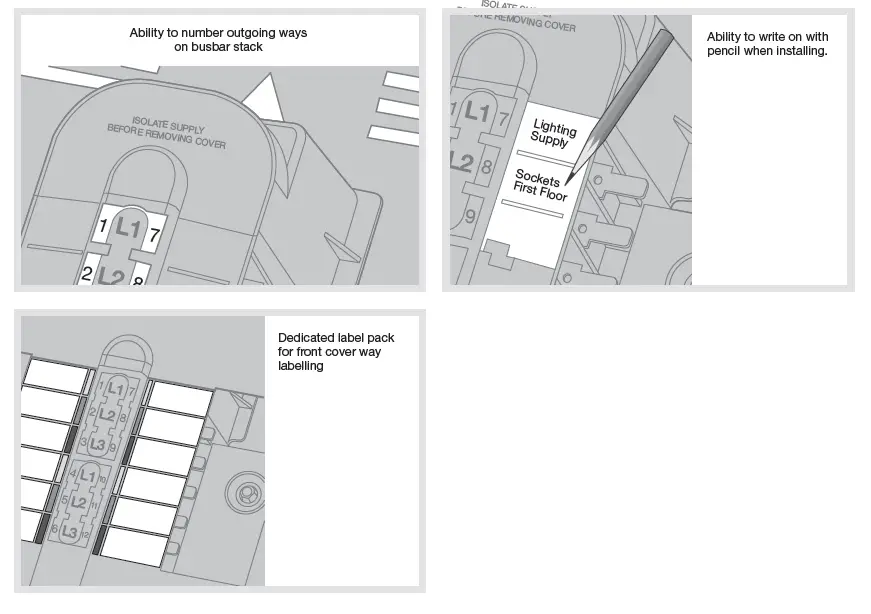

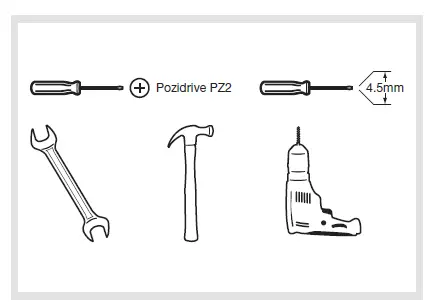

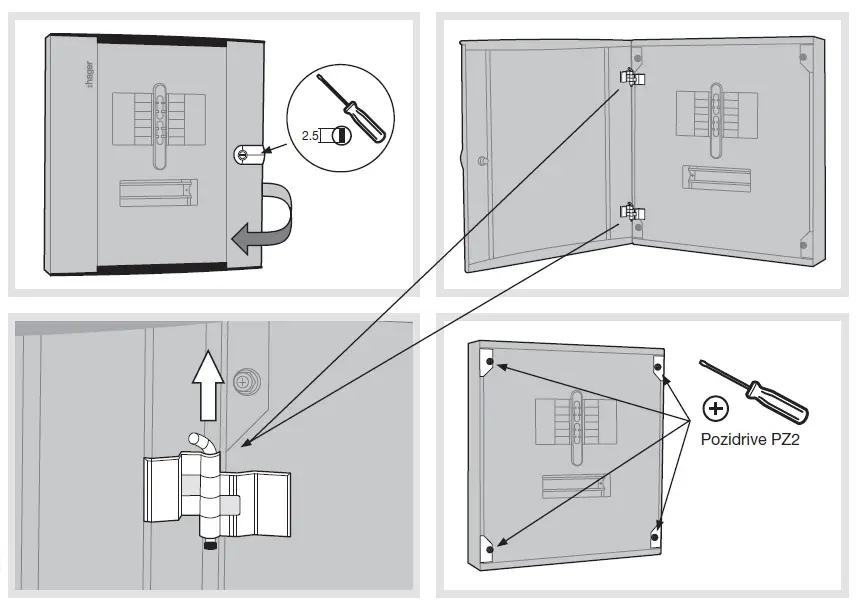

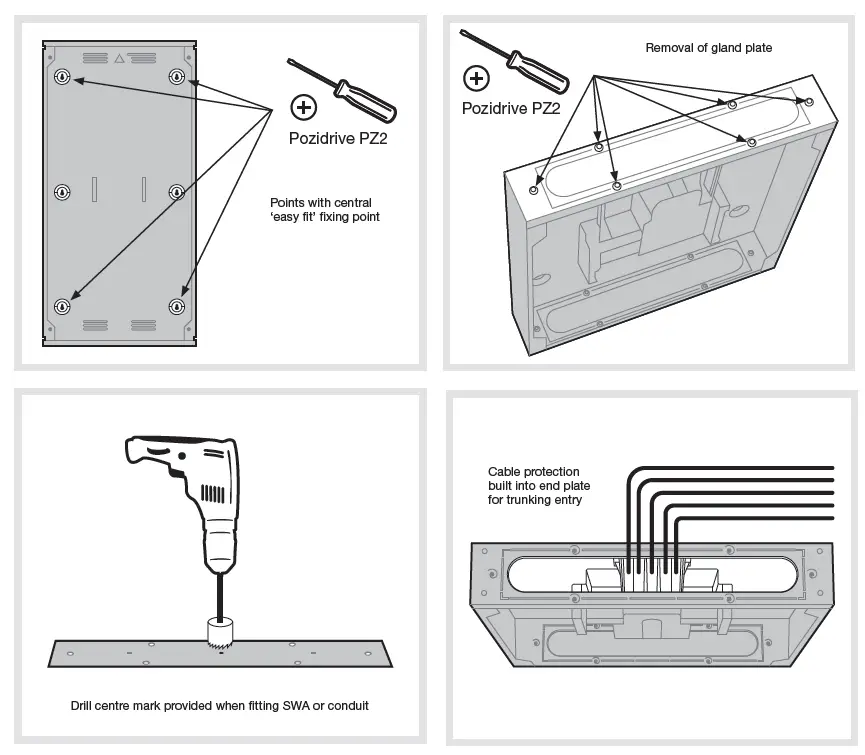

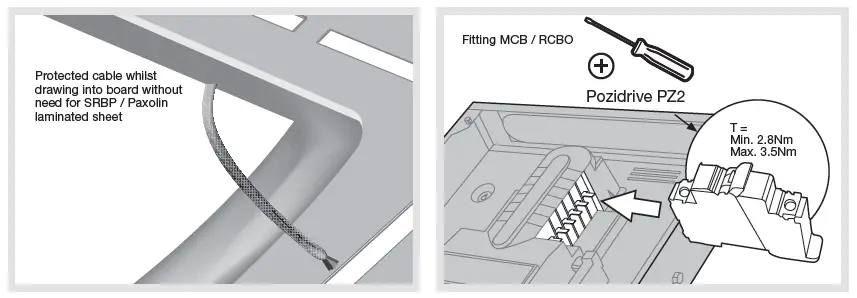

Setup instructions
| Interface Characteristics |
| Rated & operational voltage (Un / Ue) 415V a.c. 50Hz |
| Rated insulation voltage (Ui) 690V a.c. 50Hz |
| Rated impulse withstand voltage (Uimp) 4kV |
| Rated current of the Assembly (InA) JKD1xxTM 125A |
| Rated current of an Outgoing circuit (InC) MCB 0.5A – 63A (marked rated current on device) RCBO 6A – 45A (marked rated current on device) |
| Rated Current of Pan Assembly Upper Pan Inc =125A Lower Pan Inc = 125A |
| Rated conditional short-circuit current of the ASSEMBLY (Icc) 10kA1 with equipment and arrangements specified in Hager’s technical documentation / catalogue.
MCB/RCBO 10kA rating applied as BS EN 61439-3 is intended for use by ordinary persons.
1Current limitation characteristics specified in Hager’s technical documentation / catalogue |
| Protection against electric shock DBO shall be installed in an electrical system conforming to IEC 60364 / BS 7671 |
| Rated diversity factor (RDF) 10 way – 24 way = 0.7
Note: RDF only applies to continuously and simultaneously loaded circuits. |
| Rated frequency (fn) 50 Hz |
| Pollution degree 2 |
| Types of system earthing for which the ASSEMBLY is designed TNC-S, TN-S and TT when installed in an electrical system conforming to BS 7671 |
| Intended locations Indoor use only |
| Stationary ASSEMBLY |
| Degree of protection IP3XD with Door Closed IP2XC with Door Open and compliment of outgoing devices and or blanks fitted. |
| Intended use Distribution boards intended to be operated by ordinary persons (DBO) |
| Electromagnetic compatibility (EMC) classification EMC Environment B |
| External design Wall-mounted, surface type, enclosed assembly. |
| Mechanical impact protection IK05 |
| The type of construction Fixed parts |
| DBO Type Type B DBO |
Warranty
This distribution board is offered with a 24 month warranty against defective material or manufacture. If a warranty claim is necessary, please call the technical support number given at the bottom of the page and we will be pleased to help.
Hager Technical Help Line: 01952 675 689 Hager Technical Fax: 01952 675 557
Website: www.hager.co.uk
E-mail us: i[email protected]
Twitter: @hageruk

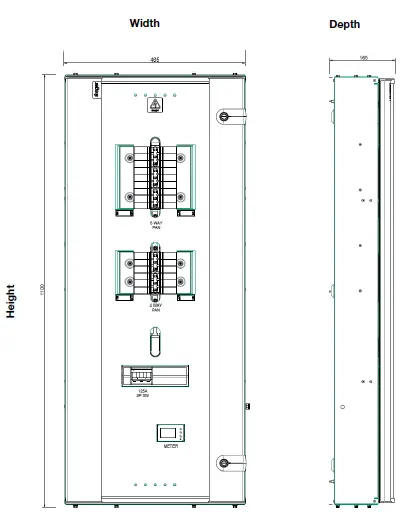

| Power & Lighting Boards Designation | H | W | D |
| JKD146TM | 1100 | 465 | 165.5 |
| JKD166TM | 1100 | 465 | 165.5 |
| JKD164TM | 1100 | 465 | 165.5 |
| JKD168TM | 1250 | 465 | 165.5 |
| JKD188TM | 465 | 165.5 | |
| JKD186TM | 1250 | 465 | 165.5 |
| JKD1416TM | 1400 | 465 | 165.5 |
| JKD1164TM | 1400 | 465 | 165.5 |
| JKD1812TM | 1400 | 465 | 165.5 |
| JKD1128TM | 1400 | 465 | 165.5 |
| JKD11212TM | 1400 | 465 | 165.5 |
| Accessories | |
| JK01B | Single Pole Blank |
| JK222PK | JK1 / JK2 Door Lock Kit |
| JK1PLATEM | Gland Plate + Drill Markings |
| JK101SPD* | Type I/2 Surge protection Kit |
| JK102SPD* | Type II Surge Protection Kit |
