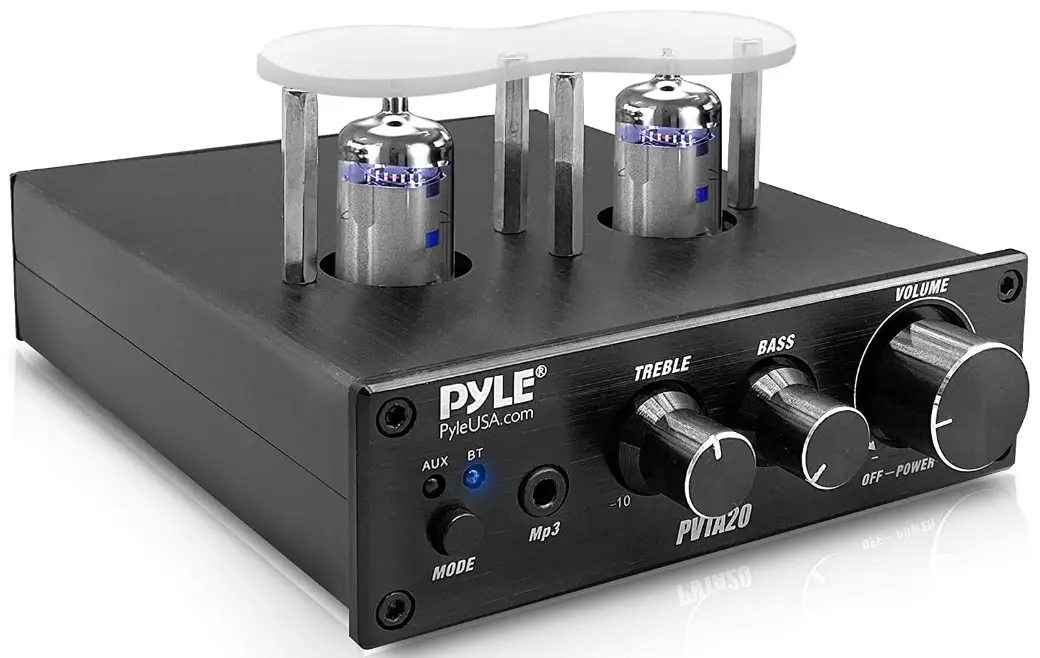

Pyle PVTA20 Bluetooth Tube Amplifier Stereo Receiver
Pyle PVTA20 Bluetooth Tube Amplifier Stereo Receiver

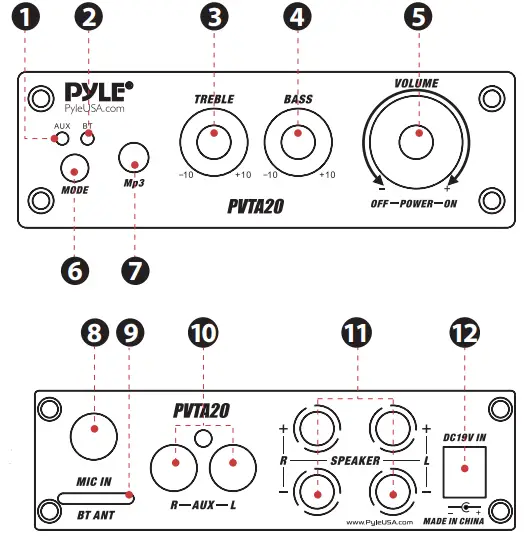

FRONT AND BACK PANEL
- AUX Input Indicator
- Wireless BT Indicator
- Treble Volume Control
- Bass Volume Control
- Master Volume Control and Power ON/OFF
- Input select
- MP3 Input
- Microphone Input
- Wireless BT Antenna
- AUX Input (L/R)
- Pure Copper Terminal Output
- Power Adapter jack (DC 19V/4A)
WIRELESS BT STREAMING OPERATION INSTRUCTION
External devices which have a built-in Wireless BT feature can be connected to this amplifier wirelessly to play through the amplifier’s speakers. If your amp is connected to speakers, you will hear audible tones which will help for connecting.
- The unit will auto-enter Wireless BT mode within 30 seconds after power on. lf no other device is connected to Wireless BT during this time, unit will auto enter AUX mode.
- When unit enters AUX mode, press the “MODE” button on the front panel, the unit is automatically ready to pair with your devices when you hear audible tones.
- Turn ON the Wireless BT of your external device.
- Search for available BT devices and make sure to be within range of your amp, and wait for your device to select “PYLEUSA” onthe pairing devices lists of Wireless BT networks.
- You can now play music on your external device through the amplifier.
FEATURES
- 2 Vacuum Tube Power Amp
- BT Wireless Streaming Ability
- Double-sided Fiber Circuit Board
- CD/DVD Inputs (L/R)
- Aux/3.5mm Inputs Jack
- Pure Copper Terminal Output
- Treble, Bass, and Master Volume Controls
WIRELESS BT CONNECTIVITY
- Receives Wireless Signal for Audio Streaming
- Simple & Hassle-Free Pairing Setup
- Integrated Antenna for Extended Wireless Range
- Works with All of Today’s Latest Devices (Smartphones, Tablets, Laptops, Computers, etc.)
- WIRELESS BT VERSION:0
- WIRELESS BT NETWORK NAME: ‘PYLEUSA’
- WIRELESS RANGE: 40’+ Ft.
What’s in the Box
- (1) Wireless BT Tube Amplifier
- (1) Power Adapter
TECHNICAL SPECS
- POWER OUTPUT: 600 Watts Peak Power
- POWER SUPPLY: AC 120V/240V, DC 19V 4A
- CONSTRUCTION MATERIAL: Aluminium
- AMPLIFIER CHIP: TPA3116
- RATED OUTPUT POWER: 2*50W /4Ω
- AUDIO INPUT: RCA input + BT input
- AUDIO OUTPUT: 1 set of Banana Speaker Jacks
- SIGNAL TO NOISE RATIO:＞99dB
- FREQUENCY: 20Hz – 20KHz
- PRODUCT DIMENSION (L X W X H):65” x 6.3” x 2.87” –inches
SUPPORT
Questions? Issues? We are here to help!
PHONE: (1) 718-535-1800
EMAIL: [email protected]
FAQs
Why is a Pyle PVTA20 Bluetooth amplifier necessary?
In principle, a Bluetooth amplifier can be used to strengthen the signal sent or received by any Bluetooth device. The sound quality of audio is improved by raising the signal, and this produces a higher-fidelity experience since there is less signal loss and more stable signal integrity.
How does a Pyle PVTA20 stereo tube amplifier operate?
A tube amp’s gain and volume controls, among other things, determine how quickly the signal from a guitar is transmitted through the amp’s tubes. When an electrical current flows through a tube, the filament—the component you can see glowing—produces heat, which causes the cathode to discharge negatively charged electrons.
What is a Pyle PVTA20 amplifier not supposed to be used for?
Never, ever use an amp without a speaker connected. This might seriously injure you. Don’t flip the power switch on and off quickly. The power supply may suffer as a result.
Can you use a stereo receiver as a Pyle PVTA20 amplifier?
You can utilise it even though it’s not the most stylish choice. (A elegant alternative would be to buy a separate multichannel power amp to pair with the pre-pro.)
What is the operation of a Pyle PVTA20 Bluetooth stereo amplifier?
A device with an integrated Bluetooth radio that can take up audio signals from other Bluetooth-enabled devices is known as a Bluetooth amplifier. Then, if using speakers connected to the amplifier, it boosts such signals so they can be heard directly through an output port or through headphones.
Can you upgrade a Pyle PVTA20 amplifier to Bluetooth?
An A/V or stereo receiver can add Bluetooth by using a wireless Bluetooth adaptor. Depending on the level of quality you desire, these instruments are available in a range of price points and are simple to use.
How long can Pyle PVTA20 tube amplifiers be turned on for?
An amplifier with tubes is designed to run continuously. This, however, is not a recommendation. The majority of manufacturers advise against playing without at least a 30-minute cool-down break for longer than 6 to 8 hours.
Why are Pyle PVTA20 tube amplifiers better?
We utilise tubes purely because they make our music sound better, smoother, warmer, and more sophisticated. The same is true for music production guitar amplifiers. The ways that tubes bend when pushed to the limit are substantially more melodious than the synthetic sounds made by overdriven transistor amplifiers.
Do Pyle PVTA20 tube amps differ from one another?
Since tube amps are louder, smoother, and more responsive, most artists favour them. Compared to a delicate tube amplifier, substantial state amplifiers are more reliable and, well, solid.
Can I upgrade my Pyle PVTA20 stereo receiver to Bluetooth?
Yes, by connecting a Bluetooth adaptor, you can do so quickly and affordably. You might be limited, though, compared to a modern receiver with built-in Bluetooth. Audio equipment is great because it may last a very long time, which is extremely different from most other modern technology.
How should I pick a Pyle PVTA20 tube amplifier?
Purchase an amplifier with double the power that you need. In this way, you need to have enough headroom. If you’re playing mostly clean tones, you might need a little bit extra to make sure you have adequate headroom before your clean tones start to split apart. Most tube amplifiers are probably too noisy to be used at home.
Are Pyle PVTA20 tube amps difficult to keep up?
Yes, in general, solid-state amplifiers are more fragile than tubes. Around tubes, you can’t be casual because they require more concentration. Tubes endure between 3,000 and 5,000 hours before needing to be replaced, depending on usage.
Glow the Pyle PVTA20 tube amplifiers?
That blue glow is actually a blue fluorescent glow, a side effect of the power tube. The tube is in decent shape. In reality, it demonstrates that this event is brought about by the tube’s exceptional internal vacuum. It won’t have any impact on the amp’s operation or tone.
How can I safeguard my Pyle PVTA20 tube amplifier?
Always ensure that the pins on the amplifier’s tube base and the pins on the tube base of the tube are perfectly aligned. Never move an amplifier until it has completed cooling down, which should take at least 15 minutes. Use only the best speaker and signal leads, and pay close attention to them.
Pyle PVTA20 tube amps are they delicate?
Tube amplifiers are not easily cracked. They are built to last and withstand any stress that being used by a musician while they play on stage can cause. Manufacturers are aware that athletes need reliable gear. The tubes, however, would probably start to fail first because they are the most fragile component.
