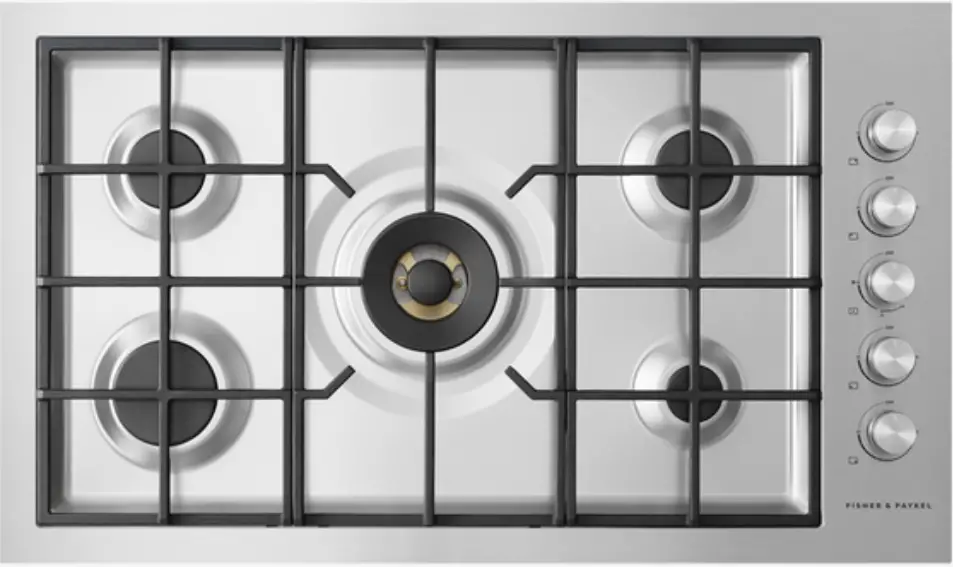

CG365DLPRX2_N Gas on Steel Cooktop, 36″, Flush Fit, LPG
User Guide
CG365DLPRX2_N Gas on Steel Cooktop, 36″, Flush Fit, LPG
QUICK REFERENCE GUIDE > CG365DLPRX2_N
Gas on Steel Cooktop, 36″, Flush Fit, LPG
Series 9 | Contemporary
Stainless Steel | LPGOur award-winning cooktop fits flush into your kitchen benchtop, for a seamless look and easy cleaning.
- Five burners including a wok burner
- Auto re-ignition means if the flame goes out it will automatically re-light for safety

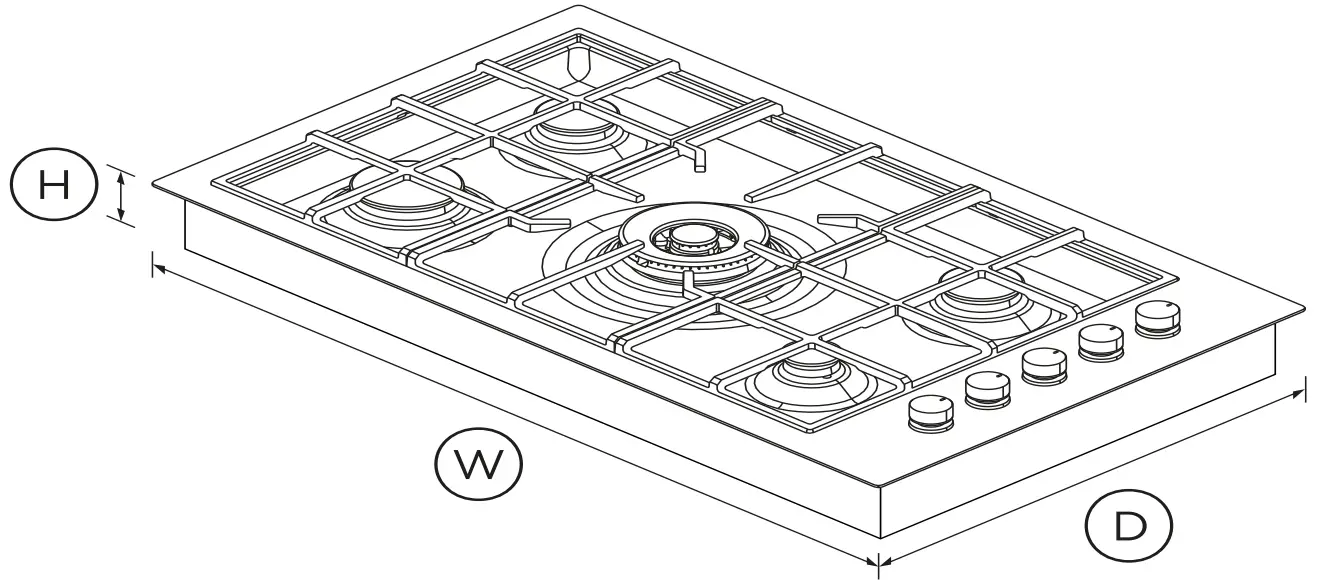

DIMENSIONS
| Height | 3 1/16″ |
| Width | 35 1/2″ |
| Depth | 20 7/8″ |
FEATURES & BENEFITS
Clever cooking results
The consistent flame and heat distribution of the dual flame wok burner combined with the highly responsive dials offer precise heat adjustment that can perfect a slow simmer for sauces or an intense heat for searing steaks.
Safe and sound
Intuitive dials glow red for on and white for off, showing from a distance which burners are lit. The Auto-reignite system means you don’t have to hold down a dial while burners ignite if a burner goes out it is automatically relit at the original flame setting.
Complementary design
The brushed stainless steel has been designed for durability but also provides a modern, stylish finish, matching the Fisher & Paykel family of kitchen appliances.
Easy cleaning
The stainless steel component is easily accessible and quick to clean. Cast iron trivets provide a durable and stable cooking platform. Their rubber feet prevent them from scratching the cooktop.
Handy accessories
This cooktop comes with small pan support and wok stand to complement different cooking styles.
Fits flush
This Gas Cooktop’s burners are recessed into the work surface leaving the trivets flush and providing an integrated kitchen bench with a seamless look.
SPECIFICATIONS
| Accessories | |
| Small pan support | • |
| Wok stand | • |
| Burner ratings | |
| Auxiliary burner (LPG) | 700 – 3800BTU |
| Rapid burner (LPG) | 2000 – 9500BTU |
| Semi-rapid burner (LPG) | 900 – 8500BTU |
| Burners | |
| Number of burners | 5 |
| Cleaning | |
| Easy clean cooktop design | • |
| Quick component removal | • |
| Controls | |
| Burner indicator lights | • |
| Ergonomic control dials | • |
| Laser etched graphics | • |
| Turned stainless dials | • |
| Performance | |
| Both LPG & NG models | • |
| Cast iron trivets | • |
| Electronic ignition | • |
| Quick connect gas valves | • |
| Power requirements | |
| Amperage | 2A |
| Supply frequency | 60Hz |
| Supply voltage | 110-120V |
| Product dimensions | |
| Depth | 20 7/8″ |
| Height | 3 1/16″ |
| Width | 35 1/2″ |
| SKU | 81378 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads are available at fisherpaykel.com
User GuideInstallation GuideData Sheet Gas on Steel Cooktop
