6AEQ24V001 Equalizer and Balancer
Instruction Manual
Equalizer/Balanser for Gel/Flood/AGM Lead Acid Batteries
6AEQ24V001 Equalizer and Balancer
BALANSER AKU PROTECT 24V is used for the 12V lead-acid batterie which are connected in series to keep battery voltage balance (Gel/Flood/AGM lead acid batteries all are ok.)
When two or more in – series connected batteries are in charging/discharging/free status. The battery voltages maybe become different. One battery voltage is high and one is low. The battery equalizer BALANSER AKU PROTECT 24V will equalize/balance the battery voltage when it detect there are 20mV between two batteries. It will shunt current from one battery (the higher voltage one) to the other battery (the lower voltage one). Until their battery voltage almost becomes same. This will improve battery’s performance and extent battery’s life time.
Battery equalizer can be used for 24V, 36V, 48V and any other N*12V battery system.
- 1 piece for 24V system
- 2 pieces for 36V system
- 3 pieces for 48V system
Technical data
| Battery nominal NeeItage | 2*12V |
| Optimizing current | 0-5A |
| Quiescent current | <3mA |
| Low Voltage Disconnect | 10V |
| Protection | Reverse polarity protection |
| Dimensions | 70x70x27mm |
| Weight | 200g |
LED Indicator:
| LED A | LED B | |
| U(A)=U(B) | Off | Off |
| U(A)>U(B) | Flash | Off |
| U(A)<U(B) | Off | Flash |
| U(A)<10V | On | Off |
| U(B)<10V | Off | On |
| U(A/B)<10V | On | On |
Installation:
Please connect the battery equalizer to battery as follows: (Please check the pictures)

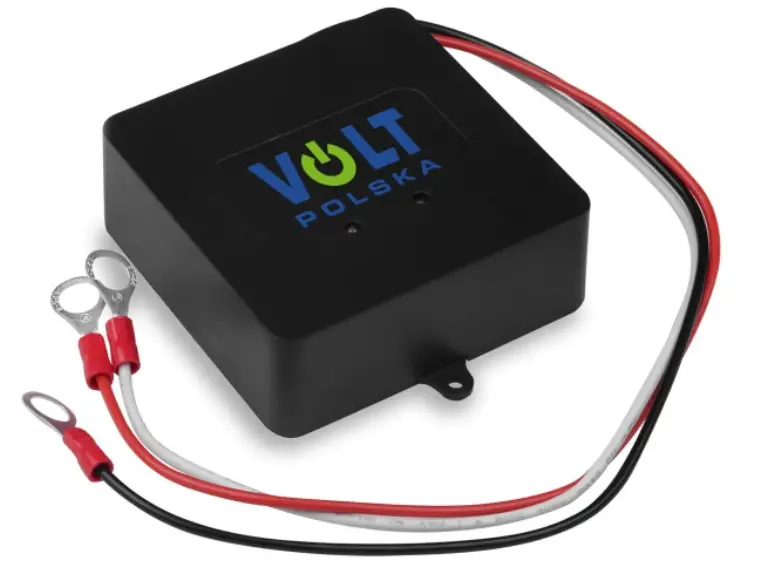

- Red cable: Battery B positive/+ pole
- Black cable: Battery A negative/- pole
- White cable: Battery B negative pole or Battery A positive pole. (The pole which connected Battery A and Battery B in series)
