Package contents:

User manual v 2.0
Parts:

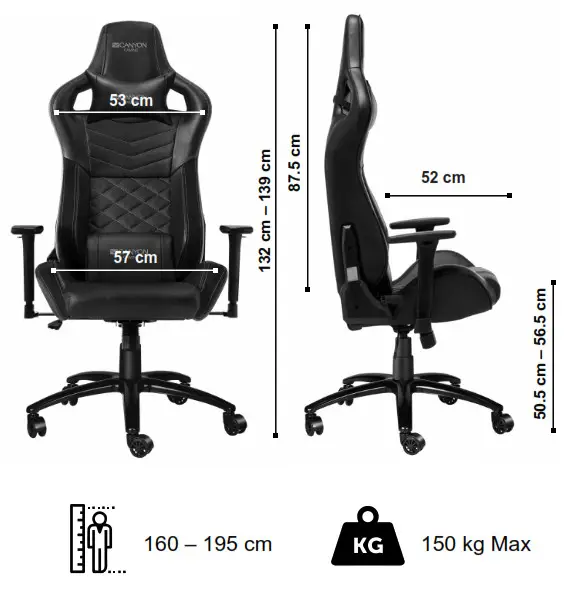

Device overview & technical specifications

Foam type: Cold molded foam
Inside Frame: Metal
Metal Frame Thickness: 1.5 mm
Cover Material: High-quality PU eco-leather
Armrests: 3D
Gas Lift: CLASS-4
Mechanism: Top Gun
Adjustable Backrest Angle: 90-150°
Headrest cushion: Yes
Lumbar cushion: Yes
5 Stars Base: Metal
Caster Wheels Size: 60 mm
Caster Wheels Material: PU
User’s max weight: 150 kg / 331 lb

Attention:

Before you begin the assembling, make sure all parts are included and in good condition!
When chair will be delivered in the cold season, please start to assemble it in 2 hours after, to provide a stable work of gas lift.
Follow the instruction gradually.
Plastic cup and gas lift must be separated before chair assembling.
To avoid misalignments, leave the screws loose and do not tighten them until all are in their respective places.
Do not overtighten or force the screws as they could break, strip, or damage the threads of the holes.
Using the wrong sizes of screws on a part could result in damage to the screw or the part.
Do not overload the chair. See max load information in technical specifications.
If there are stains on the surfaces of the chair, apply some polish on a soft towel and rub the stains until they dissolves. Do not apply the polish directly on the chair.

Instruction

To prevent possible squeaking, we recommend that you secure the plastic O-rings between seat B and mechanism C, securing them with bolts
For a more convenient assembly of the seats, we recommend that you use the additional screwdriver – P

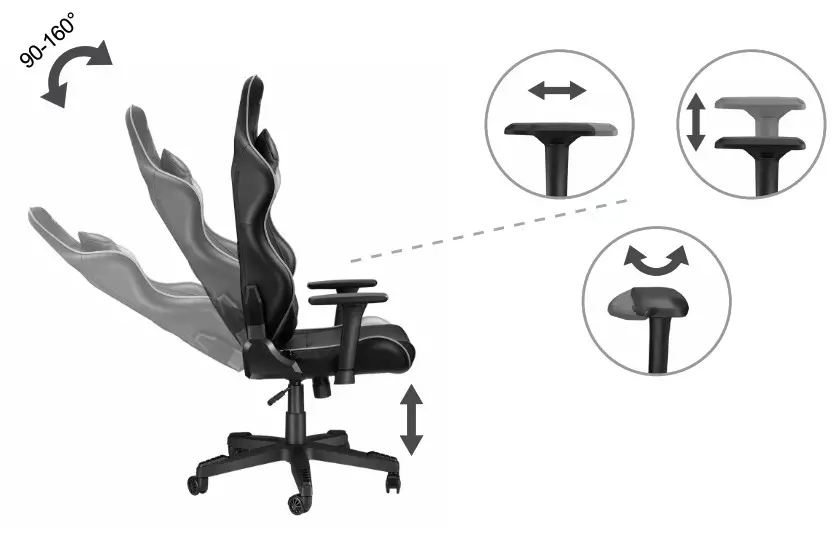

Position setting

Troubleshooting

If:
→ The Gas Lift does not work properly or stopped working at all;
→ Any lever does not work;
→ Detect that any part is broken or damaged before using the chair;
→ Detect that any part is missing from the package content list;
Please contact the seller for the part replacement
If:
→ The casters are not fixing in 5–star base
→ The backrest is not fixing in the set position
→ The seat of the chair is skewed or creaks
→ If there is a noise between the mechanism and metal frame, please check that the screws are tight. The noise should disappear if the screws are tightened.
Please try to assemble the chair following the instruction gradually again. If this will not help, please contact the seller for the part replacement

Important safety information

WARRANTY LIABILITIES
Warranty period starts from the date of purchase the goods from the Seller, authorized by Canyon.
Date of purchase is the date indicated in your sales receipt or waybill. During warranty period, a repair, replacement or refund of payment for goods are performed on discretion of Canyon. To receive warranty services, goods shall be returned to the Seller, to purchase place, together with purchase evidence (sales receipt or waybill). Additional information on usage and warranty is available on website: http://canyon.eu/warranty-terms/
Manufacturer: Asbisc Enterprises PLC, Cyprus, Limassol 4103. Diamond Court, 43 Kolonakiou Street. Agios Athanasios. http://canyon.eu/
