HRF680YPS 91cm Quad Door Refrigerator Freezer
User Guide
Satina | French hinge

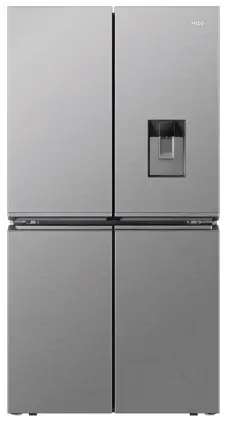

HRF680YPS 91cm Quad Door Refrigerator Freezer
With plenty of space, this large capacity model features SwitchZone™ technology so you can create ideal conditions for different foods.
- SwitchZone™ compartment lets you change the temperature between 18°C to +5°C
- Plumbed-in water dispenser and automatic ice maker
- Wi-Fi connected for remote control of your fridge and alerts through the SmartHQ™ app
- Advanced Anti-Bacterial Treatment (ABT) technology reduces bacteria* in the air
DIMENSIONS
| Height | 1775 mm |
| Width | 908 mm |
| Depth | 750 mm |
FEATURES & BENEFITS
SwitchZone™ flexibility
When you need extra space, SwitchZone™ lets you change the bottom right compartment to fridge or freezer. Change it back just as easily, or select any temperature between -18°C to +5°C.
Even cooling
Multi-Zone Air evenly circulates cool air to every corner of your fridge. By maintaining a stable temperature, this cooling system creates an ideal food storage environment, for lasting freshness.
Anti-Bacterial Treatment (ABT) protection
<>
Ice and water
The automatic ice maker delivers a constant supply of ice in your freezer, and a slimline door water dispenser provides fresh chilled water.
Wi-Fi enabled
With Wi-Fi capability, you can easily control your fridge settings from anywhere using the SmartHQ™ app.
Lasting freshness
Two Humidity Zone drawers offer ideal humidity-controlled conditions to store your fresh fruit and vegetables.
Flexible storage
Cantilevered shelving in the fridge lets you easily adjust your storage space to suit your needs, with full back-panel LED lighting to provide a clear view of the whole interior.
SPECIFICATIONS
| Capacity | |
| Total gross capacity | 676L |
| Volume | 623L |
| Volume freezer | 130L |
| Volume refrigerator | 358L |
| Volume variable temperature | 135L |
| Consumption | |
| Annual energy consumption | 376kWh |
| Energy rating | 4.5 star |
| Freezer features | |
| Automatic ice maker | • |
| Easy access freezer drawer | 3 |
| Easy access top freezer drawer | • |
| Freezer temperature range | -14 > -24℃ |
| Super Freeze function | • |
| Performance | |
| Anti-Bacterial Treatment | • |
| Eco friendly R600a refrigerant | • |
| Frost free freezer | • |
| Inverter controlled compressor | • |
| Multi-Zone Air | • |
| Separate temperature control for | • |
| SwitchZone™ | 3 drawers |
| SwitchZone™ temperature range | -18 > 5℃ |
| Product dimensions | |
| Depth | 750 mm |
| Height | 1775 mm |
| Width | 908 mm |
| Refrigerator features | |
| Adjustable glass shelves | 2 |
| Control type | External LED display |
| Door alarm | • |
| Door shelves | 6 |
| Egg Trays | • |
| Fingerprint resistant finish | • |
| Front levelling feet | • |
| Humidity Fresh Zone | • |
| LED lighting | • |
| Recessed handle | • |
| Refrigerator temperature range | 1 > 9℃ |
| Slimline plumbed water dispenser | • |
| Smart Lock door | • |
| Super Cooling function | • |
| Warranty | |
| Compressor parts only | additional 10 years |
| Parts and labour | 2 years |
| SKU | 62238 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights.
