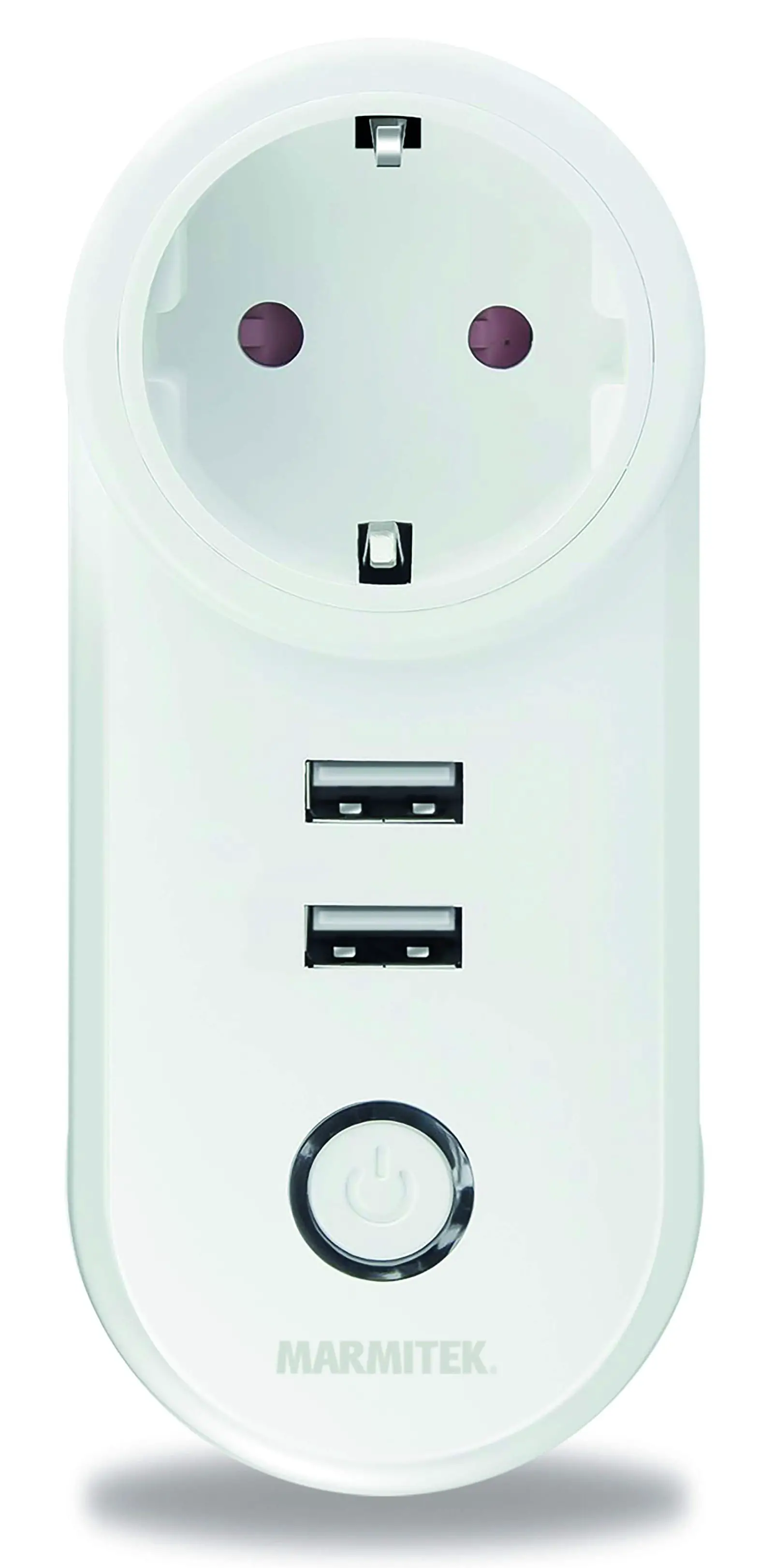

Power SI
Smart Wi-Fi Power plug
240 V | 15 A | 3450 W | 2 USB
on/off manual & automatic energy meter
Package content
1 x Power plug
1 x Quick install guide
Marmitek Smart me app http://www.marmitek.com/media/qr/Smart_me_ug_store_aa_01.html | Multi language user guide http://www.marmitek.com/media/qr/psi_ug_ma_aa_01.html |
Safety Instructions
Please read these instructions thoroughly before you use the device and keep them for future reference.
Only for indoor use.
- Do not expose the product to extremely high or low temperatures, strong light sources or direct sunlight.
- This product is not a toy. Keep out of reach of children.
- Never connect a power adapter if it’s damaged. In such cases, please contact your supplier.
- Never open the product: the device may contain parts with deadly voltage.
- Repairs or service should only be performed by qualified personnel.
Requirements
This product requires a stable working Wi-Fi network (username/ password) connected to the internet.
Installation of the Smart me app
Download and install the Marmitek Smart me app from the Apple app store or the Google Play store.
Launch the Smart me app after installation is completed.
Follow the instructions and register for a new account.
Installation of the Power SI
- Plug the Smart Power plug into the electrical wall socket.
- The light indicator should start flashing quickly. If it’s not flashing, hold the button for 5-6 seconds until it begins flashing.
- Launch the Smart me app from your smart phone or tablet.
- Click on the + (upper right corner) to add a new device, confirm if the light flashes quickly and follow the instructions.
- Press Help button during installation for more information or when installation fails.
Notes for using the product
- After the installation is completed you can control and configure the Power adapter by using the app.
- Check our website www.marmitek.com for more details and how to use the Smart me products.
Technical specifications
| Power outlets | 1x 100-240V 2x 5V USB out” |
| Max output IEC plug type F IEC plug type E IEC plug type G IEC plug type J | 3450 Watt 3450 Watt 3000 Watt 2300 Watt |
| Max current IEC plug type F IEC plug type E IEC plug type G IEC plug type J | 15 A 15 A 13 A 10 A |
| Wireless technology | Wi-Fi 2.4GHz |
| Power | 100-240 VAC 50/60 Hz |
| Standby power | < 0.5 Watt |
| Dimensions | 122 x 52 x 32 mm excl. plug |
Declaration of Conformity
Hereby, Marmitek BV, declares that the Power SI is in compliance with the essential requirements of the 2014/53/EU Directives.
Full Declaration of Conformity is available at www.marmitek.com/en/declarations-of-conformity/
More detailed user guide and instructions are available on our website at www.marmitek.com
