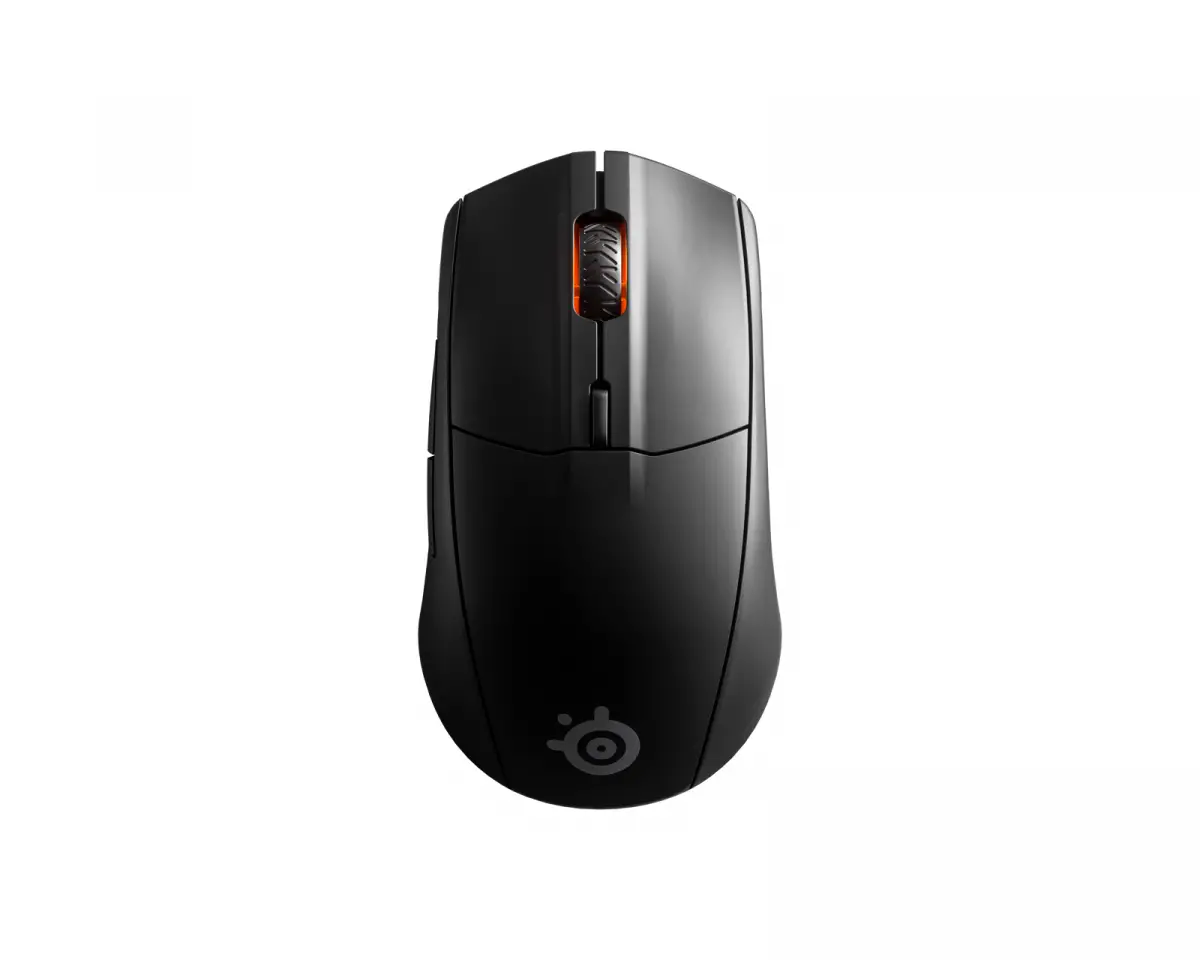

Steelseries Zhk-m00022 Rival 3 Wireless User Manual

ZHK-M00022 Rival 3 Wireless
User Manual

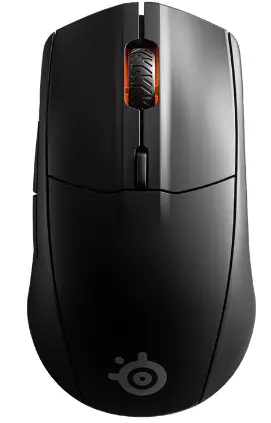

ZHK-M00022 Rival 3 Wireless

Scan this QR code for further product setup information.https://steelseries.com/setup/rival-3-wireless

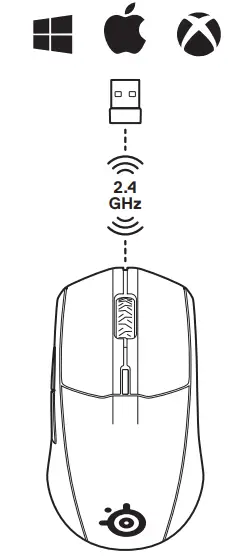

CONNECTING VIA 2.4 GHZ WIRELESS

1. Connect the Rival 3 Wireless’ Nano Dongle to an available USB port on your device.
2. Toggle the Wireless Mode Switch to the “2.4 GHz” position.
3. The Scroll Wheel will glow orange when connected.
4. To further customize your mouse, or re-pair a Nano Dongle, download the SteelSeries Engine software from steelseries.com/engine

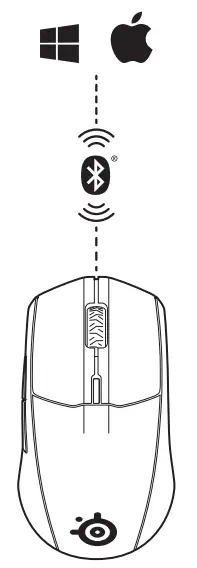

PAIRING VIA BLUETOOTH

1. Initiate Bluetooth pairing mode on your Bluetooth 5.0 or higher enabled device.
2. Hold the CPI Button and toggle the Wireless Mode Switch to the Bluetooth position to turn on your mouse.
3. The Scroll Wheel will start blinking blue when searching for a connection.
4. Select “Rival 3 Wireless” on your Bluetoothenabled device. The Scroll Wheel will glow orange when connected.

REGULATORY

Europe – EU Declaration of Conformity
Hereby, SteelSeries ApS. declares that the equipment which is compliance with directive RoHS 2.0 (2015/863/EU), R.E.D (2014/53/EU), EMC Directive (2014/30/EU), and LVD (2014/35/EU) which are issued by the Commission of the European Community.
The full text of the EU declaration of conformity is available at the following internet address:
https://support.steelseries.com/hc/en-us/categories/360001256111-Other-Stuff
SteelSeries ApS. hereby confirms, to date, based on the feedback from our suppliers indicates that our products shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals – (EC) 1907/2006) compliance program. We are fully committed to offering REACH compliance on the products and posting accurate REACH compliance status for the all of products.
Operating Temperature: 0 to + 40°C.
Frequency bands and Powers (Mouse and Transceiver)
a. Frequency band(s) in which the radio equipment operates:
• WIFI: 2.400 – 2.4835 GHz
b. Maximum radio-frequency power transmitted in thefrequency band(s) in which the radio equipment operates:
• EIRP/GFSK: 4.53 dBm (Mouse)
• EIRP/GFSK: 4.60 dBm (Mouse/Bluetooth)
• EIRP/GFSK: 4.34 dBm (Transceiver)
Software Version: V0020
WEEE
This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.
“CAUTION!” Risk of explosion if battery pack is not replace by same type as specified by the manufacturer.
Türkiye Cumhuriyeti: EEE Yönetmeliğine Uygundur
UK Declaration of Conformity
Hereby, SteelSeries ApS. declares that the following equipment which is compliance with Electromagnetic Compatibility Regulations 2016, Electrical Equipment (Safety) Regulations 2016, Radio Equipment Regulations 2017 and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 issued by the Department for Business, Energy& Industrial Strategy. The full text of the EU declaration of conformity is available at the following internet address:
https://support.steelseries.com/hc/en-us/categories/360001256111-Other-Stuff
Safety Guideline for the Battery
This battery must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Radiation Exposure Statement:
The device has been evaluated to meet general RF exposure requirement, the device can be used in portable exposure condition without restriction.
Mouse FCC ID: ZHK-M00022 / Transceiver FCC ID: ZHK-M00022TX
Frequency bands and Powers (Mouse and Transceiver)
a. Frequency band(s) in which the radio equipment operates: 2.400 – 2.4835 GHz
b. Maximum radio-frequency power transmitted in the
frequency band(s) in which the radio equipment operates:
• Conducted Peak Power/GFSK: 0.71 dBm (Mouse)
• Conducted Peak Power/GFSK: 0.69 dBm (Mouse/Bluetooth)
• Conducted Peak Power/GFSK: 0.89 dBm (Transceiver)
c. Firmware Version: V00020

Industry Canada Statement

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter, except tested built-in radios.
The County Code Selection feature is disabled for products marketed in the US/ Canada.
Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirement, The device can be used in portable exposure condition without restriction.
Mouse IC: 9638A-M00022
Transceiver IC: 9638A-M00022TX
Restriction on Hazardous Substances statement (India)
This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.
The RoHS test method is based on the standards JIS C 0950 and CNS 15663.

	AAA/LR03
	Custom Union Compliance. (Russia / Belarus / Kazakhstan /Armenia / Kyrgyzstan)
	Singapore approval (IMDA)
	SteelSeries ApS. Wireless Mouse/ Transceiver M-00022/ M-00022TX R-R-SS4-M-00022/ R-R-SS4-M-00022TX SteelSeries ApS./Thailand
	Malaysia approval (SIRIM)
	Direct current
	CMA Compliance (Australia/ New-Zealand)

Product Name	Wireless Mouse
Model No	M-00022
Rated	1.5 V 60 mA
Operating Temperature:	0 to +40°C

Accessories information
Product Name : Transceiver
Model No.: M-00022TX
Rated : 5 V30 mA

More information and support at steelseries.com
