ALLTRADE 6U ALL-RACK Wall Cabinet
Product Information
| Partcode | CAB6WB450GY |
|---|---|
| Colour | Grey RAL7035 |
| Loading capacity | 40kg |
| Useable Depth | 315mm |
| Doors | 180 Degrees opening angle & can be mounted on left or right hand side with simple spring latch. |
| Security | Lockable Doors and side Panels |
| Ventilation | Optional Fans can be fitted if required |
| Cable entry | As standard the cabinets are supplied with blank panels however these can be changed into a brush strip panel as an optional extra |
| Installation | The cabinets can be mounted to the wall by using the fixing holes on the back on the cabinet |
| Uprights | Front and rear mounting rails are fully adjustable |
Product Usage Instructions
To use the Allrack wall mounted racks and cabinets, follow these steps:
- Choose a suitable location for wall mounting the cabinet.
- Ensure that the wall surface is strong and capable of supporting the weight of the cabinet.
- Position the cabinet against the wall, aligning the fixing holes on the back of the cabinet with the desired mounting locations on the wall.
- Securely attach the cabinet to the wall using appropriate screws or bolts.
- If required, install optional fans for ventilation by following the provided instructions.
- If desired, replace the blank panels with brush strip panels for cable entry by following the provided instructions.
- Adjust the front and rear mounting rails to accommodate your rack mountable equipment.
- Open the doors to a 180-degree angle by using the simple spring latch mechanism.
- Load your equipment into the cabinet, ensuring not to exceed the maximum loading capacity of 40kg.
- Lock the doors and side panels for security.

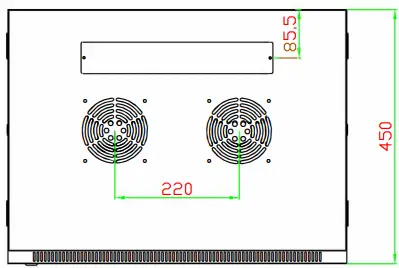

DIMENSION
6U 600MM (W) X 450MM (D)
Allrack wall mounted racks and cabinets are designed to be your perfect solution to all of your rack mountable equipment. Available in 4 depths, 300mm, 450mm, 550mm, and 600mm and ideal for small network installations where floor space doesn’t allow for a floor standing Server Cabinet. This product is perfect for a single person installation with easy fixing holes. All ALL-RACK wall cabinets have removable and lockable side panels for easy access and security. All cabinets are available in assembled form.
Specification
- Partcode: CAB6WB450GY
- Colour: Grey RAL7035
- Loading capacity: 40kg
- Useable Depth: 315mm
- Doors: 180 Degrees opening angle & can be mounted on left or right hand side with simple spring latch.
- Security: Lockable Doors and side Panels
- Ventilation: Optional Fans can be fitted if required
- Cable entry: As standard the cabinets are supplied with blank panels however these can be changed into a brush strip panel as an optional extra
- Installation: The cabinets can be mounted to the wall by using the fixing holes on the back on the cabinet
- Uprights: Front and rear mounting rails are fully adjustable
