Original Ninja Monkey Bars

Product Information:

This product is an equipment that can accommodate up to 10 users
at a time. It comes with assembly, maintenance and user
instructions manual for proper usage and safety precautions. The
manufacturer’s ABN is 36 627 796 141.

Product Usage Instructions:

Assembly: Refer to the full assembly video
instructions provided in the link: https://youtu.be/SzLE9fCtxxk.
Follow the step-by-step instructions carefully to assemble the
equipment.
Maintenance: Regularly inspect and maintain
the equipment to ensure proper functioning and safety. Refer to the
maintenance instructions provided in the manual for guidance.
User Precautions: Before using the equipment,
read all the precautions and instructions provided in the manual
carefully. Ensure that the equipment is suitable for your intended
use and that you are aware of all the risks involved.
User Guidelines: Only up to 10 users should
use the equipment at a time. Follow the usage guidelines provided
in the manual to ensure safe and effective use of the
equipment.

Remember to keep the manual in a safe place for future
reference.

View Fullscreen

Assembly, Maintenance and User Instructions Manual

CLICK HERE FOR FULL ASSEMBLY VIDEO INSTRUCTIONS

WARNING !

GROWPLAY MONKEYBARS ® PTY. LTD.

READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE USING THIS EQUPIMENT.

ABN : 36 627 796 141

KEEP MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE.MAXIMUM OCCUPANCY = 10 USERS @ <50KG
TOTAL WEIGHT CAPACITY = 500KG
AGE OF USERS 3+

P.O Box 2527,Clarkson, WA , 6030 Model :GP1-KD REV 4 CERT : EN71-8:2018

BEFORE YOU BEGIN
Thank you for purchasing Growplay Monkey Bars. With regular maintenance, your set will provide many years of backyard fun.
Before you start to assemble your new GROWPLAY MONKEY BAR SET please ensure that you have read this important information and that it is communicated to all users prior to use.
INSTALLATION WARNING!
WARNING: THIS DISASSEMBLED PRODUCT MAY CONTIAN SMALL PARTS WHICH POSE A CHOKING HAZARD TO CHILDREN UNDER 3.
· Read all important precautions and instructions in this manual and all warnings on the equipment to reduce the risk of serious injury.
· It is the responsibility of the owners and supervisors of this equipment to ensure that it has been correctly assembled, anchored, maintained and the users obey the safety instructions.
· This product is intended for use by children AGE OF USERS 3+ · Until the equipment has been correctly assembled and anchored, do not let children
use equipment. · Always use Growplay Monkey Bars under adult supervision. · It is required that the play equipment be ground anchored with the ground anchor
nails provided onto a soft or shock absorbing surface. · Do not install over concrete or any other hard surface as a fall onto a hard surface
could result in serious injury or death. · Ensure that the equipment is installed on a level surface and no less than 1.8 metres
from any structure or obstruction. · Always inspect the equipment before it is used and replace any worn, defective, or
missing parts. · Ensure that all connectors are regularly checked.
WARNING: ACCESSORIES MUST ONLY BE ATTACHED IN POSITIONS AS SHOWN IN THESE INSTRUCTIONS. FAILURE MAY RESULT IN DEATH OR SERIOUS INJURY.
ELECTROCUTION HAZARD
Growplay monkey bars are made from metal. They are not grounded and will conduct electricity. For obvious reasons and electrocution hazard exists. NO lights, heaters, electrical and extension cords or any household electrical device or appliances are to be permitted on or in the frame at any time.

FOR THE USER
· Do not use this equipment when under the influence of drugs or alcohol. · Do not jump on or off the frame. · Wear clothing that does not have loops, hooks, drawstrings, or anything else that
can get caught on the frame.
USER INSTRUCTIONS
1. GROWPLAY MONKEY BARS are designed for up to 6 persons and not exceeding total weight of 500kg.
2. AGE OF USERS 3+ 3. Adult supervision for children of all ages is required at all times. 4. Educate children not let to walk close to, behind and in front, between moving parts. 5. Children are not to use the equipment in any other manner than intended. 6. Teach children not to hop off equipment while in motion or jump from moving play
items. 7. Do not twist chains or ropes or loop them over support bars as this may reduce the
structural integrity of the rope or chain. 8. Do not allow use of the equipment when it is wet as injury due to slips may occur. 9. Children are to be dressed in appropriate clothing while playing on or around the
equipment with correctly fitted and full foot enclosing footwear. Loose fitting items, hood, and neck draw strings etc could potentially cause injury or death by strangulation. 10. Inform children not to attach items to the playground equipment that are not specifically designed or approved for use with the Growplay monkey bar equipment, such as, but not limited to jump ropes, clothesline, pet leashes, cables, and chain as they may cause a strangulation hazard.
FOR FULL STEP BY STEP VIDEO INSTRUCTIONS SEARCH GROWPLAY ORIGINAL RANGE ON YOUTUBE

ASSEMBLY: TWO PERSONS
Before starting assembly, please carefully read the following information. · Two people are required to assemble frame. · DO NOT FULLY TIGHTEN BOLTS UNTIL FRAME IS ASSEMBLED. · Place all parts in one cleared area and remove the packaging material. Do not throw away material until assembly is complete. · Dispose of the packaging thoughtfully and ensure any plastic bags and small parts are kept away from children or pets. · Ensure that you check all tightening of parts twice and that the frame is stable after assembly. Small movement through the frame is normal. · Allow plenty of time to ensure that your monkey bars are set up correctly and safe to use. · Ensure that no exposed red tape is present and that all fixtures are extremely tight.
ENSURE THE TUBE IS CORRECTLY INSERTED NO RED TAB SHOULD BE
VISIABLE.

ENSURE GROUND IS LEVEL AND USE GROUND ANCHOR SCREWS AND PEGS PROVIDED.

GP1-KD ORIGINAL FRAME CONTENTS

DESCRIPTION

SKU

QTY

ORIGINAL ACCESSORIES KIT

GPAC

TUBE ASSEMBLY 1

TA1

TUBE ASSEMBLY 2

TA2

TUBE ASSEMBLY 3

TA3

LD1 LADDER

LD1

MONKEY RUNG 1800

MR1800KIT

BARCODE
794712825524 794712825494 794712825500 794712825517 794712825265 794712825258

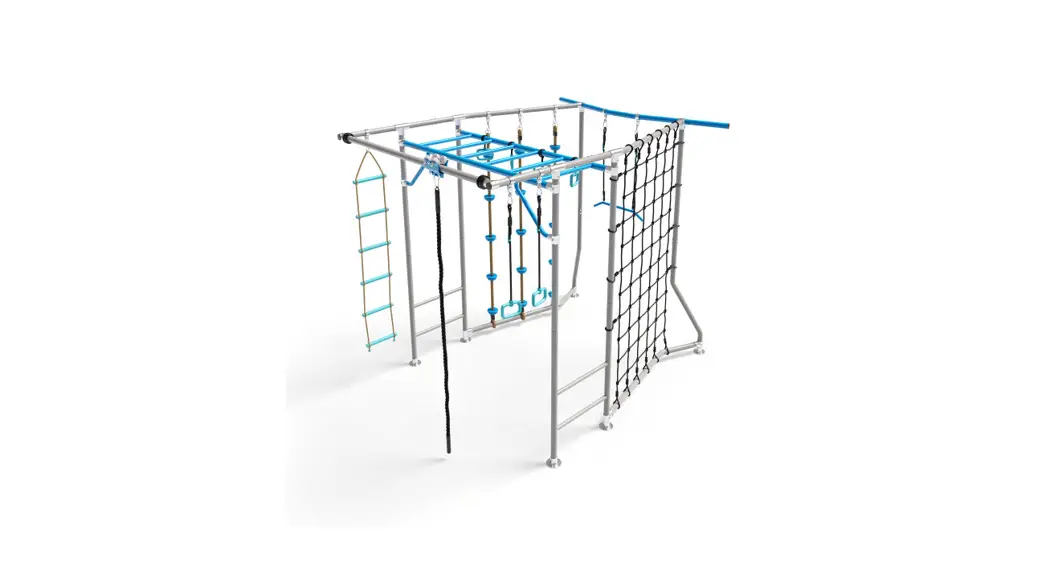

TAKE YOUR TIME! THIS IS HOW YOUR FRAME SHOULD LOOK WHEN COMPLETE.
FOR SAFETY AND STABILITY, SUPPORT BARS MUST BE POSITIONED AS SHOWN, ~15-30 DEG ANGLE.

TYPICAL CLAMP, SWING HOOK &
FOOT ASSEMBLY
WARNING ! ENSURE THAT THE RED WARNING LOCATOR TAPE CAN NOT BE SEEN. IF YOU CAN NOT SEE THE RED TAPE THEN THE TUBE IS IN CORRECTLY. ENSURE THAT YOU CHECK AND TIGHTEN EACH CONNECTOR SEVERAL TIMES BEFORE USE. WHEN WE SAY TIGHT, WE MEAN AS TIGHT AS YOU CAN POSSIBLY GO. YOU WON’T DAMAGE IT.

1 PEG PER FOOT

TYPICAL SWING HOOK AND FOOT PEG ASSEMBLY. PLACE AROUND TUBE AND TIGHTEN WITH SPANNER PROVIDED ONCE IN POSITION. REGULARY CHECK AND TIGHTEN.

IMPORTANT! ONLY FULLY TIGHTEN BOLTS ONCE FRAME IS ASSEMBLED. FINGER TIGHTEN ONLY DURING ASSEMBLY.
REFER TO PART NUMBERS PRINTED ON TUBULAR PARTS ASSEMBLY.
B1040
BC1040F
TYPICAL CHICAGO BOLT AND TUBE ASSEMBLY

LDB

LDA

B1035BH1 B1035BH1

TYPICAL RUNG ASSEMBLY

B1060BH

ROCK GRIP ASSEMBLY

ASSEMBLE MONKEY RUNG AS SHOWN. INSTALL CLAMPS TO LD1 LADDER IN NEXT STEP

REMOVE LADDERS FROM BOX 1 AND BOX 2 · INSTALL SHORT TEES FOR DIP BARS (LEAVE LOOSE) ONE SIDE. · INSTALL SHORT TEE CLAMPS AT EQUAL HEIGHTS FOR MONKEY BARS.
DO NOT FULLY TIGHTEN UNTIL NEXT STEP.
SLIDE ON ADDITIONAL CLAMPS IF ATTACHING MK1800 OR MK2400 EXTENTION KIT FOR X RANGE!
DIP BAR CLAMPS
PLACE CLAMPS AT EQUAL HEIGHTS

ASSEMBLE ACCESSORY BAR AS SHOWN. SET T-CLAMPS ASIDE FOR LATER

SHORT-T

MRA

SWING CLAMP

WASHER

MRB B1040F/M

SWING CLAMP

B1035BH1

CUB1

MRC

B1035BH1 WASHER

CF20CB2

REDUCER-T

COMPLETED ACCESSORY BAR. SET ASIDE

ASSEMBLE FIREMANS POLE AS SHOWN & SET ASIDE.

FOOT

FPB

B1040F/M

FPC

ASSEMBLE DIP BAR LEGS

CF20CB2
DBR2, B1035BH1, WASHER
FOOT

ASSEMBLE DIP BAR TOP RAIL X 2

SHORT T

CNC

TIP!
USE 6MM HEX KEY TO SET CLAMPS AT EQUAL LENGTHS.

ASSEMBLE TUMBLE & GYMNASTICS BAR

TWA

CNC

ELBOW

TWB FOOT

CNB B1040F/M
CNA

FOOT
ASSEMBLE 4 X GREY POLES
LDB LDC
B1040F/M

PLACE LADDERS ON SIDE AND INSERT MONKEY RUNGS INTO CLAMPS BRACES. ENSURE THAT RED TABS ARE NOT SHOWING BEFORE TIGHTENING.

ROCK GRIPS AND BRACING FACING
DOWN

DIP BAR CLAMPS THIS
END
STAND FRAME UPRIGHT AND ATTACH TUMBLE BAR FOR
STABILITY DURING ASSEMBLY

SLIDE SHORT TEE’S UP TO JOINS ON 2 X GREY CROSSBARS. TIGHTEN ONE ONLY AT JOIN.

ATTACH TOP RAILS TO FRAME LADDERS AND TIGHTEN.

TIGHTEN. NOTE ORENTATION OF CLAMP IS
COVERING JOIN
CLAMP IS COVERING TUBE
JOIN. BOLTS FACING UPWARDS.

SLIDE ON 6 X SWING CLAMPS AND 3 X SHORT TEE’S ONTO TOP RAIL.

LEFT HAND SIDE. SLIDE DOWN 1 X SHORT-TEE 1 X REDUCER-TEE AND
1 X SHORT-TEE

RIGHT HAND SIDE SLIDE DOWN 1 X REDUCER-TEE X 1
SHORT-TEE

SHORT TEE IS ABOVE BOLTS FOR CARGO NET SIDE

ATTACH FOOT

SHORT-TEE IS BELOW BOLTS FOR TUMBLE BAR SIDE
SLIDE UP 1 X SHORT TEE AND ATTACH
FOOT

CONNECT FRAME AND TIGHTEN. LEAVE LOWER
SHORT-TEES FINGER TIGHT ONLY AT THIS
STAGE

INSERT LEGS INTO SHORT-TEES AND LIGHTLY TIGHTEN.
REMOVE TUMBLE BAR
SUPPORT INSTALL 4 X END CAPS AND TIGHTEN SHORT-TEE

INSTALL CARGO NET AND TUMBLE BAR
~1150MM
PUSH UP CLAMP TO BOLT.

~ 1650MM

IMPORTANT! ORIENTATE SUPPORT BARS BETWEEN ~15-45 DEG AS SHOWN FOR STABILITY
INSERT BLUE SUPPORT

SLIDE DIP BAR CLAMPS UPWARDS TO HIGHEST POSITION CONTACTING BOLT AS SHOWN AND COVERING JOINT. POSITION DIPBARS AND TIGHTEN

IMPORTANT! ENSURE GROUND IS LEVEL. USE GROUND ANCHOR SCREWS ON 4 OUTSIDE LEGS TO SECURE FRAME
AND INSERT 1 X SPIKE IN EACH FOOT BEFORE USE.
GROUND ANCHOR INSTALLATION 1: POSITION FRAME. 2: KNOCK IN SPIKE TO LOCATE FOOT. 3: LOOSEN FOOT GRUB SCREW AND LIFT OUT FRAME TO ONE LEG AT A TIME WHILE FOOT STILL IN PLACE. 4: SCREW IN GROUND ANCHOR 5: REPLACE LEG INTO FOOT AND TIGHTEN GRUB SCREW.
GROUND ANCHOR WASHER BASE PLATE SPIKE X 1

ATTACH ALL ACCESSORIES AS SHOWN
TYPICAL MONKEY RING LOOP ATTACHMENT. LOOP OVER AND UNDER ANY BAR POSITION.
SPARE BOLTS AND WASHERS. CAN BE USED IN REPLACEMENT OF ROCKGRIPS. KEEP IN SAFE

FINAL STEP. START AT ONE CORNER OF THE FRAME AND DOUBLE CHECK ALL BOLTS ARE TIGHT. SMALL MOVEMENT IN FRAME
IS NORMAL. CONGRATULATIONS!
YOU HAVE ASSEMBLED YOUR GROWPLAY MONKEY BAR!

MAINTENANCE INFORMATION
This product was manufactured using quality materials and crafted to provide you and your family with many years of enjoyment and exercise. Proper maintenance care will help to prolong the life and reduce the possibility of injury. The following guidelines should be followed.
· Tighten all hardware at the beginning of each play season. · Check all protective coverings on bolts, pipes, edges, and corners. Replace if they are
loose, cracked, or missing. · Check all moving parts including swing seats, ropes, cables and chains for wear, rust,
or other deterioration. Replace as needed. · Check metal parts for rust. If found, sand and repaint using a nonlead-based paint. · Rake and check depth of loose fill protective surfacing materials to prevent
compaction and to maintain appropriate depth. Replace as necessary. · Twice a month during play season: Tighten all hardware, check all protective
coverings on bolts, pipes, edges, and corners. Replace if they are loose, cracked, or missing. Rake and check depth of loose fill protective surfacing materials to prevent compaction and to maintain appropriate depth. Replace as necessary. · Once a month during play season: Lubricate all metallic moving parts per manufacturer’s instructions. Check all moving parts including swing seats, ropes, cables, and chains for wear, rust, or other deterioration. Replace as needed. · At the end of each play season or if the temperature drops below 2 Deg C, remove plastic swing seats and other items as specified by the manufacturer and take indoors or do not use. Rake and check depth of loose fill protective surfacing materials to prevent compaction and to maintain appropriate depth. Replace as necessary. Owners shall be responsible for maintaining the legibility of the warning labels. · Disposal Instructions — There shall be instructions advising the owner to disassemble and dispose of the playground equipment in such a way that no unreasonable hazards will exist at the time the playground equipment is discarded. If any these conditions exist, this product should be disassembled or otherwise protected from being used until the condition is fixed.

CLICK HERE FOR FULL ASSEMBLY VIDEO INSTRUCTIONS https://www.youtube.com/watch?v=IrywTqkMww0
