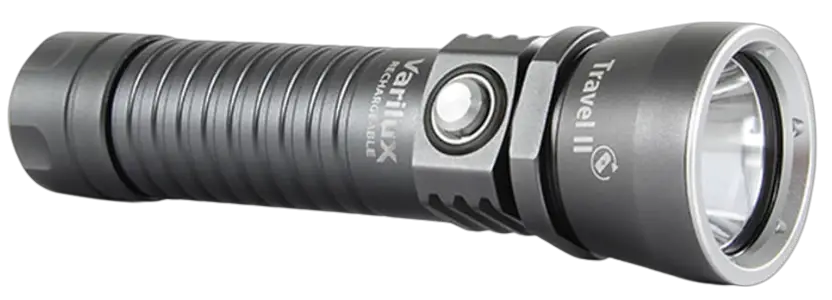

Varilux Northern Diver 1000 Lumen Rechargeable Torch User Manual
Specification
| LED | SST40 |
| Output | 1100 – 110 Lumens |
| Burn Time | 3.5 – 50 Hrs |
| Beam Distance | 370m (1214’) |
| Beam Intensity | 35000 cd |
| Colour Temperature | White Light |
| Switch Design | Push Button |
| Impact Resistance | 1m (3’3) |
| Build | Anodised Aluminium/Magnetic Charging |
| Battery | 26650 3.7V, 5000 mAh |
| Dimensions | L 158mm (6.2”) – Dia 45mm (1.8”) |
| Weight (inc battery) | 282g (0.6lbs |

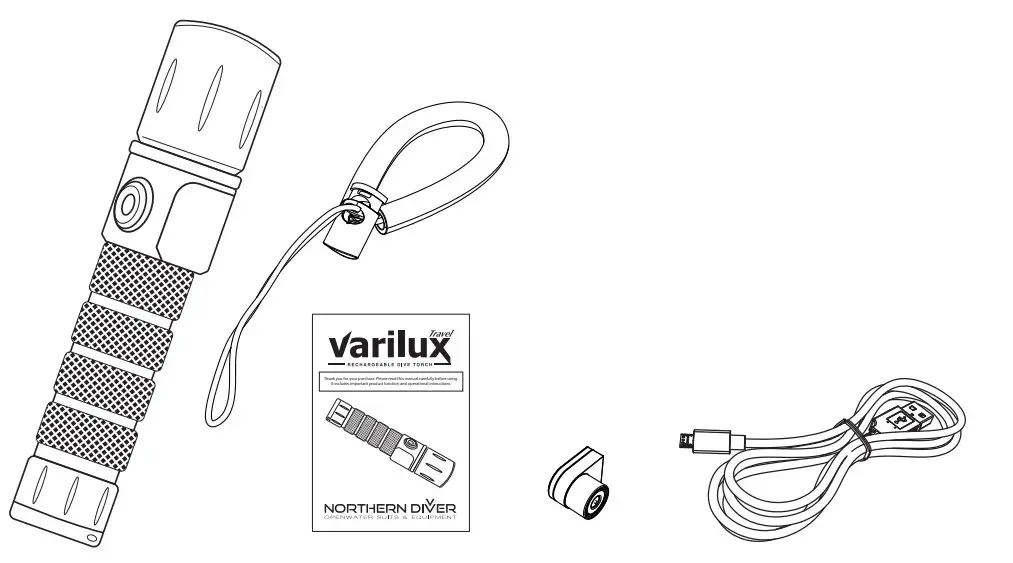

What’s Included
- Dive Light
- Lanyard
- Manual
- Magnetic USB Cable
- Magnetic Connector

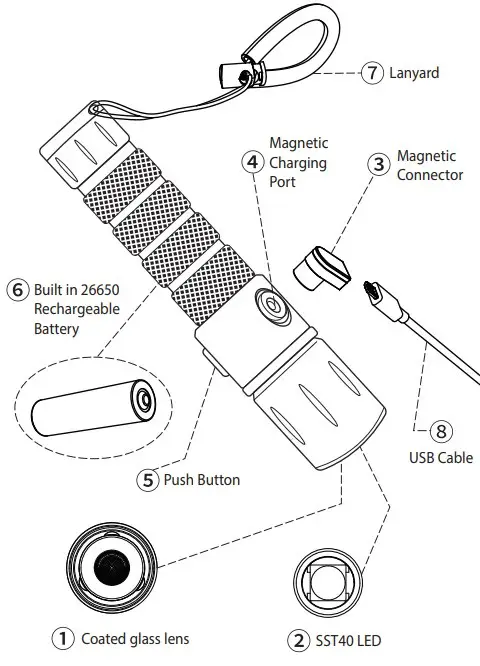

Product Overview

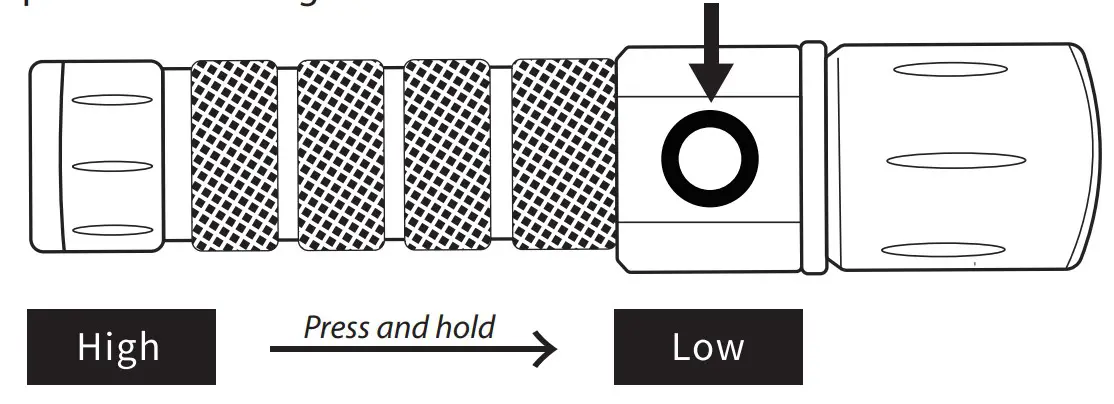

Operation
ONE BUTTON CONTROL Easily turn the torch on/off and cycle through the modes by press and holding the button.
On/Off Press to switch torch on and off
Safety Precautions
DO NOT shine the light directly into eyes. May cause temporary blindness or permanent damage
DO NOT cover light head or place the light down on the ground when light is on. The radiation energy may cause damage to the light or result in burning other materials.
DO NOT leave the light in any type of fabric bag or plastic container under high temperatures.
DO NOT try to modify this torch in any way. Doing so will void any warranty

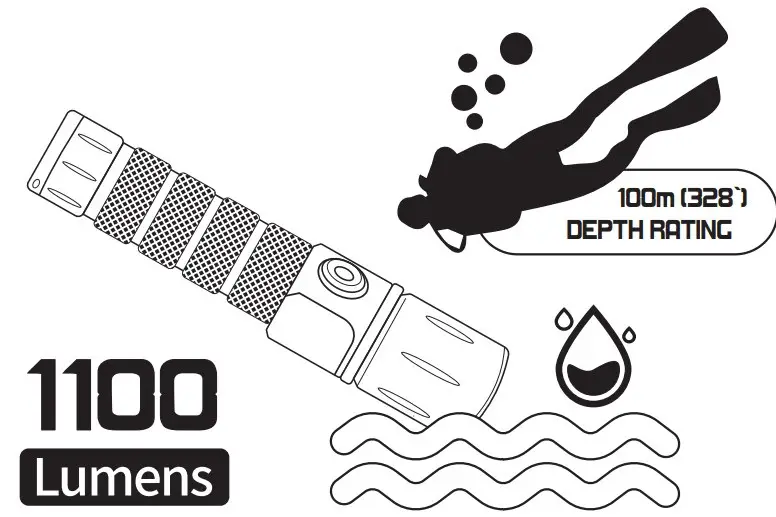

Waterproof Design

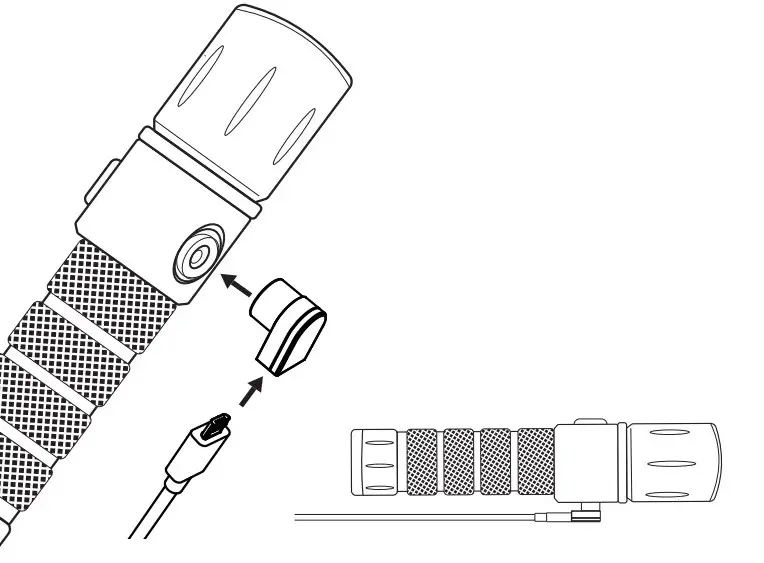

How To Charge
Use the magnetic connector and the USB cable to charge the torch.
Unplug when fully charged.
Charge time: 4 hours

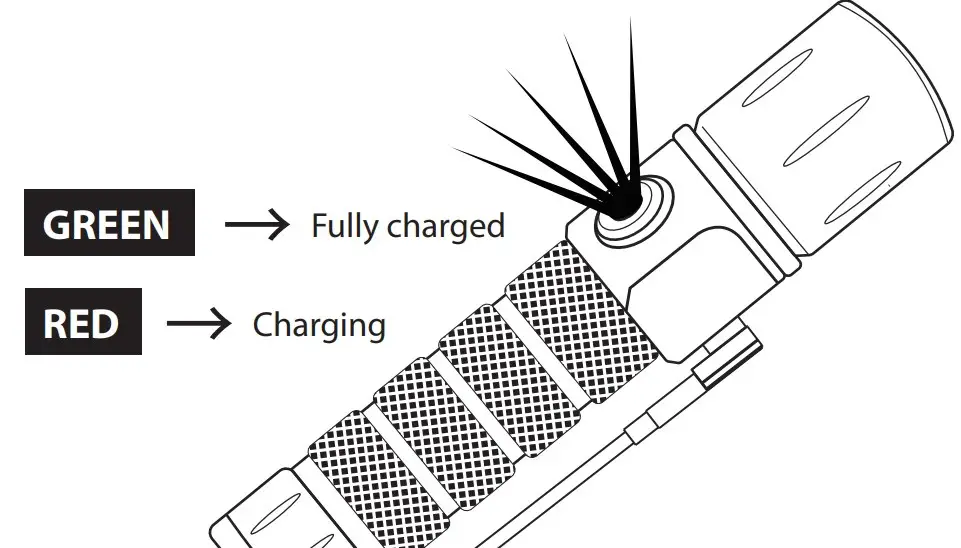

Power Indicator
When on charge the power button will be lit up
- Battery status will be indicated around the power button
- LED: Green 100-50% | Red 50-20% | Flash Red <20%
- Please note: approx 10 mins remain when LED fiashes red
Important Notice
Please make sure you only use the supplied magnetic connector to recharge the torch to prevent short circuiting and damage to the light.
Do not try to change the battery, this is built in and if tampered with will damage the waterproof performance
Clean the torch with fresh water after each use. Do not use cleaning agents that may damage. Clean with a soft cloth to avoid scratches.
Do not attempt to modify or repair the torch. All repairs must be carried out by a trained technician.

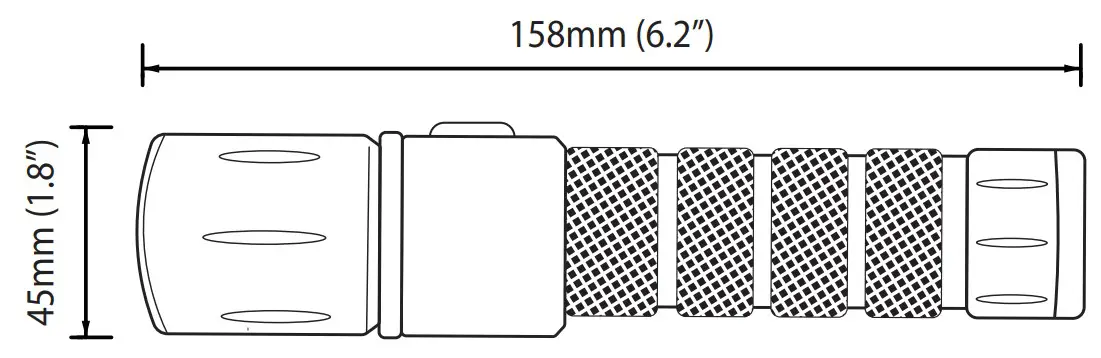

Dive Torch Dimensions
Main Features
- Super bright SST40 LED
- White light colour temperature
- LED life span: 10,000 hours
- 26650 rechargeable battery, 3.7V, 5000mAh
- Magnetic USB charging design
- Anodised aluminium build
- Simple push button switch design
- Intelligent over-heat protection to avoid overheating on surface
- Application: outdoor activities and underwater activities
370m (1214’) Beam Distance
1m (3’3) Impact Resistance
100m (328’) Depth Rating
Torch Modes
 OUTPUT |  BURN TIME | |
| High | 1100 Lumens | 3.5 hours |
| Low | 110 Lumens | 50 hours |
