Instruction Manual

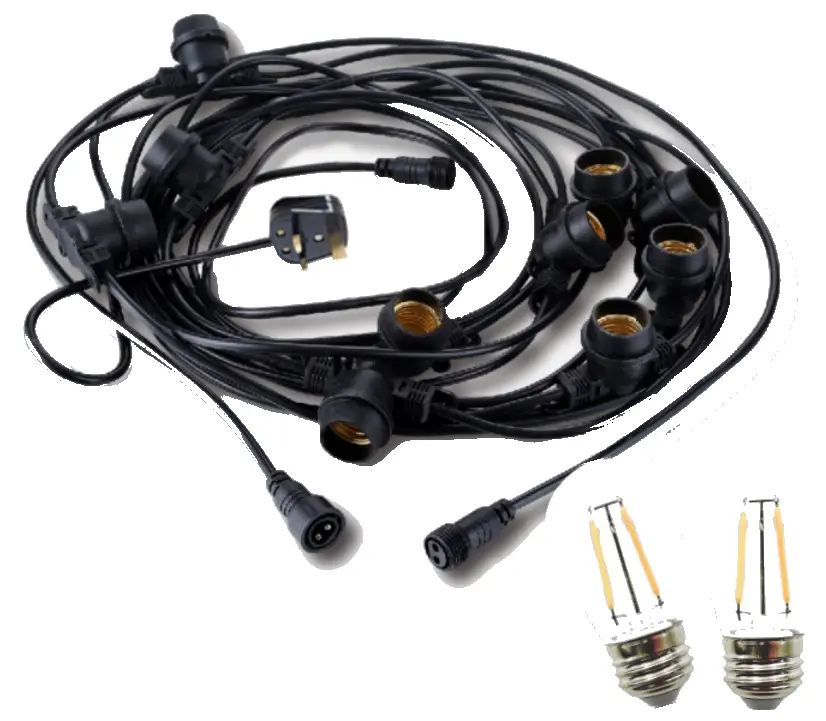

Outdoor String Light
Technical date
| Part No. | Voltage | Max Power -1 Catenary | Max Power -5 Catenary | Colour | IP | maximum connection |
| LST1 | 220-240V | 150W | 750W | Black | IP6S | SPCS |
Installation

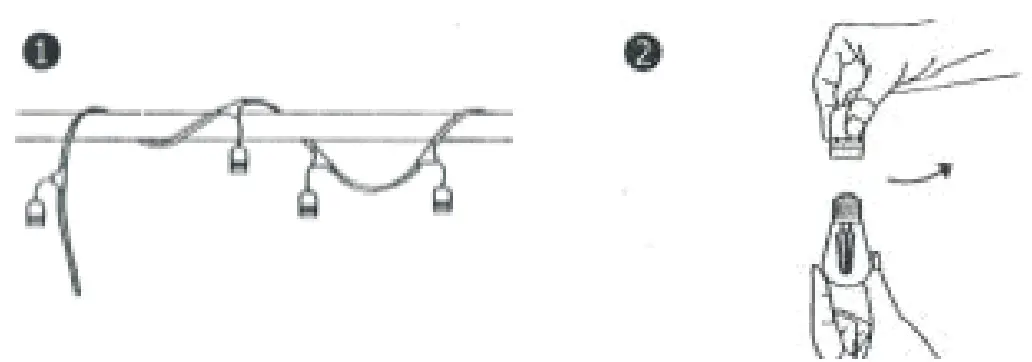

- 1. Install cable with the empty lamp holders in desired location, such as backyards, gazebos, patios, gardens etc… (fig. 1)
- 2. Screw the bulbs Into the appropriate lamp holder (fig. 2)
- 3. When mounting the bulbs, make sure to screw up to the end of the stroke, to guarantee the IP65 protection
- 4. Connect the string light to the power line with UK plug
- 5. Connect, possibly, other strings light up to a maximum of n. 5 string light 11″ respecting the maximum power limit indicated
- 6. Connect the plug provided to socket
Warning
- Always switch off the power before installing or servicing
- Installation and maintenance must only be carried out by qualified personnel
- Place the product in a place suitable for the IP65 degree protection
- Do not disassemble or tamper the product to avoid shock electric
- Do not cover the lamp with heat-insulating material
- Do not install near surface subject to high temperature
- Please keep it away from children
- Please do not hang anything from the string light as the extra weight may break the cable
Notes:
After installation and testing of this product it is essential that the INSTRUCTION LEAFLET is available for reference.
LIVE ELECTRICAL DISTRIBUTION UK LTD
ADD: Unit 4, Queensmead Place, Trafford Park, Manchester, M17 1 PH
Tel: 0161 870 2592 Web: www.liveelectrical.co.uk
E-mail: [email protected]
Ensure that these instructions are made available to the end user for future reference.
