QUICK START GUIDE

BAR 2.0 ALL-IN-ONE

Before using this product, read the safety sheet carefully.

⇒

*

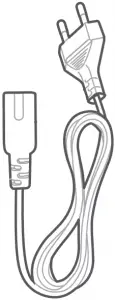

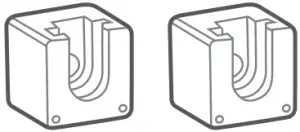

* Power cord quantity and plug type vary by regions.

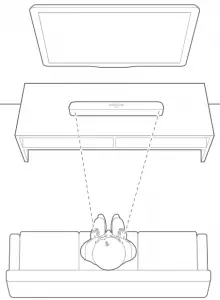

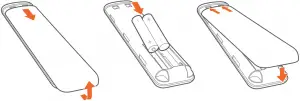

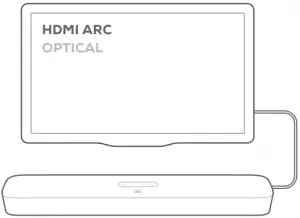

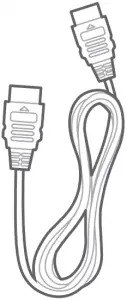

A HDMI OUT

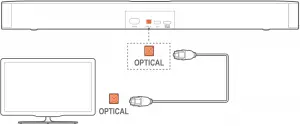

B OPTICAL

USB

For software upgrade. USB playback is available in the US version only.

General specification:

• Power supply: 100 – 240V AC, ~ 50/60Hz
• Total speaker power output (Max. @THD 1%): 80W
• Soundbar output power (Max. @THD 1%): 2 x 40 W
• Soundbar transducer: 2 x racetrack drivers
• Soundbar standby power: <0.5W
• Operating temperature: 0°C – 45°C

Video specification:

• HDMI Video output (With Audio return channel): 1

Audio specification:

• Frequency response: 70Hz – 20KHz
• Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

USB specification:

• USB port: Type A
• USB rating: 5V DC / 0.5A
• Supporting file format: mp3, wav
• MP3 Codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
• MP3 sampling rate: 16KHz – 48 KHz
• MP3 bitrate: 80kbps – 320kbps
• WAV sample rate: 16KHz – 48 KHz
• WAV bitrate: Up to 3000kbps

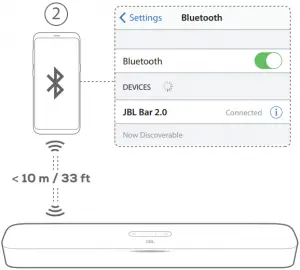

Wireless specification:

• Bluetooth version: 4.2
• Bluetooth profile: A2DP V1.3, AVRCP V1.5
• Bluetooth frequency range: 2402MHz – 2480MHz
• Bluetooth Max. transmitting power: <10dBm (EIRP)
• Modulation Type: GFSK, π/4 DQPSK, 8DPSK

Dimensions:

• Soundbar dimensions (W x H x D): 614 x 58 x 90 (mm) / 24.17″ x 2.28″ x 3.54″
• Soundbar weight: 1.61 kg
• Packaging dimensions (W x H x D): 855 x 125 x 145mm
• Packaging weight (Gross weight): 2.6kg

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

ANATEL – www.anatel.gov.br

SB_JBL_Bar2.0_QSG_Global_CR_V3
