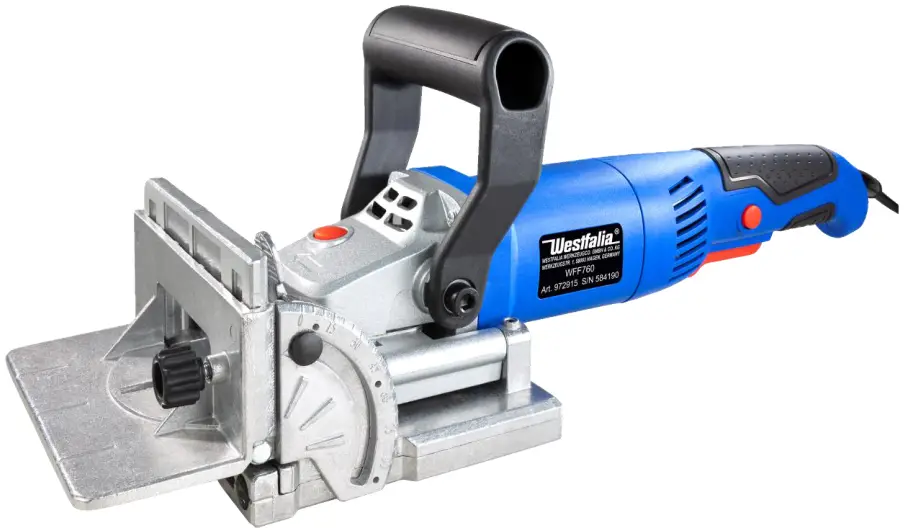

972915 Biscuit Jointer WFF760
Instruction Manual

972915 Biscuit Jointer WFF760

Dear Customers,
Instruction manuals provide valuable hints for using your new device. They enable you to use all functions, and they help you avoid misunderstandings and prevent damage. Please take the time to read this manual carefully and keep it for future reference.

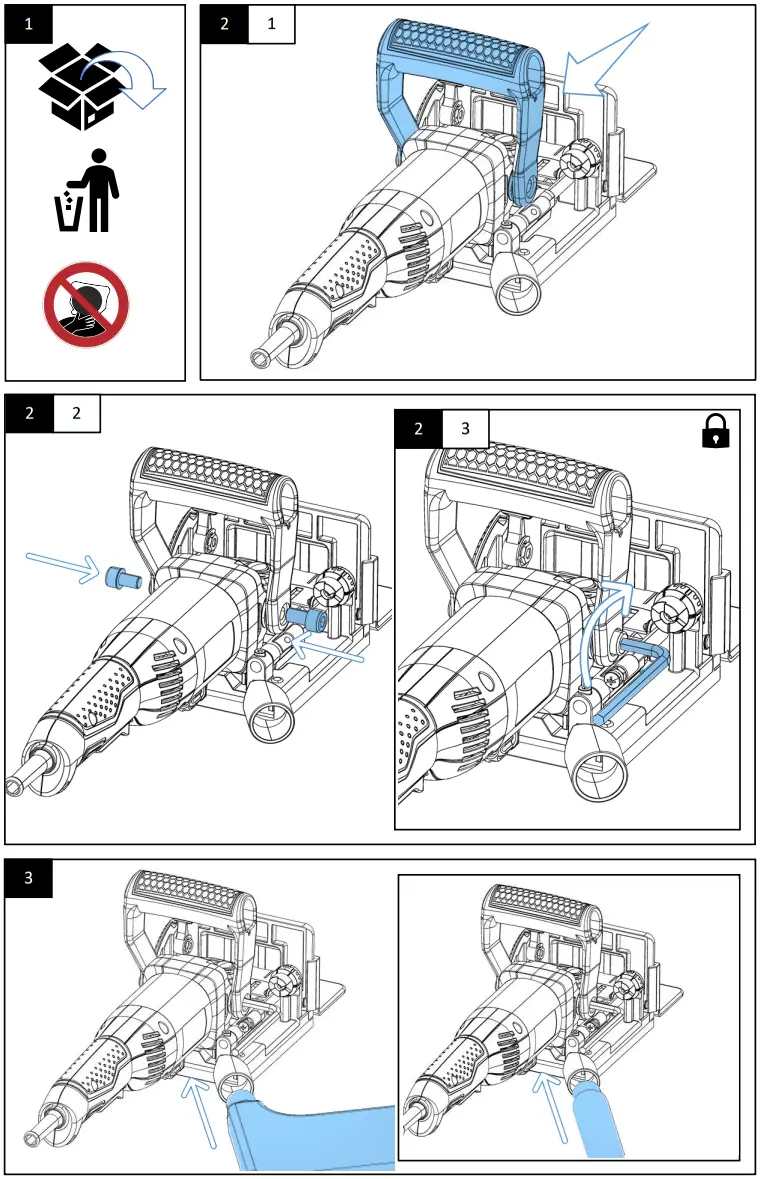

1. Unbox device
2. Attach additional handle
3. Attach vacuum system

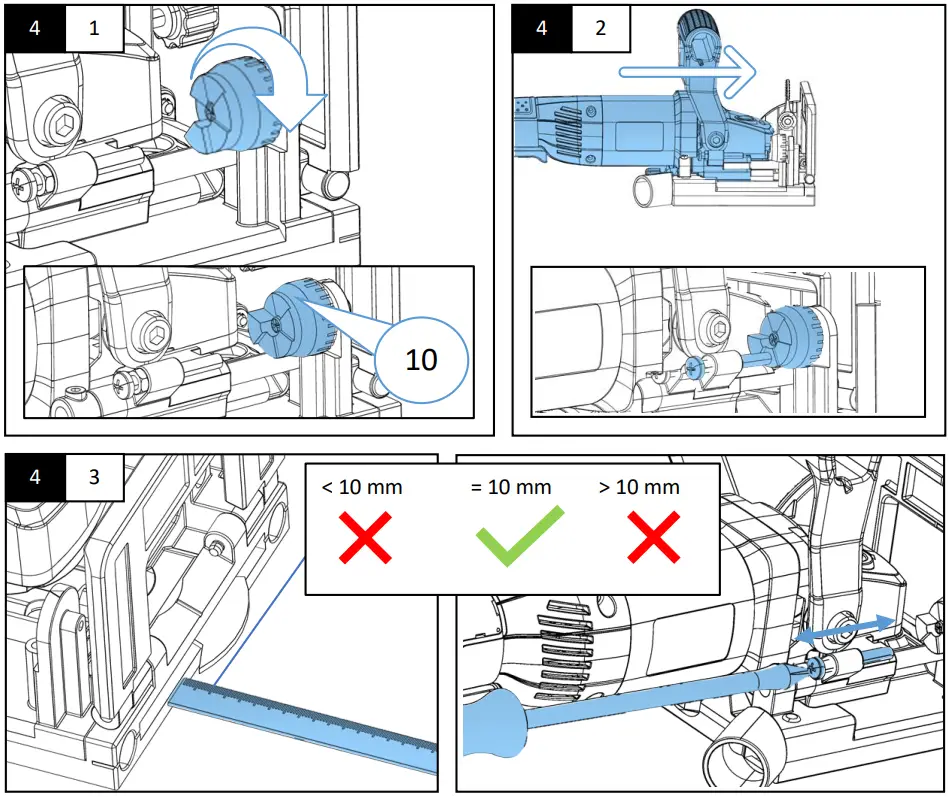

4. Set the milling depth

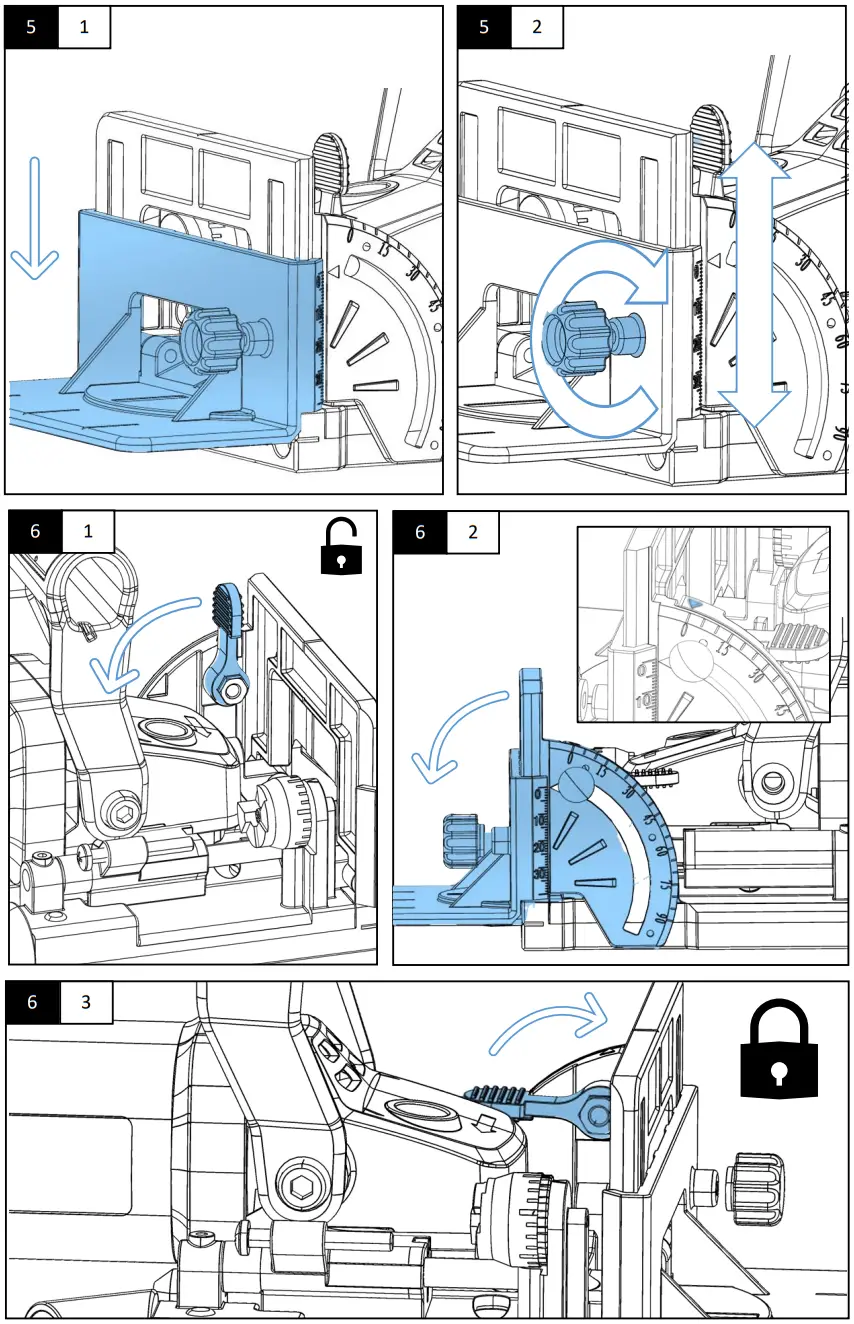

5. Set the milling height
6. Set the milling angle

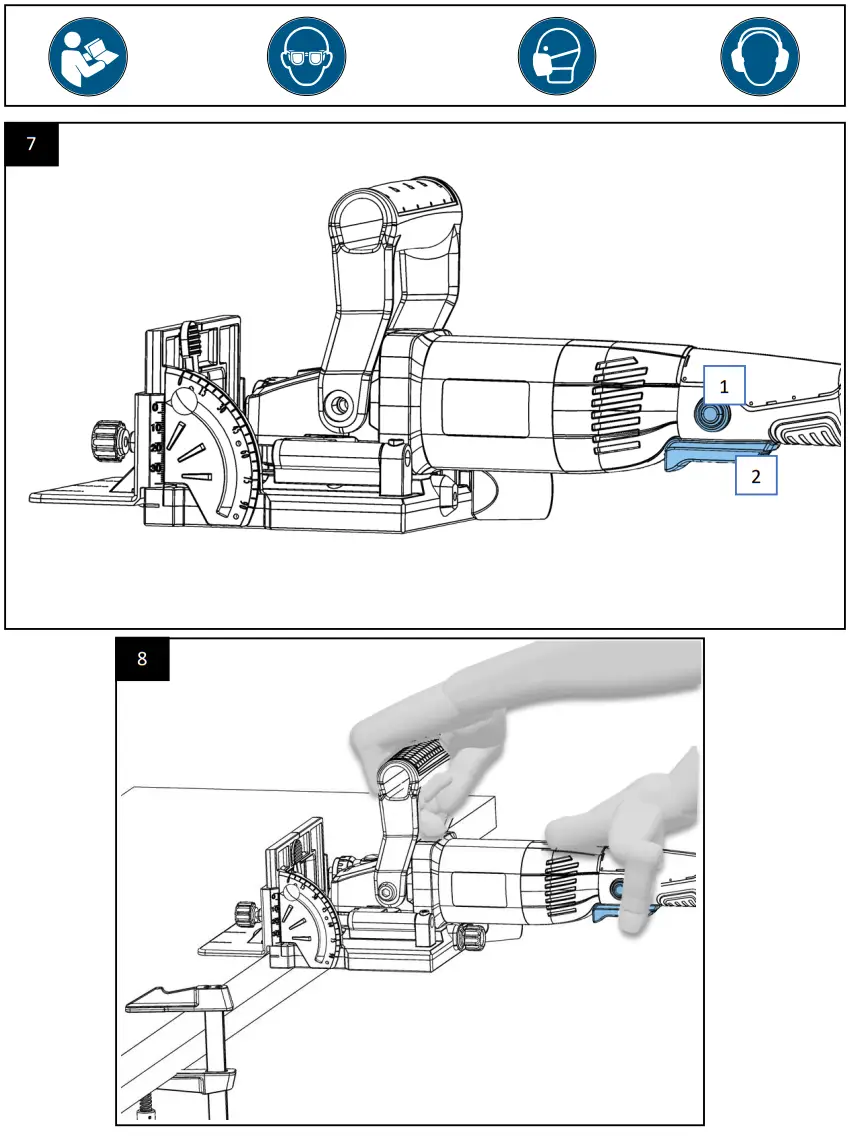

7. Start the device
8. Handling
9. Change the side milling cutter

The measurement should be 10 mm for #10 as indicated in the chart below. IF different loosen the depth stop locking nut and adjust the depth stop to reduce or extend its length to the required 10 mm blade depth.

BISCUIT JOINTER GUIDE

Before turning the ON/OFF switch, make sure there are no gaps between the router and the workpiece.

TECHNICAL DATA

*2 The declared vibration total value and the declared noise emission values have been measured in accordance with a standard test method. The declared vibration total value may also be used in a preliminary assessment of exposure.

Warning!

The vibration and noise emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used, in particular, what kind of work piece is machined. It is necessary to identify safety measured to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). Try to minimize the impact of vibration and noise. Exemplary measures to reduce vibration exposure include wearing gloves while using the tool, limiting working time, and using accessories in good condition.

SAFETY NOTES

Please note the included General Safety Notes and the following safety notes to avoid malfunctions, damage or physical injury. Please also observe the safety notes in the manuals for battery and charger.

• Please read this manual carefully and use the device only according to these instructions.
• When operating the device, use protective equipment including goggles and hearing protection. Depending on the task to be performed, wear respiratory protection. If the operation of the device causes discomfort or discomfort, stop the work immediately and get to the bottom of the cause.
• Dispose of unnecessary packaging material or store it in a place inaccessible to children. There is a risk of choking!

Safety instructions for biscuit jointer

• Persons with impaired physical, sensory or mental abilities may not use the device unless they are supervised and instructed by a caregiver.
• Keep the milling machine out of reach of children. The item is not a toy.
• Wood dusts can be harmful to health. Protect yourself with a dust mask.
• Check the flat dowel milling machine and electrical connections for damage and do not use the flat dowel milling machine if the machine has been damaged.
• Use the flat dowel milling machine in accordance with these operating instructions and only for the intended area of application for processing only wood.
• Clamp the workpiece with a clamping device or vice to prevent it from slipping. Always hold the Flachdbad milling machine firmly with both hands when working. Always make sure to stand safely.
• Protect the flat dowel milling machine from penetrating moisture and do not immerse the machine in water or other liquids.
• Before immersion in the workpiece, the milling cutter must have reached full speed.
• Attention: Consider the running time of the machine after switching off. Always let the machine come to a standstill before lifting it off the workpiece.
• Do not work with excessive pressure on the device. The best results can be achieved with not too high a feed.
• Make sure that there are no foreign objects such as nails, screws, etc. in the material. Never mill against nails or screws.
• Check the workpiece carefully and remove all nails and screws.
• Always turn off the biscuit jointer first during adjustment, when changing accessories, when not in use and after work has been completed, and then unplug it.
• Keep the vents clean and free of foreign objects. Make sure that dust particles cannot penetrate the mechanical parts.
• Do not use a damaged milling blade. Swap it out for a new one.
• Do not machine workpieces that are too small to be securely locked.
• Do not open the device or make your own repair attempts. Contact a professional or our customer support. Use only original spare parts.

Residual risk

• Even if you usethe biscuit jointer as intended and observe all safety instructions, residual risks always remain. The following hazards may occur in connection with the design and design of the hammer drill:
  – Lung damage if no suitable dust mask is worn.
  – Hearing damage if appropriate hearing protection is not worn.
  – Eye injuries caused by flying away materials or material parts, if no suitable eye protection is worn.
• Damage to health resulting from hand-arm vibrations if the hammer drill is used for an extended period of time or if the biscuit jointer is not properly guided and maintained.
• Risk of injury if long hair, wide garments or jewelry are detected by rotating machine parts.
• Reduce the residual risk by using the biscuit jointer carefully and carefully and following all safety instructions and instructions.

EU DECLARATION OF CONFORMITY

We, the Westfalia Werkzeugcompany, Werkzeugstraße 1, D-58093 Hagen,
declare by our own responsibility that the product
Biscuit Jointer WFF760
Article No. 97 29 15
is according to the basic requirements, which are defined in the European Directives and their amendments.

The technical documentations are on file at the QA department of the Westfalia Werkzeugcompany.
Hagen, 04th of August, 2022

Thomas Klingbeil,
QA Representative

DISPOSAL

Dear Customer,
Please help avoid waste materials.
If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled. Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area.
