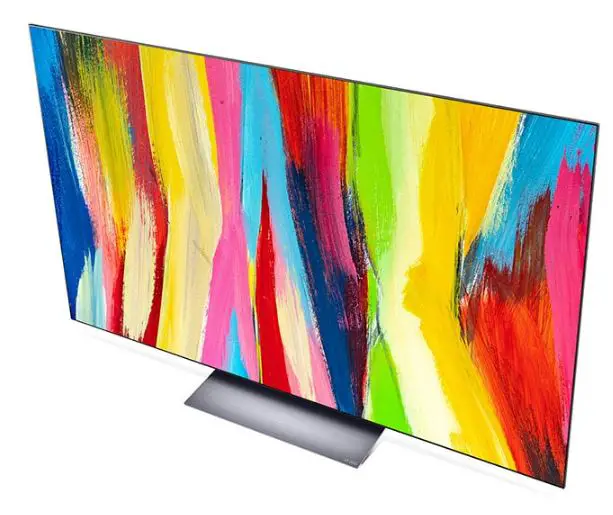

LG OLED65C2SW 65 Inch HDR 4K Smart OLED TV
Product Information
- Model: OLED65C2SW
- Manufacturer: LG
- Product Dimensions (W x H x D):
- Without Stand: 1441mm x 826mm x 45.1mm (56.7″ x 32.5″ x1.7″)
- With Stand: 1441mm x 880mm x 230mm (56.7″ x 34.6″ x 9.0″)
- Weight:
- Without Stand: 16.7kg (36.8lbs)
- With Stand: 14.8kg (32.6lbs)
- AC Power Input: AC 120V~ 50/60Hz
- Power Consumption: 482W
- VESA Mount Compatibility: 300mm x 200mm (M6 screws)
Product Usage Instructions
- Assemble the TV stand by attaching parts ‘a and ‘b’ using the
provided screws (M5 x L20 for ‘a’ and M4 x L16 for ‘b’). - Insert AAA batteries into the remote control.
- Connect the TV to a power source using the AC power input.
- To mount the TV on a wall, use a VESA-compatible wall mount with dimensions of 300mm x 200mm. Securely attach the mount using M6 screws.
- Turn on the TV using the power button.
- Use the remote control to navigate through the TV’s menus and settings.
- To adjust the TV’s position, tilt, or swivel, refer to the user manual for instructions on using the stand or wall mount.
- For any troubleshooting or additional information, refer to the user manual or visit the manufacturer’s website at www.lg.com.

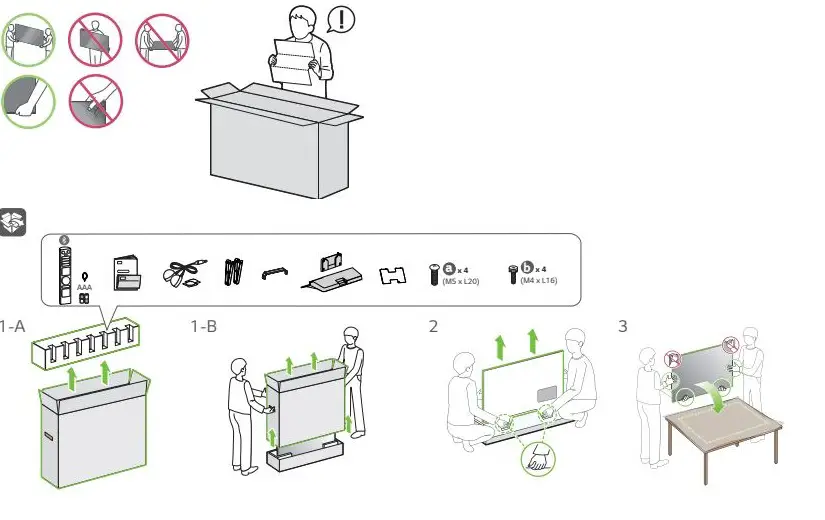

UNBOXING

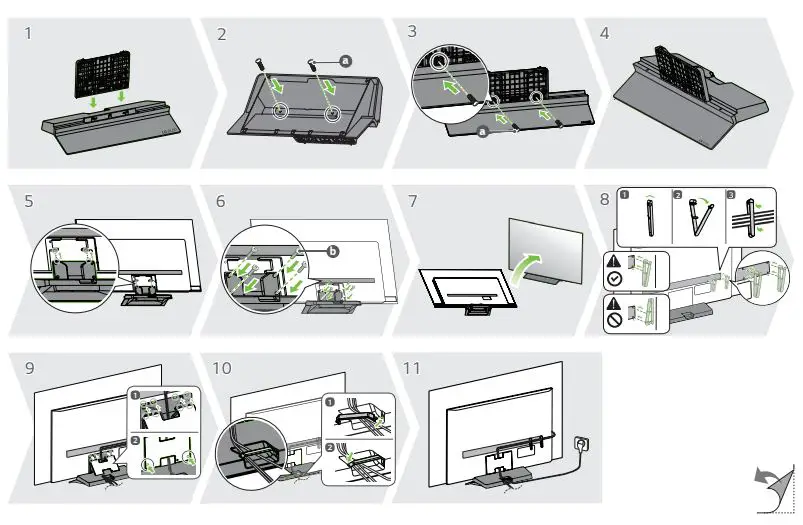

ASSEMBLY

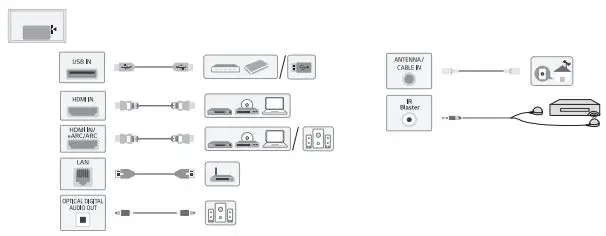

CONNECT

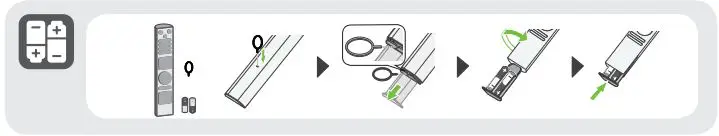

BATTERY REPLACEMENT

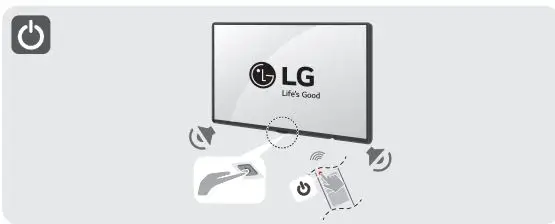

POWER

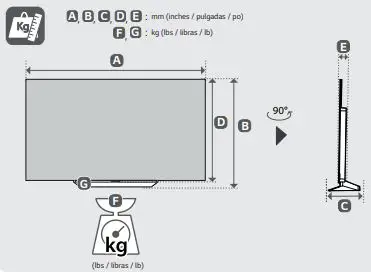

DIMENSION
| MODELS | A | B | C | D | E | F | F G | Power consumption | |||||||
| OLED65C2SW | 1,441 (56.7) | 1 441 (56,7) | 880 (34.6) | 880 (34,6) | 230 (9.0) | 230 (9,0) | 826 (32.5) | 826 (32,5) | 45.1 (1.7) | 45,1 (1,7) | 16.7 (36.8) | 16,7 (36,8) | 14.8 (32.6) | 14,8 (32,6) | 482 W |
| Power requirement | AC 120 V~ 50/60 Hz | ||||||||||||||
| A | B | C x D (mm) | E |
| 300 (11.8) x 200 (7.8) | |||
| OLW480B | OLED65C2* | M6 | |
| 300 (11,8) x 200 (7,8) |
Read Safety and Reference.
Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
www.lg.com
Printed in Korea
