MARQUANT 005044 Bath Scale

SAFETY INSTRUCTIONS

SYMBOLS

	Read the instructions.
	Approved in accordance with the relevant directives.
	Recycle discarded product in accordance with local regulations.

TECHNICAL DATA

USE

NOTE

• Keep the glass plate dry, with a wet plate there is a risk of slipping.
• Stand still when weighing, the display changes if you shift your body.
• Avoid dropping the product and do not subject it to knocks and blows – risk of material damage.
• This product is a precision instrument that must be handled carefully.
• If the product does not start, check that the battery is inserted and not discharged. Insert a charged battery.
• If the display gives a wrong reading, or if the product does not switch off automatically, remove the battery, wait 3 seconds, then insert it again to reset the software.

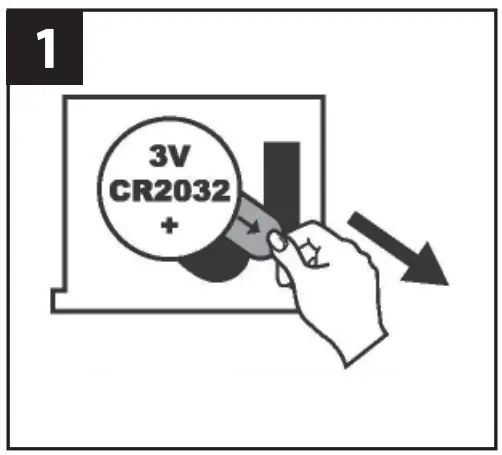

BATTERY

Remove the insulation from the battery before use.
FIG. 1

USE

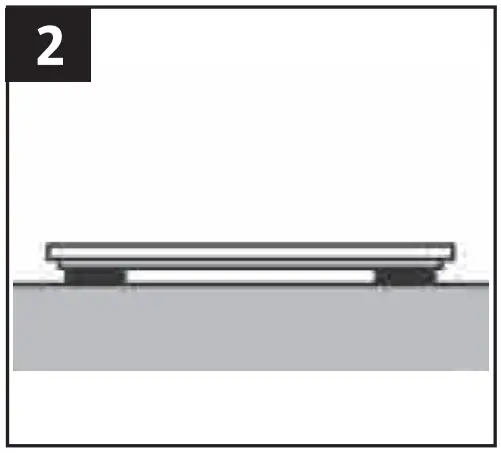

1. Put the bathroom scales on a hard, level surface for best precision. Do not put it on a carpet or other soft surface.
   FIG. 2

   NOTE:
   Check before weighing that there are no foreign objects under the product.
2. Carefully step onto the bathroom scales.
   The scales start automatically.

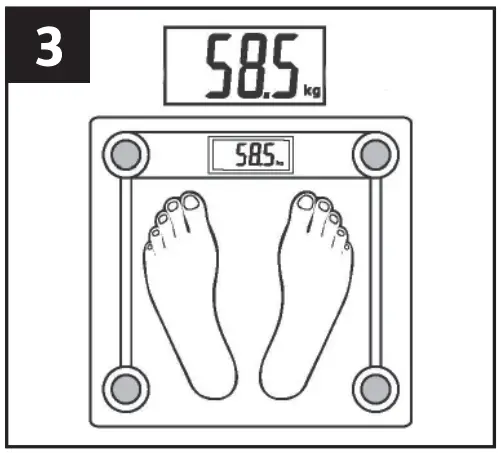

3. Stand still spreading your weight uniformly until the display stabilises.
   FIG. 3



AUTOMATIC POWER-OFF

After stepping off the scales they switch off automatically. They also switch off if the measured weight does not change within about 8 seconds.
FIG. 4

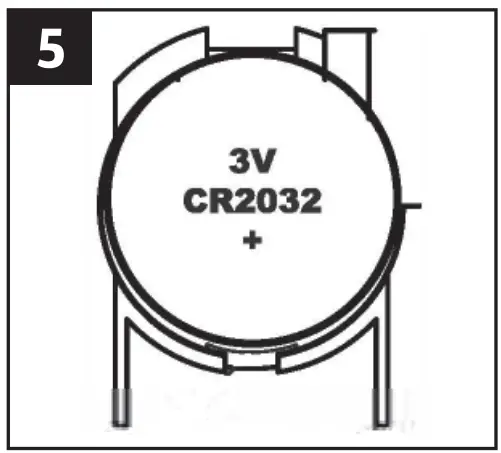

REPLACING THE BATTERY

1. Remove the battery cover and lift off.
2. Press the battery to spring it up.
3. Put the positive terminal of the new battery under the positive symbol and press the battery in place. Double-check that the battery is inserted with the correct polarity.
   FIG. 5


MAINTENANCE

• Clean the bathroom scales with a damp cloth. Make sure that no water gets into the scales.
  Do not use strong or abrasive detergents.
• Store the bathroom scales in a dry and cool place.
• When putting the bathroom scales away keep them flat.

TROUBLESHOOTING

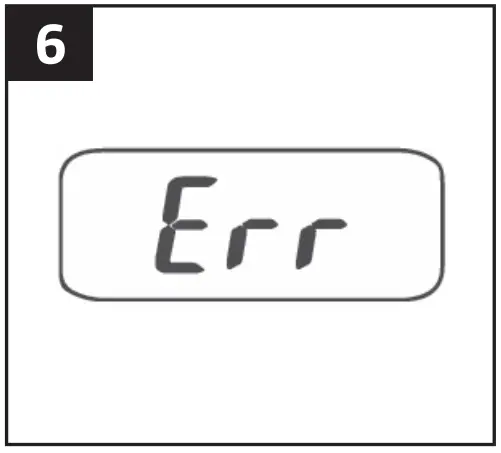

OVERLOAD READING

Overload (max permissible weight shown on the display).
FIG. 6
Step off to avoid damaging the scales.

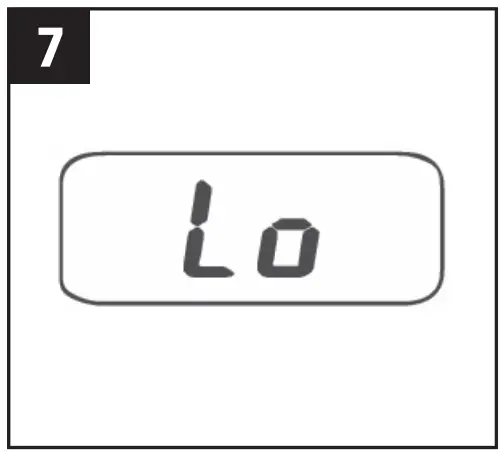

BATTERY INDICATOR

Discharged battery. Put in a new battery.
FIG. 7

REPEAT WEIGHING

C is shown after stepping off if there was an error during the weighing. Repeat the weighing.
FIG. 8
