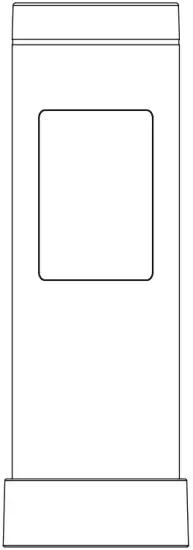

ColorMeter Pro
Operation Instruction

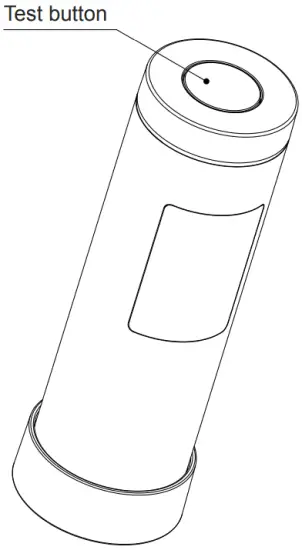

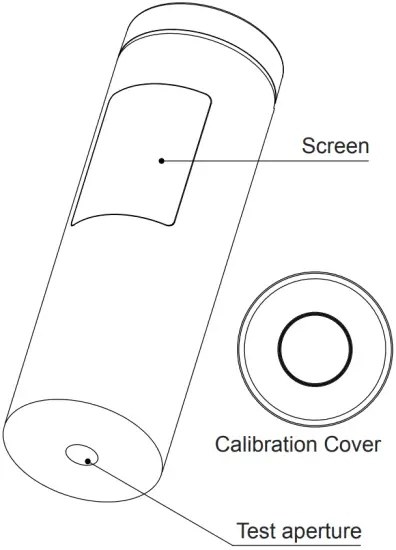

Product introduction
Please read this manual carefully before using the product.
Quick guide
1.Scan QR code to get mobile App

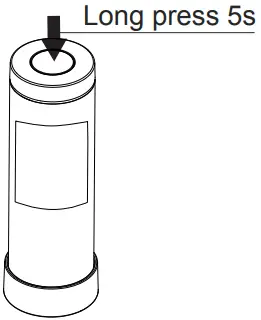

2.Power on and measure
or

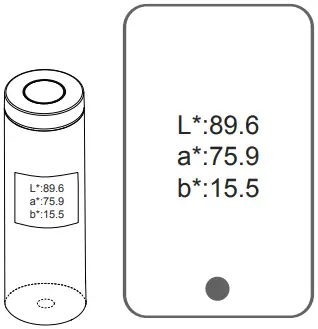

Power on APP Measurement
3.How to measure color difference

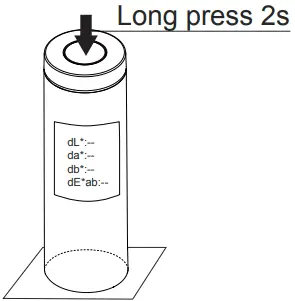

Measurement standard Transfer to test the sample
Measure the sample to get the color difference
4.Power off
Parameters
| Product name: | Colorimeter |
| Geometry and Angle: | D/8-SCI |
| Calibration: | Automatic |
| Color Value: | Spectral Reflectance |
| Light source: | LED(Full Scale Visible Wavlength Range) |
| Lighting condition: | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6 F7,F8,F9,F10,F11,F12,CWF,U30,DLF,NBF,TL83,TL84,U35 |
| Angle of field: | 2°,10° |
| Lighting source: | LED(Full Scale Visible Wavlength Range) |
| Repeatability: | dE*ab≤0.1 |
| Aperture: | 8mm |
| Wavelength Interval: | 10mm |
| Wavelength Range: | 400-700nm |
| Measurement Time: | ＜1sec |
| Battery: | 10,000 continuous test per-charge |
| Screen: | ColorLCD,135*240,1.14inch |
| Interface: | Bluetooth and USB |
*Parameters are subject to change without notice
Warranty instructions
Reminder
It is recommend that keep the packing box for at least 30 days as the packing box is required to ensure the safety of transportation.
Non warranty regulations
- Unauthorized repair, misuse,accident, modification, use of non-official accessories.
- Instrument is out of warranty.
- Damage caused by force.
- Not the performance failure listed in the product performance failure table.
- Performance failure caused by human factors.
| Contact Manufacturer: | Hangzhou CHNSpec Technology Co.,Ltd |
| Address: | No.166, Wenyuan North Road, Jianggan District Hangzhou, China |
| Tel: | +86 571 85888707 |
| Website: | www.chnspec.com |
Warning
- Do not attempt to disassemble or replace any part of the equipment.Please contact the agent or official customer service for after sales service.
- Do not place the equipment near heat source or directly expose to the fire.
- If any liquid enters the equipment,please power off the equipment immediately.
- This product contains small parts.It may cause suffocation and other hazards,if swallowed by children.
Product performance failure table
Name | Performance failure |
| ColorMeter Pro |
|
Thank you for purchasing ColorMeter Pro Qualified Tested
FCC STATEMENT :
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
