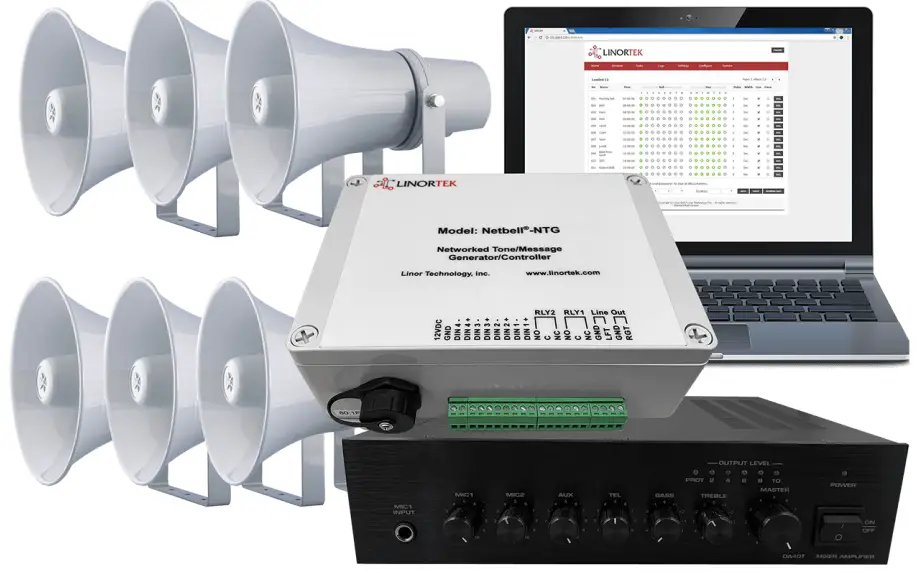

LINORTEK NETBELL-NTG-H20 Extra Loud Multi Function Horn Speaker System User Guide
Features
- Up to 500 web-based event scheduler, no software to install, no monthly fees
- Maintains fully functionality when the internet goes down
- Built-in 40 standard tones with the capacity of adding pre-recorded voice message over 10 hours
- Paging capable by adding a microphone or connecting to your phone system
- Mixer amplifier that can add any audio source for background music
- And More…
A network enabled, affordable, reliable and easy-todeploy industrial paging system provides centralized way to deliver live or pre-recorded voice messages, emergency alerts, public address and guidelines for schools, factories, warehouses and other industrial facilities for daily communications. Tones, messages or announcements can be live, scheduled, or condition-triggered throughout the day with Linortek multifunction Netbell industrial PA system.
Advantages & Applications
- Cost Effective
Hardware & software for installation and operation are included, no 3rd party server and no monthly fees. - Easy-to-Deploy
Constant voltage audio system, all loud speakers are wired in parallel across the amplifier output, simplify the installation and troubleshooting. - Easy-to-Expand
Add or remove speakers from the system does not change the signal/volume level of the other speakers, you can add more speakers as needed as long as added speakers do not overload the amplifier. - Break Time Alerts
Schedule pre-recorded tone/message for break time or regular announcements. - Automated Reminders
Deliver friendly automated reminders either using the scheduling function, or connecting a sensor to trigger the pre-recorded messages. - Emergency Notifications
Issue live or prerecorded messages to deliver warnings and guide people to safety with up-to-the-minute evacuation information. - Background Music
Connect a music source or your favorite radio station to the system, you can prioritize content so that live voice messages or scheduled events always take priority.
Technical Specifications
| Netbell-NTG PA System Tone Generator Controller | |
| Web Server | Built- In (All software located on built-in web server.) |
| Bell Scheduler | Up to 500 Web-Based Event Schedules (Add schedules from web browser) |
| Tone Duration | User Programmable for Each Schedule |
| Built-In Tones | 40 Standard Tones |
| Custom Recorded Messages | Yes (Up to 10 Hours) |
| Relay Output(s) | 2 (Connect physical bells) |
| Digital Inputs | 4 (Use for digital sensors or push switch to trigger special events) |
| Audio Output | 1 Stereo Line Output |
| File Storage Size | 1G |
| Speaker | |
| Mounting Type | Wall mounted waterproof horn speaker (Aluminum housing) |
| Power Handling | 20 Watts RMS |
| Frequency Range | 400 Hz – 5 KHz |
| Power Taps | 70 Volt transformer tapping @ 20/10/5 |
| Maximum SPL | 104dB@10′, 96dB@25′ |
| Nominal impedance | 8 ohms |
| Amplifier | |
| Power Source | 110 VAC, 60 Hz |
| Speaker line input | 70V, 100V, 4 -16 ohm |
| S/N | Better than 90 dB |
| Mounting | 2U Rack Mount |
