DS-PDEB2-EG2-WE
Wireless Emergency Button
Quick Start Guide
EN 50131-1:2006+A1: 2009+A2:2017
EN 50131-3:2009
EN 50131-5-3:2017
Security Grade SG 2
Environmental Class EC II
Certified by Telefication
telefication

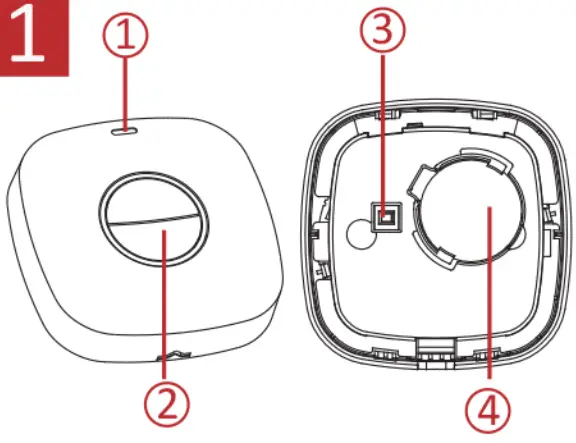

- APPEARANCE
1. Indicator
2. Button
3. Tamper Button

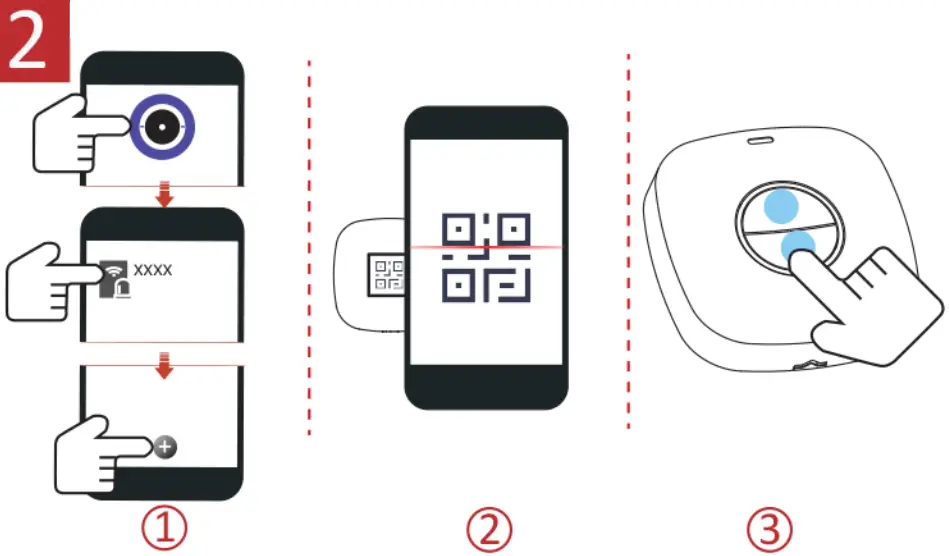

4. Battery - ENROLLMENT

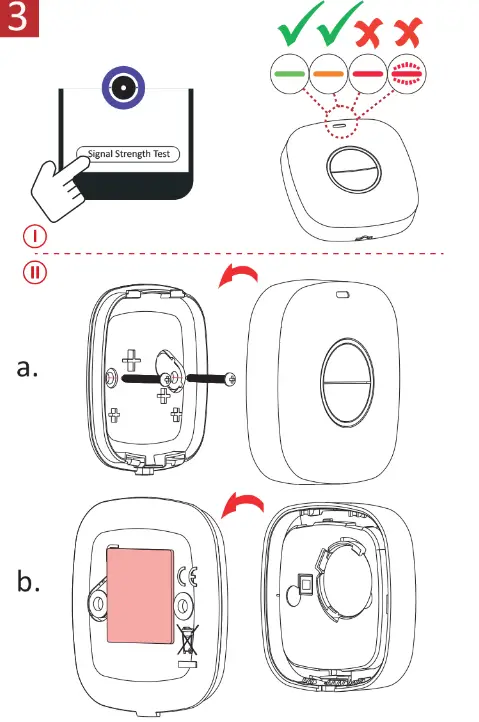

- INSTALLATION
1. Check signal strength.
2. Align the groove to install the detector.
a. with screw b. with sponge tape

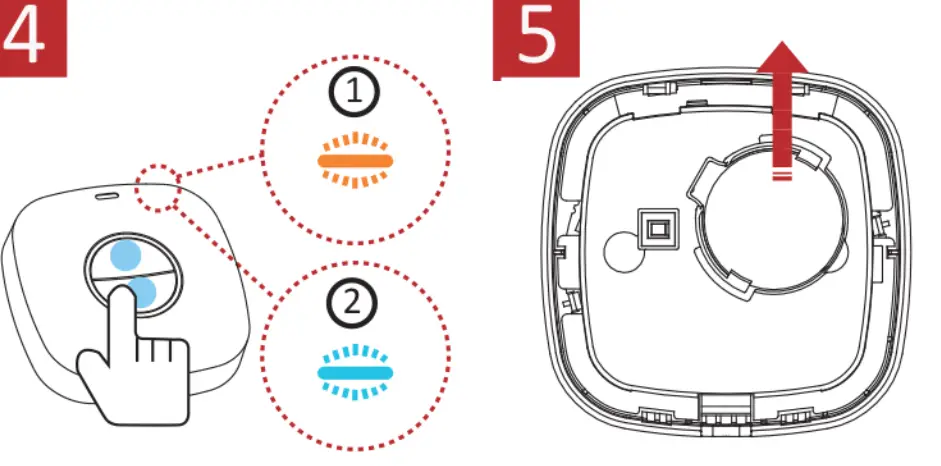

Note: Non-EN compliant after Installation with Sponge Tape. - TEST
1. Button Activated
2. Alarm Received - REPLACE BATTERY
User Manual
Scan the QR code for more information and operation help
Specification
| LED indicator | Blue (alarm) |
| LED alarm confirmation | Flashing LED |
| Tamper protection | Front & Back |
| Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) -10 °C to 40 °C (14 °F to 104 °F) Certified |
| Storage temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operating humidity | 10% to 90% |
| Dimension (W x H x D) | 63.8mm x 63.8mm x 17.9mm |
| Weight | 45.5g |
| Transmission frequency | 868MHz |
| RF range | 1.2Km (open area) |
| Battery | CR2450 x 1 (included) 620mAh capacity |
| Standard battery life | 5 years |
| PS type | Type C |
| Low voltage level | 2.60 V |
| Consumption | Quiescent Current: 23.02uA Max: 36.89mA |
| Classification | Use inside the supervised premises |
