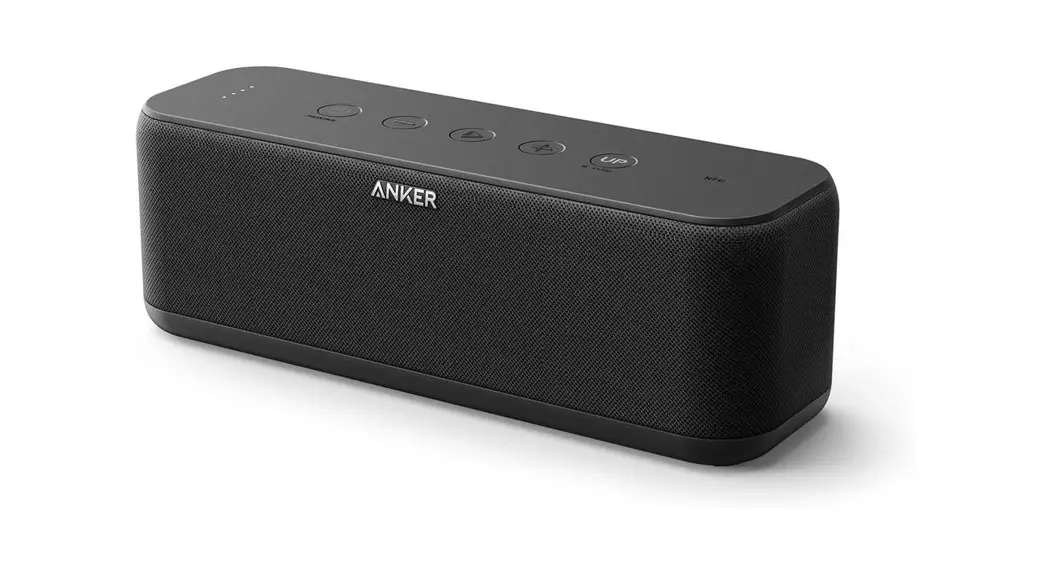

Anker Soundcore Boost A3145 User Manual

Soundcore Boost
USER MANUAL

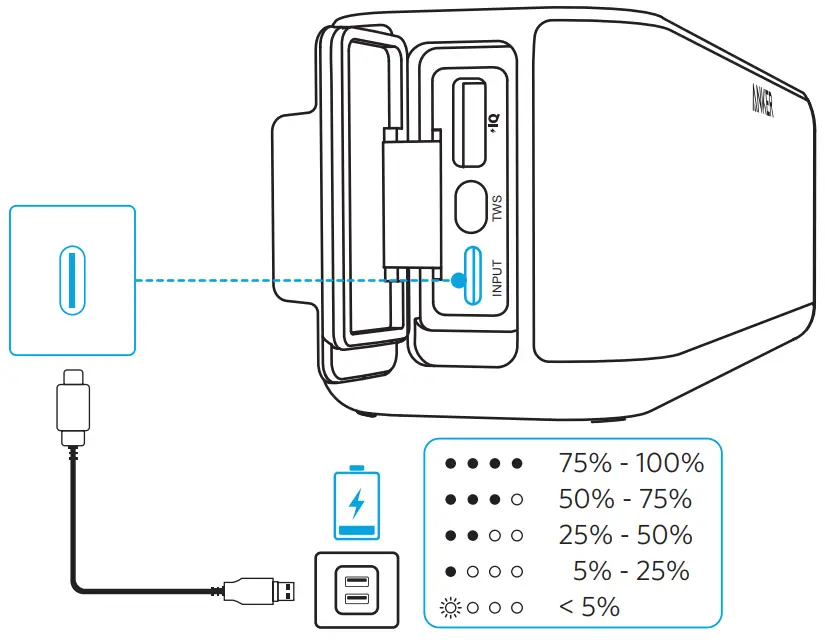

Charging your Soundcore Boost

• To preserve battery lifespan, fully charge at least once every 45 days.
• To prevent damage, use the provided USB-C cable.

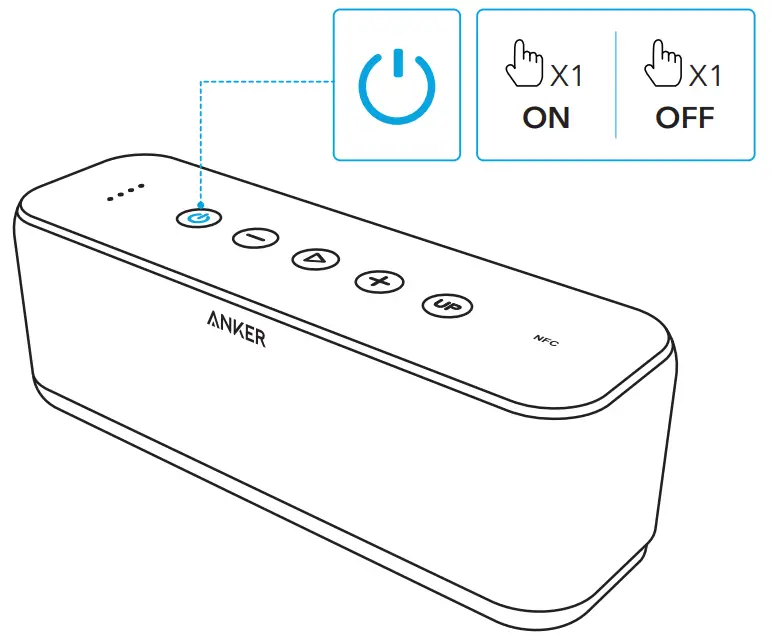

Powering On/Off

Press the power button to power on or off.

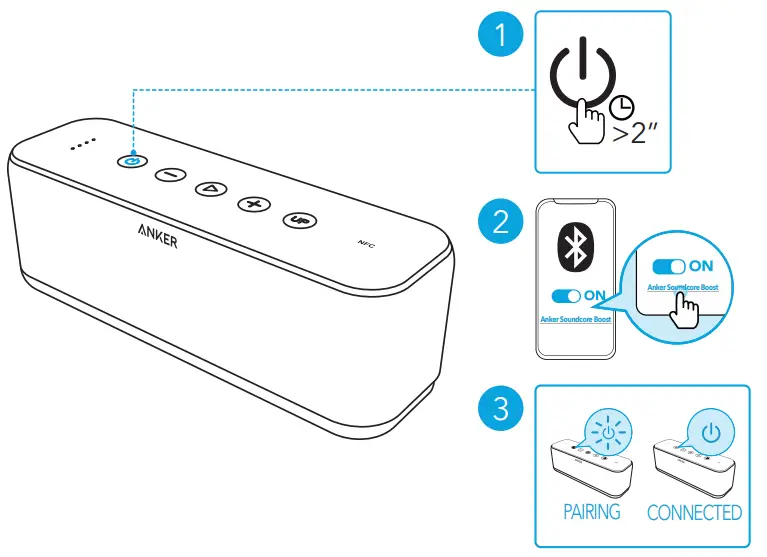

Bluetooth Pairing

	Rapidly flashing blue	Bluetooth pairing
	Steady blue	Bluetooth connected

• Press and hold the power button for more than 4 seconds to disconnect the currently connected device and re-enter the pairing mode. • When powered on, your Soundcore speaker will automatically connect to the last successfully connected device if available. • The Soundcore speaker will automatically power off 10 minutes after Bluetooth is disconnected.

Button Controls

Play / Pause		Press
Next track		Press twice
Previous track		Press thrice
Volume up / down		Press
BassUp		Press

Answer / End a call		Press
Put the current call on hold and answer a new incoming call		Press
Transfer a call between the speaker and mobile phone		Press and hold for 2 seconds
Reject a call		Press and hold for 2 seconds
Activate Siri or other voice assistant softwar		Press and hold for 2 seconds

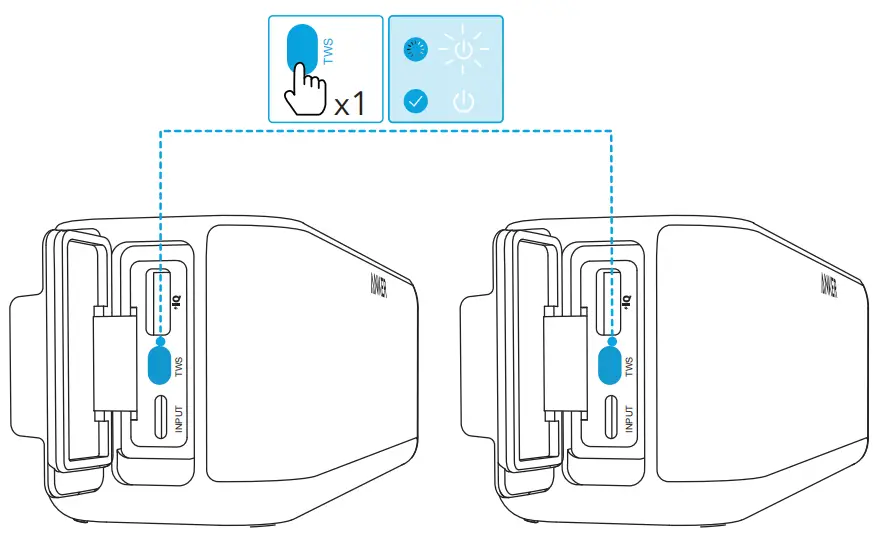

TWS (True Wireless Stereo) Mode
Two identical Soundcore speakers (A3145) can pair with each other for stereo sound.

1. On both Soundcore speakers, press the TWS button to enter TWS pairing mode.
2. In TWS mode, connect either speaker with your Bluetooth-enabled device. The two speakers can play music on the left channel and right channel.

	Rapidly flashing white	TWS pairing
	Steady white	TWS connected

• To break the connection, tap your NFC device again onto the NFC detection area of your Soundcore speaker.

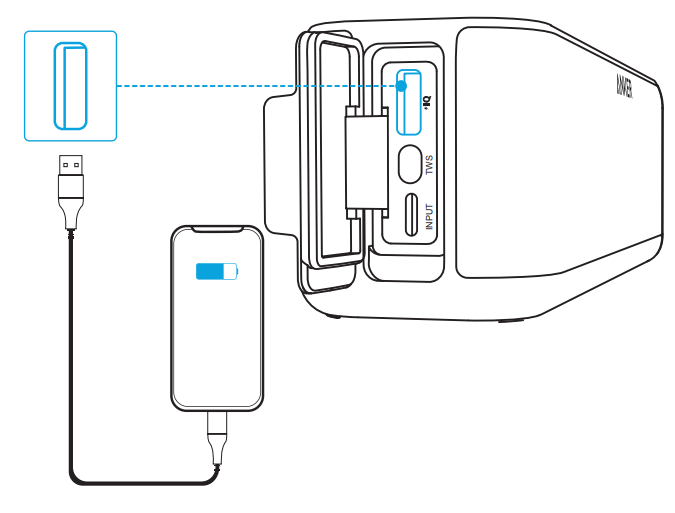

Charging USB Devices

This Soundcore speaker can charge your USB devices with its built-in battery.

APP

Download the Soundcore App for an enhanced product experience.

Specifications

Specifications are subject to change without notice.

Input (USB Type-C)	5 V 2 A
Output (USB Type-A)	5 V 1 A
Audio output	10 W × 2
Driver size	1.75” x 2
Frequency response	20 Hz – 20 kHz
Impedance	4Ω
Battery capacity	5200mAh
Charging time	4-6hours
Playtime (varies by volume level and content)	12hours
Waterproof level	IXP7
Bluetooth version	V5.0
Bluetooth range	20m/66ft
