QUICKSTART GUIDE
Printed in Korea
GH68-52968A
GH68-52968A
What’s in the box
- Earbuds (L/R)
- Charging case
- Ear tips (S/M/L)
- USB cable (Plug sold separately)
- Quick Start Guide
Your device

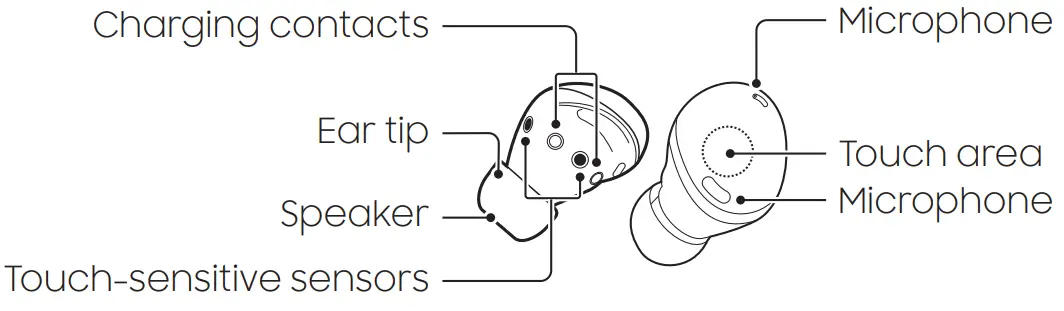

Earbuds

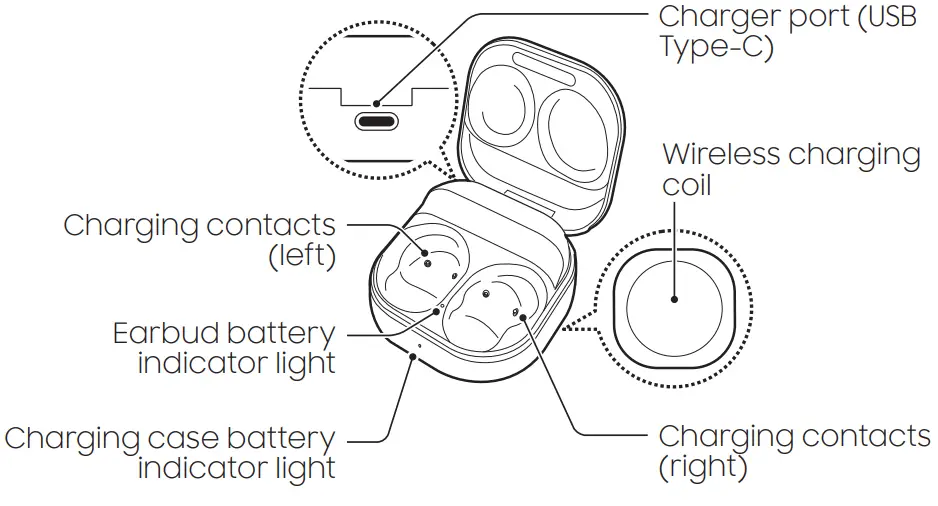

Charging case
Charge your device
1. Insert the buds into the charging case.
2. Close the charging case and connect the USB cable.
3. The earbuds and the charging case are charged simultaneously
You can also charge the earbuds and charging case simultaneously using a wireless charger.
Use only Samsung-approved charging devices and accessories. Using other accessories may void your warranty and may cause damage.
Charging case indicators
Green Battery fully charged or above 60%
Yellow Battery between 30% and 60%
Red Charging or battery below 30%
Flashing Red Charging disabled or error due to abnormal temperatures or battery below 10%
Download
Galaxy Wearable app
To connect your earbuds and smartphone, install the Galaxy Wearable app.
Download the app to a compatible smartphone from the Galaxy Store, or Playstore. Use the app to view the connection status and various setting options.
Connect
Connect to your Samsung device
Open the charging case to enter Bluetooth pairing mode.
Note: Press the left and right touchpads at the same time to manually enter Bluetooth pairing mode.
A pop-up window displays on your mobile device > tap Connect and follow the prompts.
You can download the Galaxy Wearable app only on mobile devices running Android operating system 7.0 (API 24), or later, and with 1.5 GB of RAM or more.

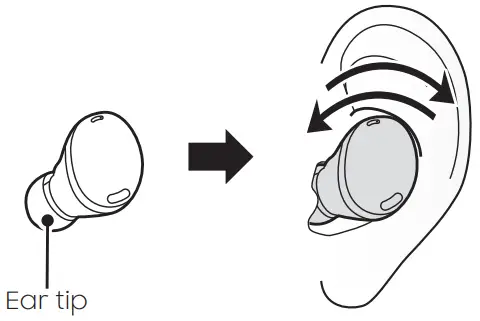

Wearing your device
Wearing your deviceCheck the direction of each earbud and point the ear tips in the direction of the lower part of your ear.
Gestures
| Single Tap Music | Play/Pause |
| Double Tap Music | Next song |
| Calls | Answer/End a call Switch between calls |
| Triple Tap Music | Previous song |
| Touch & Hold Digital assistant | Launch Bixby or Google |
| Music | Launch supported music apps |
| Calls | Reject a call |
| Noise controls | Launch Active noise canceling or Ambient sound or turn them off |
| Volume | Adjust volume |
Samsung Electronics America, Inc.
85 Challenger Road
Ridgefield Park, New Jersey 07660
Phone: 1-800-SAMSUNG (726-7864)
Internet: www.samsung.com
©2021 Samsung Electronics America, Inc.
Samsung, Samsung Galaxy, Samsung Health, and Galaxy Wearable are all trademarks of Samsung Electronics Co., Ltd.
Other marks are the property of their respective owners.
Screen images are simulated. The appearance of the device may vary.
