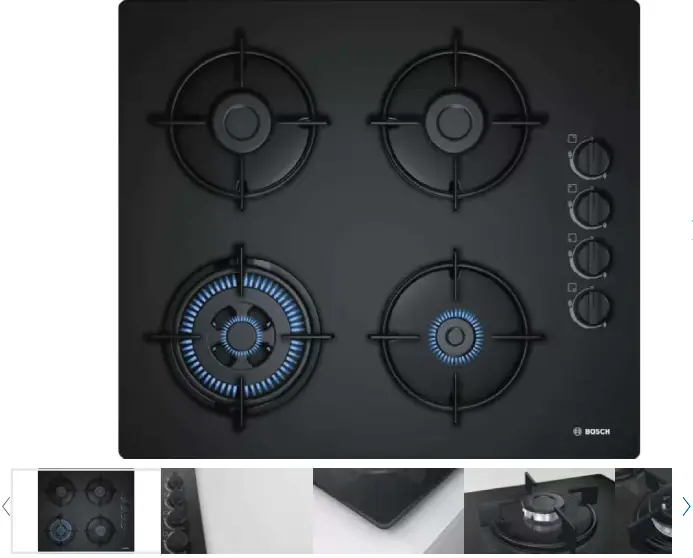

POH6B6B10I 60cm Tempered Glass Gas Hob
Instruction Manual
POH6B6B10I 60cm Tempered Glass Gas Hob
Add to product compare
The gas hob with side-mounted controls: the desired cooking zones can be conveniently operated from the side.
Technical Specifications
- 4 gas burners
- Side control dials; Sword control knobs
- wok burner at front left side : 3.3 kW
- standard burner at rear left side : 1. 7 kW
- economy burner maximum power: 1000 W
- standard burnermaximum power: 1700 W
- Single handed ignition via control knobs
- Flame failure safety device
- Steel single Square cornered pan supports
- Connecting cable: 100 cm
- Preset for liquid gas, (28- 30/37 mbar)
More Info
+ General
| Energy input | Gas |
| Type of control setting and signalling devices | sword knobs |
| Safety device | Flame failure safety device |
| Features | Wok burner |
| Energy efficiency of hob | 56.30% |
| Color of frame | Black |
| Color of surface | Black |
| Built-in / Free-standing | Built-in |
| Number of electric plates | 0 |
| Number of electric cooking zones | 0 |
| Type of frame | Flush w surrounding surfaces |
| Number of gas burners | 4 |
| Number of halogen plates | 0 |
| Installation type | Built-in into the cabinet |
| Total number of positions that can be used at the same time | 4 |
| Number of radiant plates | 0 |
| Number of electric warming zones | 0 |
+ Size and weight
| Dimensions | 45 x 590 x 520 mm |
+ Cooking zone 1
| Location of heating element | front left |
| Type of heating element | Gas |
+ Cooking zone 2
| Location of 2nd heating element | center left |
+ Cooking zone 3
| Location of 3rd heating element | back left |
| Type of 3rd heating element | Gas |
+ Cooking zone 4
| Location of 4th heating element | middle back |
+ Cooking zone 5
| Location of 5th heating element | back right |
| Type of 5th heating element | Gas |
+ Cooking zone 6
| Location of 6th heating element | center right |
+ Cooking zone 7
| Location of 7th heating element | front right |
| Type of 7th heating element | Gas |
+ Cooking zone 8
| Location of 8th heating element | front middle/central |
+ Cooking zone 9
| Location of 9th heating element | front centre/cent |
+ Safety
| Type of safety device for gas | Electromagnetic for each burner |
| Power on indicator | No |
| Residual heat indicator | without |
| Safety device | Flame failure safety device |
+ Connection
| Length electrical supply cord | 100 cm |
| Energy input | Gas |
| Frequency | 50; 60 Hz |
| Gas connection | rear, right |
| Gas connection rating | 7,700W |
Additional documents
Interactive User Manual
Besides the interactive usage instructions you will find useful tips and tricks for your appliance.
Instruction for Use
Manual
Here you can download the manual for your home appliance. For some products, a digital user manual with additional animations and videos is available.Instruction for Use
Download Product Information
Technical details and information about all the comfort, efficiency, performance and security features, refer to the product characteristics.product Spec Sheet
No documents available
Download Disassembly and Dismantling Manual
Information for professionals about disassembly and dismantling according EU ecodesign regulation ((EU) No 666/2013. (EU) No 66/2014 and (EU) No 814/2013)

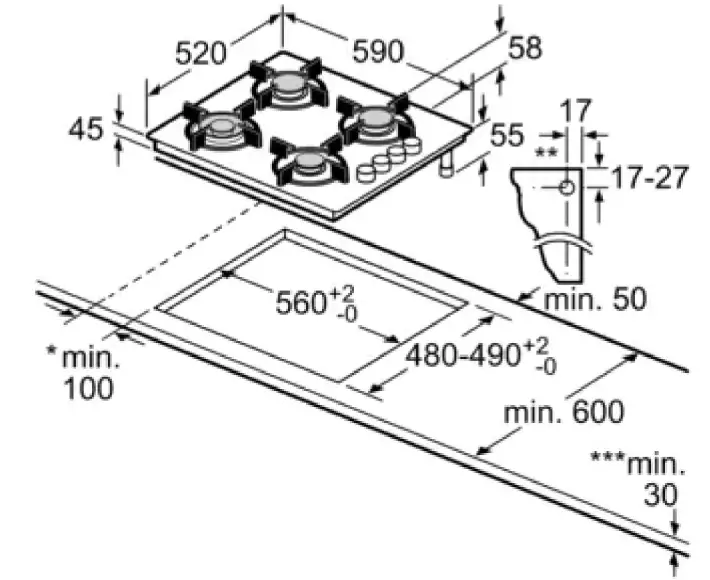

Dimensional Drawings
Measurements in mm
* Minimum distance from the hob cul-out to the wall
** Position of gas connection in the cut-out
*** With fitted oven underneath, possibly more; see space requirements for the oven
