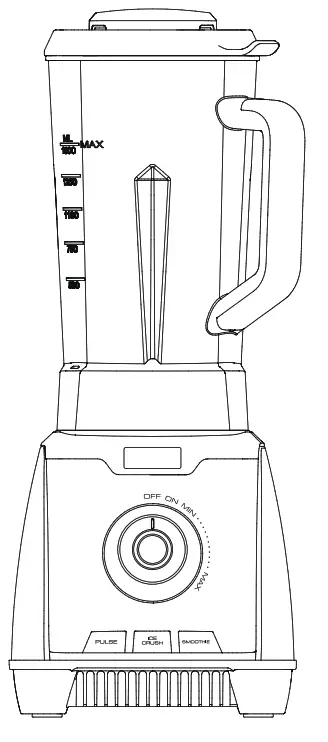

1200-Watt Multi-Speed Countertop Blender, 1.5 liters
BO7VSNXSSN, BO7ZJX7LPN

Contents hide

1 IMPORTANT SAFETY INSTRUCTIONS

2 Product Description

3 Operation

4 Cleaning and Maintenance

10 Documents / Resources

11 Related Posts

IMPORTANT SAFETY INSTRUCTIONS

Read these instructions carefully and retain
© them for future use. If this product is passed to a third party, then these instructions must be included.
When using electrical appliances, basic safety precautions should always be followed to reduce the tisk of fire, electric shock, and/or injury to persons including the following:
WARNING Potential injury from misuse. Please handle it with care.

Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
Children shall not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.
This symbol identifies that the materials provided are safe for food contact and comply with European Regulation (EC) No 1935/2004.

Intended Use

This product is intended for blending food and crushing ice cubes. The Product is not intended to knead dough, mash potatoes or to mix dry foads.
Never fill the product with ingredients hotter than 80 °C.
This product is intended for household use only. It is not intended for commercial use.
This product is intended to be used in dry indoor areas only.
No liability will be accepted for damages resulting from improper use of non-compliance with thase instructions.

Before First Use

Check the product for transport damages.
Remove all the pactang materials.
Clean the jug {C), lid (8) and lid cap/measuring cup (A) before first use.
Before connecting the product to the power supply, check that the power supply voltage and current rating corresponds with the power supply details shown cn the product rating label.
DANGER Risk of suffocation! Keep any packaging materials away from children – these materials are a potential source of danger, e.9. Suffocation.

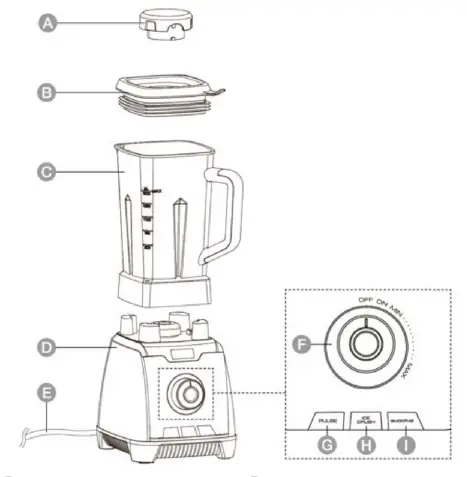

Product Description

A Lid cap/measuring cup
B Lid
C Jug
D Motor unit
E supply cora
F Control knob
G PULSE button
H ICE CRUSH button
I SMOOTHIE button

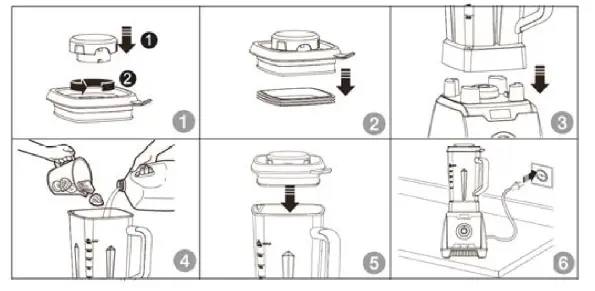

Operation

Place the motor unit (1)) on a stable and level surface. Place the jug (C) on the motor unit (0). Switching on/off

Connect the supply cord (E) to a suitable socket outlet.
To svotch on, set the control knob (F) to ON (standby mode).
To start. press the desired ‘unction button or turn the control knob (F) to select the blending speed.

Button	Function	Duration
PULSE	1.To pulverize / finely chop food. 2.To chop and dice food at short controlled bursts, press and release repeatedly.	max. 3 min.
ICE CRUSH	To crush ice cubes. Press once to start/stop.	40-46 sec.
SMOOTHIE	To blend smoothies. Press once to start/stop.	max. 2 min.
Control knob	Function	Duration
	1.Switch on/off. 2.Manually choose the blending speed, MIN to MAX.	max. 3 rm.

NOTICE | Turning the control knob during the ICE CRUSH and SMOOTHIE function overwrites the function’s speed setting. Turn the control knob (F) to OFF to stop operation.
Blending Operation

Tips
CAUITION Risk of injury! Never operate the product without the lid cap (A) and lid (B) in place. Do not add ingredients during operation.

Always add liquid ingredients first before adding solid pieces.
Cut food into cubes or slices no bigger than 2 cm.
Use the measurement labels on the side of the jug (C) and the lid cap/measuning (A) to measure amounts of ingredients.
Remove large pits from fruits before adding such ingredients.
The jug (C) can hold up to 1500 mi of liquid food.

If the product stops or ingredients stick to the sides of the jug (C):

Switch the product off and unplug it.
Let the product come to a complete stop.
Remove the lid (B) and use a wooder/plastic spatula (not provided) to push food towards the centre.

Overload protection

To protect the motor from overheating, the oroduct automatically switches off, when
– it is overloaded.
– the operating time is more than 3 minutes.
Incase of overheating, switch off, unplug from power supply and leave the product to cool for at least 30 minutes.

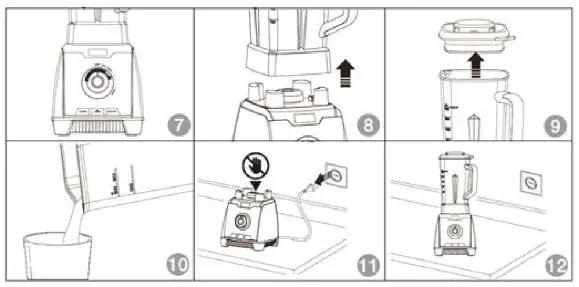

Cleaning and Maintenance

WARNING Risk of electric shock! To prevent electric shock, unplug the product before cleaning.
WARNING Risk of electric shock! During cleaning do not immerse the electrical parts of the product in water or other liquids.
Never hold the product under running water.

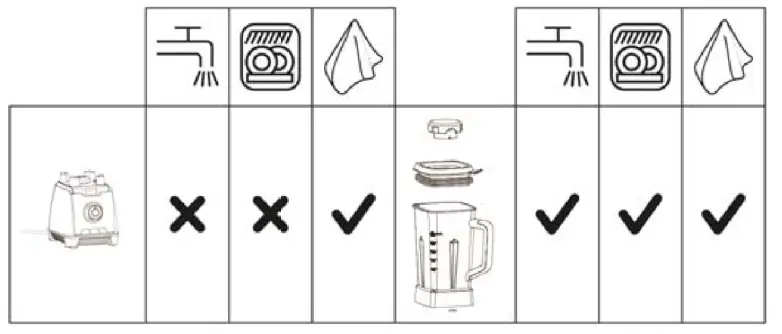

Cleaning
CAUTION Risk of cuts! Biades are sharp. Use caution when cleaning.
NOTICE For hygienic reasons, clean the product and its accessories immediately after use.

Wipe the product with a soft, slightly moist cloth.
Dry the product after cleaning.
Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp utensils to clean the product.

Storage

Store the product in its original packaging in a dry area. Keep away from children and pets.
Plug fuse replacement (for UK onty)
Use a flat screwdriver to open the fuse compartment cover.
Remove the fuse and replace with the same type (10 A, BS1362).
Refit the cover.

Maintenance

Any other servicing than mentioned in this manual should be performed by a professional repair centre.

Troubleshooting

Problem	Solution
The product does not switch on.	• Check if the power plug is connected to the power supply. Check if the power supply works. • Check if the jug (C) is correctly placed on the motor unit (D).
The blades are rotating very slowly.	• Turn the control knob to the OFF position. Check if there is too much food in the jug / motor is overloaded. Remove some food, shake the jug to redistribute the ingredients. • Check if there is enough liquid in the jug. Add some liquid. • Restart operation.
Food not fully blended.	• Turn the control knob to the OFF position. Check if the ingredients are too large. Remove ingredients and cut them into smaller pieces. • Check if there is too much food in the jug. Remove some food, shake the jug to redistribute the ingredients. • Restart operation.

Disposal

The Waste Electrical and Electronic Equipment (WEEE) Directive ‘et aims to minimise the impact of electrical and electronic goods am on the environment, by increasing re-use and recycling and by reducing the amount of WEEE going to lancfill. The symbol on this product or its packaging signifies that this product must be disposed separately from ordinary household wastes at its end of life. Be aware that this is your responsibility to dispose of electronic equipment at recycling centers in order to conserve natural resources. Each country should have its collection centers for electrical and electronic equipment recycling. For information about your recycling drop off area, please contact your related electrical and electronic equipment waste management authority, your local city office, or your household waste disposal service.

Specifications

Rated voltage:220-240 V-, 50/60 Hz
Rated power: 1200 W
Jug capacity: 1.5 L
Measuring cup capacity:60 ml
Protection class: I
Net weight: approx. 3.92 kg
Dimensions (W x H x D): approx. 19.6 x 44 x 18 cm
