AC5400 MU-MIMO Tri-Band Gaming Router
Archer C5400X
Quick Installation Guide

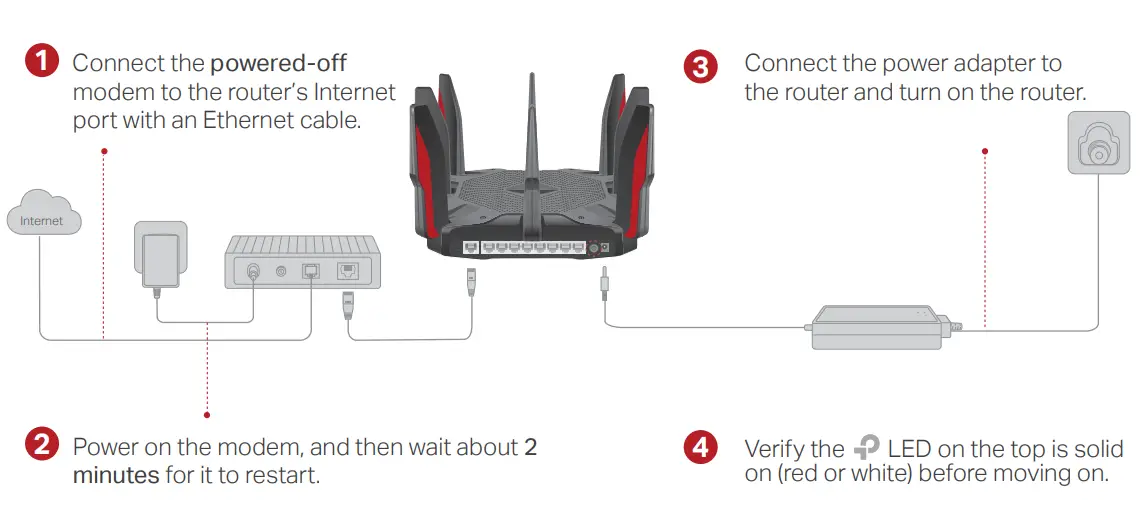

Connect the Hardware

Unplug the power to turn off your modem, if any, and remove the backup battery if it has one.

Hold the antennas from the base and push them fully into the slots.

If your internet connection is through an Ethernet cable directly from the wall instead of through a DSL /Cable / Satellite modem, connect the Ethernet cable to the router’s Internet port, and then follow steps 3 and 4 to complete the hardware connection.
*Image may differ from actual product.

Configure the Router

Method ONE: Via TP-Link Tether App

1. Download the Tether app.
2. Open the Tether app and log in with your TP-Link ID.
   Note: If you don’t have an account, create one first.
3. Tap the button in the Tether app and select Archer C5400X. Follow the steps to complete the setup and connect to the internet.

Method TWO: Via a Web Browser

1.  Connect your device to the router wirelessly or with an Ethernet cable.

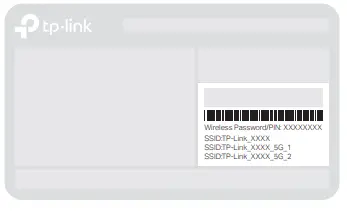

   The default wireless network names (SSIDs) and passwords are printed on the label at the bottom of the router.

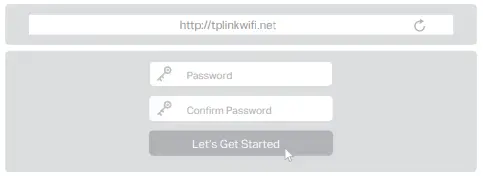

2. Launch a web browser, and enter http://tplinkwifi.net or http://192.168.0.1 in the address bar. Create a password to log in.
   Note: If the login window does not appear, please refer to Q1 of Need Help? in this guide.
3. Follow the step-by-step instructions to set up the internet connection and register for the TP-Link Cloud service.

LED & Button Explanation

Pulsing Orange
The system is starting up.
Solid White
The router is working normally.
Solid Red
No internet connection.
Solid Orange
The router is connected to the internet, but the Wi-Fi is off.
Pulsing White
The firmware is being upgraded, WPS connection is being established or the router is being reset.

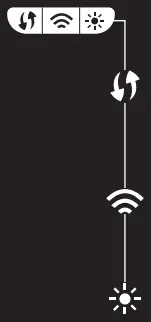

WPS Button
Press the WPS button, and immediately press the WPS button on your client to start the WPS process.
Wi-Fi Button
Press the Wi-Fi button to turn on or off the wireless function of your router.
LED Button
Press the LED button to turn on or off the LED of your router.

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use any other chargers other than those recommended.
• Do not use a damaged charger or USB cable to charge the device.
• Do not use the device where wireless devices are not allowed.
• The adapter shall be installed near the equipment and shall be easily accessible.

©2020 TP-Link 7106508739 REV 1.0.2

Need Help?
Q1. What should I do if I can’t access the web management page?

• Reboot your router and try again.
• If the computer is set to a static IP, change its settings to obtain an IP address automatically.
• Verify that http://tplinkwifi.net is correctly entered in the web
  browser. Alternatively, enter http://192.168.0.1 or http://192.168.1.1 in the web browser.
• Use another web browser and try again.
• Disable and enable the network adapter in use.

Q2. What should I do if I can’t access the internet?

• Reboot your modem and router, then try again. Check if the internet is working normally by connecting a computer directly to the modem via an Ethernet cable. If it is not, contact your internet service provider.
• log in to the web management page of the router, and go to the Basic > Network Map page to check whether the internet IP address is valid or not. If it is, please run the Quick Setup again; otherwise, check the hardware connection.
• For cable modem users, log in to the web management page of the router and go to Advanced > Network > Internet > MAC Clone. Select Use Current Computer MAC Address and click Save. Then reboot both the modem and the router.log into the

Q3. What should I do if the router can’t be found via Bluetooth in Tether (how to reset the router)?
The router’s Bluetooth will be enabled for 30 minutes following a reset to factory defaults. There are two ways to reset the router:

• With the router powered on, use a pin to press and hold the Reset button on the back of the router until the LED blinks.
• Log in to the web management page of the router. Go to Advanced > System > Backup & Restore, and click FACTORY RESTORE. The router will reset and restart automatically.

To communicate with TP-Link users or engineers, visit https://community.tp-link.com to join the TP-Link Community.
For technical support, replacement services, the user guide, and more information, please visit https://www.tp-link.com/support
If you have any suggestions or needs for our product guides, you are welcome to email [email protected].
