6800084 MG4R Ballast Board
Instructions

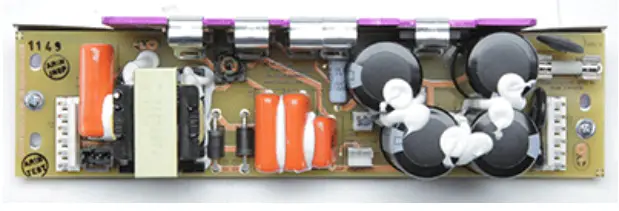

6800084 – MG4R Ballast Board
Click here for MG4R Operation Manual.
Click here for MG4R Electronic Schematics with test points.
Overview
Replace MG series with MG6R (Part #6800229) Ballast Board.
Used in Mega 4Bank & Mega 4Bank DMX series, model #’s BAL-400M/405M/410M/450M/455M;
Mega Double series, model #’s BAL-200M/210M/215M;
Mega Single series, model #’s BAL-100M/105M/115M.
(6800084) – MG4R Ballast Board Out of Warranty – Last date of Mfg July 2014 Manufacturing started July 2011.

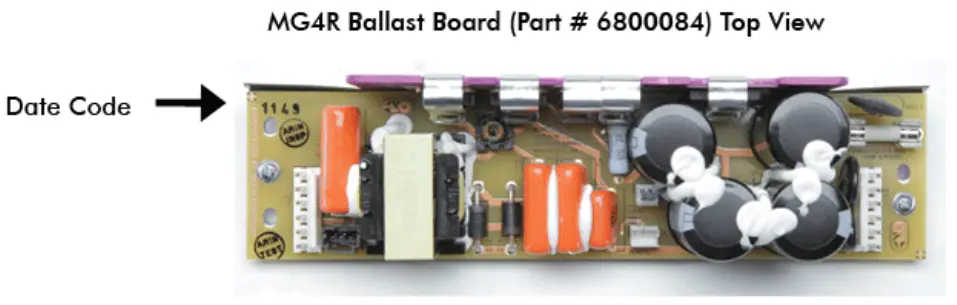

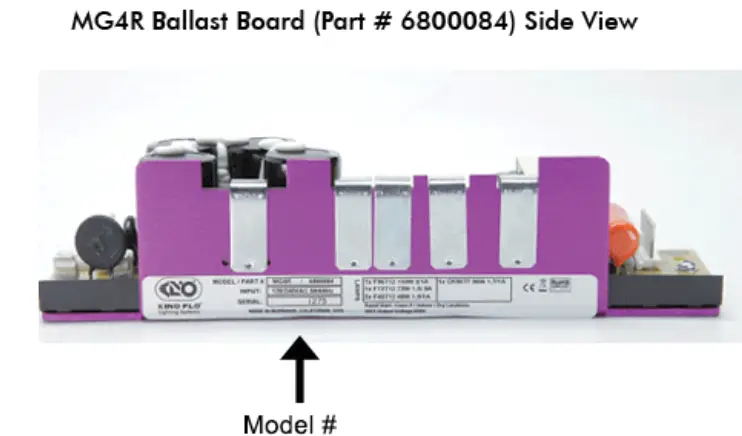

2 Year Warranty – Based on 4 digit date code.
First 2 digits is year of manufacturing, second 2 digits is week of manufacturing.
For example, “1120” was manufactured the 20th week of 2011.
Shorting plug, part #6350014 (included with MG4R) is used on all Non-DMX products.
Remove for all DMX products. See MG4R Operation Manual for more information.
Electrical Components (MG4R)
| Board Location | Kino Flo Part #s | Description | Component Value | UM | Qty/Board |
| BR1 | 1040035 | Bridge Rectifier (GBU) | 8A 1000V PIV | EA | 1 |
| C7, C8, C9,C10 | 1000066 | Cap, Electrolytic 105 C | 390uf 200V | EA | 4 |
| D5 | 1050063 | Diac | 32V | 1 | |
| D2 | 1050007 | Zener Diode – SMT – SOT-23 | BZX84C15 (15V) | EA | 1 |
| D1 | 1050008 | Zener Diode – SMT – SOT-23 | BZX84C18 (18V) | EA | 1 |
| D4, 8, 9, 10 | 1050065 | Diode – SMT – Fast Recovery | HS2MA 1.5A, 1000V | EA | 4 |
| TVS1 – TVS6 | 1050031 | Diode – TVS – SMC3170A | 170V | EA | 6 |
| TVS7 | 1050062 | Diode – TVS – SMB5955 | 180V | EA | 1 |
| F1 | 1300020 | Ceramic Fuse(5x2Omm) | 4A / 250V Slo Blo | EA | 1 |
| MOV2 | 1040029 | Metal Oxide Varistor | 275VAC | EA | 1 |
| MOV1 | 1040026 | Metal Oxide Varistor | 150VAC | EA | 1 |
| Q1 | 1090001 | Transistor – SMT – General Purpose | MMBT3904 | EA | 1 |
| Q2 | 1090002 | Transistor – SMT – General Purpose | MMBT3906 | EA | 1 |
| Q3 | 1080023 | N Channel Mosfet | 20A 600V 190mOhm | EA | 1 |
| Q4, Q5 | 1080026 | Transistor 2SC5354 | – | EA | 2 |
| R4 | 1020041 | RES Metal Oxide | 1 Ohm 3W | EA | 1 |
| R19 | 1020019 | Resistor – Metal Oxide | 82k Ohm 2W 5% | EA | 1 |
| R5 | 1030012 | Resistor – SMT – 1206 | 12k Ohm 5% | EA | 1 |
| R3, 6, 7, 15, 16, 17, 18, 22, 23, 24, 25 | 1030017 | Resistor – SMT – 1206 | 100k Ohm 5% | EA | 11 |
| R2 ‘. 1. | 1030024 | Resistor – SMT – 1206 | 10k Ohm 1% | EA | 1 |
| R1, 26, 27, 28, 29, 30, 31, 32, 33 | 1030043 | Resistor – SMT – 1206 | 220k Ohm 5% | EA | 9 |
| T1 | 1180017 | Kino Transformer TX-51 | – | EA | 1 |
| T2 | 1180007 | Kino Transformer TX-10 | – | EA | 1 |
| J4 | 6350014 | Local Test Jumper | – | EA | 1 |
Hardware-Clip (MG4R)
| Board Location | Kino Flo Part #s | Description | Component Value | UM | Qty/Board |
| Q3,Q4,Q5,BR1,S1 | 5550004 | Snap-On Clip | – | EA | 5 |
Part Number PRT-TC Sold as 50pk
