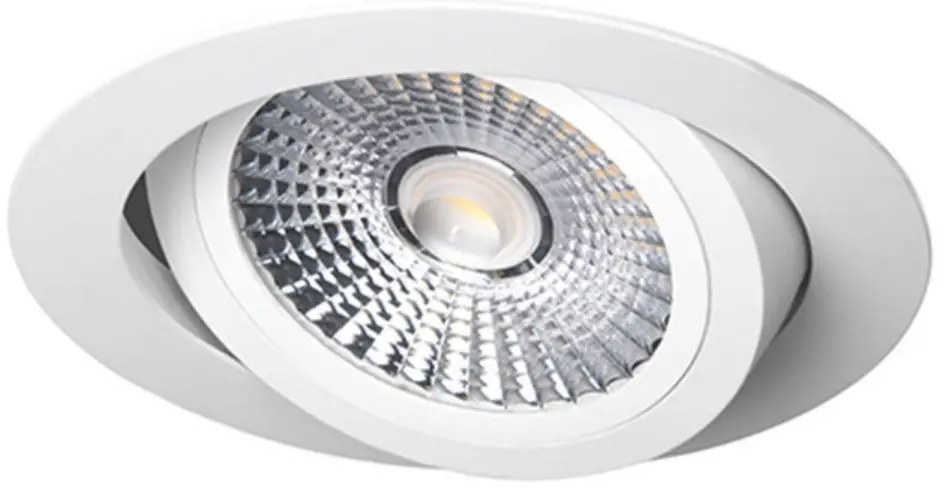

Panlux VP COB Instructions
Instructions
Thank you for choosing this product from PANLUX s.r.o.
Before using or installing the product, please read the instructions and follow the safety rules. Installation should be carried out by a qualified professional or company.
Technical data
Material: Die-cast aluminium
Notes
Before using, check the product and ensure that it is not damaged in any way; if it is, do not use it. Before any installation ensure that the main electrical supply is disconnected. If the product is damaged, do not attempt to repair or disassemble it. The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
INDOOR
Failure to follow these instructions can cause damage to health and property.
The warranty is void if the product is damaged or installed incorrectly.
Extended guarantee after reistration at zaruka.panlux.cz

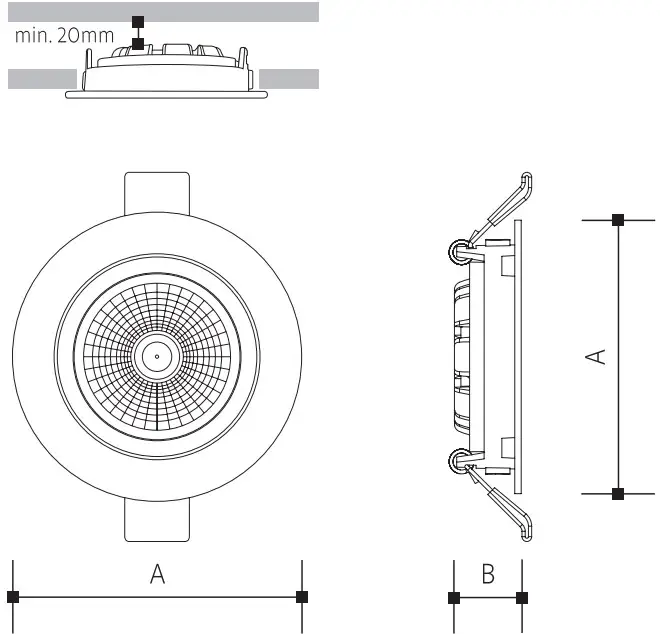

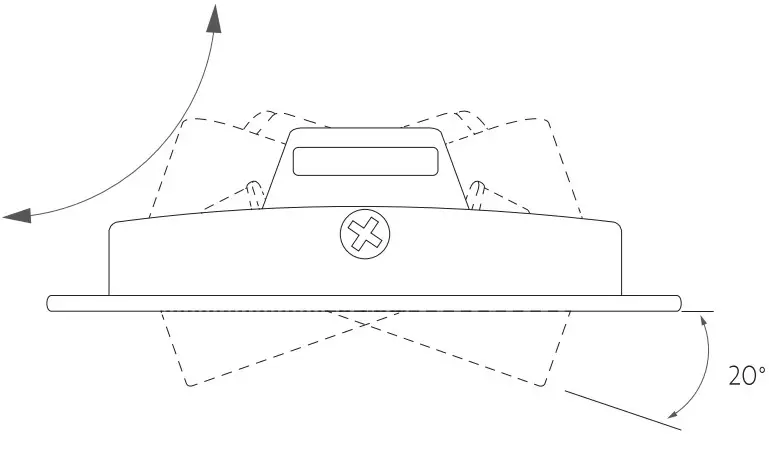

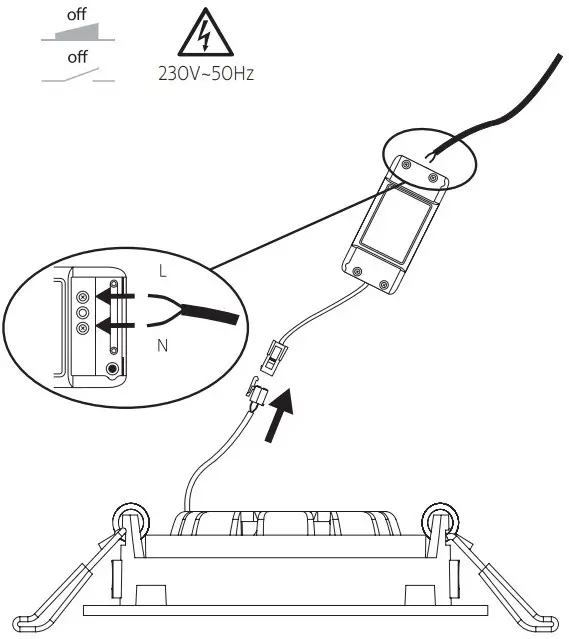

Installation
| Model | W | lm | K | mA |  |  |  |
| PN14100004 | 6 | 420 | 3000 | 350 | Ø85×21 | 85g | 75 |
| PN14300001 | 6 | 480 | 4000 | 350 | Ø85×21 | 85g | 75 |
| PN14100005 | 18 | 1260 | 3000 | 700 | Ø115×33 | 220g | 105 |
| PN14300002 | 18 | 1440 | 4000 | 700 | Ø115×33 | 220g | 105 |
| PN14100050 | 6 | 420 | 3000 | 350 | Ø85×21 | 85g | 75 |
| PN14300046 | 6 | 480 | 4000 | 350 | Ø85×21 | 85g | 75 |
| PN14100051 | 18 | 1260 | 3000 | 700 | Ø115×33 | 220g | 105 |
| PN14300047 | 18 | 1440 | 4000 | 700 | Ø115×33 | 220g | 105 |
