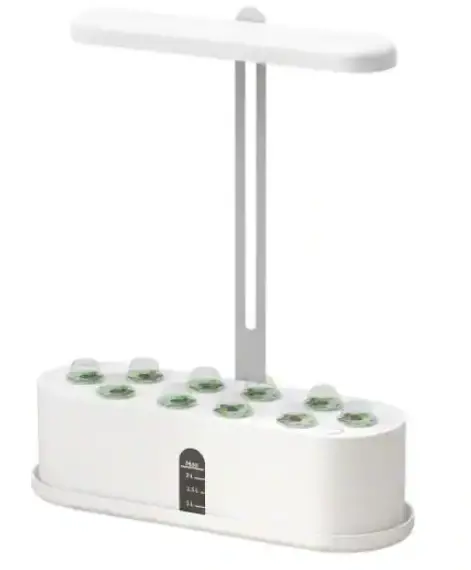

HOME DEPOT TDJW-KF020169-01 Hydroponics Growing System Indoor LED Lighting Herb Garden Germination Kits Automatic Timer

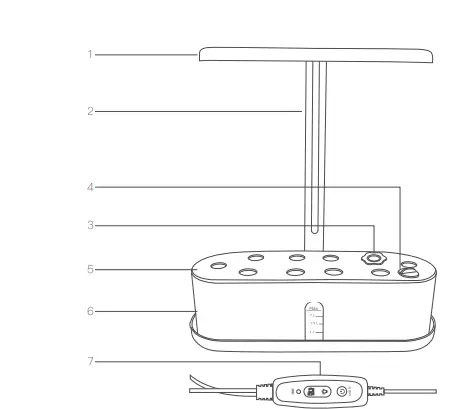

INTRODUCTION
1. LED Light Hood
2. Light Post
3. Grow Basket
4. Planting Hole Caps
5. Grow Deck
6. Bowl
7. Power Cord & Controller
Specifications
| Dimensions | 450*145*14 5mm | |
| Product Weight | 1400g | |
| Adaptor Spec | Input | 110V-240V/50-60Hz |
| Output | 12V/2A | |
| Power | 10W | |
| WaterTank Capacity | 2.5L | |
| Size | 10 Pods | |
| Product Type | Hydroponic | |
| LED Light | Specific Spectrum | |
Working Time
Turn on the LED light by pressing the ON/OFF button on controller after power on. The garden kit has a fixed working time and cannot be changed.
Stop for 8 hours after each 16 hours of continuous operation, then cycle.
The water pump working every 10 minutes during the 16 hours working time.

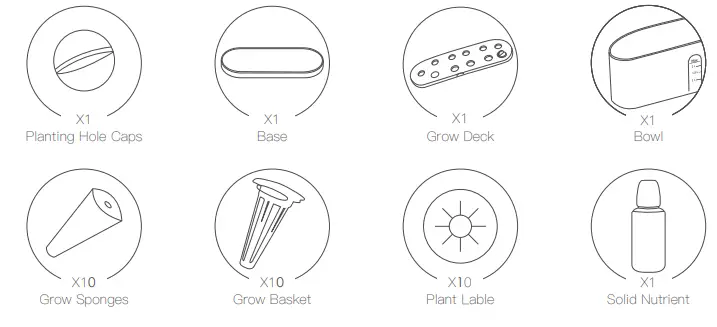

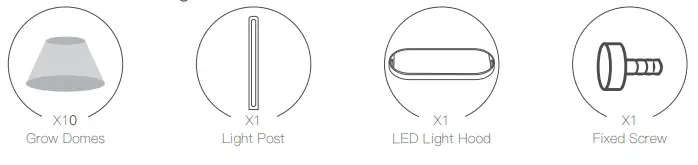

Included in Package

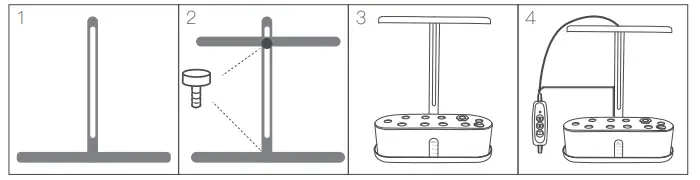

Installation
1. Insert the Light Post into the base
2. Fix the LED Light Hood on the Light Post with screw and adjust the height desired
3. Put the Grow Deck on the Bowl and insert the Grow Basket
4. Plug the power adapter into electrical outlet and connect the led light power cord. Inspect the kit working well by pressing the button on the controller.

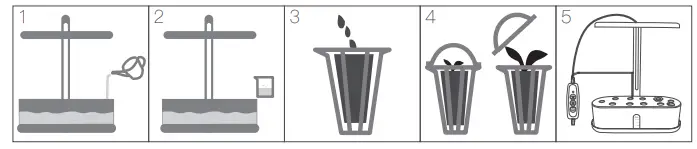

Planting
1. Add cool tap water or distilled water to the Bowl. For best results, keep the water level between 2L lines and MAX lines.
2. Add 2 pieces plant food (solid ) to every 1-liter of water, and the food will dissolve naturally in 2-4 hours
3. Add 3-4 seeds per grow sponges to improve germination rate and choose the strongest one after all seeds sprouting then cut off the rest . Some seeds germinate in 2-7 days. Please be patient.
(SEEDS NOT INCLUDED)
4. Place Grow Domes over each seed pod.
5. Plug power cord into electrical outlet and choose the time mode 16h,then set the LED light Hood to the lowest position.
Do not exceed the MAX water level of the water tank
| Seeds | Amount of Seeds per Plug | Cultivation Cycle | Nutrient Solution | Enviroment Temperature for Planting |
| Mung Bean | one seed | 1-2Days | Add 2 pieces plant food (solid ) to every 1-liter of water during the seeds germnina- tion.Add 3 pieces plant food (solid ) to every 1-liter of water during the Mid-late stages , and the food will dissolve naturally in 2-4 hours | 18℃-30℃ |
| Pea Seeds | one seed | 1-2Days | 18℃-30℃ | |
| Dwarf Red Cherry Tomato Seeds | 2-3seeds | 3-5Days | 18℃-30℃ | |
| Green Bean Seeds | 1-2seeds | 3-5Days | 18℃-30℃ | |
| Everleaf Genovese | 2-3seeds | 4-6Days | 18℃-30℃ | |
| Green Leaf Lettuce | 3-5seeds | 4-7Days | 18℃-30℃ | |
| Mint Seeds | 5-7seeds | 4-7Days | 18℃-30℃ | |
| Sunflower Seeds | 3-5seeds | 4-7Days | 18℃-30℃ | |
| Hot Pepper Seeds | 3-5seeds | 4-7Days | 18℃-30℃ | |
| Rosmarinus Officinalis Seeds | 4-6seeds | 4-7Days | 18℃-30℃ | |
| Dichondra Repens Grass Seeds | 4-6seeds | 4-7Days | 18℃-30℃ | |
| Red Leaf Lettuce | 3-5seeds | 5-7Days | 18℃-30℃ | |
| Gypsophila Seeds | 3-5seeds | 5-7Days | 18℃-30℃ | |
| Spinach Seeds | 3-5seeds | 5-7Days | 18℃-30℃ | |
| Coriandrum sativum L | 4-6seeds | 6-8Days | 18℃-30℃ | |
| Thyme Seeds | 4-6seeds | 6-8Days | 20℃-25℃ | |
| Lemon Basil Seeds | 4-6seeds | 6-8Days | 20℃-25℃ | |
| Myosotls Sylvatica Seeds | 4-6seeds | 6-8Days | 20℃-25℃ | |
| Curly Kale Seeds | 4-6seeds | 6-8Days | 20℃-25℃ | |
| Rosemary Seeds | 2-3seeds | 6-8Days | 20℃-25℃ | |
| Butterhead Lactuca | 4-6seeds | 6-8Days | 20℃-25℃ | |
| Cucumber Seeds | 2-3seeds | 6-8Days | 20℃-25℃ | |
| Mini Watermelon | 2-3seeds | 7-10Days | 20℃-25℃ | |
| Morning Glory Seeds | 4-6seeds | 7-10Days | 20℃-25℃ | |
| Okra Seeds | 3-5seeds | 7-10Days | 20℃-25℃ | |
| Italian Parsley Seeds | 4-6seeds | 10Days+ | 20℃-25℃ | |
| Lavender Seeds | 4-6seeds | 10Days+ | 20℃-25℃ | |
| Okra Seeds | 4-6seeds | 10Days+ | 20℃-25℃ |
The above data shown are for reference only,subject to the actual condition
WARNING
- Unplug garden kit from outlet before putting on or taking off parts.
- Do not allow water to contact hot LED Grow Lights.
- Children should be supervised to ensure they do not play with the appliance.
- Never operate garden kit if it has a damaged cord or plug, if it is not working properly, if it has been dropped and damaged, or if it has been dropped in water. If any of these conditions occur/exist, contact the seller for after-sale service.
