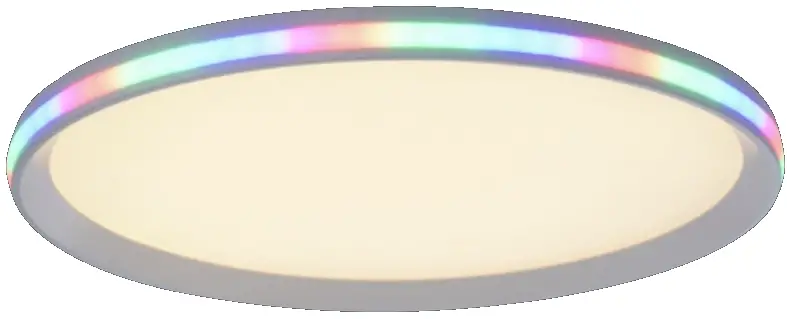

Paul Neuhaus 2022 Ceiling Light
Specifications
This product contains a light source of energy efficiency class <E>.
 | 22W | 6W |
| 2.800 Im | ||
 | 32W | 32W |
| 2.300 Im | 2.300 Im | |
 | 25.000 h | 25.000 h |
 | 2.700 – 5.000 K | RGB |
 | 15.000 X | 15.000 X |
 | < 0,5 s | 15.000 X |
|  | |
Package Content
b 998374 | |
| 230V / 50Hz- | |
| 1x LED-Board 26V DC/22W |
| 1x LED-Board 12V DC/6W |
 | |

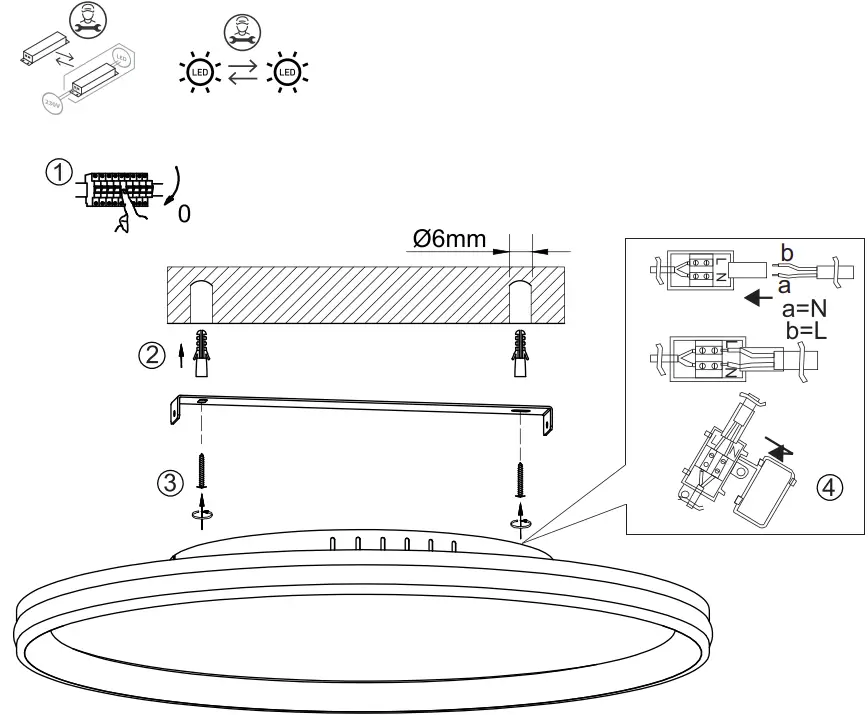

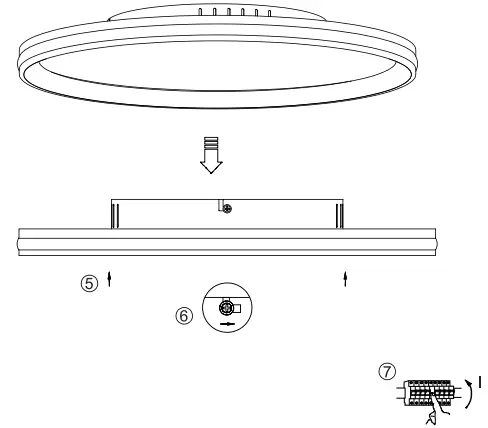

Installation Instructions

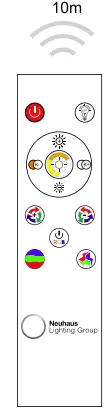

Radio remote control operating instructions
 | short press: switch all off long press: teach the remote control to the light. If the light flickers three times, the light has been taught to the remote control. |
 | short press: CCT function is switched on / off long press: night light function (warm white/ 10% brightness) Turn off the light using the remote control, press the night light button again to switch to night light mode. |
 | Set brightness/ speed: Increase the brightness when only white is switched on. increase the speed of the RGB color modes. |

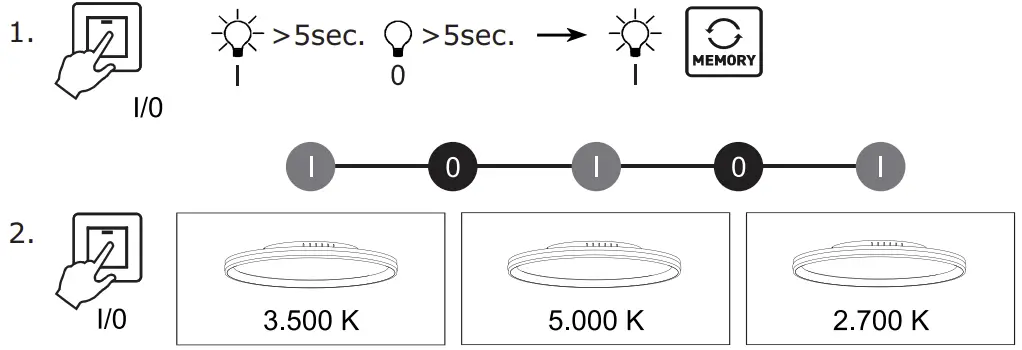

 | CCT Steps: 3500 K – 5000 K – 2700 K |
 | Reduce the color temperature |
 | Increase the color temperature |
 | Set brightness/ speed: Reduce the brightness if only white is switched on. Reduce the speed of the RGB color modes |
 | RGB color mode: switch mode |
 | RGB color mode: switch back mode |
 | Switch RGB on / off |
 | RGB |
 | Start I stop RGB color change |
| Description | Operation Data |

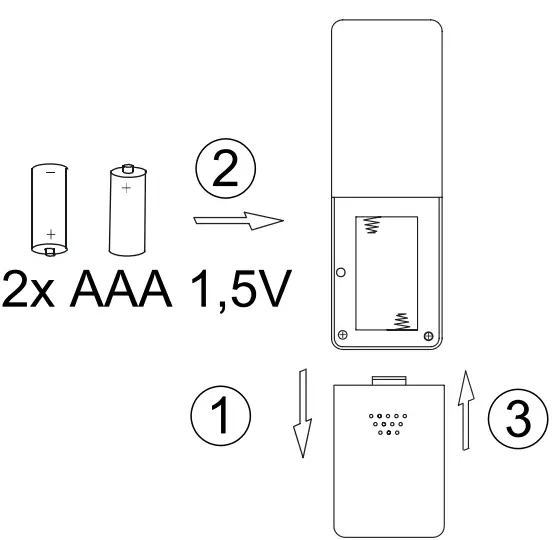

| Battery | 2x 1,5V AAA |
| Transmission frequency | 2,4GHz |
| Transmitting power | max. 0,1dBm |
| No-load current | 5uA |
| Operating current | 300uA |
| Range of the remote control | ≤10m |
