OLED55-65-77B1 4K Smart OLED TV
Dismantling information
The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions for the disassembly of LG products to remove components and materials requiring selective treatment.
Product Identification
Type of Product | OLED TV |
Model name | OLED## B1 Series, OLED## C1 Series, OLED## A1 Series This document covers derivation model OLE55/65/77B1###, OLED48/55/65/77C1###, OLED48/55/65/77A1### which has same conceptual design and dismantling process |
Displays must be stored in accordance with the requirements stipulated in Appendix VIII (1) or (2) of Directive 2012/19/EU and must, amongst other things, be stored in a weatherproof manner. Containers with covers must be used when storing and transporting the Displays.
Materials and components for Selective Treatment
Displays may contain hazardous substances like Pb and BFRs which are covered by exemptions under the RoHS directive. However, the majority is present in the PCB assembly. In order to reduce emissions as much as possible, a complete disposal of the old appliance is required. This treatment may only be performed in authorized handling plants.
| Materials and components | Notes | Included |
| Printed Circuit Boards (PCB) or Printed Circuit Assemblies(PCA) | With a surface greater than 10 square cm |  (main, power.T-con. IR. Wi (i) |
| Batteries | For Remote control | |
| Internal coin batteries | – | |
| Mercury containing components | display backlights | – |
| Liquid Crystal Displays (LCD) with a surface greater than 100 square cm (or OLED module for OLED TV) | illuminated minated display backgrounds with gas discharge lamps | |
| Capacitors / condensers (Containing PCB / PCT) | – | |
| Electrolytic Capacitors / Condensers measuring greater than 2.5 cm in diameter or height | ||
| External electric cables cords | Power cord | |
| Gas Discharge Lamps | – | |
| Plastics containing Brominated Flame Retardants | – | |
| Components and waste containing asbestos | – | |
| Components, parts and materials containing refractory ceramic fibers | – | |
| Components, parts and materials containing radioactive substances | – |
Tools Required
List the type that would typically be used to disassemble the product to a point where components and materials requiring selective treatment can be removed.
| Tool Description | Tool information |

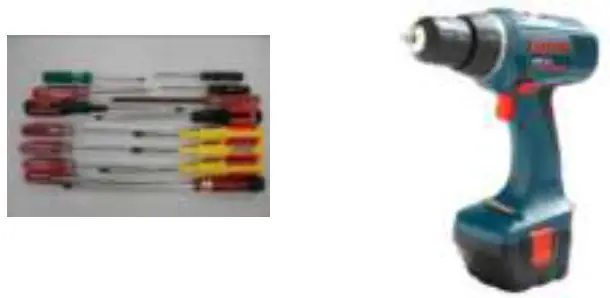

| Screw driver | |

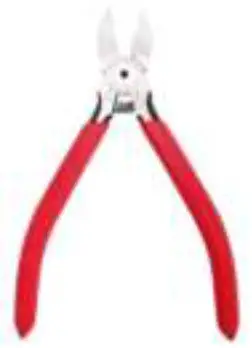

| Nipper |
Product Dismantling Process
- Batteries

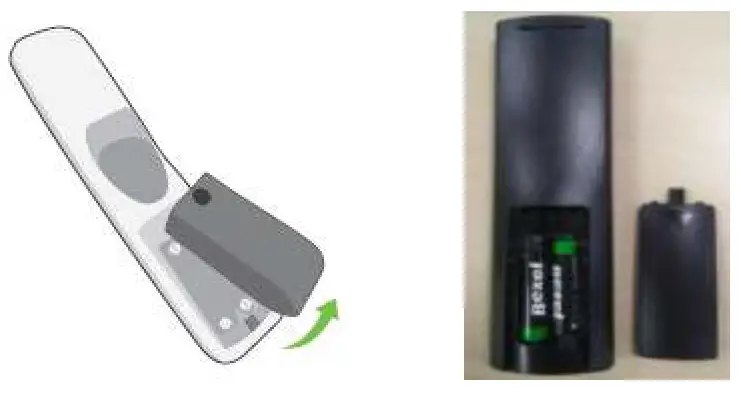

Batteries can easily be removed from the remote control once the back cover of the remote control has been removed.

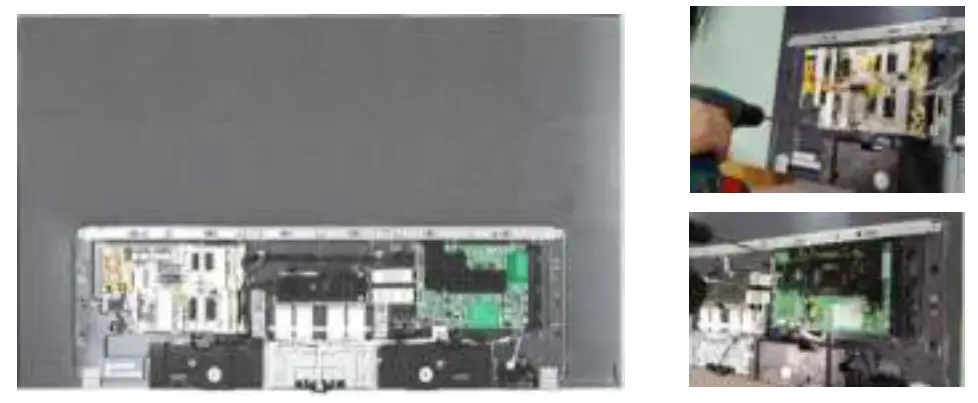

- PCBs and LCD/OLED Module

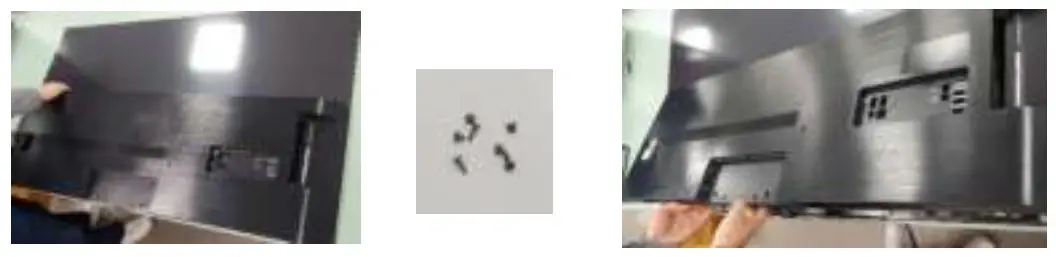

The back cover of the display can easily be removed by hand and screw driver.

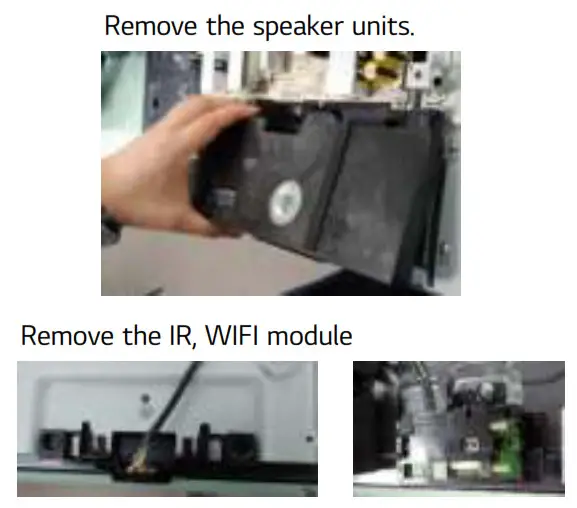

Once removed, this will expose the accessible electronic units (PCBs) which can now be easily removed with hand and screw driver.

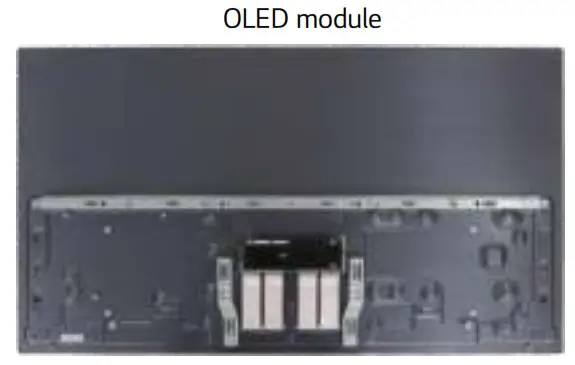

Module (together with their casing) is only left after all other parts like electronic units have been removed.
- Power cord

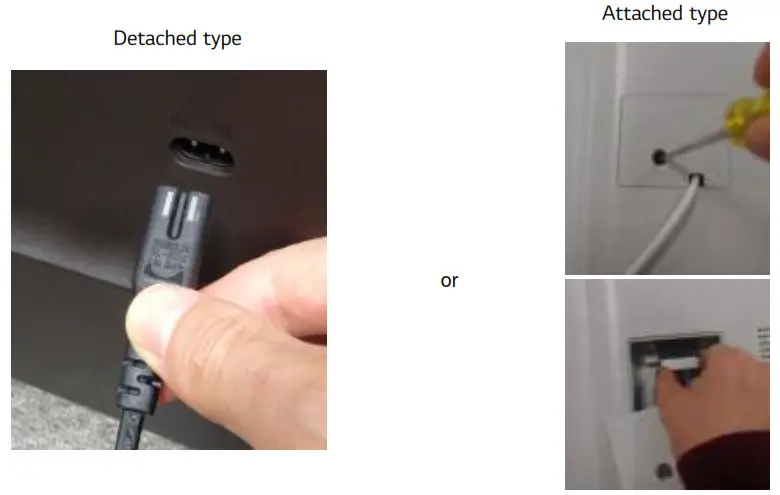

A Power cord plugged into the back of the display can easily be removed by hand and screw driver
- Capacitors > 25 mm

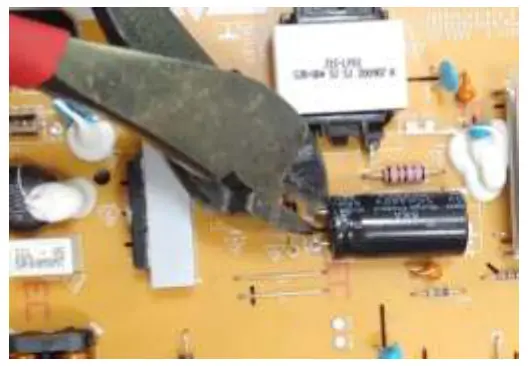

Capacitors > 25 mm are located in the power supply units and can be removed bynipper
Once removed, this will expose the accessible electronic units (PCBs) which can now be easily removed with hand and screw driver.
Module (together with their casing) is only left after all other parts like electronic units have been removed.
