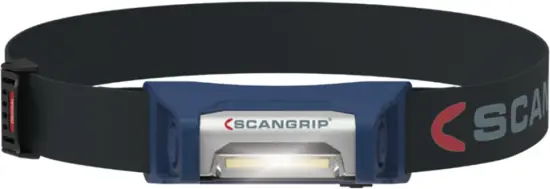

I-VIEW

03.5626

Stepless dimmer
10-100%

3 years warranty*

* go to scangrip.com to register

COB LED 175 lm/W 40-400 lumen

100-1000 lux @0.5m 120°/ 60° 3.8V/1600 mAh Li-ion

1.5-15h 3.5h -10° to +40° C

IK07 1m IP65

100x38x50 mm 100g

Included USB cable
Charging input
5V DC 1A

WARNING / CHARGING INSTRUCTION / BATTERY TIPS

Avoid looking directly into the beam of light, as this will result in dazzling
Do not use the lamp near a naked flame
Recharge frequently
Do not leave the battery without charge for an extended period – Deep discharge risks damaging the battery
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced

USE

To turn the I-VIEW On or Off, press the power button.

CHARGING

The I-VIEW has 4 battery status LEDs.
When the I-VIEW is charging, the LEDs will light red in the following pattern

25% charged 50% charged 75% charged 100% charged

When the I-VIEW is off. Press and hold the power button for 2 seconds to read the remaining battery capacity.
When the battery has less than 25 %, the last LED will flash.

100% remaining 75% remaining 50% remaining

25% remaining <25% remaining

When the charger is connected the I-VIEW will turn off.
If the I-VIEW is turned on while charging, the charging will stop. Charging will resume when the I-VIEW is turned off.

DIMMER FUNCTION

When the I-VIEW is on, press and hold the power button to decrease/increase the brightness of the light.
The light will flash when the minimum/maximum brightness is reached.
The I-VIEW will remember the brightness level when turned off.

IR SENSOR

To activate the Infrared on/off sensor, press the “Wireless” button.
The green LEDS will turn on when the sensor is activated.

To turn the I-VIEW on/off with the IR Sensor, wave a hand in front of the I-VIEW.

TEMPERATURE PROTECTION:

The I-VIEW has a battery temperature monitor.
In case of overtemperature the brightness will be lowered or turned off until a safe battery temperature is reached.
Charging will be suspended in case of over temperature.
All 4 LEDs will flash 5 times if the I-VIEW is turned off because of temperature.

Discarded electrical products must not be disposed of together with household waste. Please use recycling facilities. Ask your local authority or retailer for advice on recycling.
– The battery must be removed from the device before it is broken up
– The device must be disconnected from the mains when the battery is removed
– Please dispose of the battery safely

MANUFACTURER’S WARRANTY - Information for customers in Australia and New Zealand only

This SCANGRIP product is guaranteed for a period of 2 (two) years from date of purchase. This guarantee shall become invalid if the product has been misused, tampered with or accidentally damaged.
If the product is defective, we undertake to repair or replace the product or any part of it that is defective; or wholly or partly recompense you if they are defective.

This guarantee is in addition to other rights and remedies available to consumers, all of which are given by us to you if you are a consumer. Our goods come with guarantees that cannot be excluded under the Australian or New Zealand Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

If you wish to make claim, please return this product to the original place of purchase together with your purchase receipt or go to our website www.scangrip.com and fill out the claim form.
