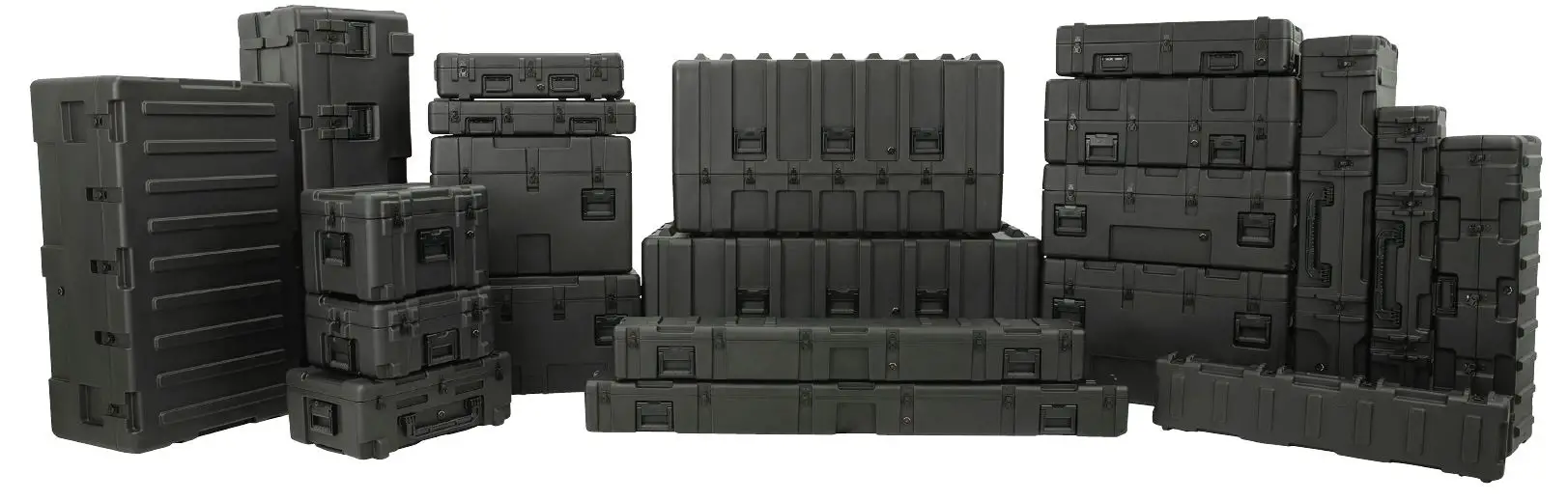

SKB R Series 3025-15 Waterproof Utility Case
SKB R Series 3025-15 Waterproof Utility Case
SUPERIOR PROTECTION
SKB R Series cases are built with superior rotationally molded strength and ergonomic design, and feature an impenetrable, yet lightweight LLDPE shell for maximum impact resistance to withstand levels of punishment in excess of all ATA and military shipping specifications MIL-STD-810.
FEATURES/BENEFITS
- UV, solvent, corrosion, and fungus resistant
- Complete gasket seal provides waterproof and dust-tight construction (MIL-STD-810)
- Automatic ambient pressure equalization valve (MIL-STD-648C & IP67)
- Powder coated stainless steel hardware helps prevent rusting
- Comfortable, spring-loaded, rubber over-molded handles
Cases described below are in-stock items offered in black. Check skbcases.com for our complete lineup of case styles, sizes, customization options, and more to suit every project need.
| 3R1209-26B | 12” x 9” x 26.75” (30.48 x 22.86 x 67.95 cm) | 2.75” (6.99 cm) | 24” (60.96 cm) | X | |||||
| 3R1919-14B | 19” x 19” x 14.63” (48.26 x 48.26 x 37.16 cm) | 3.25” (8.26 cm) | 11.38” (28.9 cm) | X | X | ||||
| 3R2016-17B | 20.5” x 16.46” x 17.73” (52.07 x 41.81 x 45.03 cm) | 2.63” (6.68 cm) | 15” (38.1 cm) | ||||||
| 3R2216-15B | 22.12” x 16.12” x 15.29” (56.18 x 40.94 x 38.84 cm) | 3.25” (8.26 cm) | 12.04” (30.58 cm) | ||||||
| 3R2217-10B | 22” x 17” x 10.5” (55.88 x 43.18 x 26.67 cm) | 3.13” (7.95 cm) | 7.37” (18.72 cm) | X | X | ||||
| 3R2222-12B | 22” x 22” x 12.13” (55.88 x 55.88 x 30.81 cm) | 3.13” (7.95 cm) | 9” (22.86 cm) | X | X | ||||
| 3R2222-20B | 22” x 22” x 20.07” (55.88 x 55.88 x 50.98 cm) | 3.57” (9.07 cm) | 16.5” (41.91 cm) | X | X | X | |||
| 3R2423-17B | 24” x 23” x 17.23” (60.96 x 58.42 x 43.76 cm) | 3.75” (9.53 cm) | 13.48” (34.24 cm) | X | X | ||||
| 3R2424-24B | 24.19” x 24.19” x 23.88” (61.44 x 61.44 x 60.66 cm) | 3.38” (8.59 cm) | 20.5” (52.07 cm) | X | X | X | |||
| 3R2523-26B | 25.75” x 23.25” x 26.5” (65.41 x 59.01 x 67.31 cm) | 3” (7.62 cm) | 23.5” (59.69 cm) | ||||||
| 3R2621-10B | 26.38” x 21.38” x 10” (67 x 54.31 x 25.4 cm) | 1.95” (4.95 cm) | 8.05” (20.45 cm) | X | |||||
| 3R2727-13B | 27.25” x 27.25” x 13” (69.22 x 29.22 x 33.02 cm) | 3” (7.62 cm) | 10” (25.4 cm) | X | |||||
| 3R2727-18B | 27” x 27” x 18” (68.58 x 68.58 x 45.72 cm) | 3.63” (9.22 cm) | 14.37” (36.5 cm) | X | X | X | |||
| 3R2727-27B | 27” x 27” x 27” (68.58 x 68.58 x 68.58 cm) | 3.63” (9.22 cm) | 23.37” (59.36 cm) | X | X | X | |||
| 3R2817-10B | 29” x 17.75” x 10.75” (73.66 x 45.09 x 27.31 cm) | 2.12” (5.38 cm) | 8.63” (21.92 cm) | X | X | ||||
| 3R3025-15B | 30.24” x 25.24” x 15.25” (76.81 x 64.11 x 38.74 cm) | 3.88” (9.86 cm) | 11.37” (28.88 cm) | X | X | ||||
| 3R3214-15B | 32” x 14.5” x 16.3” (81.28 x 36.83 x 41.4 cm) | 3.64” (9.25 cm) | 12.66” (32.16 cm) | X | X | ||||
| 3R3221-7B | 32” x 21” x 7” (81.28 x 53.34 x 17.78 cm) | 2.2” (5.59 cm) | 4.8” (12.19 cm) | X | X | ||||
| 3R3426-19B | 34.25” x 26.25” x 19” (87 x 66.68 x 48.26 cm) | 2.75” (6.99 cm) | 16.25” (41.28 cm) | X | |||||
| 3R3517-14B | 35.5” x 17” x 14.5” (90.17 x 43.18 x 36.83 cm) | 3” (7.62 cm) | 11.5” (29.21 cm) | X |

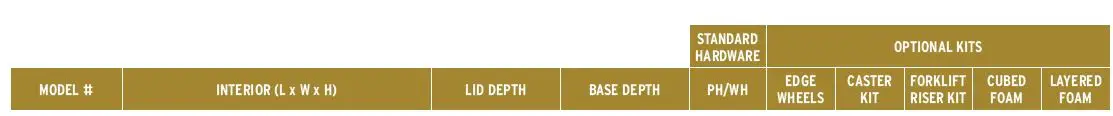

R SERIES SIZE CHART
| 3R3620-24B | 36.25” x 20.63” x 24.02” (92.08 x 52.4 x 61.01 cm) | 3.88” (9.86 cm) | 20” (50.8 cm) | X | X | ||||
| 3R3633-9B | 36” x 33” x 9” (91.44 x 83.82 x 22.86 cm) | 3” (7.62 cm) | 6” (15.24 cm) | X | |||||
| 3R3722-20B | 37.5” x 22.25” x 20” (95.25 x 56.52 x 50.8 cm) | 2.62” (6.65 cm) | 17.38” (44.15 cm) | X | X | ||||
| 3R3821-7B | 38.5” x 21.25” x 7.05” (97.79 x 53.98 x 17.91 cm) | 2.15” (5.46 cm) | 4.9” (12.45 cm) | X | X | X | X | ||
| 3R3834-23B | 38.87” x 34.75” x 22.97” (98.73 x 88.26 x 58.34 cm) | 4.81” (12.21 cm) | 18.06” (45.87 cm) | X | |||||
| 3R4024-18B | 40.13” x 24” x 18.38” (101.93 x 60.96 x 46.69 cm) | 3.88” (9.86 cm) | 14.5” (36.83 cm) | X | X | X | X | ||
| 3R4024-24B | 40.12” x 24.12” x 24.13” (101.9 x 61.26 x 61.29 cm) | 3.88” (9.86 cm) | 20.25” (51.44 cm) | X | X | X | X | ||
| 3R4035-5B | 39.7” x 35.6” x 5.25” (100.84 x 90.42 x 13.34 cm) | 2.3” (5.84 cm) | 2.95” (7.49 cm) | ||||||
| 3R4222-14B | 42” x 22” x 14.9” (106.68 x 55.88 x 37.85 cm) | 7.9” (20.07 cm) | 7” (17.78 cm) | X | X | ||||
| 3R4222-15B | 42” x 22” x 15” (106.68 x 55.88 x 38.1 cm) | 3.5” (8.89 cm) | 11.5” (29.21 cm) | X | X | ||||
| 3R4222-24B | 42” x 22” x 24” (106.68 x 55.88 x 60.96 cm) | 3.4” (8.64 cm) | 20.6” (52.32 cm) | X | X | ||||
| 3R4238-20B | 42.25” x 38.25” x 20.25” (107.32 x 97.16 x 51.44 cm) | 3” (7.62 cm) | 17.25” (43.82 cm) | X | |||||
| 3R4416-24B | 44.38” x 16.63” x 24.04” (112.73 x 42.24 x 61.06 cm) | 3.88” (9.86 cm) | 20.06” (50.95 cm) | X | X | ||||
| 3R4417-8B | 44” x 17” x 8” (111.76 x 43.18 x 20.32 cm) | 3” (7.62 cm) | 5” (12.7 cm) | X | |||||
| 3R4436-24B | 44.38” x 36.25” x 24.05” (112.73 x 92.08 x 61.09 cm) | 3.88” (9.86 cm) | 20” (50.8 cm) | X | X | ||||
| 3R4436-36B | 44.38” x 36.19” x 35.97” (112.73 x 91.92 x 91.36 cm) | 3.88” (9.86 cm) | 32” (81.28 cm) | X | X | ||||
| 3R4530-24B | 45” x 30” x 24” (114.3 x 76.2 x 60.96 cm) | 4” (10.16 cm) | 20” (50.8 cm) | X | X | X | X | ||
| 3R4714-10B | 48.13” x 14.88” x 10.47” (122.25 x 37.8 x 26.59 cm) | 5.12” (13 cm) | 5.25” (13.33 cm) | X | X | ||||
| 3R4824-18B | 48” x 24” x 18” (121.92 x 60.96 x 45.72 cm) | 3” (7.62 cm) | 15” (38.1 cm) | X | |||||
| 3R4909-5B | 49” x 9” x 5.75” (124.46 x 22.86 x 14.61 cm) | 2.375” (6.03 cm) | 3.375” (8.57 cm) | ||||||
| 3R5020-14B | 50.5” x 20.31” x 13.88” (128.27 x 51.59 x 35.26 cm) | 2.69” (6.83 cm) | 11” (27.94 cm) | X | X | ||||
| 3R5030-24B | 49.38” x 30” x 24” (125.43 x 76.2 x 60.96 cm) | 5” (12.7 cm) | 20” (50.8 cm) | X | X | X | X | ||
| 3R5123-21B | 51.5” x 23.5” x 21.5” (130.81 x 59.69 x 54.61 cm) | 10.75” (27.31 cm) | 10.75” (27.31 cm) | X | |||||
| 3R5212-7B | 52” x 12” x 8” (132.08 x 30.48 x 20.32 cm) | 3” (7.62 cm) | 5” (12.7 cm) | X | |||||
| 3R5530-20B | 55.25” x 30.25” x 20” (140.34 x 76.84 x 50.8 cm) | 3” (7.62 cm) | 17” (43.18 cm) | ||||||
| 3R6029-31B | 60” x 29” x 31.3” (152.4 x 73.66 x 79.5 cm) | 22.3” (56.64 cm) | 9” (22.86 cm) | X | |||||
| 3R6029-40B | 60.75” x 29.25” x 40” (154.31 x 74.3 x 101.6 cm) | 31” (78.74 cm) | 9” (22.86 cm) | X | |||||
| 3R6218-10B | 63.5” x 18.5” x 10” (161.29 x 46.99 x 25.4 cm) | 3” (7.62 cm) | 7” (17.78 cm) | X | |||||
| 3R6223-10B | 62” x 23” x 10” (157.48 x 58.42 x 25.4 cm) | 3” (7.62 cm) | 7” (17.78 cm) | X | |||||
| 3R6416-8B | 65.13” x 16.75” x 8.08” (165.43 x 42.54 x 20.52 cm) | 2.06” (5.23 cm) | 5.95” (15.13 cm) | X | |||||
| 3R6820-20B | 68” x 20” x 20.5” (172.72 x 50.8 x 52.07 cm) | 3.5” (8.89 cm) | 17” (43.18 cm) | X | |||||
| 3R7408-8B | 74” x 8” x 8” (187.96 x 20.32 x 20.32 cm) | 2.5” (6.35 cm) | 5.5” (13.97 cm) | X | X | ||||
| 3R7532-27B | 75” x 32.5” x 27.55” (190.5 x 82.55 x 69.98 cm) | 19.3” (49.02 cm) | 8.25” (20.96 cm) | X | |||||
| 3R8608-8B | 86” x 8” x 8” (218.44 x 20.32 x 20.32 cm) | 1.9” (4.83 cm) | 6.1” (15.49 cm) | X | X |
| 1SKB-PDL | TSA Accepted Padlock | 2pk of TSA fixed-shackle padlocks | |
| 1SKB-PDL-C | TSA Accepted Cable Lock | 2pk of TSA cable-shackle padlocks | |
| 3R-FLRK | Forklift Riser Kit | Risers bolt onto all 3R cases without standard wheels providing 4” clearance | |
| 3R-WK12 | R Series Edge Wheel Kit | Two wheels and hardware to convert any 3R case w/o standard wheels | |
| 3SKB-CAST1 | 3R Series Caster Kit | Caster plate and wheel kit for 3R cases not equipped with a pull handle or wheels | |
| 3SKB-SLP | Shipping Label Plate | 12” x 7” aluminum mounted label and installation kit |
