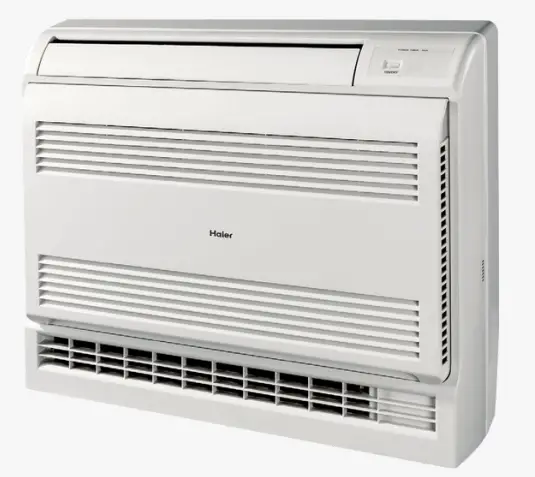

QUICK REFERENCE GUIDE > AF12AB1HRA
Console, 3.5 kW
White
DIMENSIONS
| Height | 640 mm |
| Width | 720 mm |
| Depth | 253 mm |
SPECIFICATIONS
Capacity
| Cooling capacity (kW) | 3.5kW |
| Heating capacity (kW) | 3.8kW |
Features
| 24 Hour timer | • |
| Blue fin coils | • |
| Sleep mode | • |
| Standard controller | YR-HD |
Installation
| Liquid line | 6.35mm |
Performance
| Self cleaning evaporator | • |
| Sound power | 54dBA |
| Sound pressure | 40dBA |
Power Requirements
| Supply frequency | 50Hz |
| Supply voltage | 230V |
Product dimensions
| Depth | 253 mm |
| Height | 640 mm |
| Width | 720 mm |
Warranty
| Parts and labour | 5 years |
| SKU | 51028 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
