User Manual
1×2 4K 30Hz HDMI® 2-Port Video Splitter
Includes Power Adapter – Black
Y10A235-B1

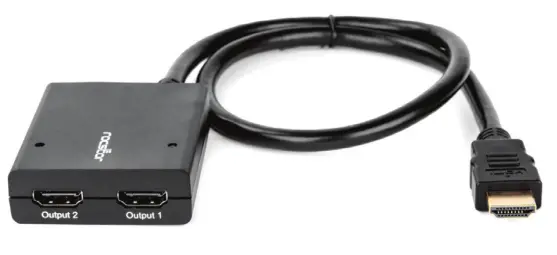

Y10A235-B1 1×2 4K 30Hz HDMI 2 Port Video Splitter Includes Power Adapter
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product. Please keep this manual for future reference.
Introduction
This is a premium Rocstor HDMI Amplifier Splitter is an HDMI splitter with two outputs. It distributes the input of the HDMI signal into the two identical outputs simultaneously. It adopted pigtail type design to reduce cost and provide more convenience for customers. It supports full 3D format and 4Kx2K. Its video amplifier bandwidth can be up to 3.4 Gpbs/340MHz. This HDMI Amplifier Splitter ofiers solutions for HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Package Contents
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the Packaging:
- Main unit x1
- User Manual x1
- 5V DC power supply
Operation
- Plug the Pigtail of the HDMI Splitter into HDMI source device.
- Connect output devices to the outputs of the HDMI Splitter by using HDMI cable. (HDMI cables are optional) *please refer to the connection diagram section.
- Insert the DC side of 5v power supply into it and then connect the AC side of the power supply into the wall outlet.
Features
Input:
| HDMI Male x1 |  |
| Output: HDMI Female x2 |  |
- Easy to Use: Install in seconds, no need of setting.
- One HDMI Input, two HDMI outputs
- Supports Full 3D and 4Kx2K resolution.
- Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.
- Supports 12bit per channel (36bit all channel) deep color.
- Supports HDCP 1.4
Specification
| Input / Output Connector | |
| Input DC Signal | 5 volts p-p (TTL) |
| Output | HDMI (with full 3D and 4Kx2K) |
| Maximum Single Link Range | 4K x 2K |
| Operating Frequency | |
| Vertical Frequency Range | 50/60Hz |
| Video Amplifier Bandwidth | 3.4Gbps/340MHz |
| Resolutions(HDTV) | |
| Interlaced(50&60Hz) | 480i,576i,1080i |
| Progressive(50&60Hz) | 480p,576p,720p,1080p,4Kx2K |
| Warranty | 2 Year |
| Environmental | |
| Operating Temperature | 0°C to + 45°C – (32°F to + 113°F) |
| Operating Humidity | 10% to 90 % RH (no condensation) |
| Storage Temperature | -10°C to + 70°C – (14°F to + 158°F) |
| Storage Humidity | 10% to 90 % RH (no condensation) |
| Regulatory Approvals | |
| Certifications | FCC, CE |
| Mechanical | |
| Size(L-W-H) | 63x54x18mm – (2.4”x2.1”x0.7”) |
| Weight(Net) | 167gr – (5.90oz) |
| Power Requirement | |
| External Power Supply | DC 5V/1A |
| Power Consumption | 2.1W |
| Accessory | |
| User Manual | English Version |
| AC Power Adapter | US standard, UK standard and so on |

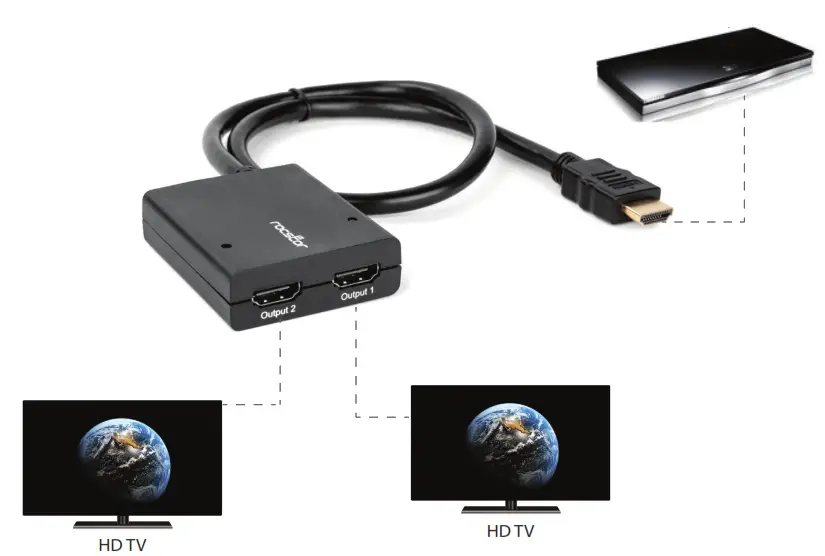

Connection Diagram
Warranty Information
Warranty Information
This product is backed by a (2) two-year warranty. Rocstor warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. Rocstor does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of Rocstorage, Inc. and Rocstor (or their oficers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
Safety Information:
WARNING: Please follow these safety instructions. Failure to do so may result damages or injury. It is normal that the Rocstor adapter becomes very warm during use.
Please note that:
continuous contact with warm surfaces for extended time may cause discomfort or injury. In order to reduce the possibility of overheating or heat-related injuries, always allow needed ventilation around the Rocstor adapter and use care when handling it. Avoid instances where your skin is in extended contact with the hub when plugged into the host computer. It is not recommended to sleep with the adapter when plugged into a host computer. Avoid placing the hub adapter under a pillow, blanket, or your body when connected to a host computer. If you have a medical condition that afiects your ability to detect heat against the body, extra care should be used. Never use the adapter in locations with water, such as a sink, bathtub, or shower stall. Never connect or disconnect the adapter with wet hands. ©2021 Rocstroge, Inc. All rights reserved. Rocstor is registered trademark of Rocstorage, Inc. Apple®, the Apple logo, Mac®, MacBook®, MacBook Pro®, MacBook Air®, iPad®, iPad Air®, iPad mini®, iPad Air®, iPhone®, MacOS® are registered trademarks of Apple, Inc. Google® and Chromebook™ are registered trademarks of Google, LLC. Microsoft® is registered trademarks of Microsoft corporation. Al other product names and logos mentioned herein may be trademarks of their respective companies. Thunderbolt is a trademark of Intel Corporation or its subsidiaries. USB Type-C® and USB-C® are registered trademark of USB Implementers Forum. Feature and specification are subject to change without notice. All trademarks and registered trademarks are the property of their respective. All rights reserved.
